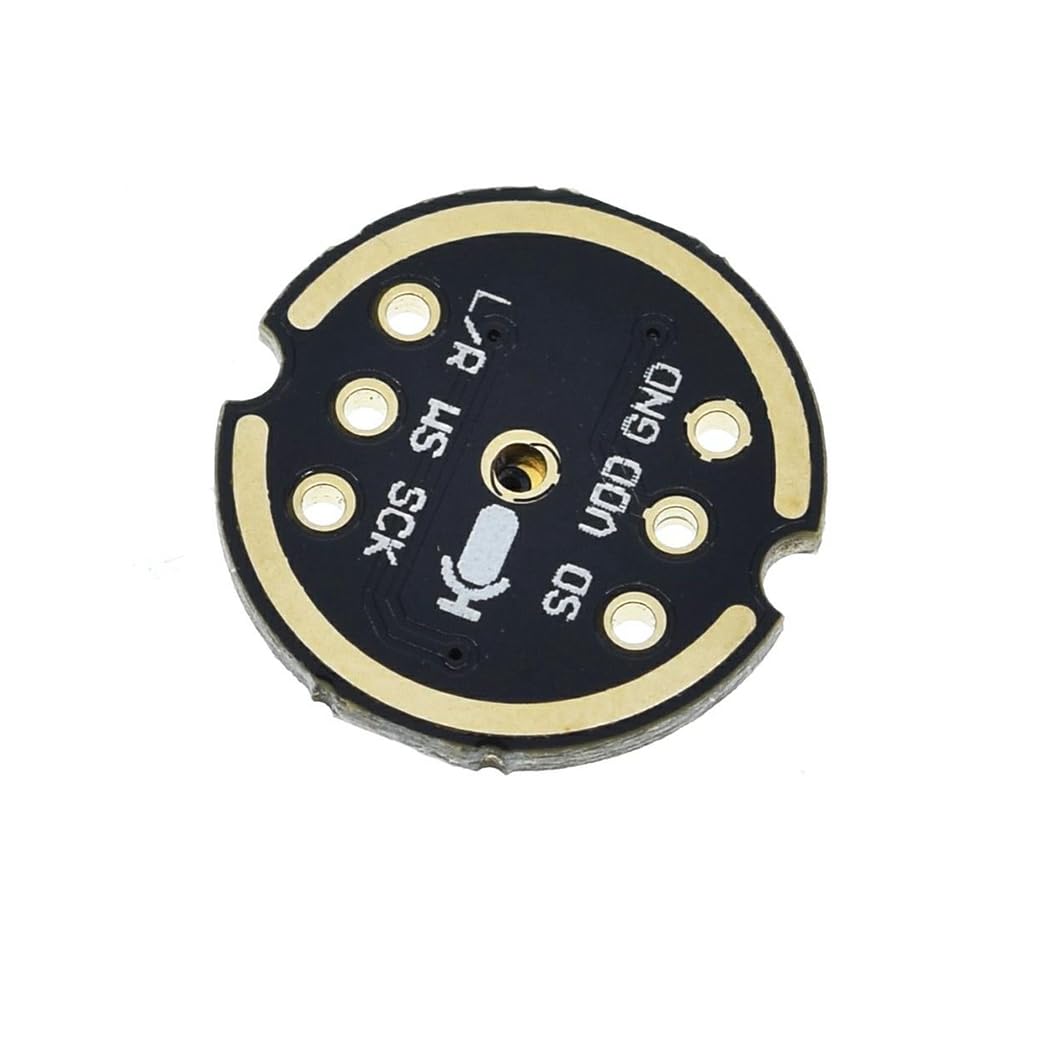

{"id":8554235101337,"title":"HiLetgo 3pcs INMP441 Omnidirectional Microphone Module High Precision 24 Bit Data I2S Interface Digital Output High Sensitivity","handle":"hiletgo-3pcs-inmp441-omnidirectional-microphone-module-high-precision-24-bit-data-i2s-interface-digital-output-high-sensitivity","description":"\u003ch3\u003eHiLetgo 3pcs INMP441 Omnidirectional Microphone Module High Precision 24 Bit Data I2S Interface Digital Output High Sensitivity\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDescription: Digital I2S interface with high precision 24-bit data High signal\r\nto noise ratio is 61 dBA High sensitivity - 26 dBFS Stable frequency response\r\nfrom 60 Hz to 15 kHz Low power consumption: low current consumption 1.4 mA\r\nHigh PSR: -75 dBFS Interfaces: SCK: Serial data clock for I2S interface WS:\r\nSerial data word selection for I2S interface L\/R: Left\/Right channel\r\nselection. When set to low, the microphone outputs a signal on the left\r\nchannel of the I2S frame. When set to high level, the microphone outputs\r\nsignals on the right channel SD: Serial data output of the I2S interface. VCC:\r\nInput power, 1.8V to 3.3V. GND: power ground How to connect to ESP32 with I2S:\r\nConnect to ESP32: INMP441 ESP32 SCK \u0026gt;\u0026gt; GPIO14 SD \u0026gt;\u0026gt; GPIO32 WS \u0026gt;\u0026gt; GPIO15 L\/R \u0026gt;\u0026gt;\r\nGND GND \u0026gt;\u0026gt; GND VDD \u0026gt;\u0026gt; VDD3.3 Package included: 3 INMP441 Omnidirectional\r\nMicrophone Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eINMP441 Omnidirectional Microphone Module\u003c\/li\u003e\r\n \u003cli\u003eDigital I2S interface with high precision 24-bit data\u003c\/li\u003e\r\n \u003cli\u003eHigh signal to noise ratio is 61 dBA; High sensitivity - 26 dBFS\u003c\/li\u003e\r\n \u003cli\u003eYou could connect freely to EPS32 with I2S interface\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-23T18:41:45+11:00","created_at":"2025-10-23T18:41:42+11:00","vendor":"HiLetgo","type":"Audio Interfaces","tags":["music_selected_Oct2025"],"price":10500,"price_min":10500,"price_max":10500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45819711717529,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CDWX48DW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HiLetgo 3pcs INMP441 Omnidirectional Microphone Module High Precision 24 Bit Data I2S Interface Digital Output High Sensitivity","public_title":null,"options":["Default Title"],"price":10500,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"INMP441","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/B0CDWX48DW.jpg?v=1775757774","\/\/soundstores.net\/cdn\/shop\/files\/51_B8Og2PEL_3f1571c8-a851-4360-ba0f-1e8795b79fd2.jpg?v=1761205304","\/\/soundstores.net\/cdn\/shop\/files\/51leuuboQML_2acb32e1-bc82-4759-a0e4-1a0c3889bc95.jpg?v=1761205305","\/\/soundstores.net\/cdn\/shop\/files\/51R5KRLyB1L_686a58a6-aa73-41f9-9e4a-668c183a3eb3.jpg?v=1761205304","\/\/soundstores.net\/cdn\/shop\/files\/51b5X-AHyOL_a3809ce5-086a-43f9-b0ce-72ce1aa21e97.jpg?v=1761205305","\/\/soundstores.net\/cdn\/shop\/files\/51kit68IDtL.jpg?v=1761205304","\/\/soundstores.net\/cdn\/shop\/files\/51_Du5sRIiL_bd86e792-0d0e-4d04-a278-d2e41a3b5c85.jpg?v=1761205304"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/B0CDWX48DW.jpg?v=1775757774","options":["Title"],"media":[{"alt":null,"id":34907435761817,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/B0CDWX48DW.jpg?v=1775757774"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/B0CDWX48DW.jpg?v=1775757774","width":1050},{"alt":null,"id":34907435794585,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51_B8Og2PEL_3f1571c8-a851-4360-ba0f-1e8795b79fd2.jpg?v=1761205304"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51_B8Og2PEL_3f1571c8-a851-4360-ba0f-1e8795b79fd2.jpg?v=1761205304","width":1050},{"alt":null,"id":34907435827353,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51leuuboQML_2acb32e1-bc82-4759-a0e4-1a0c3889bc95.jpg?v=1761205305"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51leuuboQML_2acb32e1-bc82-4759-a0e4-1a0c3889bc95.jpg?v=1761205305","width":1050},{"alt":null,"id":34907435860121,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51R5KRLyB1L_686a58a6-aa73-41f9-9e4a-668c183a3eb3.jpg?v=1761205304"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51R5KRLyB1L_686a58a6-aa73-41f9-9e4a-668c183a3eb3.jpg?v=1761205304","width":1050},{"alt":null,"id":34907435892889,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51b5X-AHyOL_a3809ce5-086a-43f9-b0ce-72ce1aa21e97.jpg?v=1761205305"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51b5X-AHyOL_a3809ce5-086a-43f9-b0ce-72ce1aa21e97.jpg?v=1761205305","width":1050},{"alt":null,"id":34907435925657,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51kit68IDtL.jpg?v=1761205304"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51kit68IDtL.jpg?v=1761205304","width":1050},{"alt":null,"id":34907435958425,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51_Du5sRIiL_bd86e792-0d0e-4d04-a278-d2e41a3b5c85.jpg?v=1761205304"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51_Du5sRIiL_bd86e792-0d0e-4d04-a278-d2e41a3b5c85.jpg?v=1761205304","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHiLetgo 3pcs INMP441 Omnidirectional Microphone Module High Precision 24 Bit Data I2S Interface Digital Output High Sensitivity\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDescription: Digital I2S interface with high precision 24-bit data High signal\r\nto noise ratio is 61 dBA High sensitivity - 26 dBFS Stable frequency response\r\nfrom 60 Hz to 15 kHz Low power consumption: low current consumption 1.4 mA\r\nHigh PSR: -75 dBFS Interfaces: SCK: Serial data clock for I2S interface WS:\r\nSerial data word selection for I2S interface L\/R: Left\/Right channel\r\nselection. When set to low, the microphone outputs a signal on the left\r\nchannel of the I2S frame. When set to high level, the microphone outputs\r\nsignals on the right channel SD: Serial data output of the I2S interface. VCC:\r\nInput power, 1.8V to 3.3V. GND: power ground How to connect to ESP32 with I2S:\r\nConnect to ESP32: INMP441 ESP32 SCK \u0026gt;\u0026gt; GPIO14 SD \u0026gt;\u0026gt; GPIO32 WS \u0026gt;\u0026gt; GPIO15 L\/R \u0026gt;\u0026gt;\r\nGND GND \u0026gt;\u0026gt; GND VDD \u0026gt;\u0026gt; VDD3.3 Package included: 3 INMP441 Omnidirectional\r\nMicrophone Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eINMP441 Omnidirectional Microphone Module\u003c\/li\u003e\r\n \u003cli\u003eDigital I2S interface with high precision 24-bit data\u003c\/li\u003e\r\n \u003cli\u003eHigh signal to noise ratio is 61 dBA; High sensitivity - 26 dBFS\u003c\/li\u003e\r\n \u003cli\u003eYou could connect freely to EPS32 with I2S interface\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
