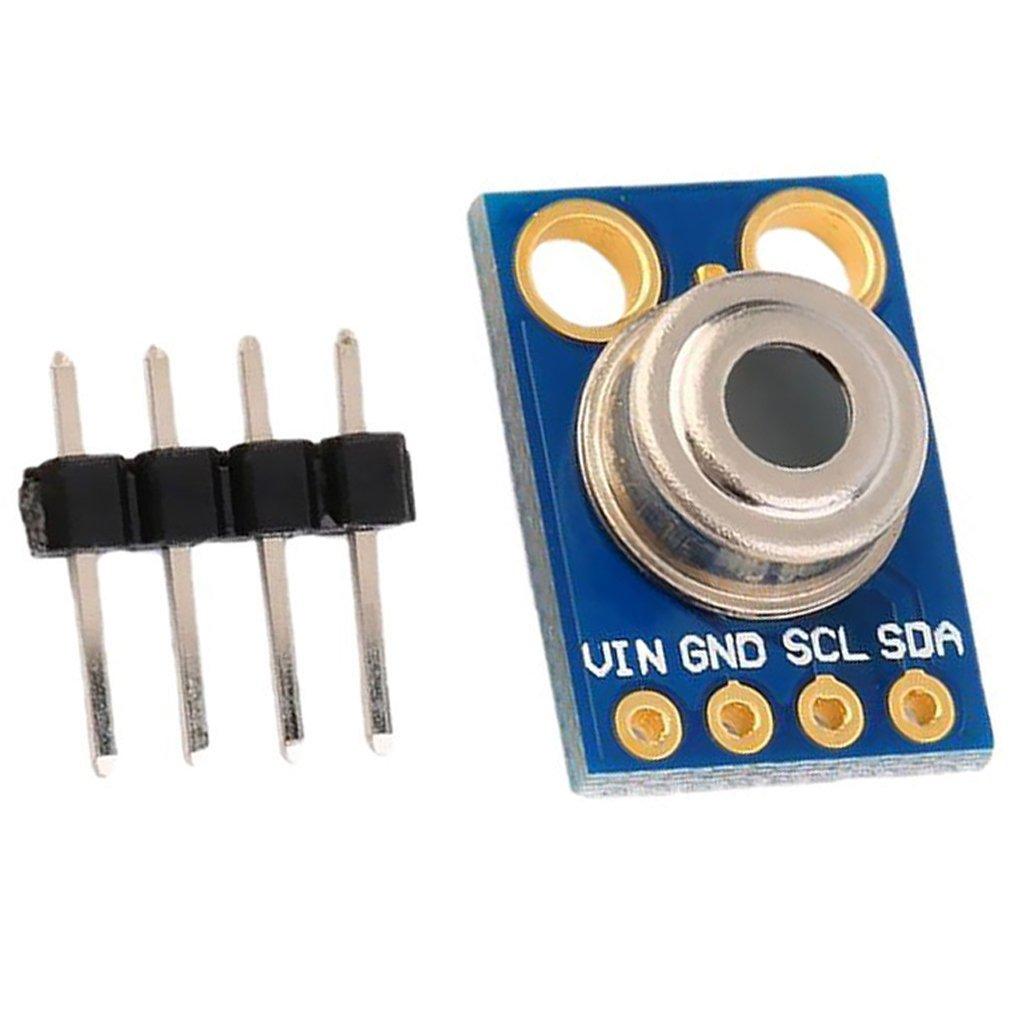

HiLetgo GY-906 MLX90614ESF Non-contact Infrared Temperature Sensor Module IIC I2C Serial for Arduino
HiLetgo GY-906 MLX90614ESF Non-contact Infrared Temperature Sensor Module IIC I2C Serial for Arduino
Features and Benefits:Small size, low costMounted on a breakout board with two types of pins10k Pull up resistors for the I2C interface with optional solder jumpersEasy to integrateFactory calibrated in wide temperature range:-40…+125°C for sensor temperature and-70…+380°C for object temperature.High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibrationMeasurement resolution of 0.02°CSingle and dual zone versionsSMBus compatible digital interfaceCustomizable PWM output for continuousreadingSimple adaptation for 8…16V applicationsSleep mode for reduced power consumptionDifferent package options for applications andmeasurements versatilityAutomotive grade Applications Examples:High precision non-contact temperaturemeasurementsThermal Comfort sensor for Mobile AirConditioning control systemTemperature sensing element for residential,commercial and industrial building airconditioning Windshield defoggingAutomotive blind angle detectionIndustrial temperature control of moving partsTemperature control in printers and copiersHome appliances with temperature controlHealthcareLivestock monitoringMovement detectionMultiple zone temperature control – up to 127sensors can be read via common 2 wiresThermal relay / alertBody temperature measurementPackage included:1 MLX90614 Infrared Temperature Sensor ModuleNOTE:Please contact us if you need the Datasheet.
- MLX90614 is an infrared thermometer for non-contact temperature measurements.
- Both the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated in the same TO-39 can.
- Integrated into the MLX90614 are a low noise amplifier, 17-bit ADC and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.
- The thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02C.
- The user can configure the digital output to be pulse width modulation (PWM). As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in range of -20 to 120C, with an output resolution of 0.14C.
