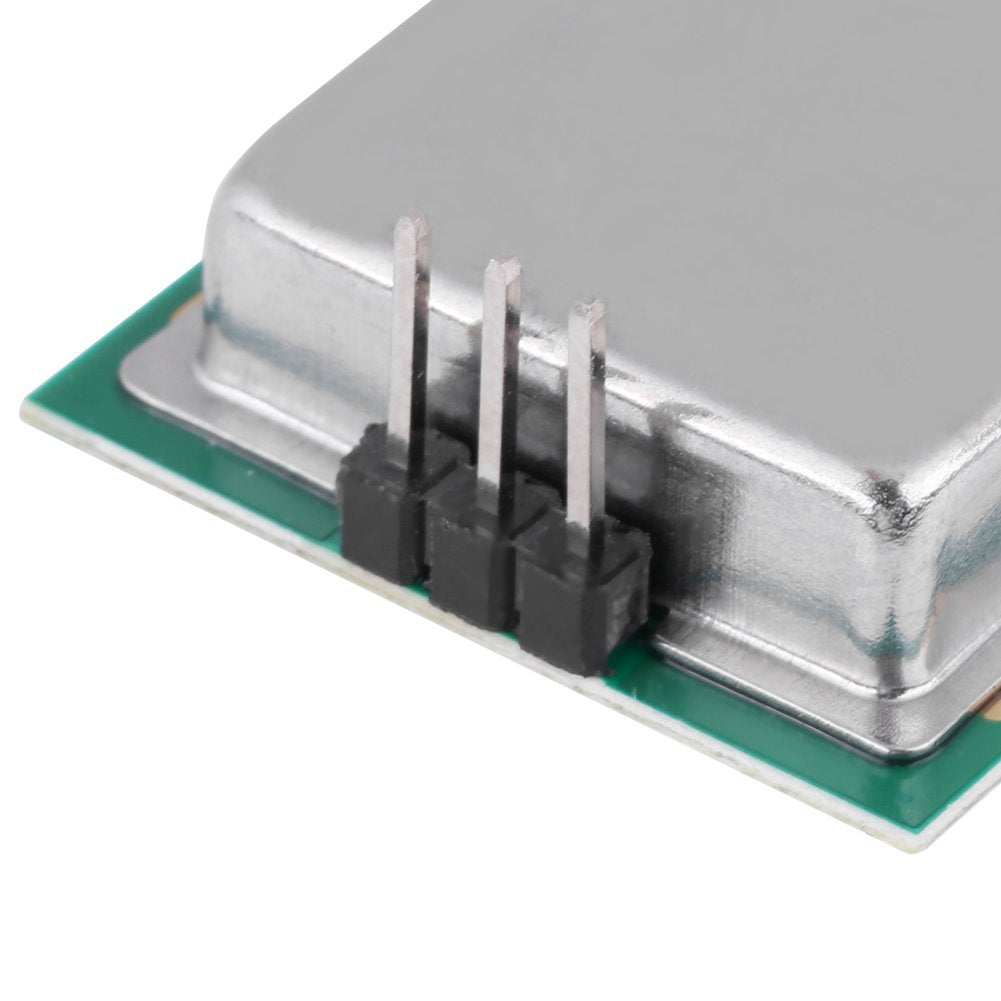

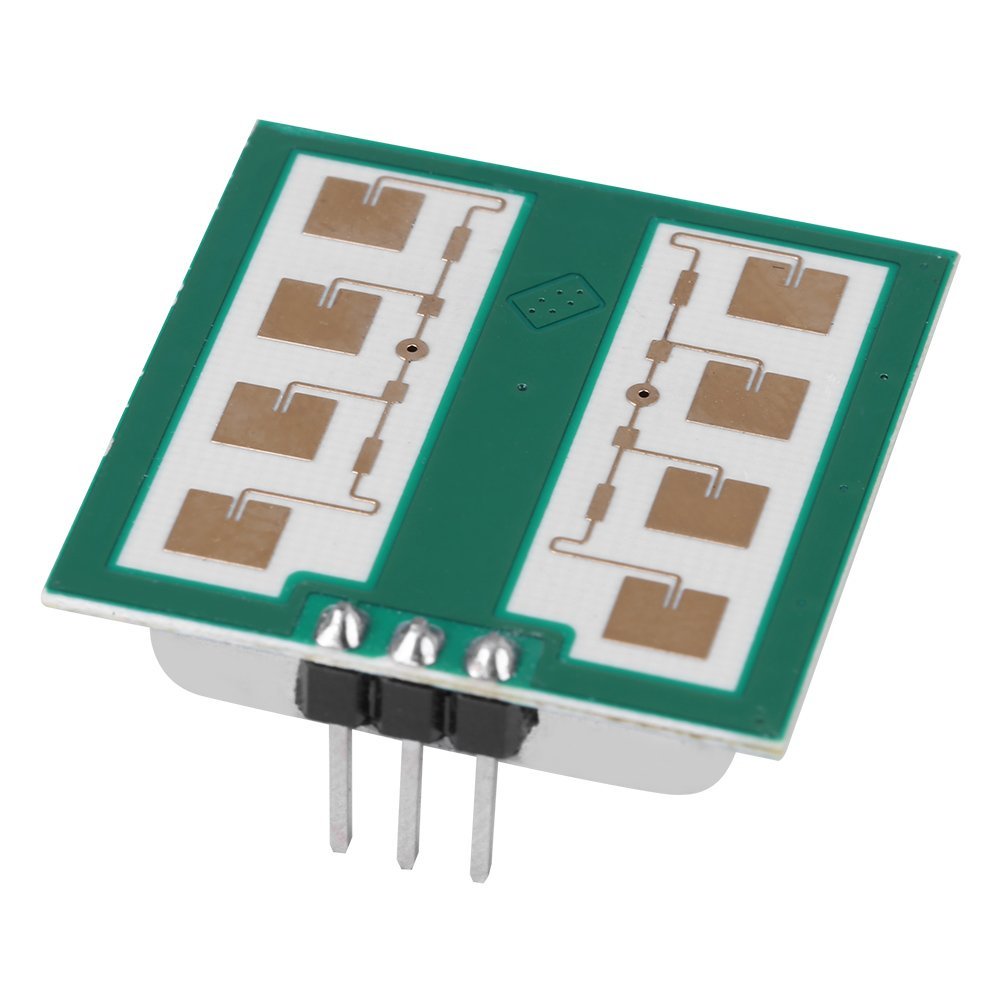

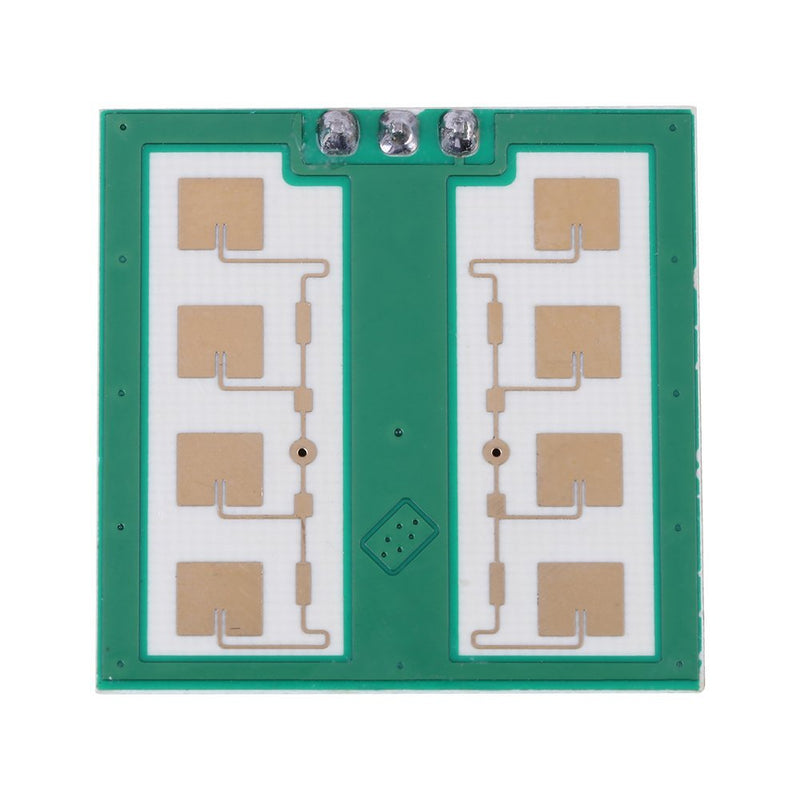

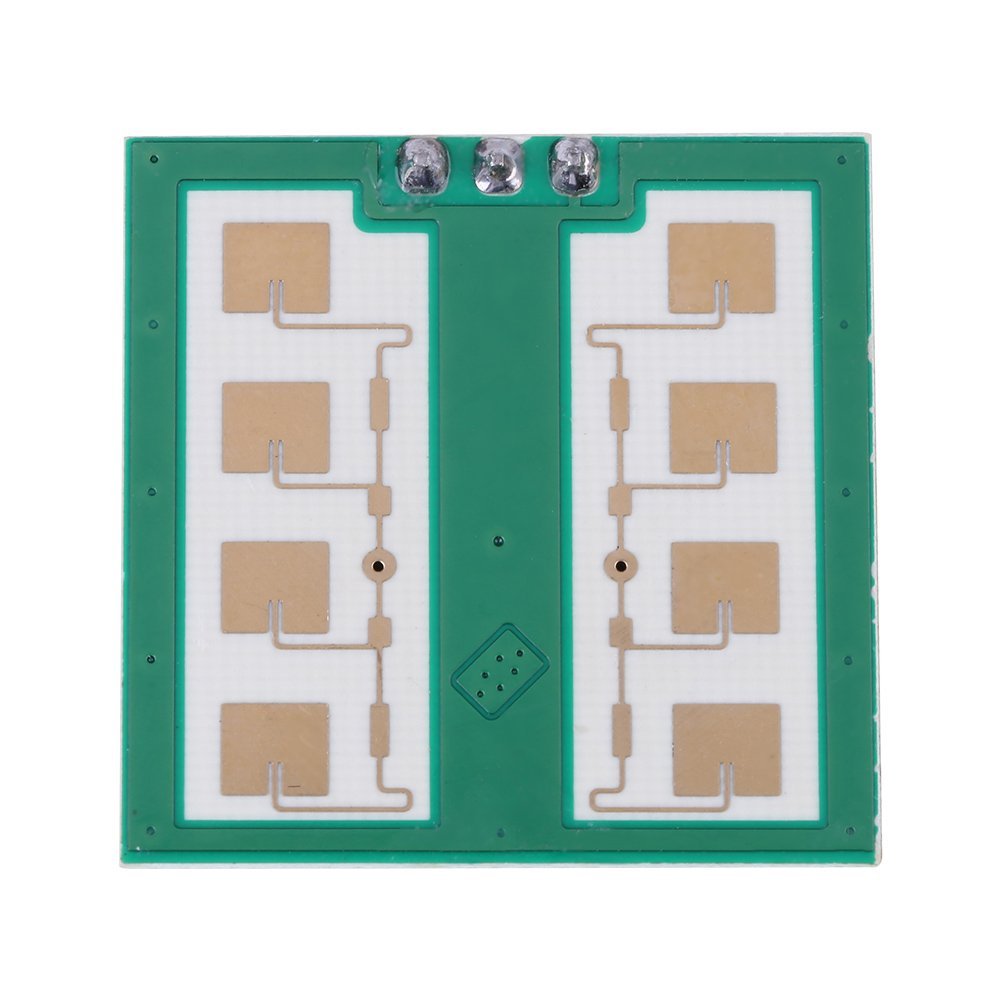

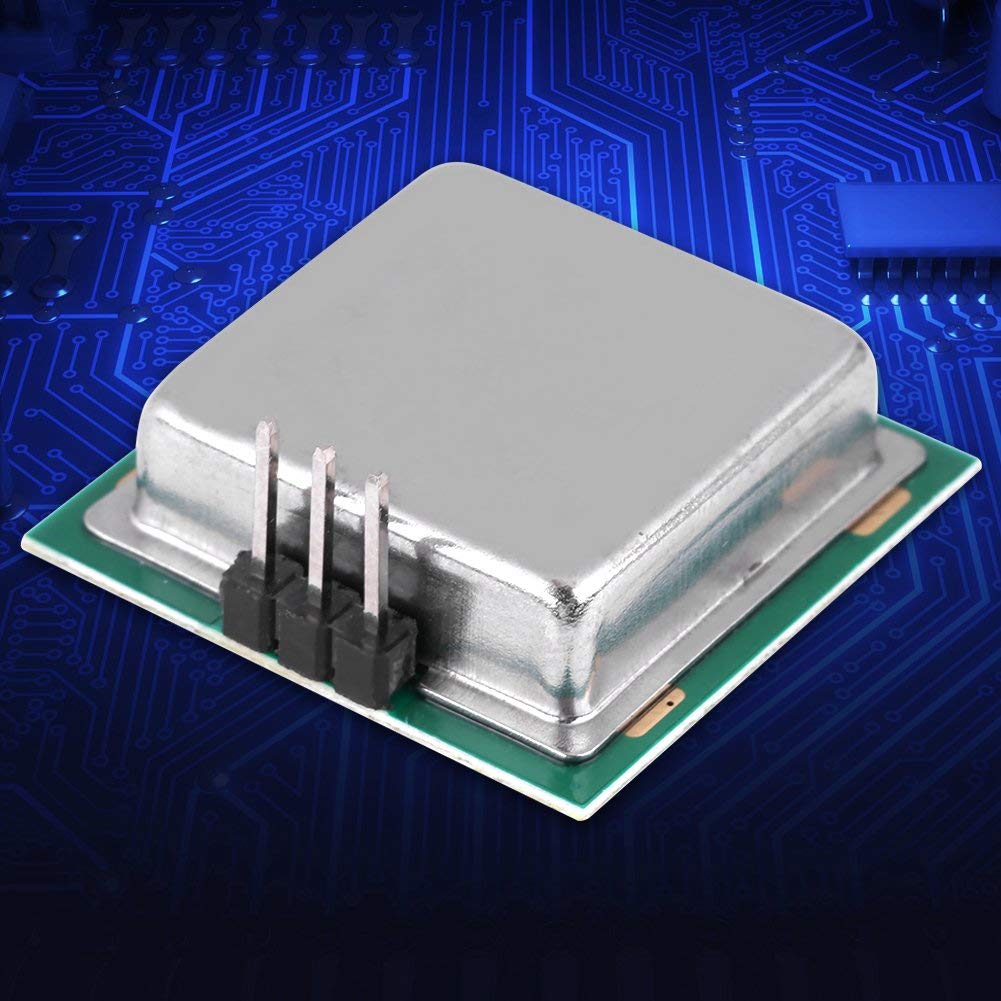

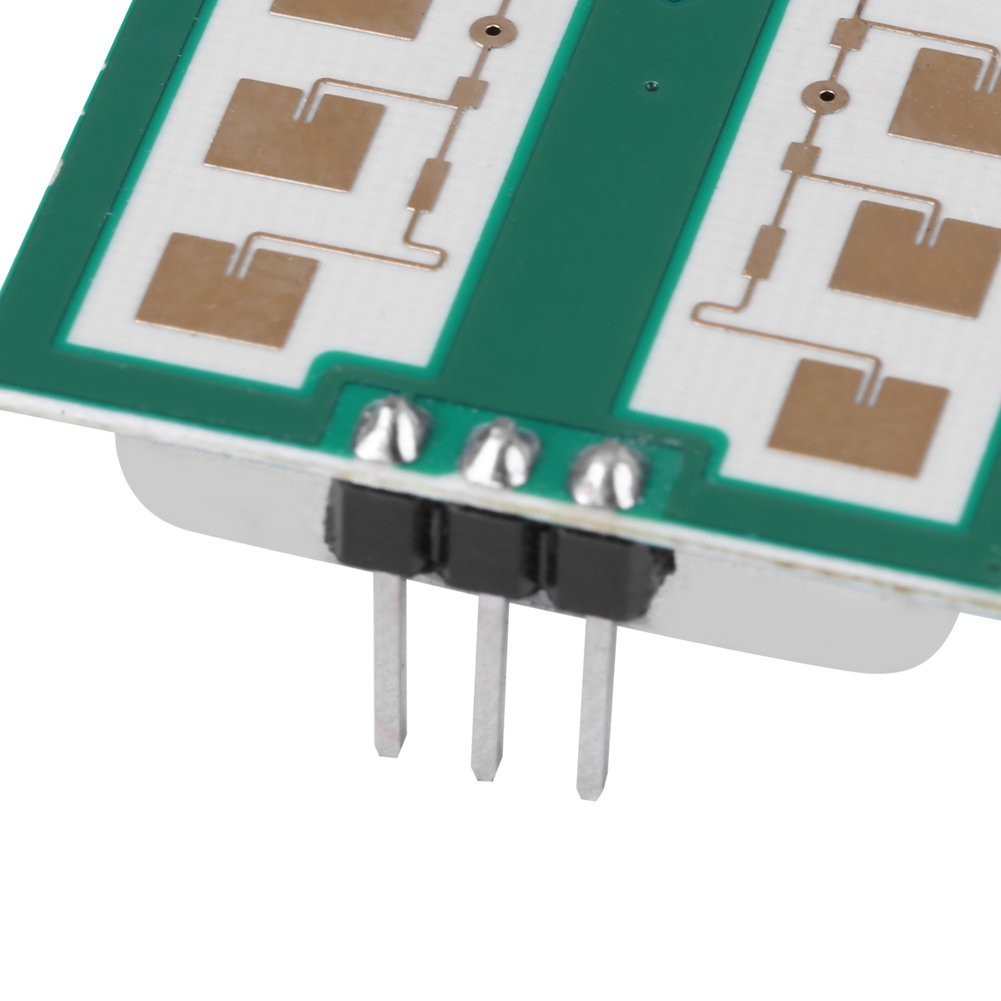

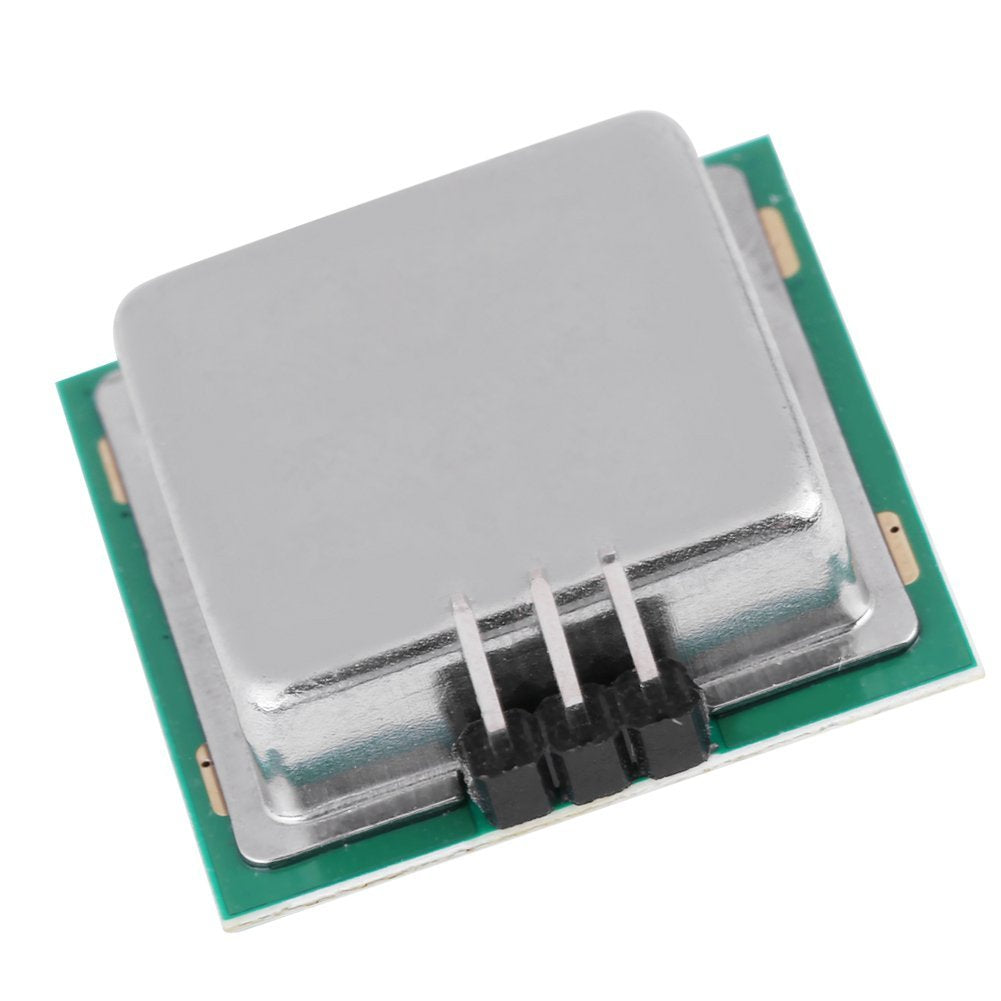

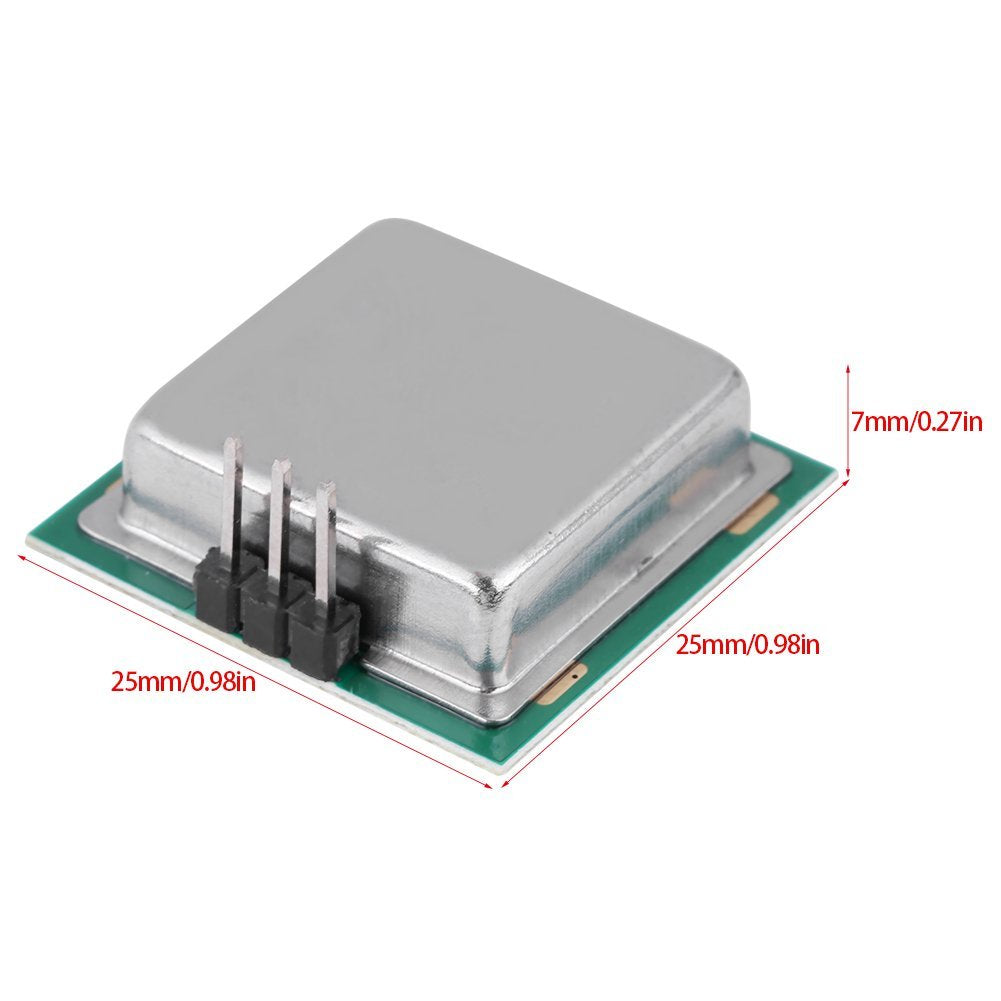

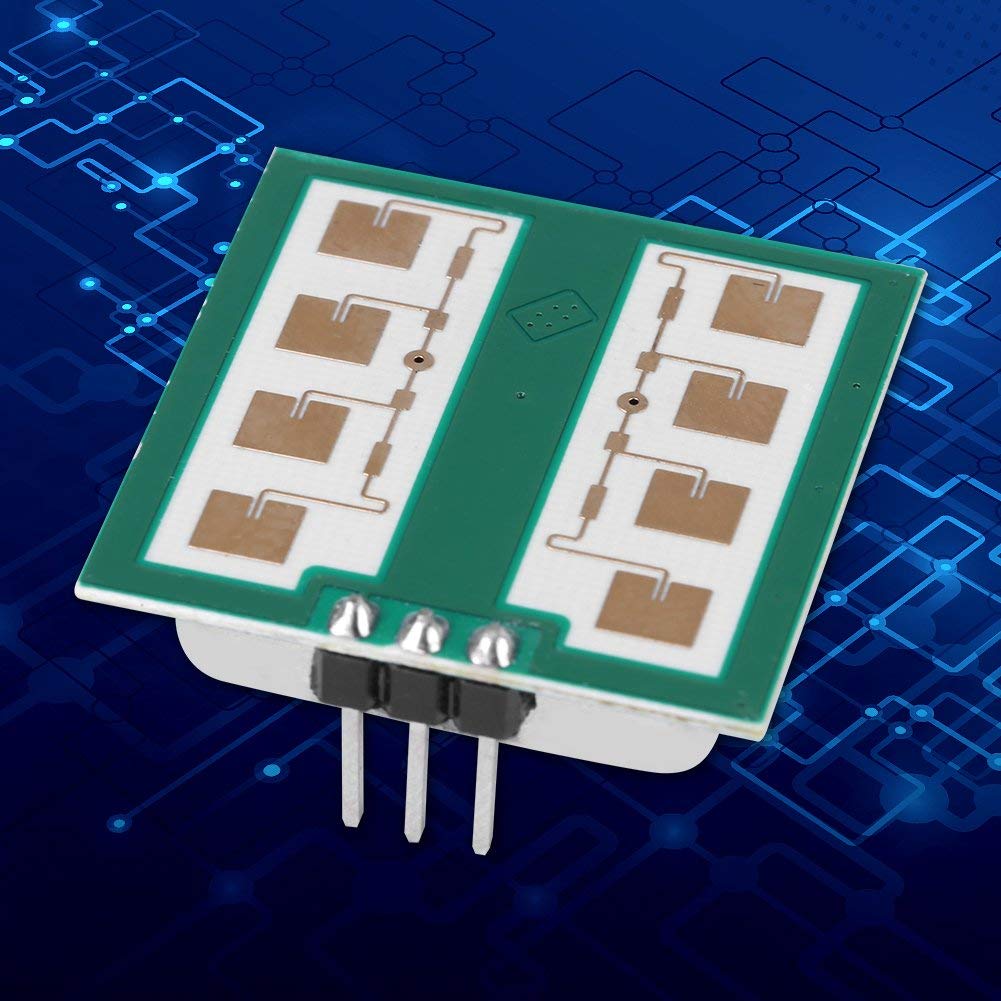

{"id":8532553072793,"title":"ICQUANZX CDM324 24GHz 15m Radar Induction Single Channel Microwave Sensor Module","handle":"icquanzx-cdm324-24ghz-15m-radar-induction-single-channel-microwave-sensor-module","description":"\u003ch3\u003eICQUANZX CDM324 24GHz 15m Radar Induction Single Channel Microwave Sensor Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Non-contact detection, detection of moving objects. The transmission\nfrequency of this module is 24 GHz and can be used in companies, industry,\nword control, etc. Provide different frequency range standards: -UK, -F.\nAdvanced low consumption PHEMT oscillator. Independent broadcasting and\nreceiving channels can bring the big profit. High sensitivity, high\nflexibility, low cost, range is 15m. Single channel operation Specifications:\nTransmission frequency: min: 24 GHz type: 24.125 GHz max: 24.25 GHz Output\npower: 16 dbm (type). Antenna pattern: horizontal direction: typ.80, vertical\ndirection: typ.32 Side lobe suppression ratio: horizontal direction: typ.13\ndB, vertical direction: typ.13 dB. Operating temperature: -20 ~ 60 °C.\nOperating current: type: 30MA, max: 40MA Operating voltage: type: 5.5 V. Pulse\nwidth: type: 10US IF output: -300 ~ 300 MV. Size: 25 x 25 x 7 mm \/ 0.98 x 0.98\nx 0.27 inches. Weight: 5 g. Box contents: 1 x microwave body induction module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNon-contact: non-contact detection, detection of moving objects. Using Doppler radar technology compared to the traditional infrared sensing PIR with the penetration detection ability.\u003c\/li\u003e\n \u003cli\u003eWide application: the transmission frequency of this module is 24 GHz and can be used in companies, industries, word control, etc. This is a microwave sensor module for detecting moving objects and the human body. Most used in the human body, the lighting system, anti-theft warning system.\u003c\/li\u003e\n \u003cli\u003eParameters: Advanced PHEMT oscillator with low consumption, offers different frequency range standards: -UK, -F, operating temperature: -20 ~ 60 C.\u003c\/li\u003e\n \u003cli\u003eIndependence: Independent transmission and reception route, can achieve the big profit. The module has many advantages such as high sensitivity, long range, wide detection angle, high reliability and a wide range of operating voltages.\u003c\/li\u003e\n \u003cli\u003eHigh performance: single channel operation. High sensitivity, high flexibility, low cost, range is 50 feet.Unaffected by temperature, humidity, noise, airflow, dust, rays, etc., adaptable to terrible environments\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-26T01:36:39+10:00","created_at":"2025-09-26T01:36:34+10:00","vendor":"ICQUANZX","type":"Proximity Sensors","tags":["industryDE_Sep2025"],"price":11400,"price_min":11400,"price_max":11400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45747024724121,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07YXSDFSW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ICQUANZX CDM324 24GHz 15m Radar Induction Single Channel Microwave Sensor Module","public_title":null,"options":["Default Title"],"price":11400,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"01361","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07YXSDFSW.jpg?v=1775752039","\/\/soundstores.net\/cdn\/shop\/files\/511HEOYUcHL.jpg?v=1758814597","\/\/soundstores.net\/cdn\/shop\/files\/61TvxbYsO1L.jpg?v=1758814597","\/\/soundstores.net\/cdn\/shop\/files\/615HVzNiL_L.jpg?v=1758814597","\/\/soundstores.net\/cdn\/shop\/files\/51AaQLNS5KL.jpg?v=1758814597","\/\/soundstores.net\/cdn\/shop\/files\/61DQ1DJmY4L.jpg?v=1758814597","\/\/soundstores.net\/cdn\/shop\/files\/612xJs8bFBL.jpg?v=1758814597","\/\/soundstores.net\/cdn\/shop\/files\/51ABAoEKNiL.jpg?v=1758814597"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07YXSDFSW.jpg?v=1775752039","options":["Title"],"media":[{"alt":null,"id":34643089031321,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07YXSDFSW.jpg?v=1775752039"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07YXSDFSW.jpg?v=1775752039","width":1001},{"alt":null,"id":34643089064089,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/511HEOYUcHL.jpg?v=1758814597"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/511HEOYUcHL.jpg?v=1758814597","width":1001},{"alt":null,"id":34643089096857,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61TvxbYsO1L.jpg?v=1758814597"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61TvxbYsO1L.jpg?v=1758814597","width":1001},{"alt":null,"id":34643089129625,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/615HVzNiL_L.jpg?v=1758814597"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/615HVzNiL_L.jpg?v=1758814597","width":1001},{"alt":null,"id":34643089162393,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51AaQLNS5KL.jpg?v=1758814597"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51AaQLNS5KL.jpg?v=1758814597","width":1001},{"alt":null,"id":34643089195161,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61DQ1DJmY4L.jpg?v=1758814597"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61DQ1DJmY4L.jpg?v=1758814597","width":1001},{"alt":null,"id":34643089227929,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/612xJs8bFBL.jpg?v=1758814597"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/612xJs8bFBL.jpg?v=1758814597","width":1001},{"alt":null,"id":34643089260697,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51ABAoEKNiL.jpg?v=1758814597"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51ABAoEKNiL.jpg?v=1758814597","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eICQUANZX CDM324 24GHz 15m Radar Induction Single Channel Microwave Sensor Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Non-contact detection, detection of moving objects. The transmission\nfrequency of this module is 24 GHz and can be used in companies, industry,\nword control, etc. Provide different frequency range standards: -UK, -F.\nAdvanced low consumption PHEMT oscillator. Independent broadcasting and\nreceiving channels can bring the big profit. High sensitivity, high\nflexibility, low cost, range is 15m. Single channel operation Specifications:\nTransmission frequency: min: 24 GHz type: 24.125 GHz max: 24.25 GHz Output\npower: 16 dbm (type). Antenna pattern: horizontal direction: typ.80, vertical\ndirection: typ.32 Side lobe suppression ratio: horizontal direction: typ.13\ndB, vertical direction: typ.13 dB. Operating temperature: -20 ~ 60 °C.\nOperating current: type: 30MA, max: 40MA Operating voltage: type: 5.5 V. Pulse\nwidth: type: 10US IF output: -300 ~ 300 MV. Size: 25 x 25 x 7 mm \/ 0.98 x 0.98\nx 0.27 inches. Weight: 5 g. Box contents: 1 x microwave body induction module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNon-contact: non-contact detection, detection of moving objects. Using Doppler radar technology compared to the traditional infrared sensing PIR with the penetration detection ability.\u003c\/li\u003e\n \u003cli\u003eWide application: the transmission frequency of this module is 24 GHz and can be used in companies, industries, word control, etc. This is a microwave sensor module for detecting moving objects and the human body. Most used in the human body, the lighting system, anti-theft warning system.\u003c\/li\u003e\n \u003cli\u003eParameters: Advanced PHEMT oscillator with low consumption, offers different frequency range standards: -UK, -F, operating temperature: -20 ~ 60 C.\u003c\/li\u003e\n \u003cli\u003eIndependence: Independent transmission and reception route, can achieve the big profit. The module has many advantages such as high sensitivity, long range, wide detection angle, high reliability and a wide range of operating voltages.\u003c\/li\u003e\n \u003cli\u003eHigh performance: single channel operation. High sensitivity, high flexibility, low cost, range is 50 feet.Unaffected by temperature, humidity, noise, airflow, dust, rays, etc., adaptable to terrible environments\u003c\/li\u003e\n \u003c\/ul\u003e"}
