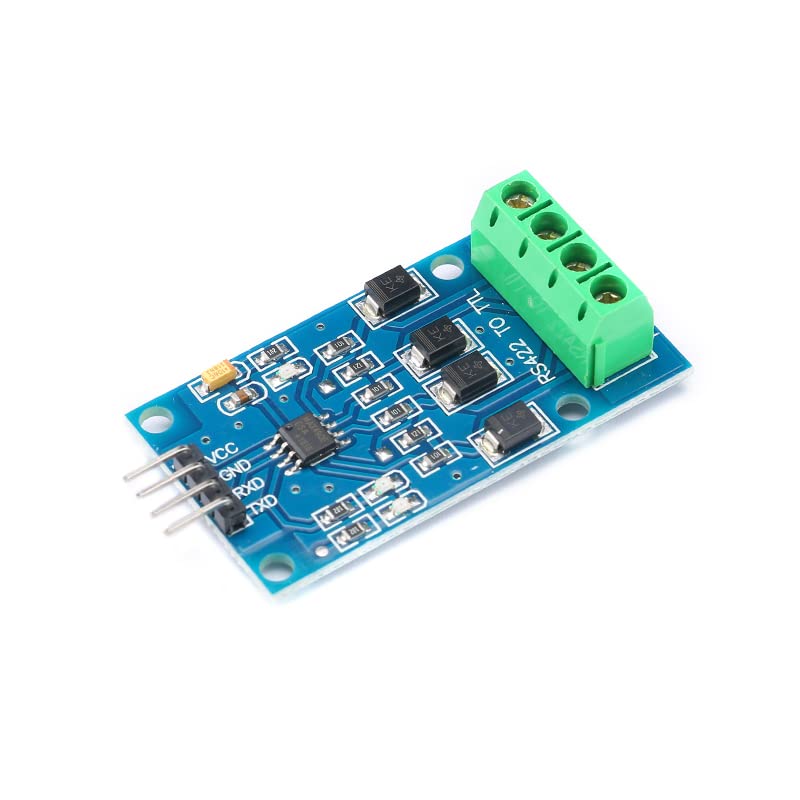

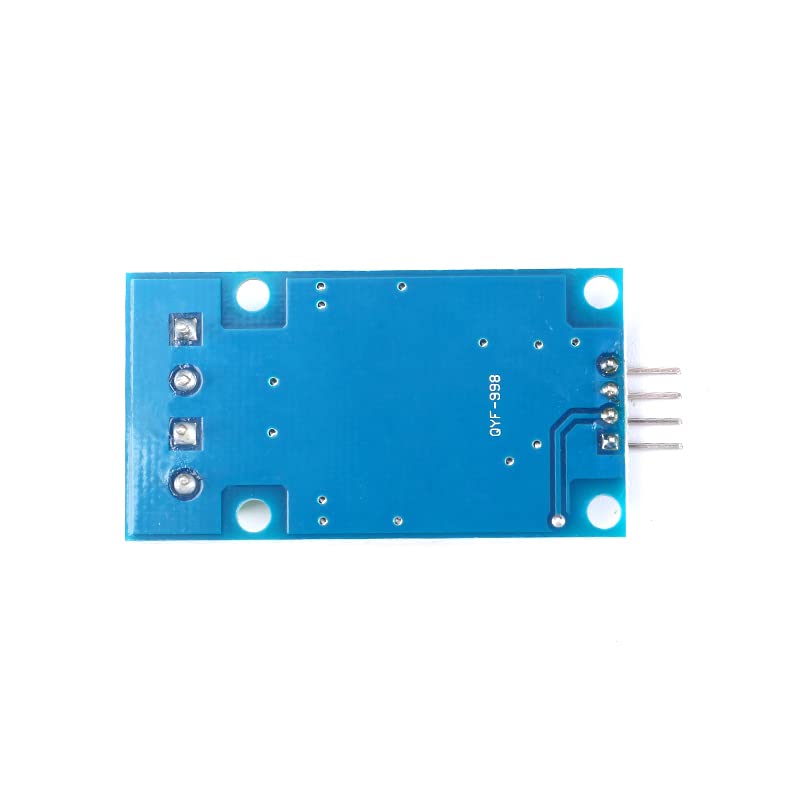

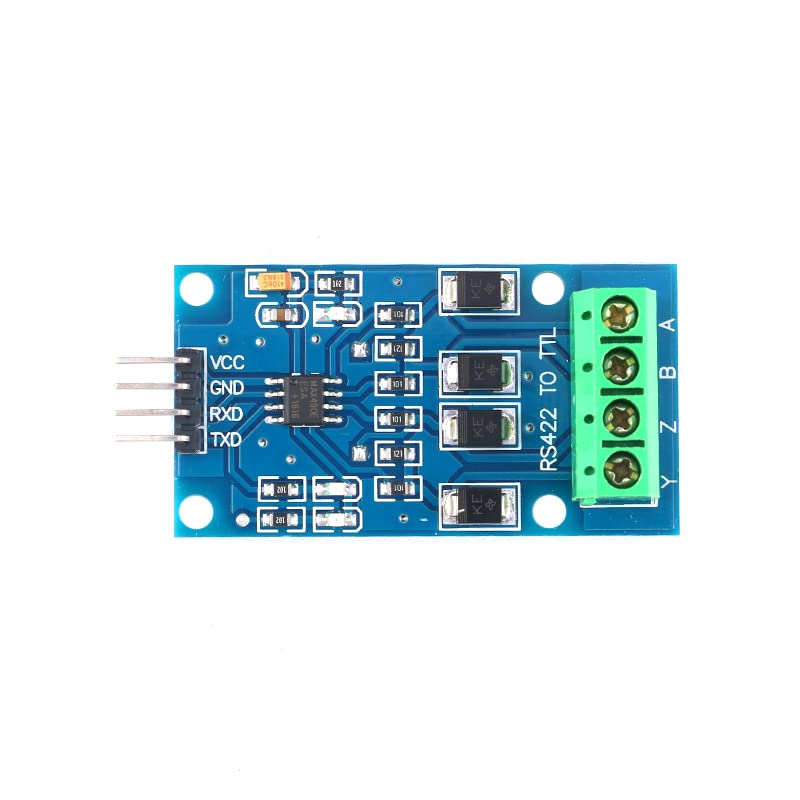

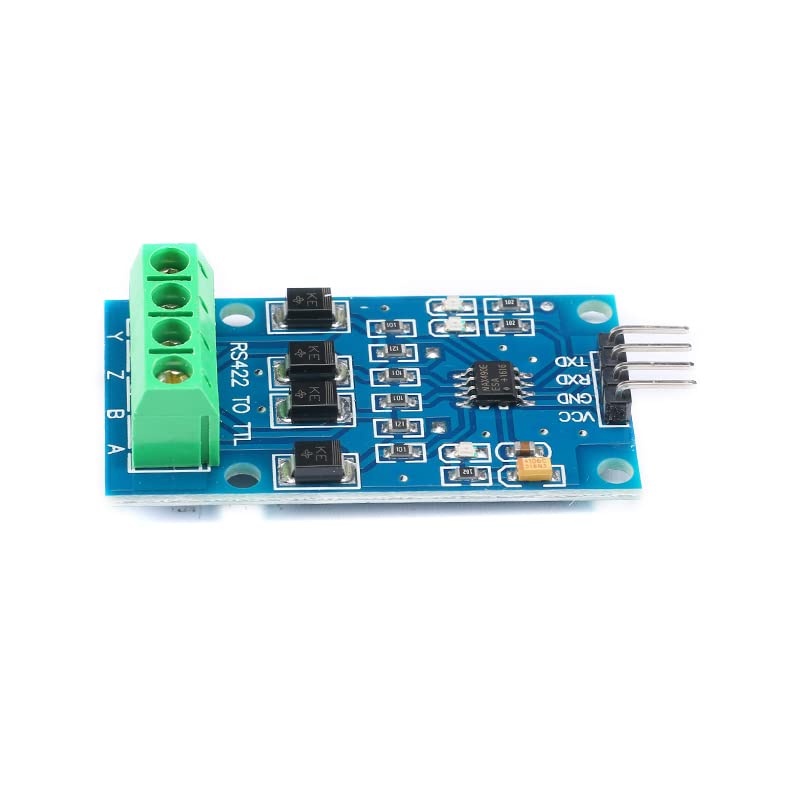

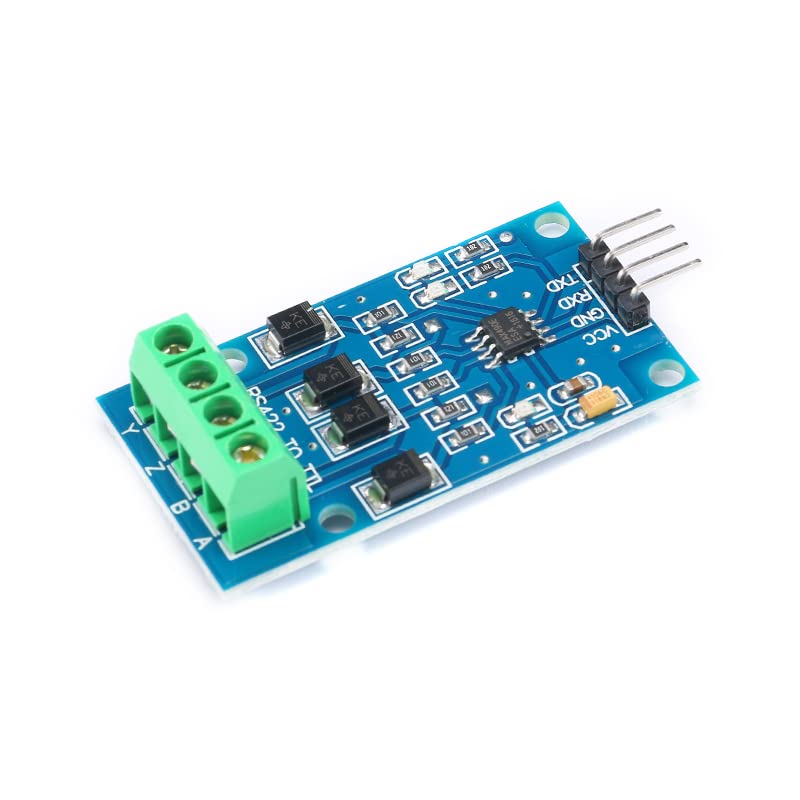

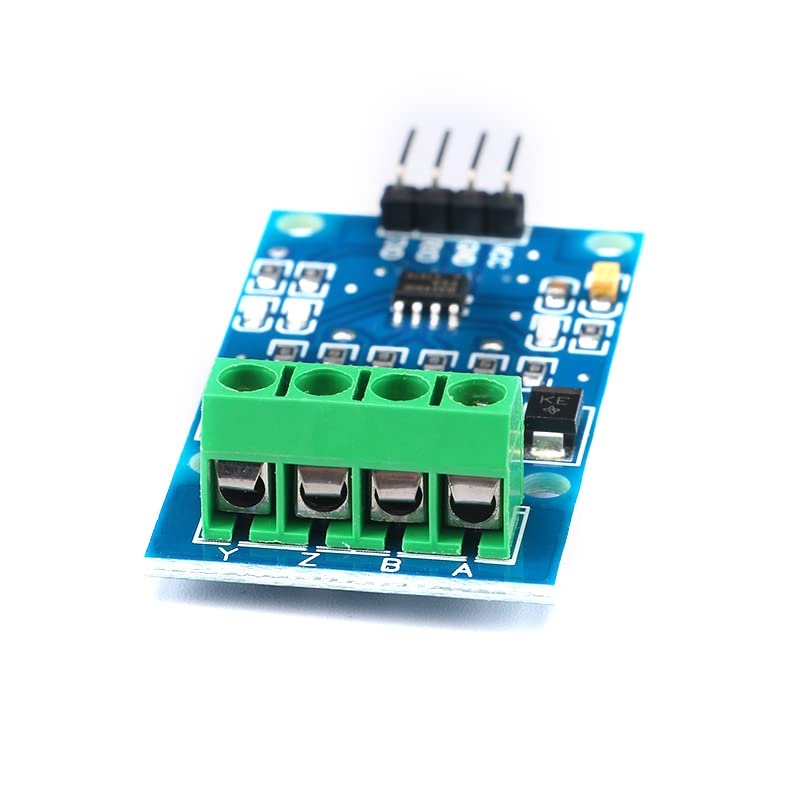

{"id":7706675576985,"title":"JESSINIE RS422 to TTL Mutual Conversion Module TTL to RS422 Bi-Directional Signal Module Full Duplex 422 to Single-chip MAX490 to TTL Module","handle":"jessinie-rs422-to-ttl-mutual-conversion-module-ttl-to-rs422-bi-directional-signal-module-full-duplex-422-to-single-chip-max490-to-ttl-module","description":"\u003ch3\u003eJESSINIE RS422 to TTL Mutual Conversion Module TTL to RS422 Bi-Directional Signal Module Full Duplex 422 to Single-chip MAX490 to TTL Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eModule size: 5.0cm 2.7cm Product description：A power indicator and data\ntransceiver indicator. Data status panoramic view. The module TTL side uses 5V\nDC power supply RXD TXD compatible 5V logic signal. RXD receiver output: If A\n\u0026gt; B 200mV, then RXD is high; If A TXD driver input: The low level forced\noutput Y on TXD is low, while the output Z is high. Similarly, the high level\non the TXD forces Y to be high and the output Z to be low. A: Receiver in-\nphase input B: Receiver inverting input Y: Driver in-phase output terminal Z:\nDriver inverting output terminal\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eRS422 interface, two-way communication. A B Y Z ultra-long transmission 1000 meters.\u003c\/li\u003e\n \u003cli\u003eThe module has 15KV ESD protection; Add a 10 ohm overcurrent protection resistor on the board.\u003c\/li\u003e\n \u003cli\u003eThe module has a TVS diode. Anti lightning, anti peak voltage.\u003c\/li\u003e\n \u003cli\u003eThe module has 120 ohm terminating resistance, can reduce long-distance communication echo interference effectively.\u003c\/li\u003e\n \u003cli\u003eThe module adopts the MAX490 chip, with stability and communication,with a maximum of 2.5 MBPS.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-08-18T18:19:37+10:00","created_at":"2023-08-18T18:19:43+10:00","vendor":"JESSINIE","type":"Serial Adapters","tags":["electronics_new_releases_Aug2023"],"price":9900,"price_min":9900,"price_max":9900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43316895350937,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0C1C3VHZW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JESSINIE RS422 to TTL Mutual Conversion Module TTL to RS422 Bi-Directional Signal Module Full Duplex 422 to Single-chip MAX490 to TTL Module","public_title":null,"options":["Default Title"],"price":9900,"weight":14,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/B0C1C3VHZW.jpg?v=1692370211","\/\/soundstores.net\/cdn\/shop\/products\/51meaP6T9uL.jpg?v=1692346783","\/\/soundstores.net\/cdn\/shop\/products\/51aTHHIoZEL.jpg?v=1692346783","\/\/soundstores.net\/cdn\/shop\/products\/51sCbbk4ziL.jpg?v=1692346783","\/\/soundstores.net\/cdn\/shop\/products\/51-8kdkXuiL.jpg?v=1692346783","\/\/soundstores.net\/cdn\/shop\/products\/41KMcoz5uXL.jpg?v=1692346784"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/B0C1C3VHZW.jpg?v=1692370211","options":["Title"],"media":[{"alt":null,"id":29413349064857,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/soundstores.net\/cdn\/shop\/files\/B0C1C3VHZW.jpg?v=1692370211"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/B0C1C3VHZW.jpg?v=1692370211","width":800},{"alt":null,"id":29412197597337,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51meaP6T9uL.jpg?v=1692346783"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51meaP6T9uL.jpg?v=1692346783","width":800},{"alt":null,"id":29412197630105,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51aTHHIoZEL.jpg?v=1692346783"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51aTHHIoZEL.jpg?v=1692346783","width":800},{"alt":null,"id":29412197662873,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51sCbbk4ziL.jpg?v=1692346783"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51sCbbk4ziL.jpg?v=1692346783","width":800},{"alt":null,"id":29412197695641,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51-8kdkXuiL.jpg?v=1692346783"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51-8kdkXuiL.jpg?v=1692346783","width":800},{"alt":null,"id":29412197728409,"position":6,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/soundstores.net\/cdn\/shop\/products\/41KMcoz5uXL.jpg?v=1692346784"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/41KMcoz5uXL.jpg?v=1692346784","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eJESSINIE RS422 to TTL Mutual Conversion Module TTL to RS422 Bi-Directional Signal Module Full Duplex 422 to Single-chip MAX490 to TTL Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eModule size: 5.0cm 2.7cm Product description：A power indicator and data\ntransceiver indicator. Data status panoramic view. The module TTL side uses 5V\nDC power supply RXD TXD compatible 5V logic signal. RXD receiver output: If A\n\u0026gt; B 200mV, then RXD is high; If A TXD driver input: The low level forced\noutput Y on TXD is low, while the output Z is high. Similarly, the high level\non the TXD forces Y to be high and the output Z to be low. A: Receiver in-\nphase input B: Receiver inverting input Y: Driver in-phase output terminal Z:\nDriver inverting output terminal\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eRS422 interface, two-way communication. A B Y Z ultra-long transmission 1000 meters.\u003c\/li\u003e\n \u003cli\u003eThe module has 15KV ESD protection; Add a 10 ohm overcurrent protection resistor on the board.\u003c\/li\u003e\n \u003cli\u003eThe module has a TVS diode. Anti lightning, anti peak voltage.\u003c\/li\u003e\n \u003cli\u003eThe module has 120 ohm terminating resistance, can reduce long-distance communication echo interference effectively.\u003c\/li\u003e\n \u003cli\u003eThe module adopts the MAX490 chip, with stability and communication,with a maximum of 2.5 MBPS.\u003c\/li\u003e\n \u003c\/ul\u003e"}
