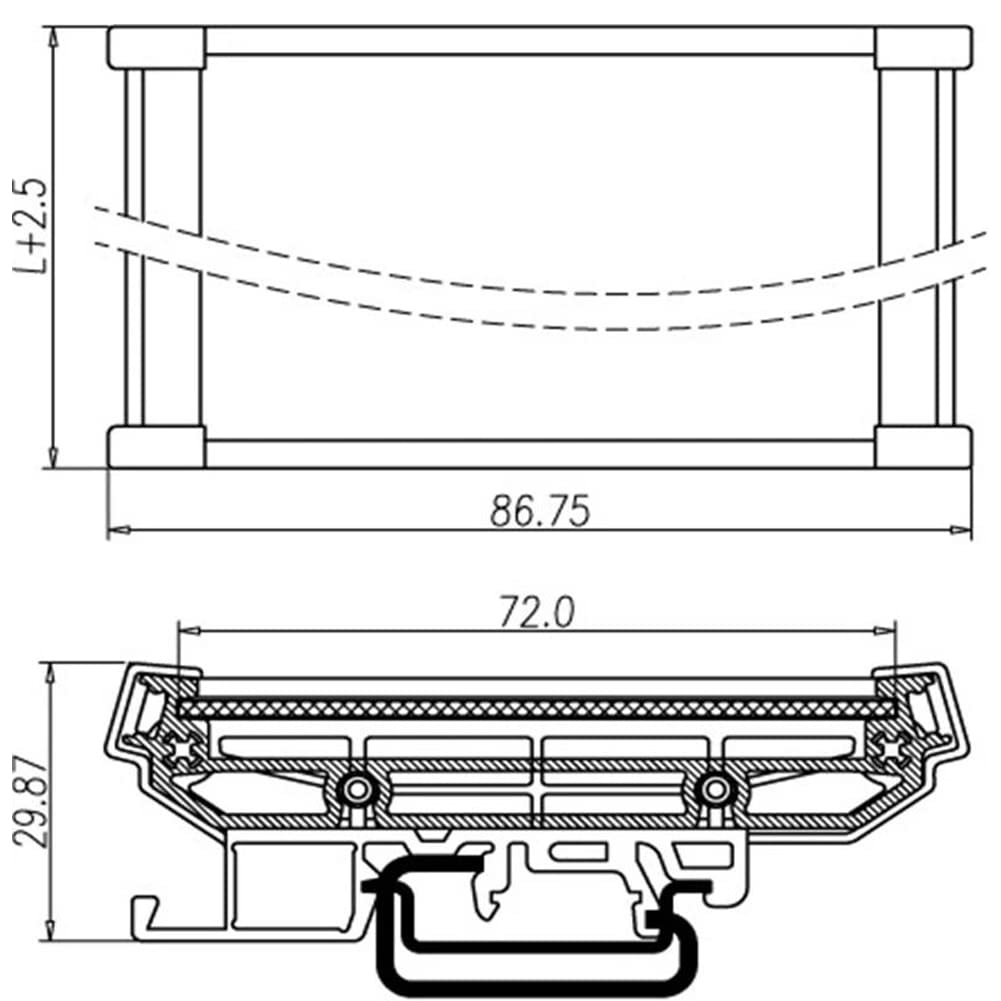

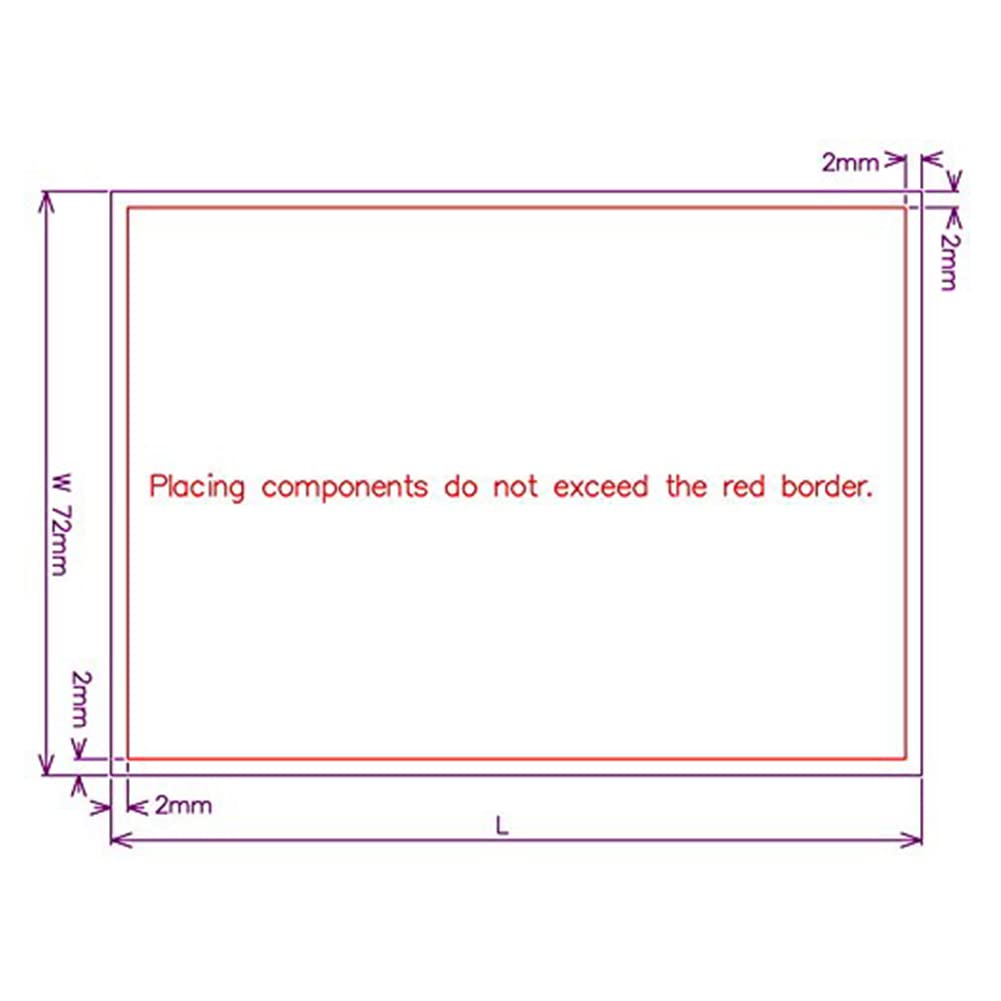

{"id":7503912599705,"title":"Jienk PCB DIN Rail Mount Carrier, Circuit Board Mounting Holder for 35mm Wide DIN Rail PCB 150mm*72mm","handle":"jienk-pcb-din-rail-mount-carrier-circuit-board-mounting-holder-for-35mm-wide-din-rail-pcb-150mm-72mm","description":"\u003ch3\u003eJienk PCB DIN Rail Mount Carrier, Circuit Board Mounting Holder for 35mm Wide DIN Rail PCB 150mm*72mm\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: This bracket is designed for holding PCB control board with the\nwidth 72mm. PCB guides on up to three levels enable compact electronic\ncircuits,e.g.in SMD technology. In order to determine the profile\nlength,0.40cm must be subtracted from the PCB length. The PCB area that can be\nequipped is reduced once by 2mm at each edge of the profiles as well as on the\nfront of the side elements. The overall length of the module ,i.e.including\nthe side elements, corresponds to the profile length plus 0.20cm per side\nelement. PCB Thickness 1.6 ~ 2.0mm Matching DIN rail width: EN 50 022 \/ 035 \/\n045 (TS 35\/32\/15) rail Color: Green Material: PVC Size: 150x72mm Ambient\nTemperature:-20℃~50℃ Compatible Din Rail Size:35mm(C45 Rail) and 15mm Package\nIncluded: 1 X DIN Rail Mount Carrier\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis PCB DIN Rail mount carrier is for mounting DIN C45 rail mounting (width 35mm\/1.38in). Easy to install and detach.\u003c\/li\u003e\n \u003cli\u003eThe circuit board mounting holder is used to secure and hold PCB or electronic switching devices.\u003c\/li\u003e\n \u003cli\u003eMatching PCB size: 150mm x 72mm(pcb thickness:1.5-2.0mm)\u003c\/li\u003e\n \u003cli\u003ePanel mounting base PCB holder\u003c\/li\u003e\n \u003cli\u003ePackage: 1 PCB DIN Rail mount bracket and 4 Screws\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-08-30T04:18:21+10:00","created_at":"2022-08-30T04:18:30+10:00","vendor":"Jienk","type":"Brackets","tags":["industrial2","industrial_update_Aug2022"],"price":11100,"price_min":11100,"price_max":11100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42544562569369,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09QPJ111R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Jienk PCB DIN Rail Mount Carrier, Circuit Board Mounting Holder for 35mm Wide DIN Rail PCB 150mm*72mm","public_title":null,"options":["Default Title"],"price":11100,"weight":109,"compare_at_price":null,"inventory_management":null,"barcode":"JT410-414","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B09QPJ111R.jpg?v=1661875021","\/\/soundstores.net\/cdn\/shop\/products\/413TiHR_4vL.jpg?v=1661797110","\/\/soundstores.net\/cdn\/shop\/products\/41X3jgj2_dL.jpg?v=1661797110","\/\/soundstores.net\/cdn\/shop\/products\/51TBoq6pdSL.jpg?v=1661797110","\/\/soundstores.net\/cdn\/shop\/products\/41M1eTbDgPL.jpg?v=1661797110","\/\/soundstores.net\/cdn\/shop\/products\/41ANjJykcQL.jpg?v=1661797110","\/\/soundstores.net\/cdn\/shop\/products\/515z9tJwNFL.jpg?v=1661797110","\/\/soundstores.net\/cdn\/shop\/products\/51Q6YNFtckL.jpg?v=1661797110"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B09QPJ111R.jpg?v=1661875021","options":["Title"],"media":[{"alt":null,"id":27709702996121,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B09QPJ111R.jpg?v=1661875021"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B09QPJ111R.jpg?v=1661875021","width":1600},{"alt":null,"id":27702311714969,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/413TiHR_4vL.jpg?v=1661797110"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/413TiHR_4vL.jpg?v=1661797110","width":1001},{"alt":null,"id":27702311747737,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/41X3jgj2_dL.jpg?v=1661797110"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/41X3jgj2_dL.jpg?v=1661797110","width":1001},{"alt":null,"id":27702311780505,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51TBoq6pdSL.jpg?v=1661797110"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51TBoq6pdSL.jpg?v=1661797110","width":1001},{"alt":null,"id":27702311813273,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/41M1eTbDgPL.jpg?v=1661797110"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/41M1eTbDgPL.jpg?v=1661797110","width":1001},{"alt":null,"id":27702311846041,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/41ANjJykcQL.jpg?v=1661797110"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/41ANjJykcQL.jpg?v=1661797110","width":1001},{"alt":null,"id":27702311878809,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/515z9tJwNFL.jpg?v=1661797110"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/515z9tJwNFL.jpg?v=1661797110","width":1001},{"alt":null,"id":27702311911577,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51Q6YNFtckL.jpg?v=1661797110"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51Q6YNFtckL.jpg?v=1661797110","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eJienk PCB DIN Rail Mount Carrier, Circuit Board Mounting Holder for 35mm Wide DIN Rail PCB 150mm*72mm\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: This bracket is designed for holding PCB control board with the\nwidth 72mm. PCB guides on up to three levels enable compact electronic\ncircuits,e.g.in SMD technology. In order to determine the profile\nlength,0.40cm must be subtracted from the PCB length. The PCB area that can be\nequipped is reduced once by 2mm at each edge of the profiles as well as on the\nfront of the side elements. The overall length of the module ,i.e.including\nthe side elements, corresponds to the profile length plus 0.20cm per side\nelement. PCB Thickness 1.6 ~ 2.0mm Matching DIN rail width: EN 50 022 \/ 035 \/\n045 (TS 35\/32\/15) rail Color: Green Material: PVC Size: 150x72mm Ambient\nTemperature:-20℃~50℃ Compatible Din Rail Size:35mm(C45 Rail) and 15mm Package\nIncluded: 1 X DIN Rail Mount Carrier\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis PCB DIN Rail mount carrier is for mounting DIN C45 rail mounting (width 35mm\/1.38in). Easy to install and detach.\u003c\/li\u003e\n \u003cli\u003eThe circuit board mounting holder is used to secure and hold PCB or electronic switching devices.\u003c\/li\u003e\n \u003cli\u003eMatching PCB size: 150mm x 72mm(pcb thickness:1.5-2.0mm)\u003c\/li\u003e\n \u003cli\u003ePanel mounting base PCB holder\u003c\/li\u003e\n \u003cli\u003ePackage: 1 PCB DIN Rail mount bracket and 4 Screws\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
