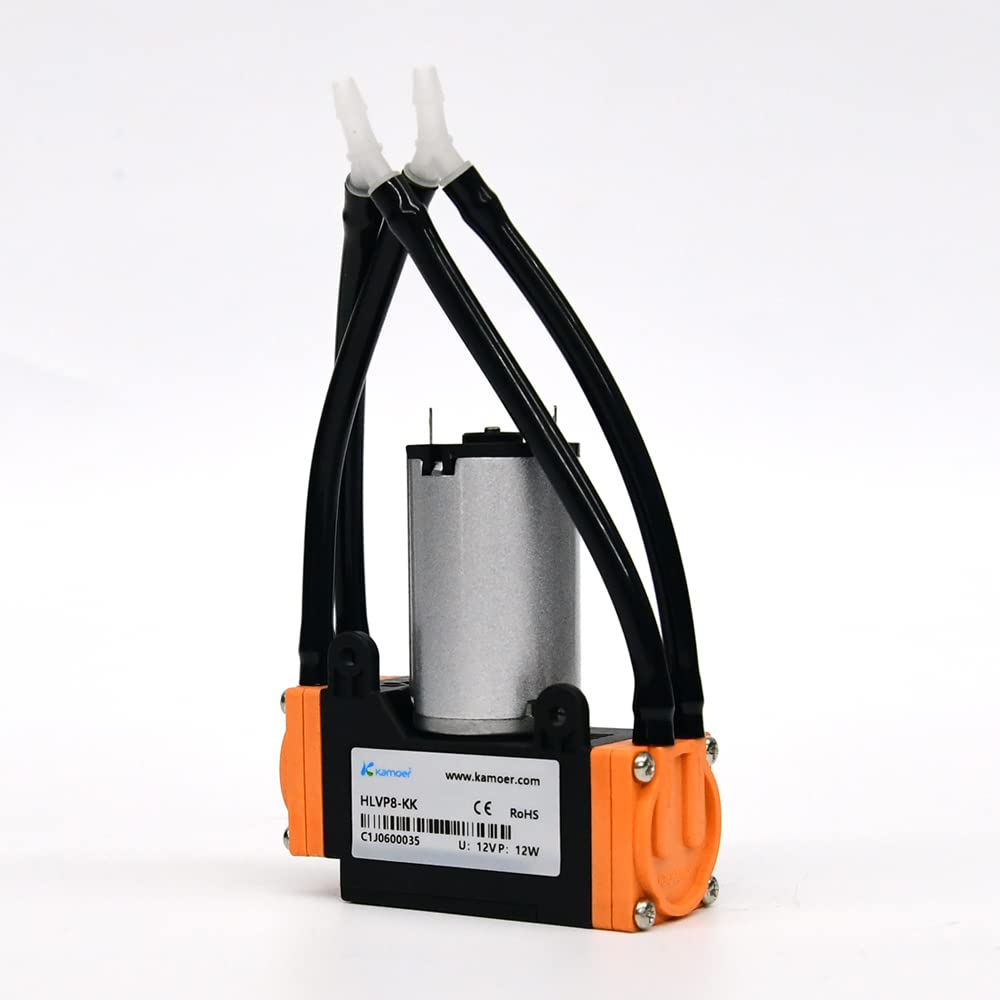

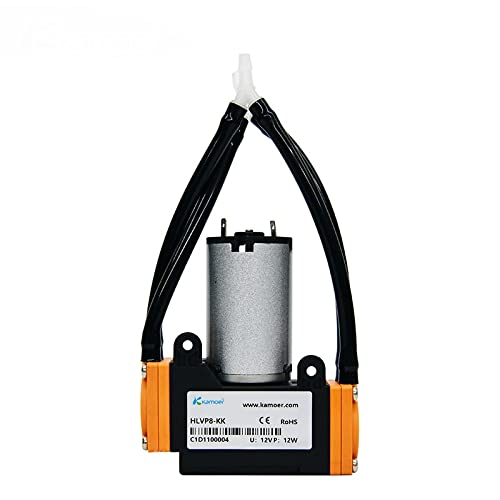

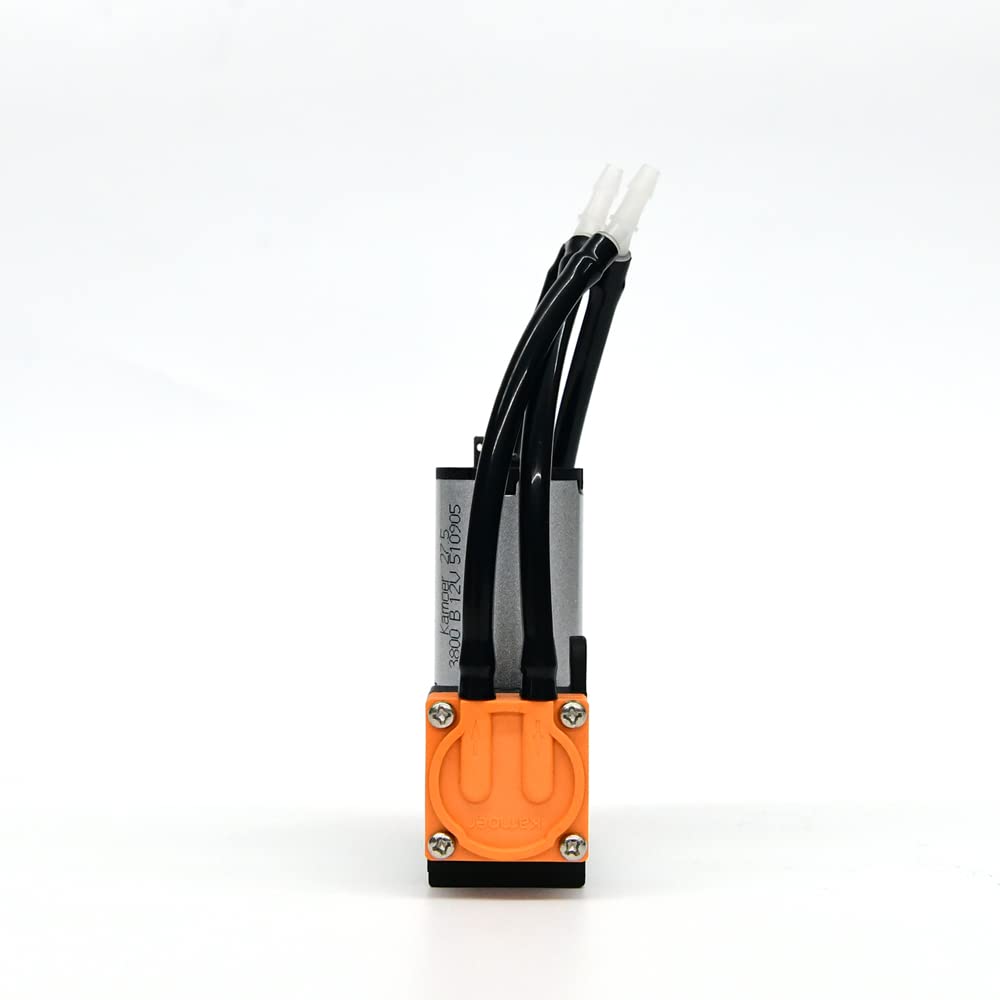

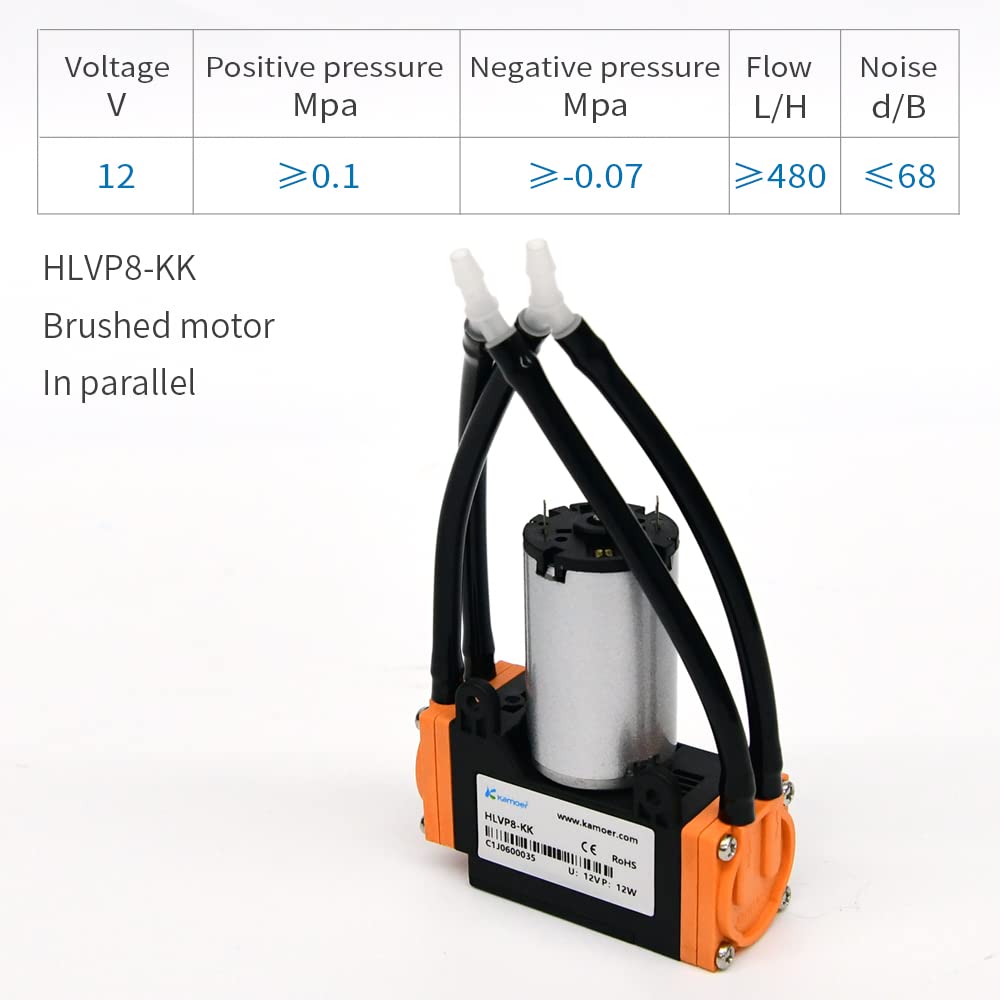

{"id":7494747652249,"title":"Kamoer HLVP8 Mini Vacuum Pump 12V dc Brushed Motor air Pump Parallel Connection Super high percision Diaphragm Pump high Flow 480L\/H","handle":"kamoer-hlvp8-mini-vacuum-pump-12v-dc-brushed-motor-air-pump-parallel-connection-super-high-percision-diaphragm-pump-high-flow-480l-h","description":"\u003ch3\u003eKamoer HLVP8 Mini Vacuum Pump 12V dc Brushed Motor air Pump Parallel Connection Super high percision Diaphragm Pump high Flow 480L\/H\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHLVP8 Series Basic Parameters Voltage: 12V\/24V Motor:\nBrushless motor\/Brush motorFlow rate: In series≥360L\/H In parallel≥480L\/H\nPositive pressure≥0.1MpaNegative pressure: In series≥-0.088Mpa In\nparallel≥-0.072Mpa Diaphragm material: EPDM（It has good resistance to\nalcohols, acids, alkalis, oxidizers, ketones, greases and other chemicals, but\npoor oil resistance.）Lifetime: Brushless motor:6000H Brush motor:2000H Noise ≤\n68dBWeight：around 290g Although the measured parallel flow rate can reach a\nmaximum of approximately 530L\/H, we do not recommend using the maximum value\nin order to protect the product. Principle: HLVP8 series of miniature\ndiaphragm pumps are simply designed according to the principle of positive\ndisplacement pumps. By controlling the inlet and outlet of the diaphragm, a\npower drive is formed and the transmission mechanism pushes the piston to\nreciprocate, and the intake pressure pushes the diaphragm back and forth to do\nwork to suck and discharge gas. Various Applications TUV ISO9001 quality\nmanagement system certification (German TUV safety certification)CE\ncertification (passed electrical safety certification)ROHS certification\n(through the use of hazardous substances in the product testing)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHLVP8 single-head high-precision series diaphragm vacuum air pump. Series connection flow 360L\/H; Parallel connection flow 480L\/H, the service life of brush motor is 2000H, and the service life of brushless motor is 6000H.\u003c\/li\u003e\n \u003cli\u003eHLVP8 12V vacuum pump parallel negative pressure-0.072Mpa,positive pressure0.1Mpa, noise68db.\u003c\/li\u003e\n \u003cli\u003eHLVP8 12V vacuum pump using EPDM high-quality diaphragm, it has good resistance to chemicals such as alcohol, acid, alkali, oxidizer, ketone and grease, and poor oil resistance. Good tolerance, dry running, durable, maintenance-free.\u003c\/li\u003e\n \u003cli\u003ePrinciple: HLVP8 series of miniature diaphragm vacuum pumps are simply designed according to the principle of positive displacement pumps. By controlling the inlet and outlet of the diaphragm, a power drive is formed and the transmission mechanism pushes the piston to reciprocate, and the intake pressure pushes the diaphragm back and forth to do work to suck and discharge gas.\u003c\/li\u003e\n \u003cli\u003e12V vacuum pump application areas: transmission of gas, inflation, gas analysis, laboratory equipment, fixed objects, household DIY, etc.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-08-20T00:25:31+10:00","created_at":"2022-08-20T00:25:37+10:00","vendor":"K KAMOER","type":"Vacuum Pumps","tags":["industrial2"],"price":24000,"price_min":24000,"price_max":24000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42503064748185,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09KGHC3MC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kamoer HLVP8 Mini Vacuum Pump 12V dc Brushed Motor air Pump Parallel Connection Super high percision Diaphragm Pump high Flow 480L\/H","public_title":null,"options":["Default Title"],"price":24000,"weight":322,"compare_at_price":null,"inventory_management":null,"barcode":"HLVP8-KK\u0026KB","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B09KGHC3MC.jpg?v=1660923837","\/\/soundstores.net\/cdn\/shop\/products\/51qJlm-7EBL.jpg?v=1660919137","\/\/soundstores.net\/cdn\/shop\/products\/51J7KiEHXOL.jpg?v=1660919137","\/\/soundstores.net\/cdn\/shop\/products\/4180UyabnrL.jpg?v=1660919137","\/\/soundstores.net\/cdn\/shop\/products\/61S8QMgefhL.jpg?v=1660919137","\/\/soundstores.net\/cdn\/shop\/products\/61PpjgM8LPL.jpg?v=1660919137"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B09KGHC3MC.jpg?v=1660923837","options":["Title"],"media":[{"alt":"[AUSTRALIA] - Kamoer HLVP8 Mini Vacuum Pump 12V dc Brushed Motor air Pump Parallel Connection Super high percision Diaphragm Pump high Flow 480L\/H ","id":27641840631961,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B09KGHC3MC.jpg?v=1660923837"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B09KGHC3MC.jpg?v=1660923837","width":500},{"alt":"[AUSTRALIA] - Kamoer HLVP8 Mini Vacuum Pump 12V dc Brushed Motor air Pump Parallel Connection Super high percision Diaphragm Pump high Flow 480L\/H ","id":27641535070361,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51qJlm-7EBL.jpg?v=1660919137"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51qJlm-7EBL.jpg?v=1660919137","width":1000},{"alt":"[AUSTRALIA] - Kamoer HLVP8 Mini Vacuum Pump 12V dc Brushed Motor air Pump Parallel Connection Super high percision Diaphragm Pump high Flow 480L\/H ","id":27641535103129,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51J7KiEHXOL.jpg?v=1660919137"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51J7KiEHXOL.jpg?v=1660919137","width":1000},{"alt":"[AUSTRALIA] - Kamoer HLVP8 Mini Vacuum Pump 12V dc Brushed Motor air Pump Parallel Connection Super high percision Diaphragm Pump high Flow 480L\/H ","id":27641535135897,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/products\/4180UyabnrL.jpg?v=1660919137"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/4180UyabnrL.jpg?v=1660919137","width":1000},{"alt":"[AUSTRALIA] - Kamoer HLVP8 Mini Vacuum Pump 12V dc Brushed Motor air Pump Parallel Connection Super high percision Diaphragm Pump high Flow 480L\/H ","id":27641535168665,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61S8QMgefhL.jpg?v=1660919137"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61S8QMgefhL.jpg?v=1660919137","width":1000},{"alt":"[AUSTRALIA] - Kamoer HLVP8 Mini Vacuum Pump 12V dc Brushed Motor air Pump Parallel Connection Super high percision Diaphragm Pump high Flow 480L\/H ","id":27641535201433,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61PpjgM8LPL.jpg?v=1660919137"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61PpjgM8LPL.jpg?v=1660919137","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eKamoer HLVP8 Mini Vacuum Pump 12V dc Brushed Motor air Pump Parallel Connection Super high percision Diaphragm Pump high Flow 480L\/H\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHLVP8 Series Basic Parameters Voltage: 12V\/24V Motor:\nBrushless motor\/Brush motorFlow rate: In series≥360L\/H In parallel≥480L\/H\nPositive pressure≥0.1MpaNegative pressure: In series≥-0.088Mpa In\nparallel≥-0.072Mpa Diaphragm material: EPDM（It has good resistance to\nalcohols, acids, alkalis, oxidizers, ketones, greases and other chemicals, but\npoor oil resistance.）Lifetime: Brushless motor:6000H Brush motor:2000H Noise ≤\n68dBWeight：around 290g Although the measured parallel flow rate can reach a\nmaximum of approximately 530L\/H, we do not recommend using the maximum value\nin order to protect the product. Principle: HLVP8 series of miniature\ndiaphragm pumps are simply designed according to the principle of positive\ndisplacement pumps. By controlling the inlet and outlet of the diaphragm, a\npower drive is formed and the transmission mechanism pushes the piston to\nreciprocate, and the intake pressure pushes the diaphragm back and forth to do\nwork to suck and discharge gas. Various Applications TUV ISO9001 quality\nmanagement system certification (German TUV safety certification)CE\ncertification (passed electrical safety certification)ROHS certification\n(through the use of hazardous substances in the product testing)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHLVP8 single-head high-precision series diaphragm vacuum air pump. Series connection flow 360L\/H; Parallel connection flow 480L\/H, the service life of brush motor is 2000H, and the service life of brushless motor is 6000H.\u003c\/li\u003e\n \u003cli\u003eHLVP8 12V vacuum pump parallel negative pressure-0.072Mpa,positive pressure0.1Mpa, noise68db.\u003c\/li\u003e\n \u003cli\u003eHLVP8 12V vacuum pump using EPDM high-quality diaphragm, it has good resistance to chemicals such as alcohol, acid, alkali, oxidizer, ketone and grease, and poor oil resistance. Good tolerance, dry running, durable, maintenance-free.\u003c\/li\u003e\n \u003cli\u003ePrinciple: HLVP8 series of miniature diaphragm vacuum pumps are simply designed according to the principle of positive displacement pumps. By controlling the inlet and outlet of the diaphragm, a power drive is formed and the transmission mechanism pushes the piston to reciprocate, and the intake pressure pushes the diaphragm back and forth to do work to suck and discharge gas.\u003c\/li\u003e\n \u003cli\u003e12V vacuum pump application areas: transmission of gas, inflation, gas analysis, laboratory equipment, fixed objects, household DIY, etc.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
