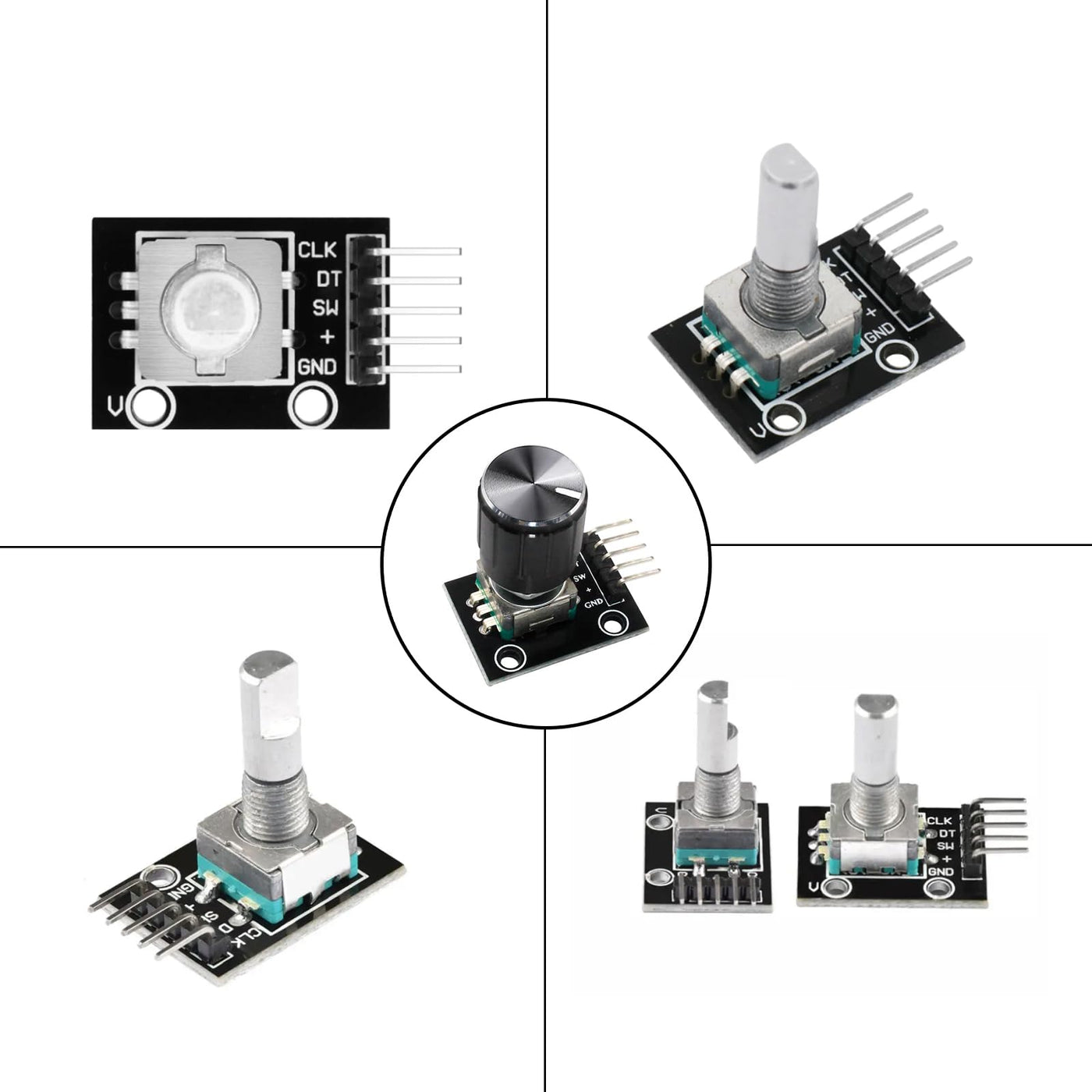

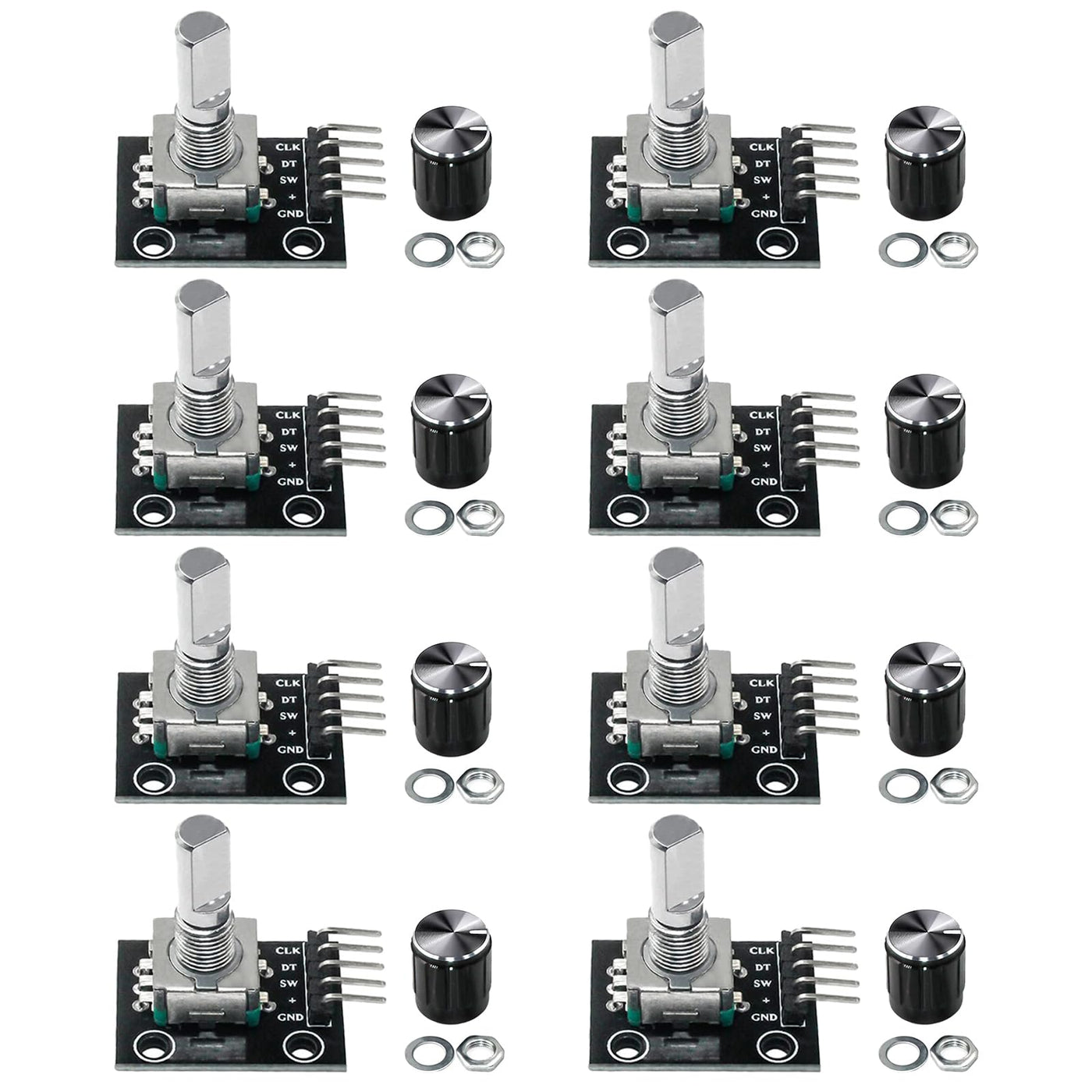

{"id":8530695684249,"title":"KY-040 Rotary Encoder, Rotary Encoder, with Push Button, Rotary Encoder Module, 360 Degree Encoder, Rotary Encoder, Code Switch, Digital Potentiometer (8) 8","handle":"ky-040-rotary-encoder-rotary-encoder-with-push-button-rotary-encoder-module-360-degree-encoder-rotary-encoder-code-switch-digital-potentiometer-8-8","description":"\u003ch3\u003eKY-040 Rotary Encoder, Rotary Encoder, with Push Button, Rotary Encoder Module, 360 Degree Encoder, Rotary Encoder, Code Switch, Digital Potentiometer (8)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eKY-040 Module: Operating voltage: 5 V. Pulse circle: 20. Material: electronic\ncomponents + PCB. Size: 26 x 19 x 29 mm\/1.02 x 0.75 x 1.14 inches. Thread\ndiameter: 7 mm\/0.27 inches. Height of thread: 7 mm\/0.27 inches. Button Cap:\nDiameter: 15 mm \/ 0.59 inches. Height: 16.5mm\/0.65\" Connection: \"GND\": earth\nterminal. \"+\": 5V power supply. \"SW\": 'Select' switch (activated when shaft is\npressed up) \"DT\": encoder pin B. \"CLK\": encoder pin A. Designed with latching\nand push button switch function, comes with nuts and washers, ideal for using\nArduino microcontrollers. By turning the rotary encoder, the output pulse\nfrequency can be counted in positive direction and reverse direction during\nrotation, unlike rotary potentiometers whose revolution counts are not\nlimited. HOW IT WORKS Incremental encoder is a shift in the angular momentum\nsignal that is converted into a series of digital rotary sensors.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eModel KY-040: Operating voltage: 5V, Number of pulses in one round: 20.\u003c\/li\u003e\n \u003cli\u003eFeatures: The rotary encoder can count the output pulses during the forward and reverse rotation process by rotation. The number of times and rotation counting are not like potentiometers, which have no limitations in rotation counting. Collaboration with rotary knitting.\u003c\/li\u003e\n \u003cli\u003eThe buttons on the coder can be reset to the initial state, which starts counting from 0.\u003c\/li\u003e\n \u003cli\u003eHOW IT WORKS Step transmitter is a shift of the rotation pulse signal is converted into a series of digital rotation sensors.\u003c\/li\u003e\n \u003cli\u003eWidely applicable: widely used in automotive electronics, multimedia audio, instrumentation, household appliances, smart home, etc.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T23:53:31+10:00","created_at":"2025-09-24T23:53:28+10:00","vendor":"GERUI","type":"Switch Encoders","tags":["industryDE_Sep2025"],"price":11900,"price_min":11900,"price_max":11900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45743348777113,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0FC64BB7F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"KY-040 Rotary Encoder, Rotary Encoder, with Push Button, Rotary Encoder Module, 360 Degree Encoder, Rotary Encoder, Code Switch, Digital Potentiometer (8) 8","public_title":null,"options":["Default Title"],"price":11900,"weight":130,"compare_at_price":null,"inventory_management":"shopify","barcode":"744243675976","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0FC64BB7F.jpg?v=1775749538","\/\/soundstores.net\/cdn\/shop\/files\/61v7djhdhIL.jpg?v=1758722010","\/\/soundstores.net\/cdn\/shop\/files\/614DjJwzMvL.jpg?v=1758722010","\/\/soundstores.net\/cdn\/shop\/files\/61PMWksRcmL.jpg?v=1758722010","\/\/soundstores.net\/cdn\/shop\/files\/61Apa8r5O_L.jpg?v=1758722010"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0FC64BB7F.jpg?v=1775749538","options":["Title"],"media":[{"alt":null,"id":34626637201561,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0FC64BB7F.jpg?v=1775749538"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0FC64BB7F.jpg?v=1775749538","width":1600},{"alt":null,"id":34626637234329,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61v7djhdhIL.jpg?v=1758722010"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61v7djhdhIL.jpg?v=1758722010","width":1600},{"alt":null,"id":34626637267097,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/614DjJwzMvL.jpg?v=1758722010"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/614DjJwzMvL.jpg?v=1758722010","width":1600},{"alt":null,"id":34626637299865,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61PMWksRcmL.jpg?v=1758722010"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61PMWksRcmL.jpg?v=1758722010","width":1600},{"alt":null,"id":34626637332633,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61Apa8r5O_L.jpg?v=1758722010"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61Apa8r5O_L.jpg?v=1758722010","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eKY-040 Rotary Encoder, Rotary Encoder, with Push Button, Rotary Encoder Module, 360 Degree Encoder, Rotary Encoder, Code Switch, Digital Potentiometer (8)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eKY-040 Module: Operating voltage: 5 V. Pulse circle: 20. Material: electronic\ncomponents + PCB. Size: 26 x 19 x 29 mm\/1.02 x 0.75 x 1.14 inches. Thread\ndiameter: 7 mm\/0.27 inches. Height of thread: 7 mm\/0.27 inches. Button Cap:\nDiameter: 15 mm \/ 0.59 inches. Height: 16.5mm\/0.65\" Connection: \"GND\": earth\nterminal. \"+\": 5V power supply. \"SW\": 'Select' switch (activated when shaft is\npressed up) \"DT\": encoder pin B. \"CLK\": encoder pin A. Designed with latching\nand push button switch function, comes with nuts and washers, ideal for using\nArduino microcontrollers. By turning the rotary encoder, the output pulse\nfrequency can be counted in positive direction and reverse direction during\nrotation, unlike rotary potentiometers whose revolution counts are not\nlimited. HOW IT WORKS Incremental encoder is a shift in the angular momentum\nsignal that is converted into a series of digital rotary sensors.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eModel KY-040: Operating voltage: 5V, Number of pulses in one round: 20.\u003c\/li\u003e\n \u003cli\u003eFeatures: The rotary encoder can count the output pulses during the forward and reverse rotation process by rotation. The number of times and rotation counting are not like potentiometers, which have no limitations in rotation counting. Collaboration with rotary knitting.\u003c\/li\u003e\n \u003cli\u003eThe buttons on the coder can be reset to the initial state, which starts counting from 0.\u003c\/li\u003e\n \u003cli\u003eHOW IT WORKS Step transmitter is a shift of the rotation pulse signal is converted into a series of digital rotation sensors.\u003c\/li\u003e\n \u003cli\u003eWidely applicable: widely used in automotive electronics, multimedia audio, instrumentation, household appliances, smart home, etc.\u003c\/li\u003e\n \u003c\/ul\u003e"}
