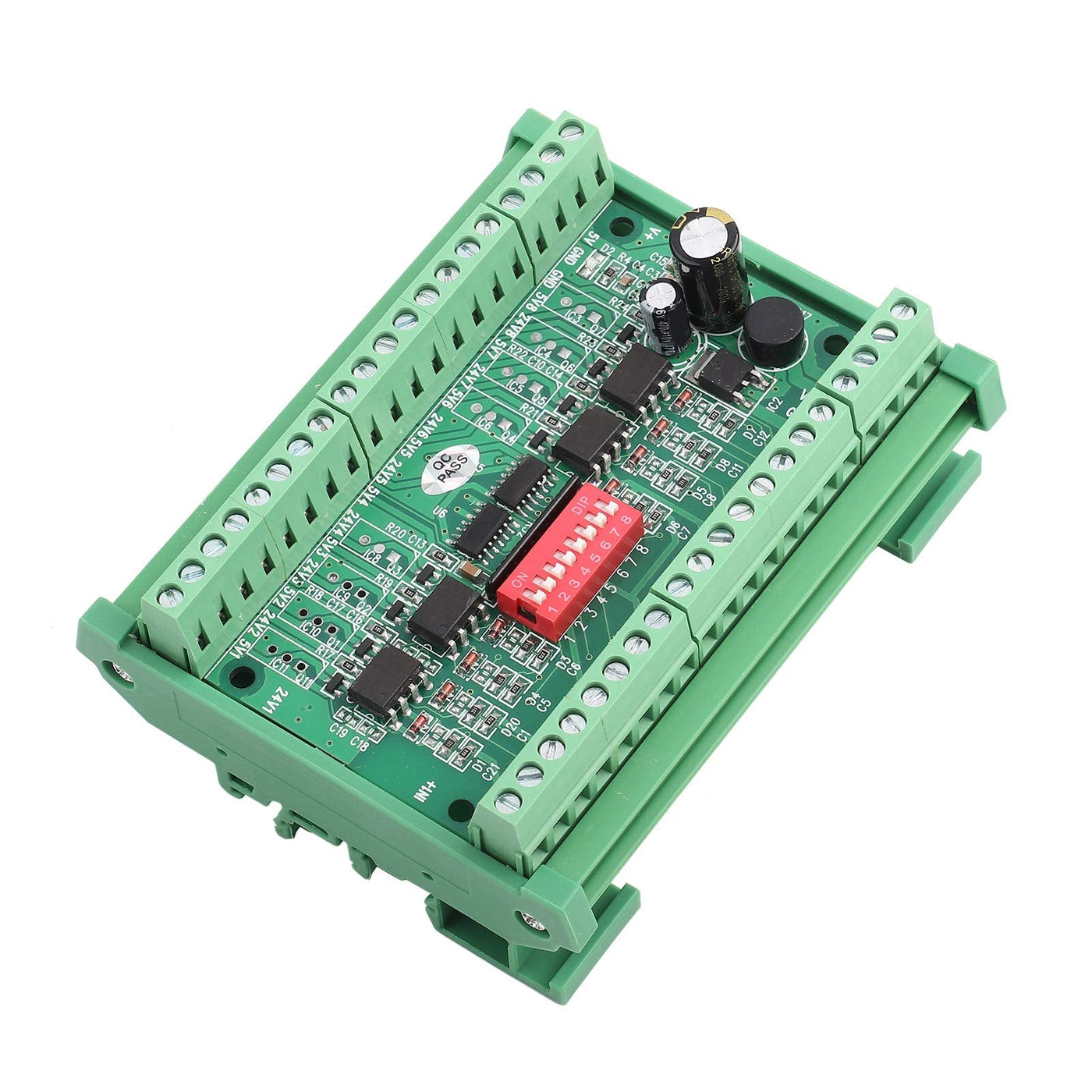

{"id":7499516248217,"title":"Level Translator 5V\/24V, 8 Channel NPN\/PNP to NPN Level Conversion Module, Level Conversion Board, Voltage Level Converter Board 10MHZ","handle":"level-translator-5v-24v-8-channel-npn-pnp-to-npn-level-conversion-module-level-conversion-board-voltage-level-converter-board-10mhz","description":"\u003ch3\u003eLevel Translator 5V\/24V, 8 Channel NPN\/PNP to NPN Level Conversion Module, Level Conversion Board, Voltage Level Converter Board 10MHZ\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription:This level converter is mainly used for PLC or MCU interface\nmatching with other circuits, external circuit signal level conversion\ncircuit,or other level conversion between control circuits.This module can\nconvert 8-channel signals at the same time, using isolation chip of 10MHZ\nbandwidth, which can effectively guarantee speed and integrity of\nsignal.Features:Compatible with AC\/DC input power supply interface, designed\nwith power indicator light.When output is selected as 24V level, it is NPN OC\noutput, with maximum 1A load capacity.24Voutput is OC output (NPN collector\nopen circuit output), if you want to test output, it must add resistor,\nnormally use a 10KR resistor.When converting signal to 24V level, the power\nsupply of input should be 24V.When converting signal to 5V level, the power\nsupply of input can be in between 7V-35V.You can use 4pcs M3 standoffs(not\nincluded) to install it.Specifications:Model: 8-5V24V-DChannel:\n8-channelInput: NPN or PNP, 5V or 24V level squarewave signalOutput: NPN 5V or\n24V squarewave signalSize:Approx. 11 x 9 x 5cm\/4.3 x 3.5 x 2inWeight:\n170g(approx.)SwitchSW1SW2SW3SW4SW5SW6SW7SW8Input 5V LevelONONONONONONONONInput\n24V LevelOFFOFFOFFOFFOFFOFFOFFOFFPackage Includes:1 x Level\nConverterNote:Please note that the new type and old type of this product will\nbe sent randomly, and make sure you will not mind before ordering.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eConvert Input Level SignalThe module can convert input 5V level signal to 24V level signal, or convert input 24V level signal to 5V level signal.\u003c\/li\u003e\n \u003cli\u003eAnti-interferenceIt can also convert signal 5V to 5V, or 24V to 24V level, and isolate input signal and output signal through optocoupler, which can improves anti-interference ability of circuit.\u003c\/li\u003e\n \u003cli\u003eSet by Dip SwitchInput level can be set by DIP switch, 24V level output is NPN OC output, output current is 100mA.\u003c\/li\u003e\n \u003cli\u003eStrong Driving AbilityIt has conversion and amplification circuit, good wave, strong driving ability.\u003c\/li\u003e\n \u003cli\u003ePLC Interface StandardsCompatible with a common-cathode or common-anode input connection, matching European and Japanese PLC interface st Plc Interface Standardsandards.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-08-26T03:06:52+10:00","created_at":"2022-08-26T03:07:06+10:00","vendor":"SALUTUYA","type":"Signal Converters","tags":["deletenow","industrial2","industrial_update_Aug2022"],"price":20200,"price_min":20200,"price_max":20200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42528622739609,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08SR2NXFT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Level Translator 5V\/24V, 8 Channel NPN\/PNP to NPN Level Conversion Module, Level Conversion Board, Voltage Level Converter Board 10MHZ","public_title":null,"options":["Default Title"],"price":20200,"weight":165,"compare_at_price":null,"inventory_management":null,"barcode":"SALUTUYAps0khqdxco","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B08SR2NXFT.jpg?v=1661447529","\/\/soundstores.net\/cdn\/shop\/products\/81QAZukmRmL.jpg?v=1661447226","\/\/soundstores.net\/cdn\/shop\/products\/71fWKmWePWL.jpg?v=1661447226","\/\/soundstores.net\/cdn\/shop\/products\/81vHwxY3cnL.jpg?v=1661447226","\/\/soundstores.net\/cdn\/shop\/products\/71JEf92ufuL.jpg?v=1661447226","\/\/soundstores.net\/cdn\/shop\/products\/71s3FNOsuqL.jpg?v=1661447226","\/\/soundstores.net\/cdn\/shop\/products\/718CK2VdAgL.jpg?v=1661447226","\/\/soundstores.net\/cdn\/shop\/products\/71e1jINhPvL.jpg?v=1661447226","\/\/soundstores.net\/cdn\/shop\/products\/61cV-K7RrWL.jpg?v=1661447226"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B08SR2NXFT.jpg?v=1661447529","options":["Title"],"media":[{"alt":null,"id":27673998753945,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B08SR2NXFT.jpg?v=1661447529"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B08SR2NXFT.jpg?v=1661447529","width":1601},{"alt":null,"id":27673965461657,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/products\/81QAZukmRmL.jpg?v=1661447226"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/81QAZukmRmL.jpg?v=1661447226","width":1601},{"alt":null,"id":27673965494425,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71fWKmWePWL.jpg?v=1661447226"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71fWKmWePWL.jpg?v=1661447226","width":1601},{"alt":null,"id":27673965527193,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/products\/81vHwxY3cnL.jpg?v=1661447226"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/81vHwxY3cnL.jpg?v=1661447226","width":1601},{"alt":null,"id":27673965559961,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71JEf92ufuL.jpg?v=1661447226"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71JEf92ufuL.jpg?v=1661447226","width":1601},{"alt":null,"id":27673965592729,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71s3FNOsuqL.jpg?v=1661447226"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71s3FNOsuqL.jpg?v=1661447226","width":1601},{"alt":null,"id":27673965625497,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/products\/718CK2VdAgL.jpg?v=1661447226"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/718CK2VdAgL.jpg?v=1661447226","width":1601},{"alt":null,"id":27673965658265,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71e1jINhPvL.jpg?v=1661447226"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71e1jINhPvL.jpg?v=1661447226","width":1601},{"alt":null,"id":27673965691033,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61cV-K7RrWL.jpg?v=1661447226"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61cV-K7RrWL.jpg?v=1661447226","width":1601}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eLevel Translator 5V\/24V, 8 Channel NPN\/PNP to NPN Level Conversion Module, Level Conversion Board, Voltage Level Converter Board 10MHZ\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription:This level converter is mainly used for PLC or MCU interface\nmatching with other circuits, external circuit signal level conversion\ncircuit,or other level conversion between control circuits.This module can\nconvert 8-channel signals at the same time, using isolation chip of 10MHZ\nbandwidth, which can effectively guarantee speed and integrity of\nsignal.Features:Compatible with AC\/DC input power supply interface, designed\nwith power indicator light.When output is selected as 24V level, it is NPN OC\noutput, with maximum 1A load capacity.24Voutput is OC output (NPN collector\nopen circuit output), if you want to test output, it must add resistor,\nnormally use a 10KR resistor.When converting signal to 24V level, the power\nsupply of input should be 24V.When converting signal to 5V level, the power\nsupply of input can be in between 7V-35V.You can use 4pcs M3 standoffs(not\nincluded) to install it.Specifications:Model: 8-5V24V-DChannel:\n8-channelInput: NPN or PNP, 5V or 24V level squarewave signalOutput: NPN 5V or\n24V squarewave signalSize:Approx. 11 x 9 x 5cm\/4.3 x 3.5 x 2inWeight:\n170g(approx.)SwitchSW1SW2SW3SW4SW5SW6SW7SW8Input 5V LevelONONONONONONONONInput\n24V LevelOFFOFFOFFOFFOFFOFFOFFOFFPackage Includes:1 x Level\nConverterNote:Please note that the new type and old type of this product will\nbe sent randomly, and make sure you will not mind before ordering.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eConvert Input Level SignalThe module can convert input 5V level signal to 24V level signal, or convert input 24V level signal to 5V level signal.\u003c\/li\u003e\n \u003cli\u003eAnti-interferenceIt can also convert signal 5V to 5V, or 24V to 24V level, and isolate input signal and output signal through optocoupler, which can improves anti-interference ability of circuit.\u003c\/li\u003e\n \u003cli\u003eSet by Dip SwitchInput level can be set by DIP switch, 24V level output is NPN OC output, output current is 100mA.\u003c\/li\u003e\n \u003cli\u003eStrong Driving AbilityIt has conversion and amplification circuit, good wave, strong driving ability.\u003c\/li\u003e\n \u003cli\u003ePLC Interface StandardsCompatible with a common-cathode or common-anode input connection, matching European and Japanese PLC interface st Plc Interface Standardsandards.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
