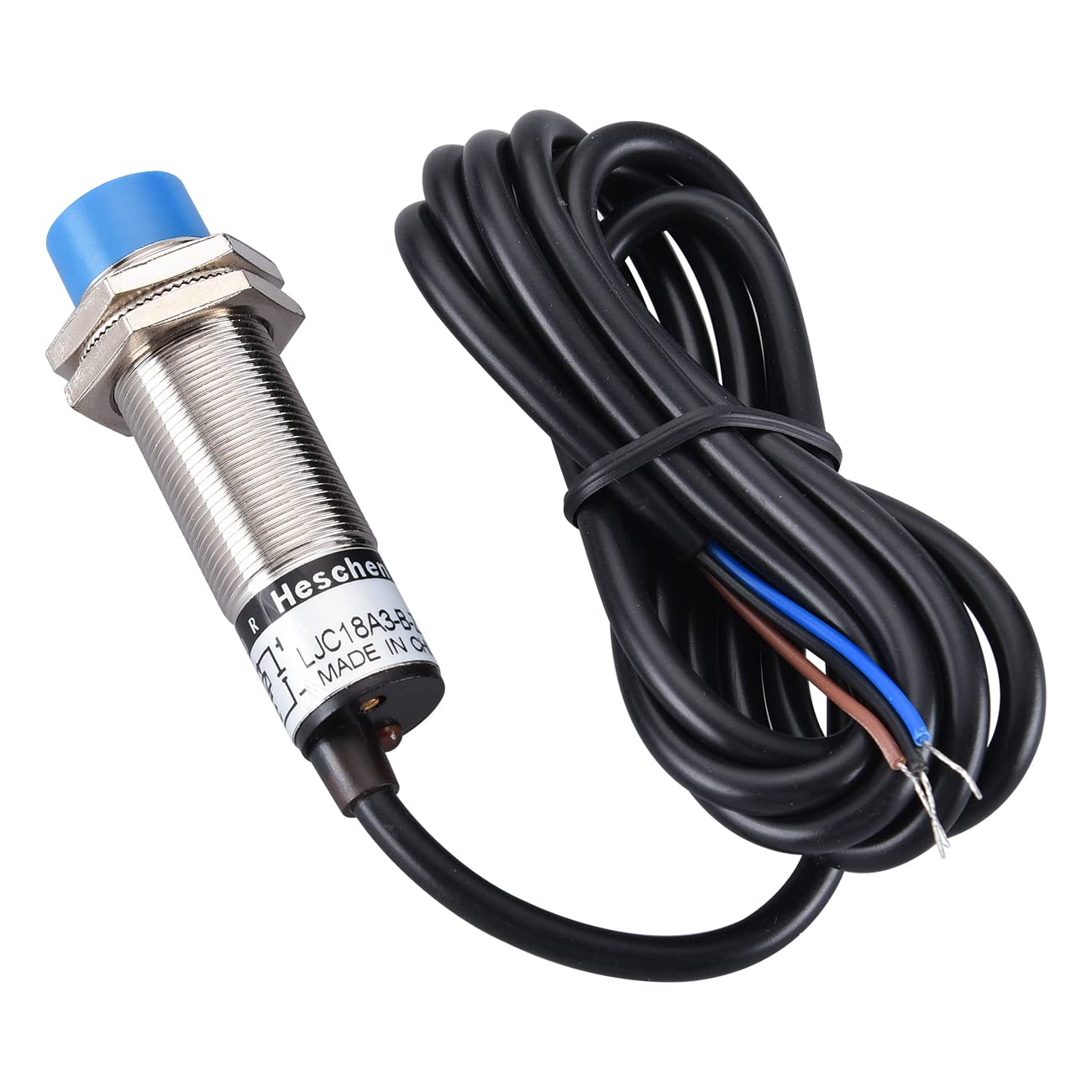

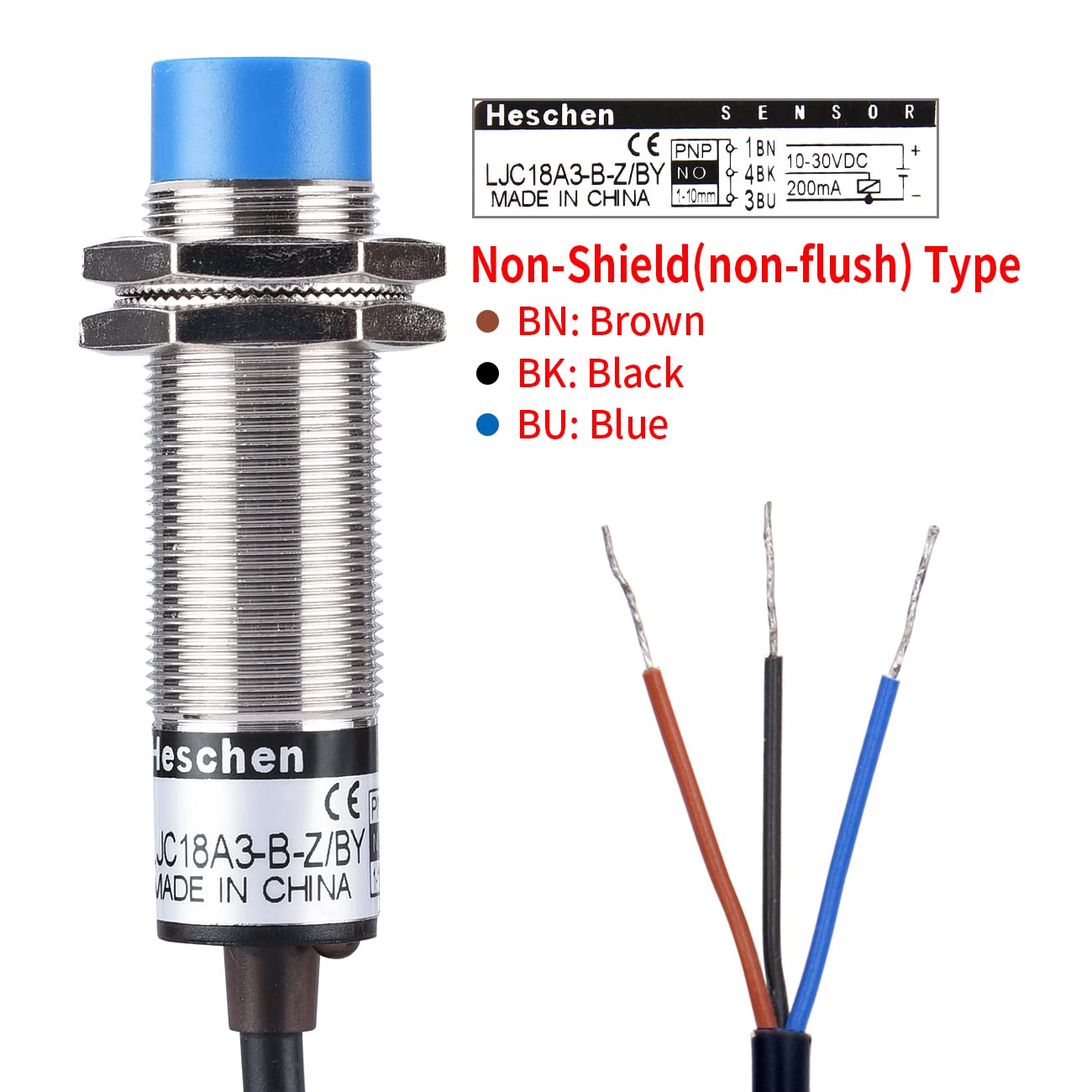

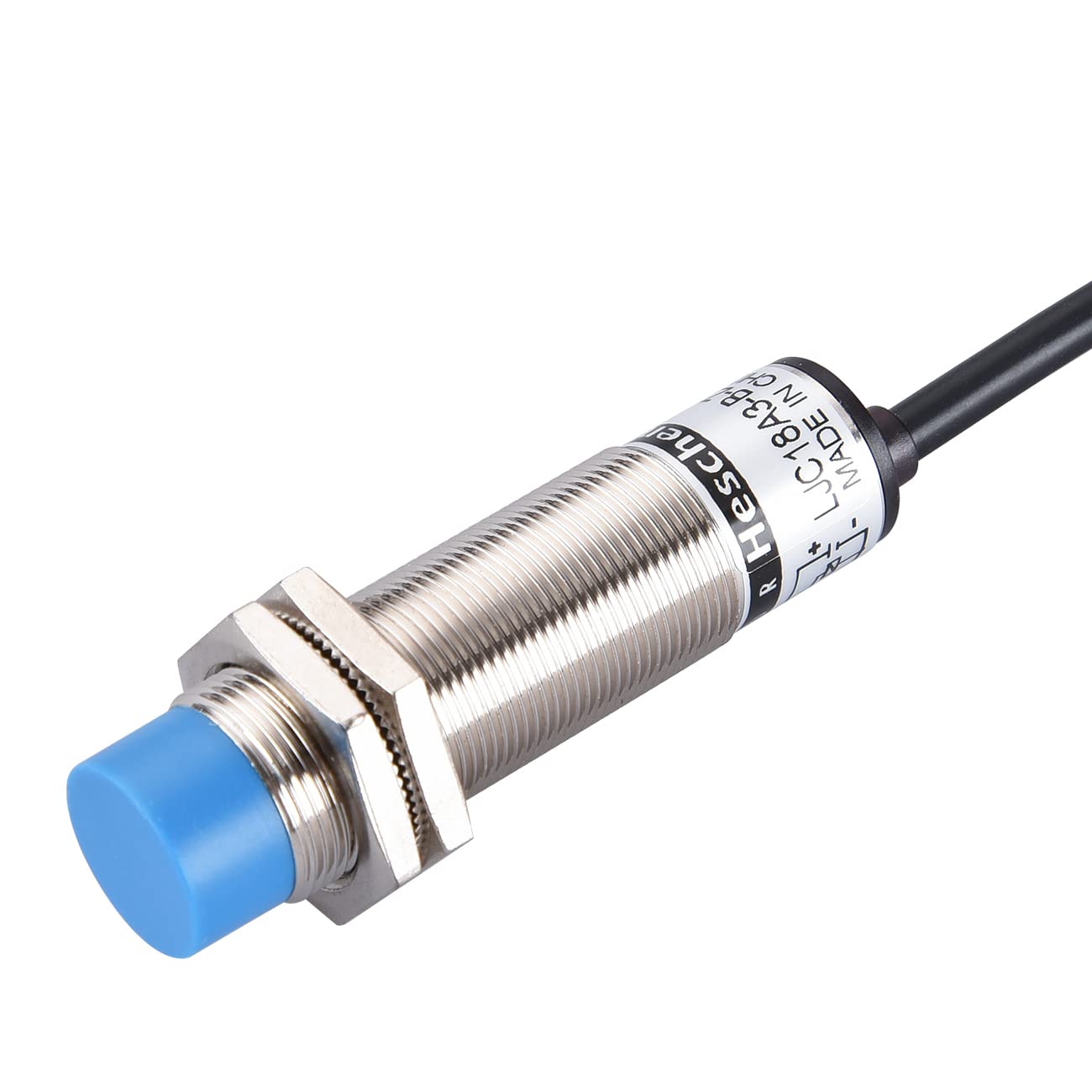

{"id":8529006231705,"title":"M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires","handle":"m18-capacitive-proximity-sensor-switch-non-shield-type-ljc18a3-b-z-by-detection-10mm-10-30vdc-200ma-pnp-normally-openno-3-wires","description":"\u003ch3\u003eM18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\ndetection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10%\nbelow.Comsuption Current:13mA below.Control Output:200mA below.Loop Protection\n:reversal connection protection,surge absorption,load short-circuit\nprotection.Ambient Temperature \u0026amp; Humidity:During operation , storage :\nindividually-30～＋65℃(no freeze ,no drew ) ,During\noperation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above (\nDC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V\n50\/60Hz 1 min. between charging part and shell.Temperature Influence :\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature\nrange-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5%\nrated supply voltage range,at rated supply voltage value ,inside ± 10 %\ndetection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 18mm\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 10mm10%; Set distance:0-8mm\u003c\/li\u003e\n \u003cli\u003eOutput Type: PNP Normally Open(NO), Non-Shield Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30 VDC\u003c\/li\u003e\n \u003cli\u003eCable Length: 50\"(127cm)\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T10:49:45+10:00","created_at":"2025-09-23T10:49:41+10:00","vendor":"Heschen","type":"Capacitive","tags":["industryDE_Sep2025"],"price":9500,"price_min":9500,"price_max":9500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45739297079449,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0714JVD68","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires","public_title":null,"options":["Default Title"],"price":9500,"weight":90,"compare_at_price":null,"inventory_management":"shopify","barcode":"HS-LJC18A3-B-Z\/BY","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0714JVD68.jpg?v=1775749016","\/\/soundstores.net\/cdn\/shop\/files\/61YEa9cWLmL_458b0da0-a83e-411d-9598-ce0d94b68a4f.jpg?v=1758588583","\/\/soundstores.net\/cdn\/shop\/files\/61d7wU5iB-L_11e00d6e-1609-4119-a119-c9716645d0c4.jpg?v=1758588584","\/\/soundstores.net\/cdn\/shop\/files\/61-Xh4cz-mL.jpg?v=1758588584","\/\/soundstores.net\/cdn\/shop\/files\/61jOnss_ML.jpg?v=1758588584","\/\/soundstores.net\/cdn\/shop\/files\/61bYYQOT_sL.jpg?v=1758588584","\/\/soundstores.net\/cdn\/shop\/files\/61lQEkWhp8L.jpg?v=1758588583","\/\/soundstores.net\/cdn\/shop\/files\/61QTa1rOs0L_df108bd6-f996-4db0-8749-fb9c655dc55c.jpg?v=1758588584"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0714JVD68.jpg?v=1775749016","options":["Title"],"media":[{"alt":"[AUSTRALIA] - M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":34597182374041,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0714JVD68.jpg?v=1775749016"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0714JVD68.jpg?v=1775749016","width":1300},{"alt":"[AUSTRALIA] - M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":34597182406809,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61YEa9cWLmL_458b0da0-a83e-411d-9598-ce0d94b68a4f.jpg?v=1758588583"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61YEa9cWLmL_458b0da0-a83e-411d-9598-ce0d94b68a4f.jpg?v=1758588583","width":1300},{"alt":"[AUSTRALIA] - M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":34597182439577,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61d7wU5iB-L_11e00d6e-1609-4119-a119-c9716645d0c4.jpg?v=1758588584"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61d7wU5iB-L_11e00d6e-1609-4119-a119-c9716645d0c4.jpg?v=1758588584","width":1300},{"alt":"[AUSTRALIA] - M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":34597182472345,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61-Xh4cz-mL.jpg?v=1758588584"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61-Xh4cz-mL.jpg?v=1758588584","width":1300},{"alt":"[AUSTRALIA] - M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":34597182505113,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61jOnss_ML.jpg?v=1758588584"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61jOnss_ML.jpg?v=1758588584","width":1300},{"alt":"[AUSTRALIA] - M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":34597182537881,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61bYYQOT_sL.jpg?v=1758588584"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61bYYQOT_sL.jpg?v=1758588584","width":1300},{"alt":"[AUSTRALIA] - M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":34597182570649,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61lQEkWhp8L.jpg?v=1758588583"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61lQEkWhp8L.jpg?v=1758588583","width":1300},{"alt":"[AUSTRALIA] - M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":34597182603417,"position":8,"preview_image":{"aspect_ratio":0.75,"height":1702,"width":1276,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61QTa1rOs0L_df108bd6-f996-4db0-8749-fb9c655dc55c.jpg?v=1758588584"},"aspect_ratio":0.75,"height":1702,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61QTa1rOs0L_df108bd6-f996-4db0-8749-fb9c655dc55c.jpg?v=1758588584","width":1276}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eM18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z\/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\ndetection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10%\nbelow.Comsuption Current:13mA below.Control Output:200mA below.Loop Protection\n:reversal connection protection,surge absorption,load short-circuit\nprotection.Ambient Temperature \u0026amp; Humidity:During operation , storage :\nindividually-30～＋65℃(no freeze ,no drew ) ,During\noperation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above (\nDC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V\n50\/60Hz 1 min. between charging part and shell.Temperature Influence :\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature\nrange-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5%\nrated supply voltage range,at rated supply voltage value ,inside ± 10 %\ndetection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 18mm\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 10mm10%; Set distance:0-8mm\u003c\/li\u003e\n \u003cli\u003eOutput Type: PNP Normally Open(NO), Non-Shield Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30 VDC\u003c\/li\u003e\n \u003cli\u003eCable Length: 50\"(127cm)\u003c\/li\u003e\n \u003c\/ul\u003e"}
