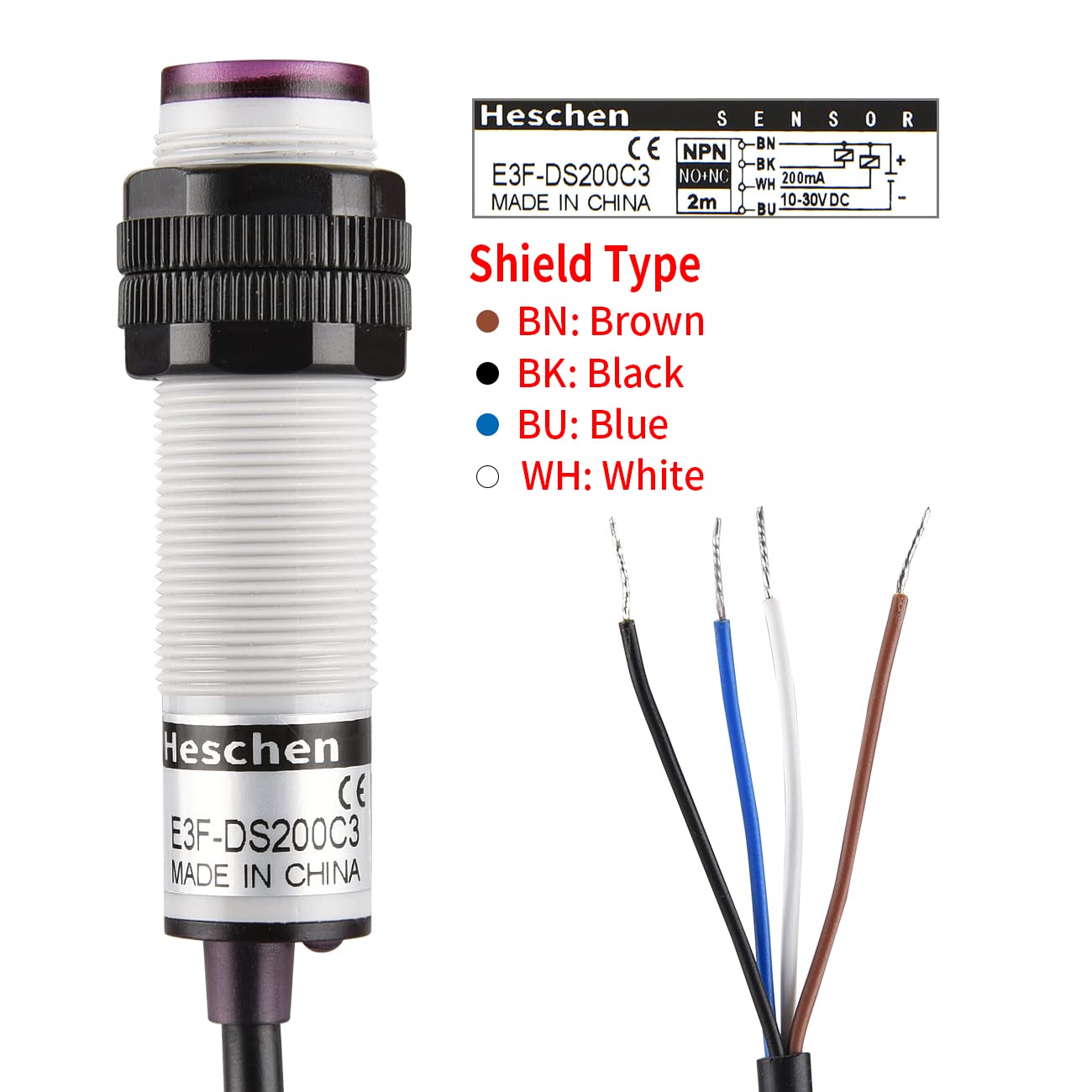

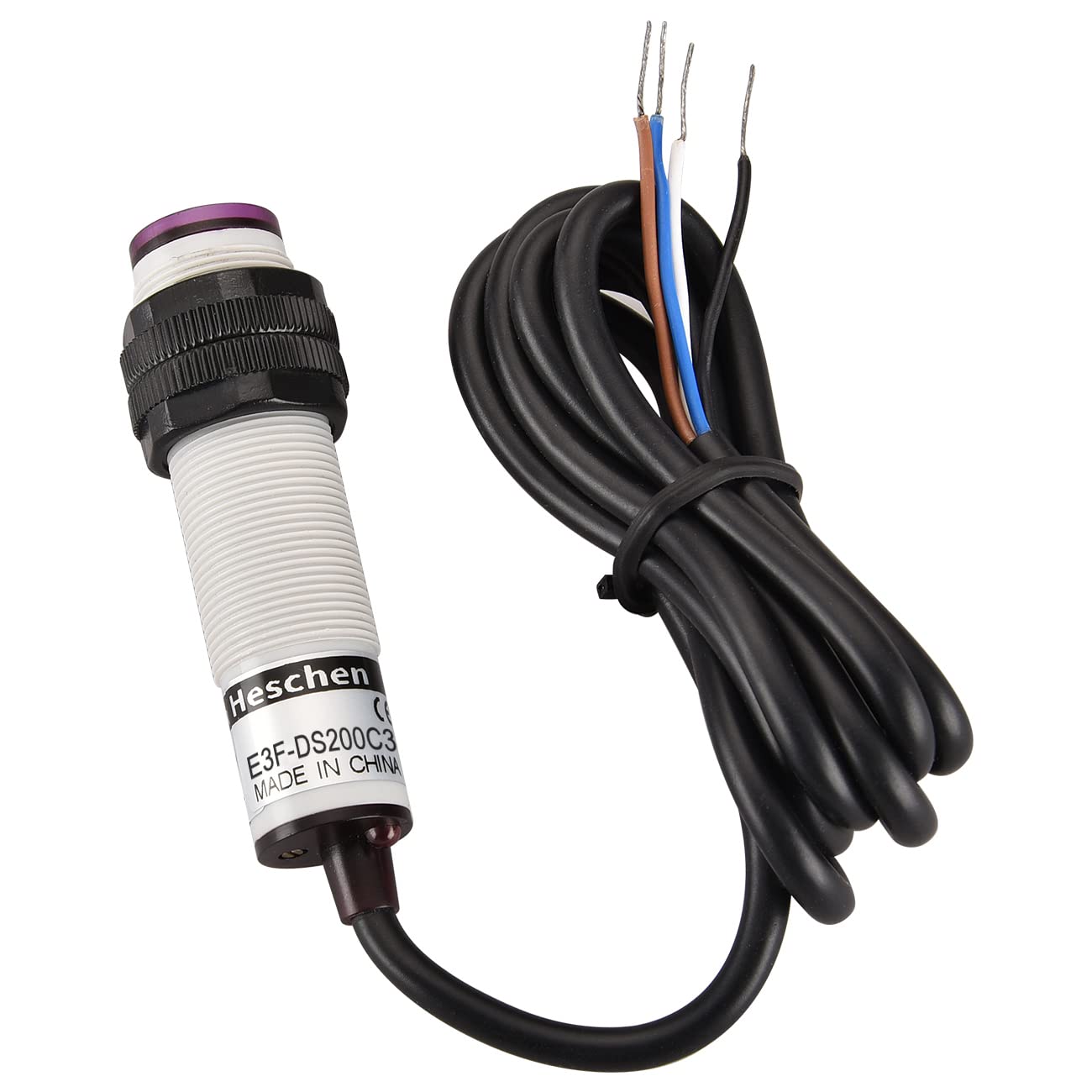

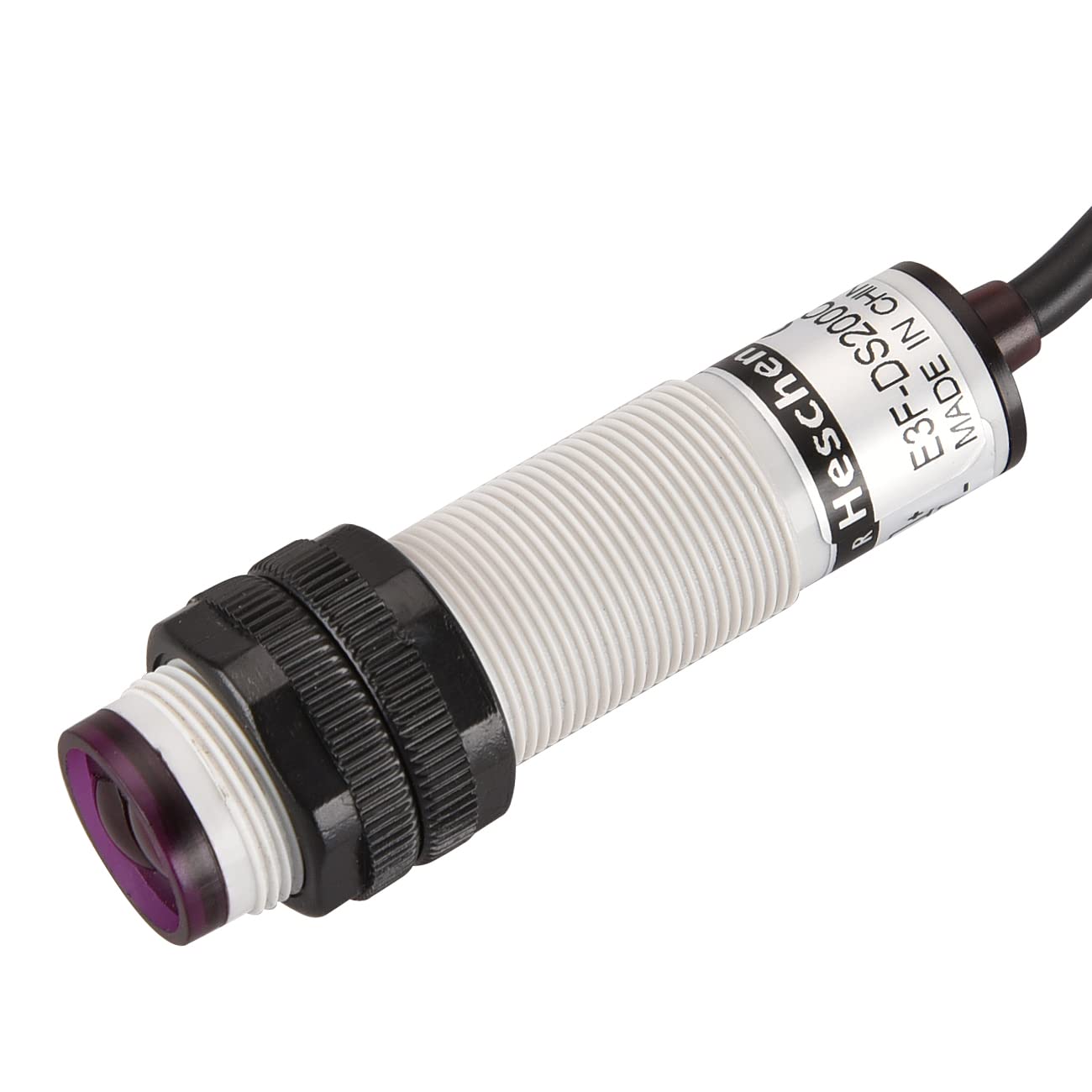

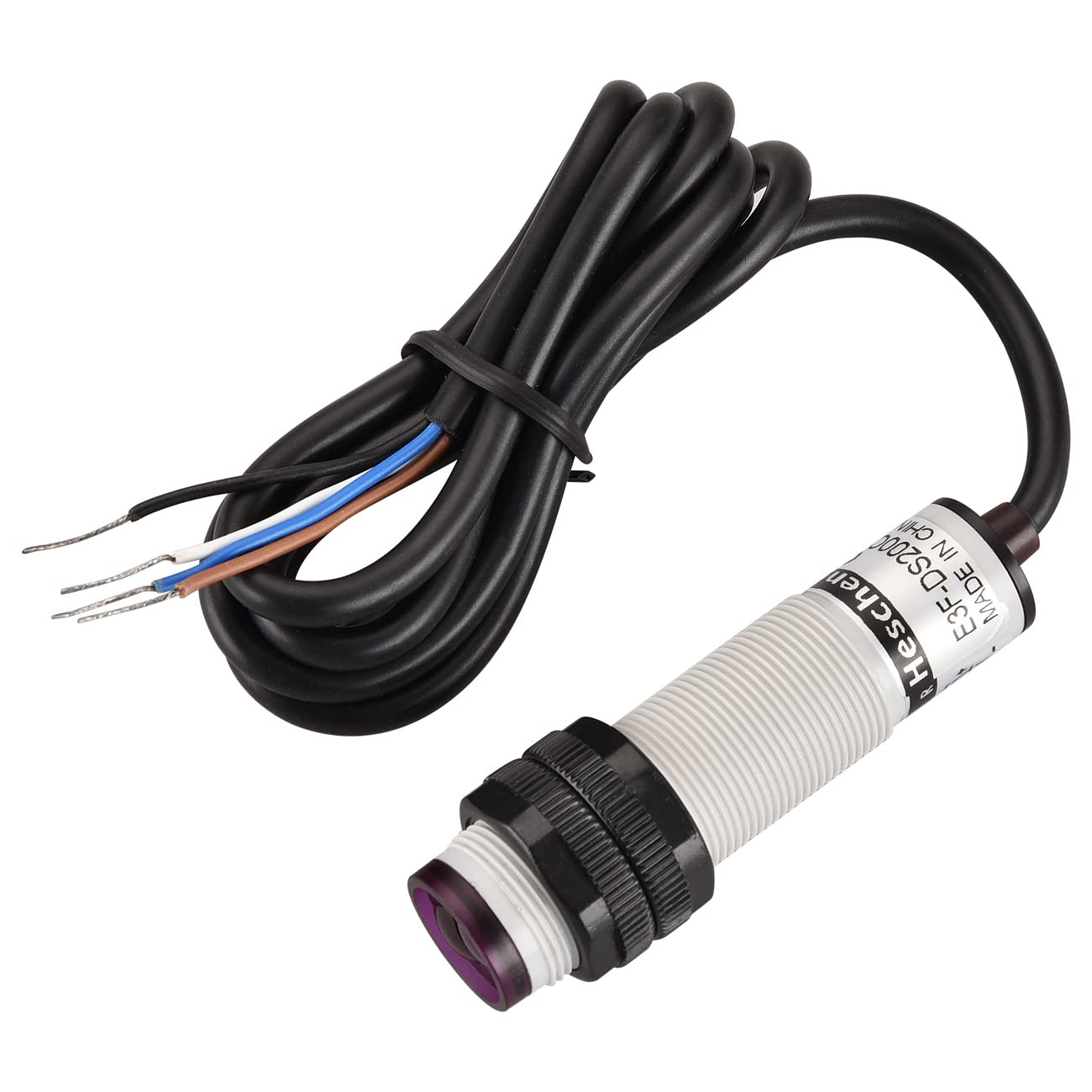

{"id":8528989749401,"title":"M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200C3, Detection Distance 10-200CM, 10-30VDC 200mA, NPN NO+NC, 4 Wire","handle":"m18-column-infrared-photoelectric-proximity-switch-diffuse-reflection-type-e3f-ds200c3-detection-distance-10-200cm-10-30vdc-200ma-npn-no-nc-4-wire","description":"\u003ch3\u003eM18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200C3, Detection Distance 10-200CM, 10-30VDC 200mA, NPN NO+NC, 4 Wire\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eConnection Delay: 1.5ms.Light Source: Infrared light 660nm.Supply Voltage:\nDC10-30V Impulse (p-p)10% below.Comsuption Current: 20mA below.Control Output:\n200mA below.Loop Protection: Reversal connection protection,surge\nabsorption,load short-circuit protection.Ambient Temperature \u0026amp; Humidity:\nDuring operation, Storage: individually-30～＋65℃(no freeze ,no drew ), During\noperation, Storage: Individually 35-95%RH.Insulation Impedance: 50MΩ above (\nDC500 megameter ) between charging part and housing.Withstand Voltage: AC1000V\n50\/60Hz 1min between charging part and housing.Temperature Influence:\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature\nrange-25～＋60℃,at +23℃,±10% detection distance.Voltage Influence: Inside ±15%\nrated supply voltage range, at rated supply voltage value ,inside ± 10 %\ndetection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 18mm; Cable Length: 150cm\/59\"\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 10-200cm10%, Adjustable\u003c\/li\u003e\n \u003cli\u003eOutput Type: NPN NO+NC; Diffuse Reflection Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30VDC\u003c\/li\u003e\n \u003cli\u003eDetection Terget: Opaque Object\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T10:29:38+10:00","created_at":"2025-09-23T10:29:34+10:00","vendor":"Heschen","type":"Inductive","tags":["industryDE_Sep2025"],"price":9800,"price_min":9800,"price_max":9800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45739253203097,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B1WPRWBS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200C3, Detection Distance 10-200CM, 10-30VDC 200mA, NPN NO+NC, 4 Wire","public_title":null,"options":["Default Title"],"price":9800,"weight":60,"compare_at_price":null,"inventory_management":"shopify","barcode":"HS-E3F-DS200C3","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0B1WPRWBS.jpg?v=1775748558","\/\/soundstores.net\/cdn\/shop\/files\/61Gb10KyqnL.jpg?v=1758587376","\/\/soundstores.net\/cdn\/shop\/files\/51ITKi6qUdL.jpg?v=1758587377","\/\/soundstores.net\/cdn\/shop\/files\/61MpTVKYXkL.jpg?v=1758587377","\/\/soundstores.net\/cdn\/shop\/files\/61RURXOb2lL.jpg?v=1758587377","\/\/soundstores.net\/cdn\/shop\/files\/51CJzA15jxL.jpg?v=1758587377","\/\/soundstores.net\/cdn\/shop\/files\/71yjGAgdD1L_e4a4788c-f6d2-483e-b873-ee86a382eeeb.jpg?v=1758587377"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B1WPRWBS.jpg?v=1775748558","options":["Title"],"media":[{"alt":null,"id":34597076369561,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B1WPRWBS.jpg?v=1775748558"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B1WPRWBS.jpg?v=1775748558","width":1300},{"alt":null,"id":34597076402329,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61Gb10KyqnL.jpg?v=1758587376"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61Gb10KyqnL.jpg?v=1758587376","width":1300},{"alt":null,"id":34597076435097,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51ITKi6qUdL.jpg?v=1758587377"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51ITKi6qUdL.jpg?v=1758587377","width":1300},{"alt":null,"id":34597076467865,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61MpTVKYXkL.jpg?v=1758587377"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61MpTVKYXkL.jpg?v=1758587377","width":1300},{"alt":null,"id":34597076500633,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61RURXOb2lL.jpg?v=1758587377"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61RURXOb2lL.jpg?v=1758587377","width":1300},{"alt":null,"id":34597076533401,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51CJzA15jxL.jpg?v=1758587377"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51CJzA15jxL.jpg?v=1758587377","width":1300},{"alt":null,"id":34597076566169,"position":7,"preview_image":{"aspect_ratio":0.75,"height":1702,"width":1276,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71yjGAgdD1L_e4a4788c-f6d2-483e-b873-ee86a382eeeb.jpg?v=1758587377"},"aspect_ratio":0.75,"height":1702,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71yjGAgdD1L_e4a4788c-f6d2-483e-b873-ee86a382eeeb.jpg?v=1758587377","width":1276}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eM18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200C3, Detection Distance 10-200CM, 10-30VDC 200mA, NPN NO+NC, 4 Wire\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eConnection Delay: 1.5ms.Light Source: Infrared light 660nm.Supply Voltage:\nDC10-30V Impulse (p-p)10% below.Comsuption Current: 20mA below.Control Output:\n200mA below.Loop Protection: Reversal connection protection,surge\nabsorption,load short-circuit protection.Ambient Temperature \u0026amp; Humidity:\nDuring operation, Storage: individually-30～＋65℃(no freeze ,no drew ), During\noperation, Storage: Individually 35-95%RH.Insulation Impedance: 50MΩ above (\nDC500 megameter ) between charging part and housing.Withstand Voltage: AC1000V\n50\/60Hz 1min between charging part and housing.Temperature Influence:\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature\nrange-25～＋60℃,at +23℃,±10% detection distance.Voltage Influence: Inside ±15%\nrated supply voltage range, at rated supply voltage value ,inside ± 10 %\ndetection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 18mm; Cable Length: 150cm\/59\"\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 10-200cm10%, Adjustable\u003c\/li\u003e\n \u003cli\u003eOutput Type: NPN NO+NC; Diffuse Reflection Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30VDC\u003c\/li\u003e\n \u003cli\u003eDetection Terget: Opaque Object\u003c\/li\u003e\n \u003c\/ul\u003e"}
