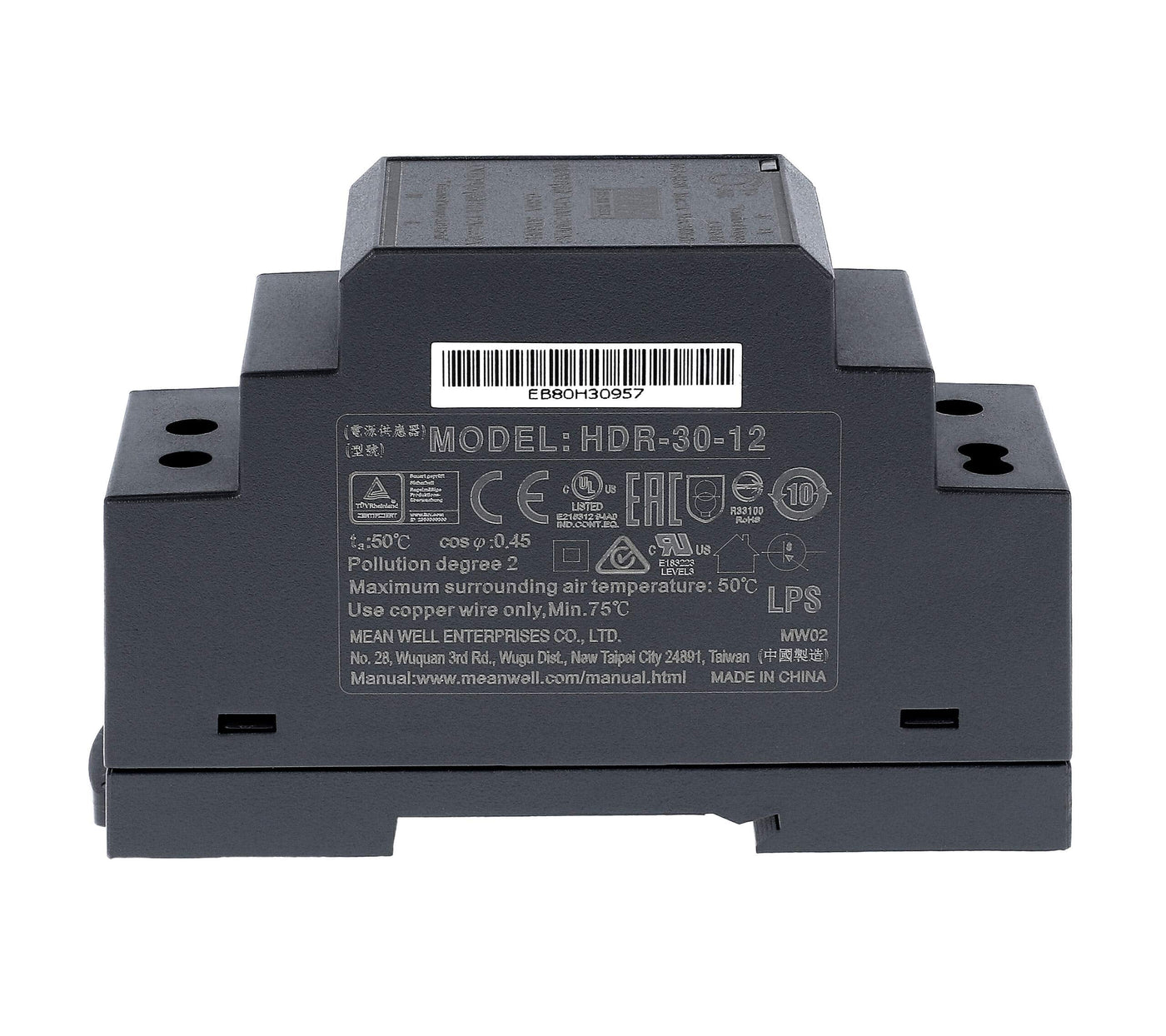

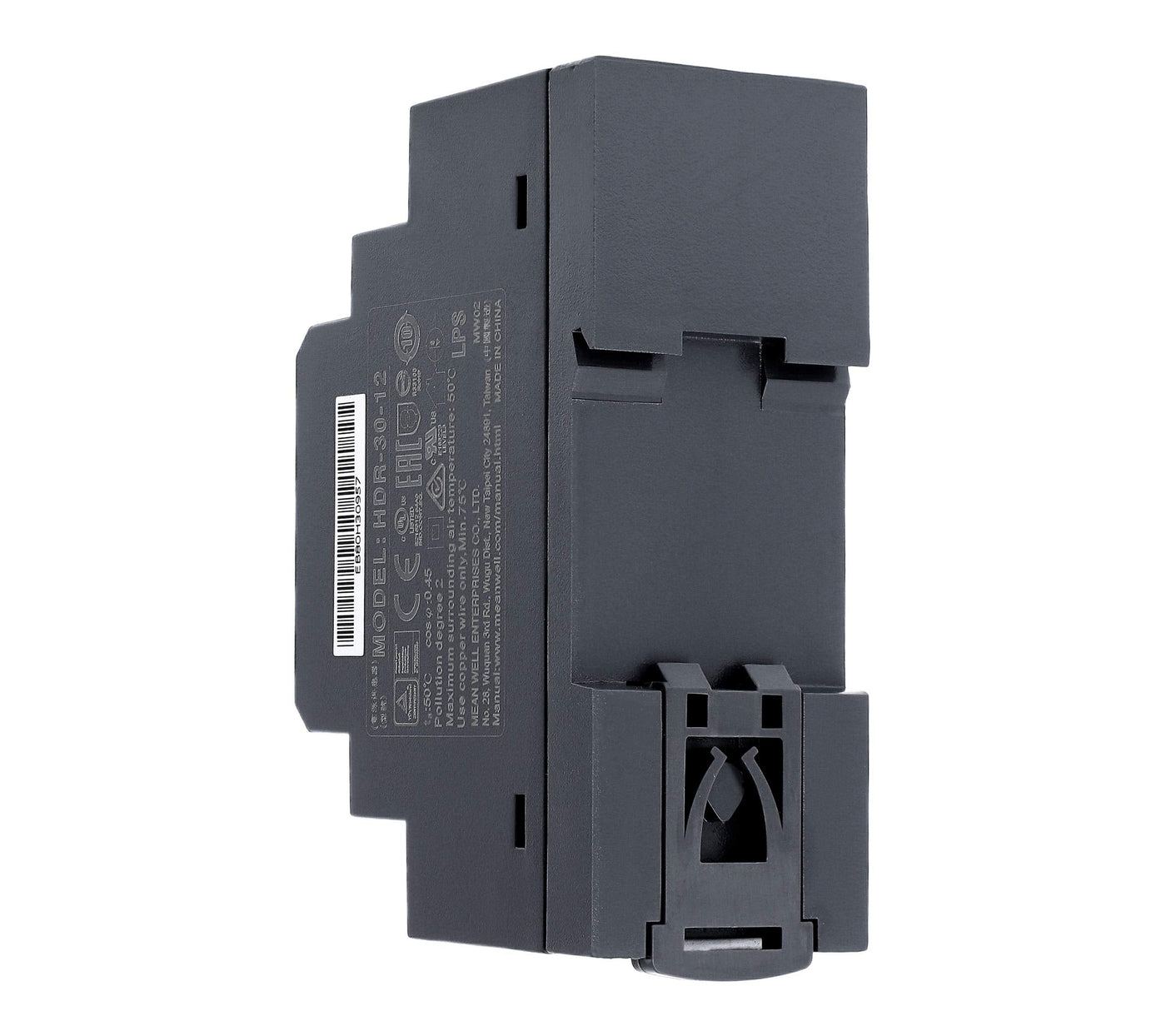

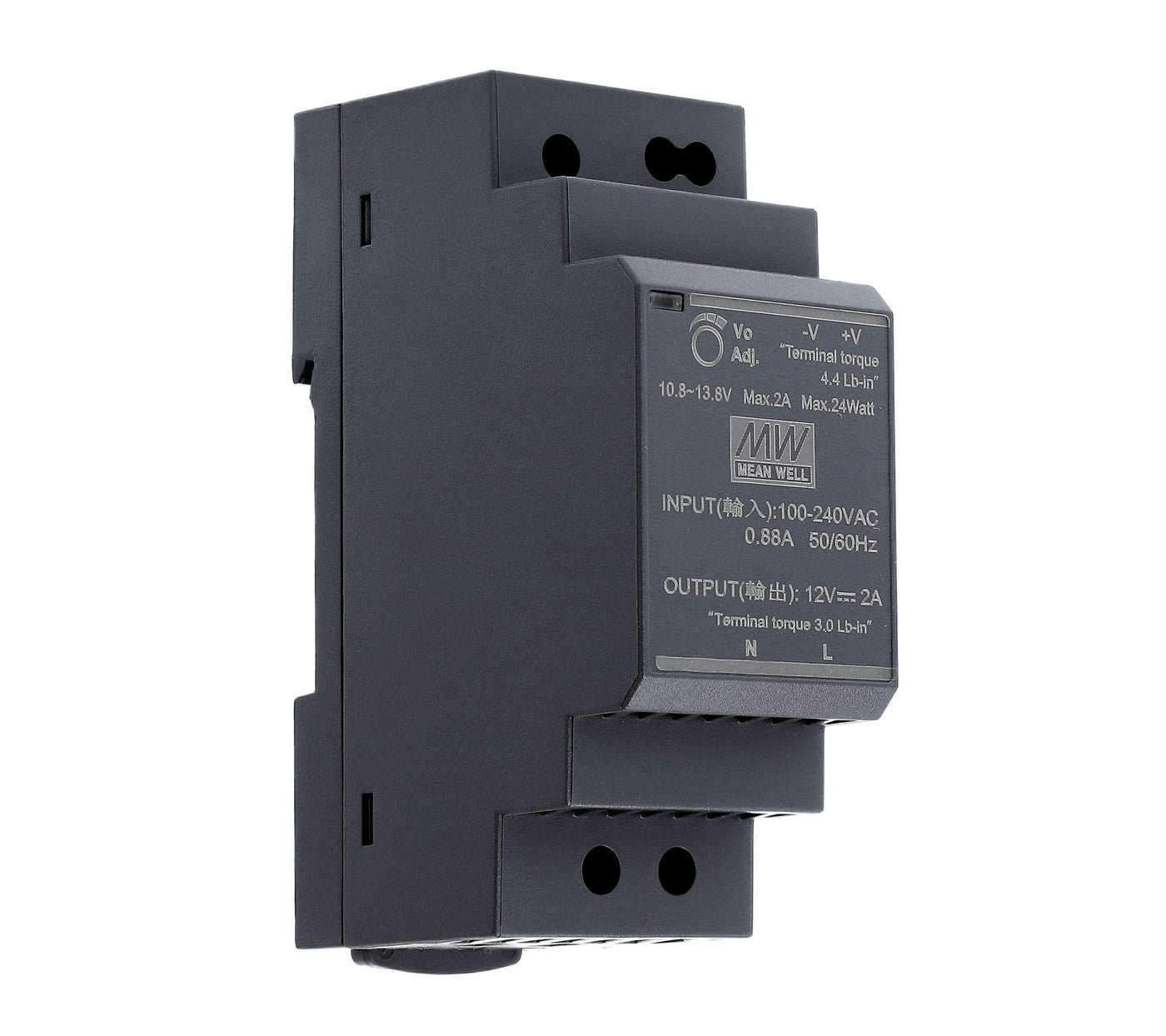

{"id":8532512473241,"title":"Mean Well Hdr 30 12 Power Supply DIN Rail Single","handle":"mean-well-hdr-30-12-power-supply-din-rail-single","description":"\u003ch3\u003eMean Well Hdr 30 12 Power Supply DIN Rail\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSingle-phase MEANWELL switching power supply series HDR-30, primarily clocked\nfor DIN rail mounting in plastic housing. Can be mounted directly on the DIN\nrail. Closed design, touch-protected screw connections. Universal input.\nOverload protection thanks to current limitation, auto recovery. Protected\nagainst short circuit, overload, overvoltage. Compact size: 2 TE (DIN\nEN43880). Low idle power of only 0.3 watts. LED indicator for power-on Type:\nClocked. Technology: constant voltage Mounting type: DIN rail power supply.\nModel: HDR Series No-load power: 0.3 watts. Power On\/Off: LED indicator\nOperating temperature range: -30°C to +70°C. Voltage input AC: 85 - 264 V AC.\nVoltage input DC: 120 - 370 V DC. Mains frequency: 50\/60Hz Voltage: Output\nVoltage | 12VDC Adjustable voltage: adjustable | from 10.8 V to 13.8 VDC.\nCurrent: output current: 2 A\/2000 mA. Power: output power: 24 watts.\nEfficiency: 88%. Inrush current: 45 A. Dimmable: no. Overload protection: yes.\nOverload protection in %: 105 - 160%. Surge Protection: Yes Short circuit\nresistant: yes. Temperature monitoring: yes. Insulation class: II. Insulation\nvoltage: 3000V AC. Protection class: IP42. Installation area: indoor Colour:\nanthracite. Material: plastic. Length: 90 mm. Width: 35 mm \/ 2TE Height: 58.4\nmm. Power connection: screw terminals. Output connection: screw terminals.\nManufacturer: Mean Well. Manufacturer number: HDR-30-12. Package weight: 120\ng. Certification: TÜV, CE, CB, UL, LPS. RoHS: compliant\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eItem number\u003c\/li\u003e\n \u003cli\u003e535855\u003c\/li\u003e\n \u003cli\u003eProduct Category\u003c\/li\u003e\n \u003cli\u003eLED Power Supply\u003c\/li\u003e\n \u003cli\u003eManufacturer\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-26T00:53:41+10:00","created_at":"2025-09-26T00:53:37+10:00","vendor":"MEAN WELL","type":"Industrial Power Supply","tags":["industryDE_Sep2025"],"price":19600,"price_min":19600,"price_max":19600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45746947162265,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B071KXJPYB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mean Well Hdr 30 12 Power Supply DIN Rail Single","public_title":null,"options":["Default Title"],"price":19600,"weight":150,"compare_at_price":null,"inventory_management":"shopify","barcode":"8_mfn","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B071KXJPYB.jpg?v=1775751078","\/\/soundstores.net\/cdn\/shop\/files\/815jJ0w39SL.jpg?v=1758812020","\/\/soundstores.net\/cdn\/shop\/files\/81IuaDRjEGL.jpg?v=1758812020","\/\/soundstores.net\/cdn\/shop\/files\/91GAdkLgxWL.jpg?v=1758812021","\/\/soundstores.net\/cdn\/shop\/files\/71P3nLxU6KL.jpg?v=1758812020","\/\/soundstores.net\/cdn\/shop\/files\/81caq8iIo5L_5ea147e1-8253-4f74-9e49-155022e20c8f.jpg?v=1758812020"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B071KXJPYB.jpg?v=1775751078","options":["Title"],"media":[{"alt":null,"id":34642677792921,"position":1,"preview_image":{"aspect_ratio":1.126,"height":2274,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B071KXJPYB.jpg?v=1775751078"},"aspect_ratio":1.126,"height":2274,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B071KXJPYB.jpg?v=1775751078","width":2560},{"alt":null,"id":34642677825689,"position":2,"preview_image":{"aspect_ratio":1.435,"height":1500,"width":2152,"src":"\/\/soundstores.net\/cdn\/shop\/files\/815jJ0w39SL.jpg?v=1758812020"},"aspect_ratio":1.435,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/815jJ0w39SL.jpg?v=1758812020","width":2152},{"alt":null,"id":34642677858457,"position":3,"preview_image":{"aspect_ratio":1.126,"height":2274,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81IuaDRjEGL.jpg?v=1758812020"},"aspect_ratio":1.126,"height":2274,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81IuaDRjEGL.jpg?v=1758812020","width":2560},{"alt":null,"id":34642677891225,"position":4,"preview_image":{"aspect_ratio":1.126,"height":2274,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/91GAdkLgxWL.jpg?v=1758812021"},"aspect_ratio":1.126,"height":2274,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/91GAdkLgxWL.jpg?v=1758812021","width":2560},{"alt":null,"id":34642677923993,"position":5,"preview_image":{"aspect_ratio":1.435,"height":1500,"width":2152,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71P3nLxU6KL.jpg?v=1758812020"},"aspect_ratio":1.435,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71P3nLxU6KL.jpg?v=1758812020","width":2152},{"alt":null,"id":34642677956761,"position":6,"preview_image":{"aspect_ratio":1.435,"height":1500,"width":2152,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81caq8iIo5L_5ea147e1-8253-4f74-9e49-155022e20c8f.jpg?v=1758812020"},"aspect_ratio":1.435,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81caq8iIo5L_5ea147e1-8253-4f74-9e49-155022e20c8f.jpg?v=1758812020","width":2152}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMean Well Hdr 30 12 Power Supply DIN Rail\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSingle-phase MEANWELL switching power supply series HDR-30, primarily clocked\nfor DIN rail mounting in plastic housing. Can be mounted directly on the DIN\nrail. Closed design, touch-protected screw connections. Universal input.\nOverload protection thanks to current limitation, auto recovery. Protected\nagainst short circuit, overload, overvoltage. Compact size: 2 TE (DIN\nEN43880). Low idle power of only 0.3 watts. LED indicator for power-on Type:\nClocked. Technology: constant voltage Mounting type: DIN rail power supply.\nModel: HDR Series No-load power: 0.3 watts. Power On\/Off: LED indicator\nOperating temperature range: -30°C to +70°C. Voltage input AC: 85 - 264 V AC.\nVoltage input DC: 120 - 370 V DC. Mains frequency: 50\/60Hz Voltage: Output\nVoltage | 12VDC Adjustable voltage: adjustable | from 10.8 V to 13.8 VDC.\nCurrent: output current: 2 A\/2000 mA. Power: output power: 24 watts.\nEfficiency: 88%. Inrush current: 45 A. Dimmable: no. Overload protection: yes.\nOverload protection in %: 105 - 160%. Surge Protection: Yes Short circuit\nresistant: yes. Temperature monitoring: yes. Insulation class: II. Insulation\nvoltage: 3000V AC. Protection class: IP42. Installation area: indoor Colour:\nanthracite. Material: plastic. Length: 90 mm. Width: 35 mm \/ 2TE Height: 58.4\nmm. Power connection: screw terminals. Output connection: screw terminals.\nManufacturer: Mean Well. Manufacturer number: HDR-30-12. Package weight: 120\ng. Certification: TÜV, CE, CB, UL, LPS. RoHS: compliant\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eItem number\u003c\/li\u003e\n \u003cli\u003e535855\u003c\/li\u003e\n \u003cli\u003eProduct Category\u003c\/li\u003e\n \u003cli\u003eLED Power Supply\u003c\/li\u003e\n \u003cli\u003eManufacturer\u003c\/li\u003e\n \u003c\/ul\u003e"}
