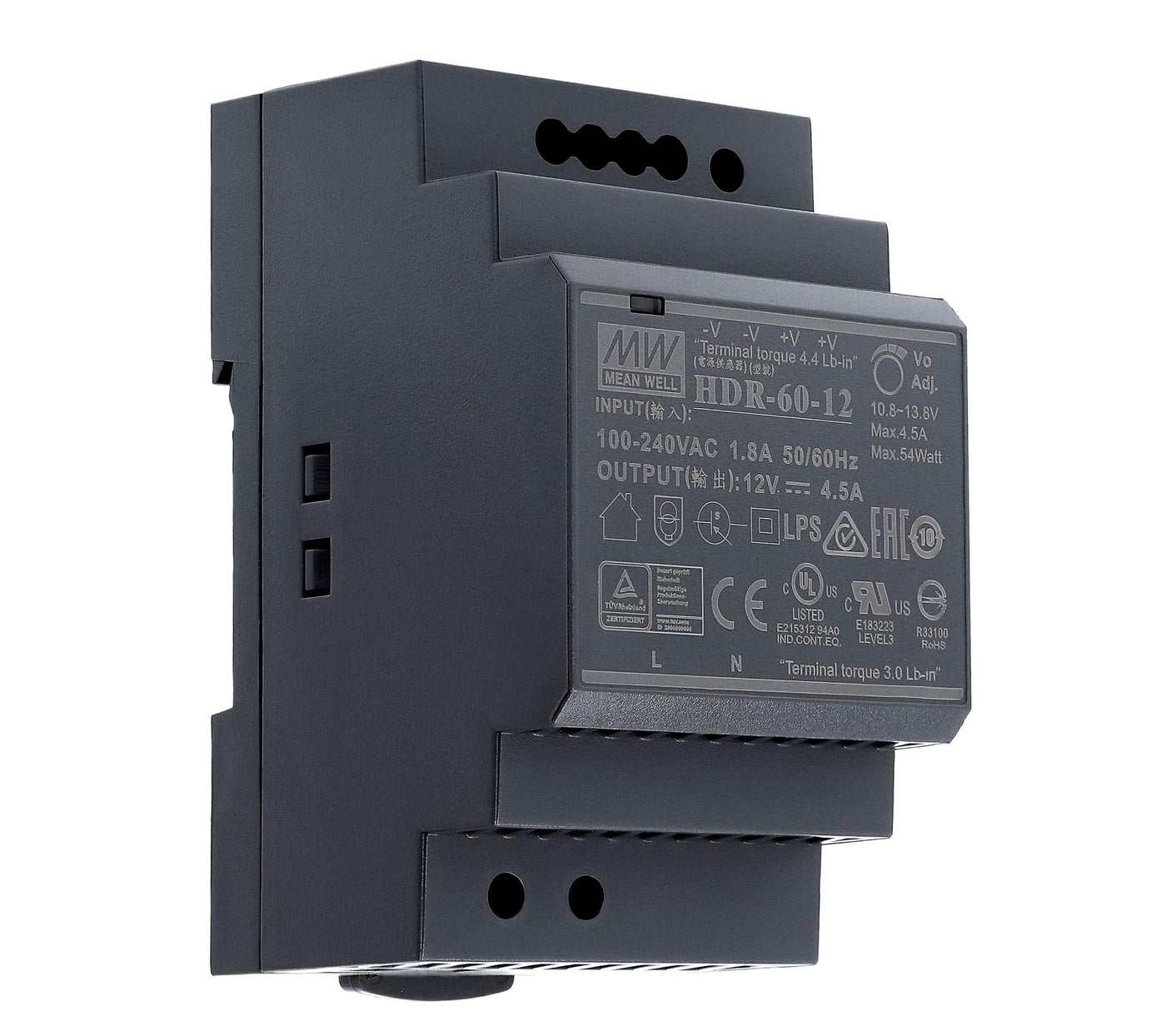

{"id":8530777374873,"title":"Mean Well HDR-60-12 DIN Rail Power Supply DIN-Rail 12 VDC 4.5 A 54 Watt","handle":"mean-well-hdr-60-12-din-rail-power-supply-din-rail-12-vdc-4-5-a-54-watt","description":"\u003ch3\u003eMean Well HDR-60-12 DIN Rail Power Supply DIN-Rail 12 VDC 4.5 A 54 Watt\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSingle-phase MEANWELL switching power supply series HDR-60, primarily clocked\nfor DIN rail mounting in plastic housing. Can be mounted directly on the DIN\nrail. Closed design, touch-protected screw connections. Universal input.\nOverload protection thanks to current limitation, auto recovery. Protected\nagainst short circuit, overload, overvoltage. Compact size: 3 TE (DIN\nEN43880). Low idle power of only 0.3 watts. LED indicator for power-on Type:\nClocked. Technology: constant voltage Mounting type: DIN rail power supply.\nModel: HDR Series No-load power: 0.3 watts. Power On\/Off: LED indicator\nOperating temperature range: -30°C to +70°C. Voltage input AC: 85 - 264 V AC.\nVoltage input DC: 120 - 370 V DC. Mains frequency: 50\/60Hz Voltage: Output\nVoltage | 12VDC Adjustable voltage: adjustable | from 10.8 V to 13.8 VDC.\nCurrent: output current: 4.5 A\/4500 mA. Power: output power: 54 watts.\nEfficiency: 88%. Inrush current: 60 A. Dimmable: no. Overload protection: yes.\nOverload protection in %: 105 - 160%. Surge Protection: Yes Short circuit\nresistant: yes. Temperature monitoring: yes. Insulation class: II. Insulation\nvoltage: 3000V AC. Protection class: IP42. Installation area: indoor Colour:\nanthracite. Material: plastic. Length: 90 mm. Width: 52.5 mm \/ 3TE. Height:\n58.4 mm. Power connection: screw terminals. Output connection: screw\nterminals. Manufacturer: Mean Well. Manufacturer number: HDR-60-12. Package\nweight: 190 g. Certification: TÜV, CE, CB, UL, LPS. RoHS: compliant\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOutput voltage: 12 VDC\u003c\/li\u003e\n \u003cli\u003eOutput current: 4.5 A \/ 4500 mA\u003c\/li\u003e\n \u003cli\u003eOutput power: 54 watts\u003c\/li\u003e\n \u003cli\u003eConstant Voltage\u003c\/li\u003e\n \u003cli\u003eAdjustable | from 10.8 V to 13.8 VDC\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-25T00:27:13+10:00","created_at":"2025-09-25T00:27:09+10:00","vendor":"MEAN WELL","type":"Industrial Power Supply","tags":["industryDE_Sep2025"],"price":19600,"price_min":19600,"price_max":19600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45743606890649,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B072DXXRW3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mean Well HDR-60-12 DIN Rail Power Supply DIN-Rail 12 VDC 4.5 A 54 Watt","public_title":null,"options":["Default Title"],"price":19600,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"5_mfn","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B072DXXRW3.jpg?v=1775750384","\/\/soundstores.net\/cdn\/shop\/files\/81i96KoykbL.jpg?v=1758724264","\/\/soundstores.net\/cdn\/shop\/files\/81SZjS5QuSL.jpg?v=1758724264","\/\/soundstores.net\/cdn\/shop\/files\/71YryAiUcvL.jpg?v=1758724314","\/\/soundstores.net\/cdn\/shop\/files\/81caq8iIo5L.jpg?v=1758724292","\/\/soundstores.net\/cdn\/shop\/files\/81t86cpG3nL.jpg?v=1758724297"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B072DXXRW3.jpg?v=1775750384","options":["Title"],"media":[{"alt":null,"id":34627139797145,"position":1,"preview_image":{"aspect_ratio":1.126,"height":2274,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B072DXXRW3.jpg?v=1775750384"},"aspect_ratio":1.126,"height":2274,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B072DXXRW3.jpg?v=1775750384","width":2560},{"alt":null,"id":34627139829913,"position":2,"preview_image":{"aspect_ratio":1.435,"height":1500,"width":2152,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81i96KoykbL.jpg?v=1758724264"},"aspect_ratio":1.435,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81i96KoykbL.jpg?v=1758724264","width":2152},{"alt":null,"id":34627139862681,"position":3,"preview_image":{"aspect_ratio":1.126,"height":2274,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81SZjS5QuSL.jpg?v=1758724264"},"aspect_ratio":1.126,"height":2274,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81SZjS5QuSL.jpg?v=1758724264","width":2560},{"alt":null,"id":34627139895449,"position":4,"preview_image":{"aspect_ratio":1.435,"height":1500,"width":2152,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71YryAiUcvL.jpg?v=1758724314"},"aspect_ratio":1.435,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71YryAiUcvL.jpg?v=1758724314","width":2152},{"alt":null,"id":34627139928217,"position":5,"preview_image":{"aspect_ratio":1.435,"height":1500,"width":2152,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81caq8iIo5L.jpg?v=1758724292"},"aspect_ratio":1.435,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81caq8iIo5L.jpg?v=1758724292","width":2152},{"alt":null,"id":34627139960985,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81t86cpG3nL.jpg?v=1758724297"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81t86cpG3nL.jpg?v=1758724297","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMean Well HDR-60-12 DIN Rail Power Supply DIN-Rail 12 VDC 4.5 A 54 Watt\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSingle-phase MEANWELL switching power supply series HDR-60, primarily clocked\nfor DIN rail mounting in plastic housing. Can be mounted directly on the DIN\nrail. Closed design, touch-protected screw connections. Universal input.\nOverload protection thanks to current limitation, auto recovery. Protected\nagainst short circuit, overload, overvoltage. Compact size: 3 TE (DIN\nEN43880). Low idle power of only 0.3 watts. LED indicator for power-on Type:\nClocked. Technology: constant voltage Mounting type: DIN rail power supply.\nModel: HDR Series No-load power: 0.3 watts. Power On\/Off: LED indicator\nOperating temperature range: -30°C to +70°C. Voltage input AC: 85 - 264 V AC.\nVoltage input DC: 120 - 370 V DC. Mains frequency: 50\/60Hz Voltage: Output\nVoltage | 12VDC Adjustable voltage: adjustable | from 10.8 V to 13.8 VDC.\nCurrent: output current: 4.5 A\/4500 mA. Power: output power: 54 watts.\nEfficiency: 88%. Inrush current: 60 A. Dimmable: no. Overload protection: yes.\nOverload protection in %: 105 - 160%. Surge Protection: Yes Short circuit\nresistant: yes. Temperature monitoring: yes. Insulation class: II. Insulation\nvoltage: 3000V AC. Protection class: IP42. Installation area: indoor Colour:\nanthracite. Material: plastic. Length: 90 mm. Width: 52.5 mm \/ 3TE. Height:\n58.4 mm. Power connection: screw terminals. Output connection: screw\nterminals. Manufacturer: Mean Well. Manufacturer number: HDR-60-12. Package\nweight: 190 g. Certification: TÜV, CE, CB, UL, LPS. RoHS: compliant\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOutput voltage: 12 VDC\u003c\/li\u003e\n \u003cli\u003eOutput current: 4.5 A \/ 4500 mA\u003c\/li\u003e\n \u003cli\u003eOutput power: 54 watts\u003c\/li\u003e\n \u003cli\u003eConstant Voltage\u003c\/li\u003e\n \u003cli\u003eAdjustable | from 10.8 V to 13.8 VDC\u003c\/li\u003e\n \u003c\/ul\u003e"}
