Molence 5PCS 3590S Potentiometer, Multiturn Wire Wound Precision Adjustable Resistor with Knob Cap (10K) 10K

In Stock. Leaves warehouse within 2 - 3 business days

$124.00 AUD
Maximum quantity available reached.
Shop with us and enjoy FREE shipping on every order.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

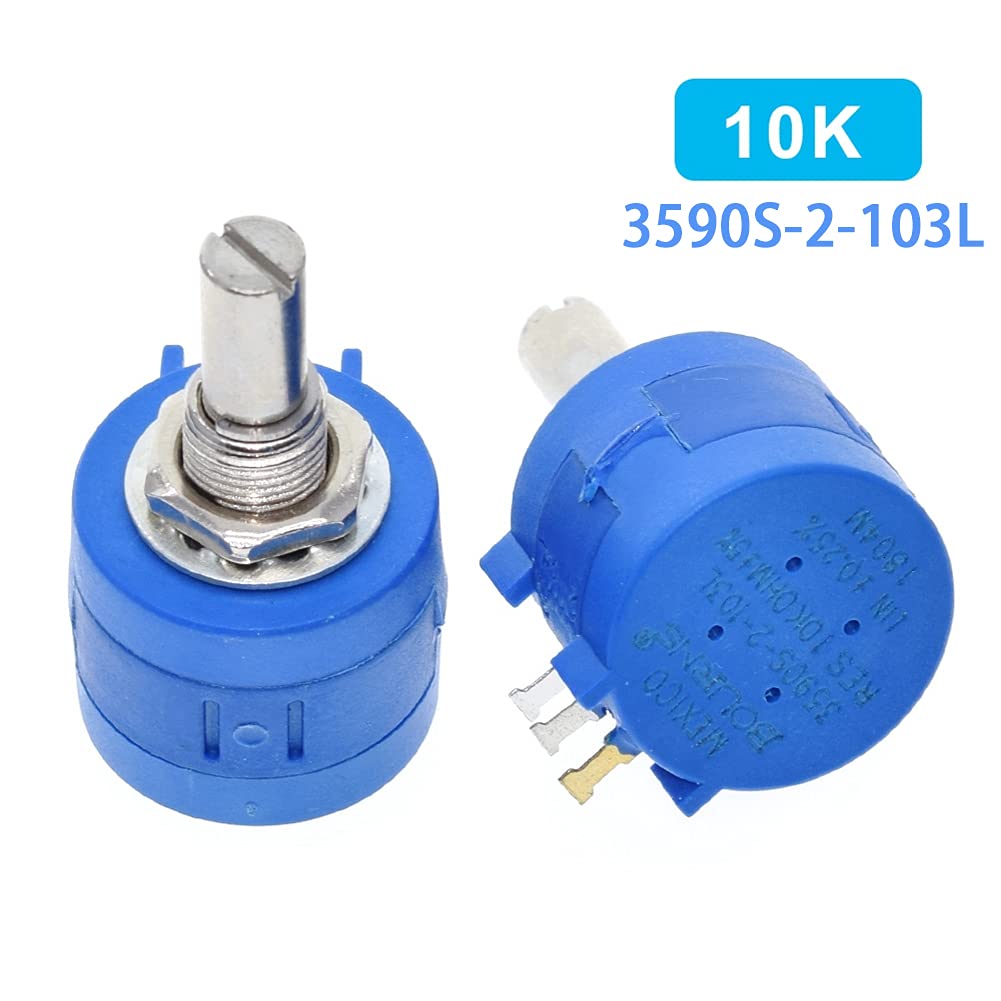

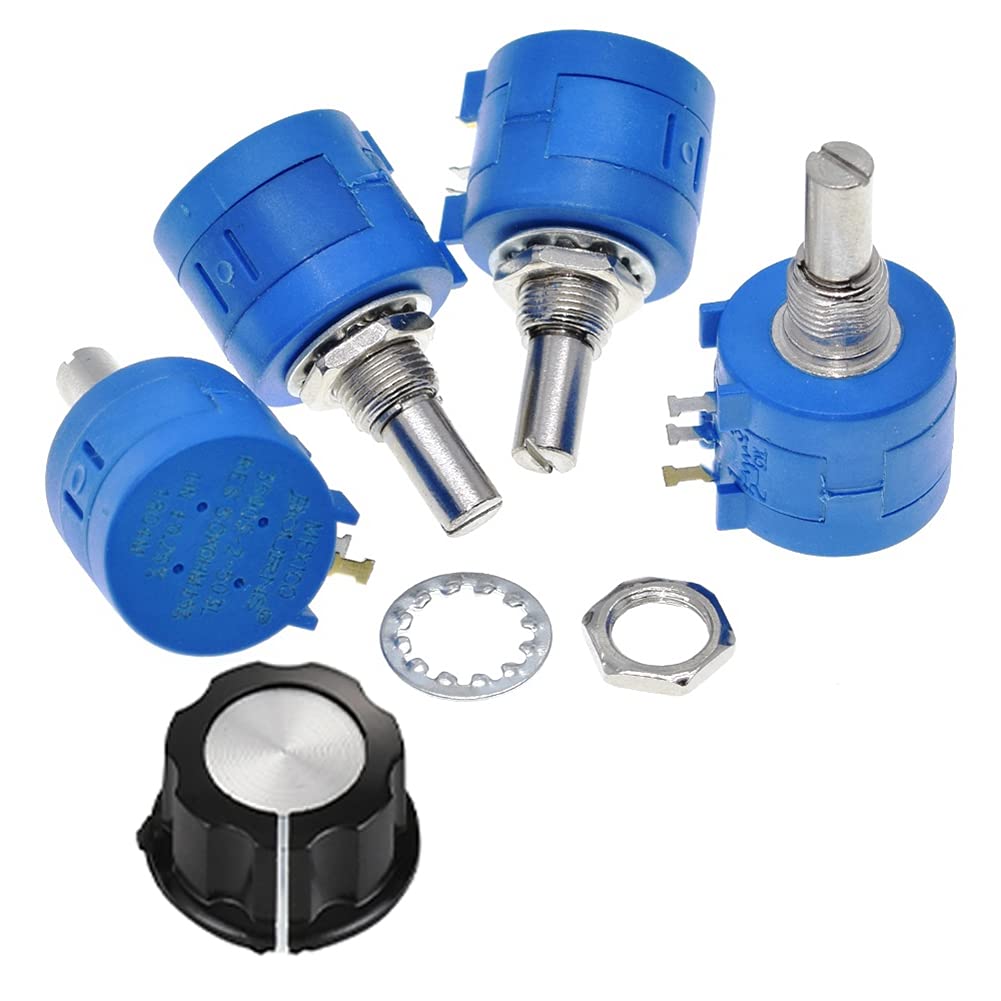

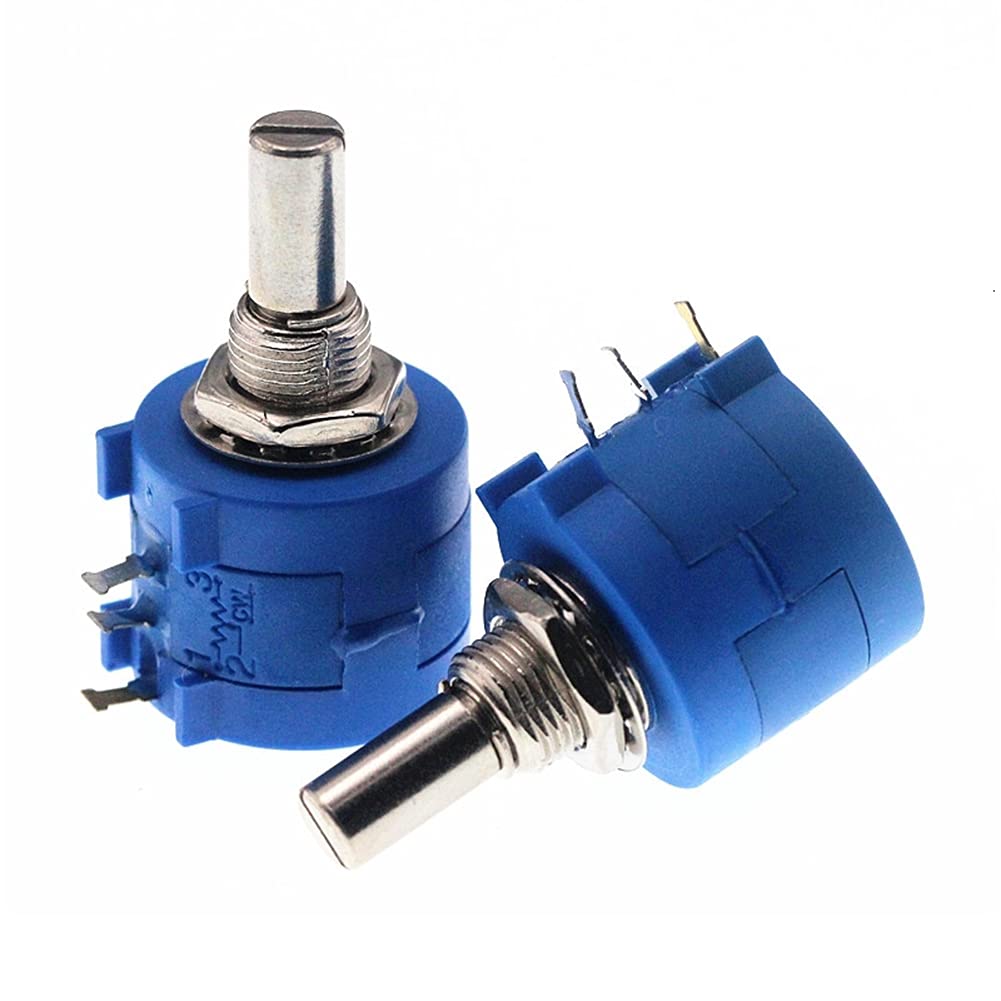

Molence 5PCS 3590S Potentiometer, Multiturn Wire Wound Precision Adjustable Resistor with Knob Cap (10K)

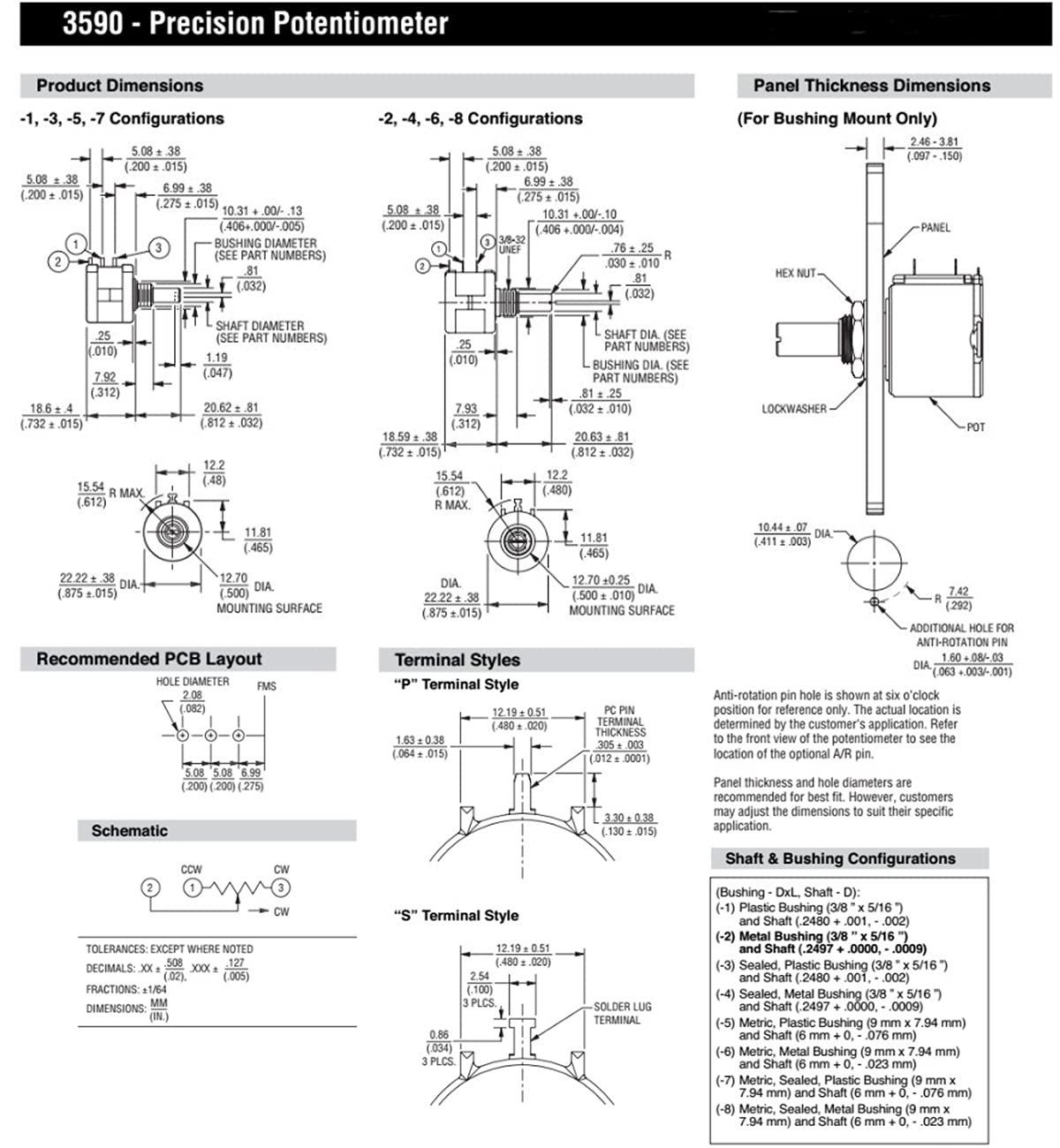

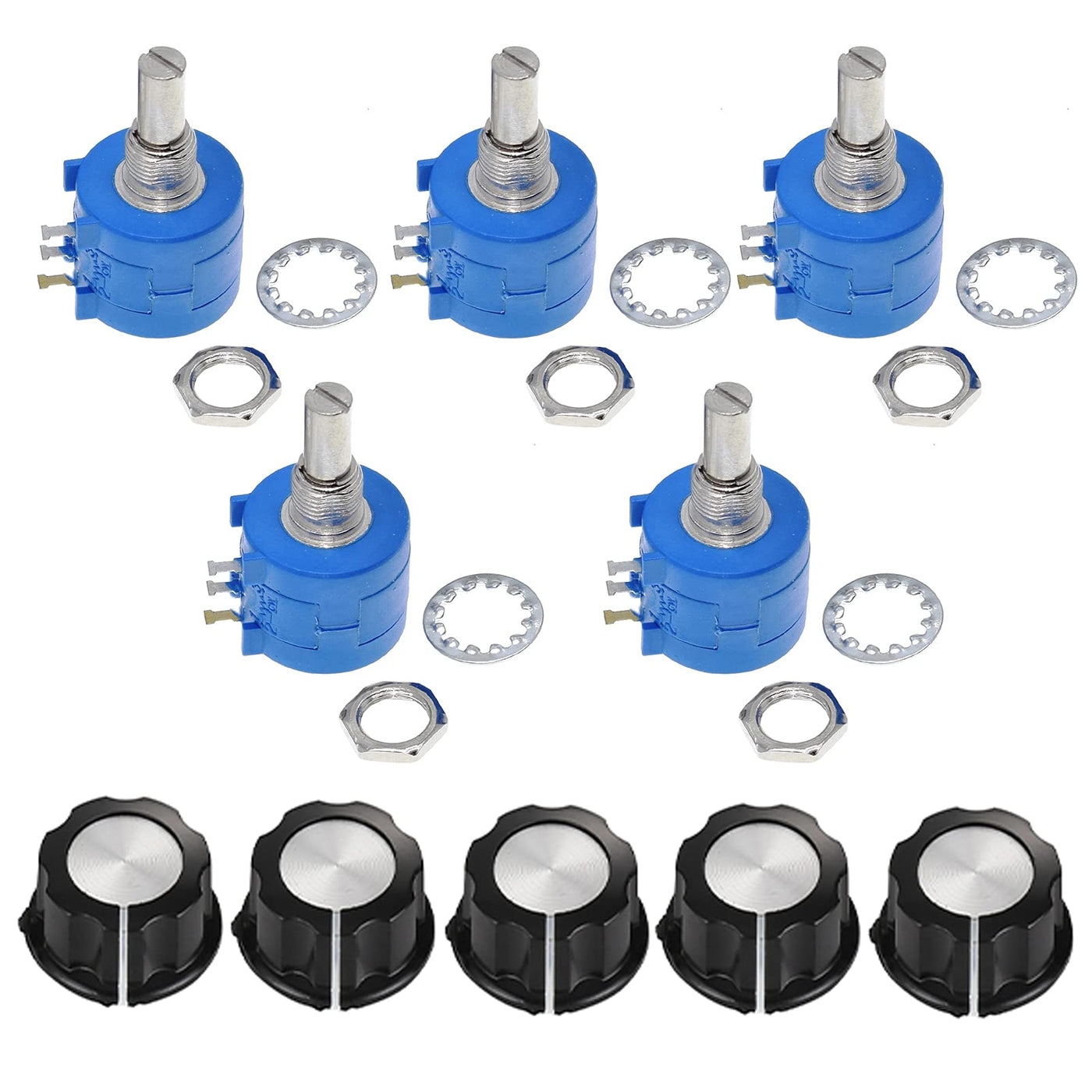

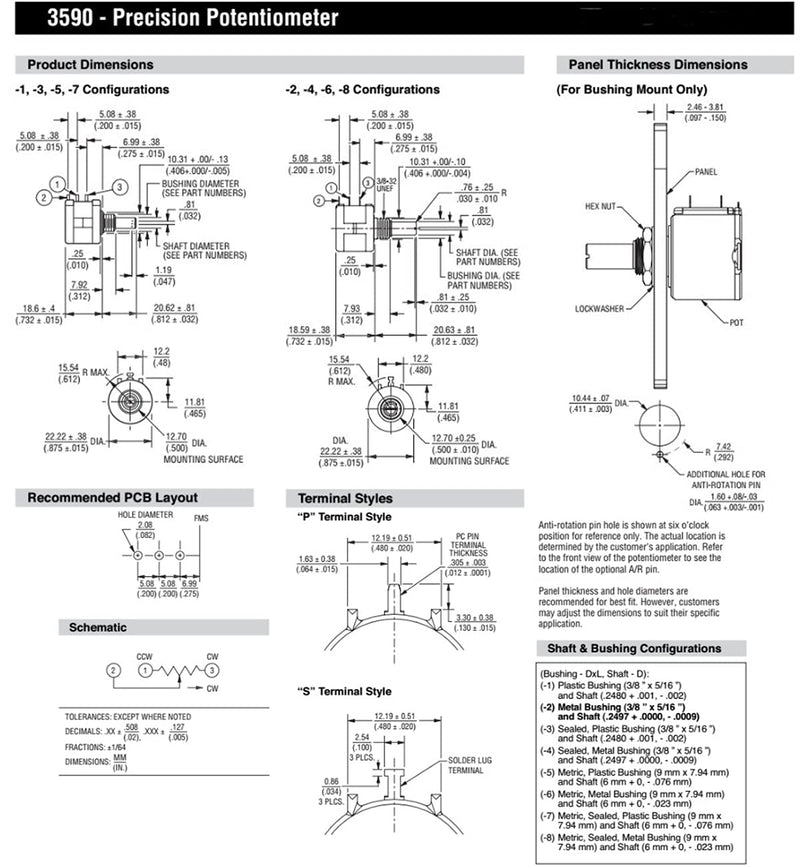

A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to digital output signals. Rotary encoders are used in a wide range of applications that require monitoring or control, or both, of mechanical systems, including industrial controls, robotics, photographic lenses, computer input devices such as optomechanical mice and trackballs, controlled stress rheometers, and rotating radar platforms. Specifications: Model: 3590S-2-103L Resistance: 10KΩ Resistance Tolerance: ±5% Independent linearity: ±0.25% Terminal Resistance: less than 0.2% Noise: less than 3% Insulation Resistance: 1GΩ Withstand Voltage: 710V Effective Electrical Travel: more than 3600 degrees Total Machanical Travel: 3600±10 degrees Mechanical Endurance: more than 10000 cycles Shaft Diameter: 6.35 x 10mm/ 0. 25" x 0. 4"(DL) Threaded Diameter: 9mm/ 0.35" Body Size(No Include Shaft) : 22 x 19mm/ 0.9" x 0.7" (DH) Total Length: 42mm / 1.65" Operating Temperature: -55℃~125℃ Package Content: 5PCS 10K 3590S 10K Potentiometer 5PCS Knob Cap

Product Features

  • The rotary potentiometer has the advantages of high accuracy, good stability, low temperature coefficient, reliable contact, high temperature resistance and strong power load capacity.
  • Product Name: 3590S Multiturn Wire Wound Rotary Potentiometer; Resistance value: 10K Ohm.
  • Mechanical Angle :3600; Resistance Tolerance: 5%; Independent linearity: 0.25%.
  • Shaft diameter: 6.35mm; Standard shaft length: 20mm; Body Size(No Include Shaft) : 22 x 19mm/ 0.9" x 0.7" (D*H). Adjust the resistance by rotating the shaft, and the product is equipped with a knob for better use.

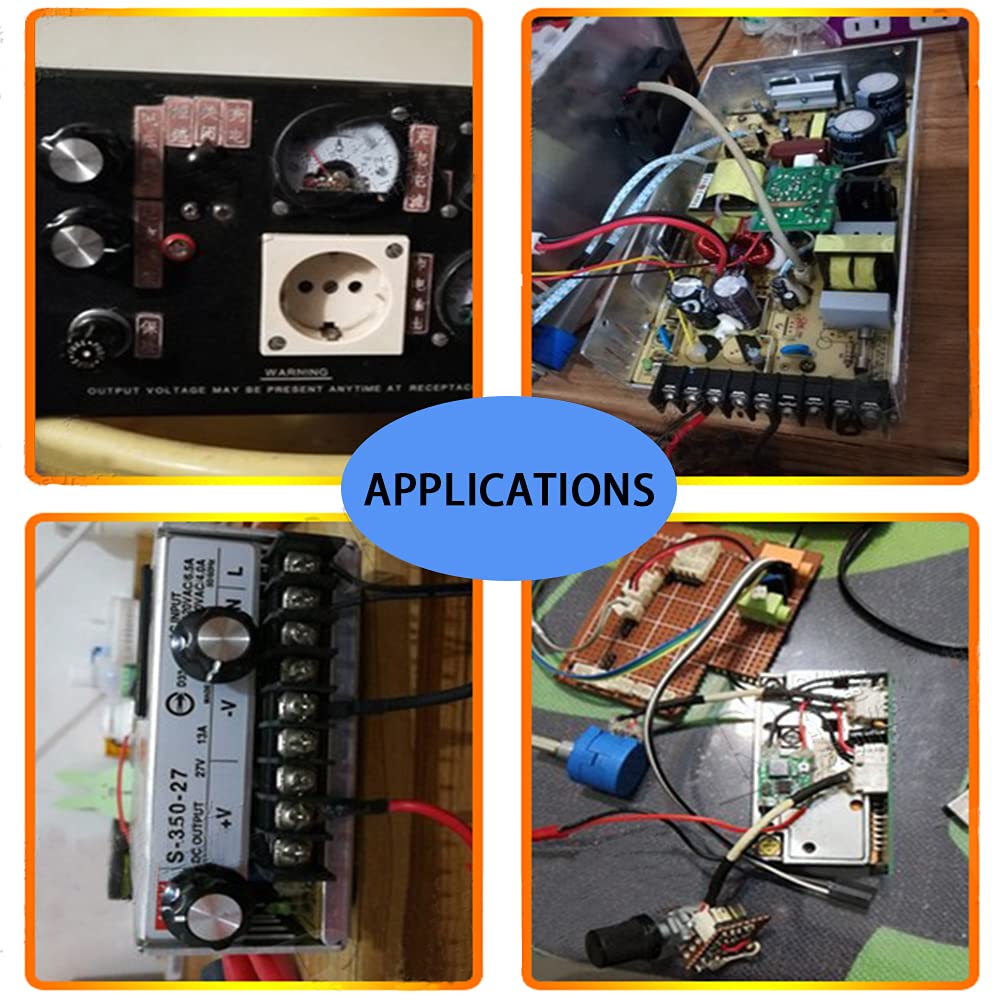

  • Widely used in Industrial controls, robotics, photographic lenses, computer input devices such as optomechanical mice and trackballs, controlled stress rheometers, and rotating radar platforms.
