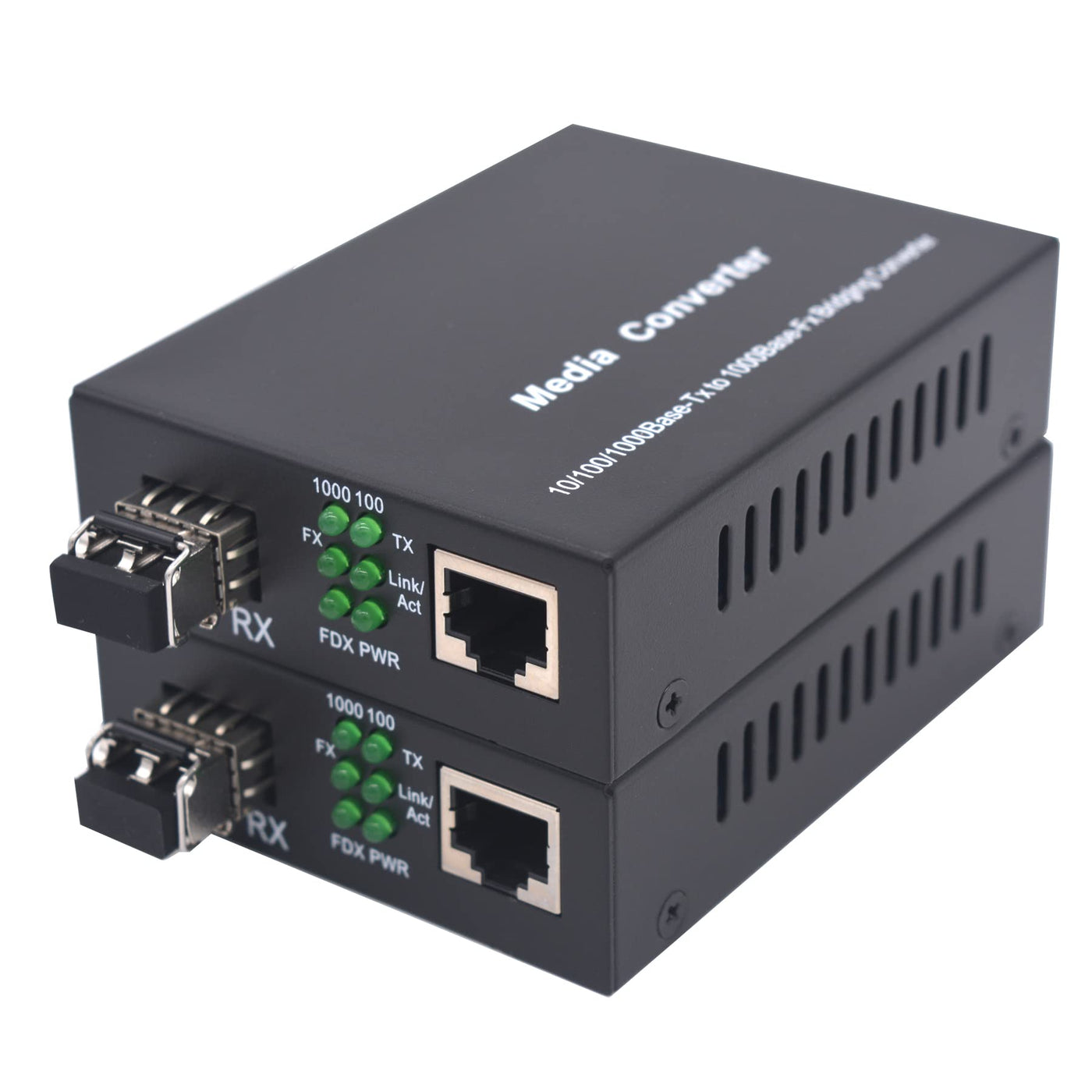

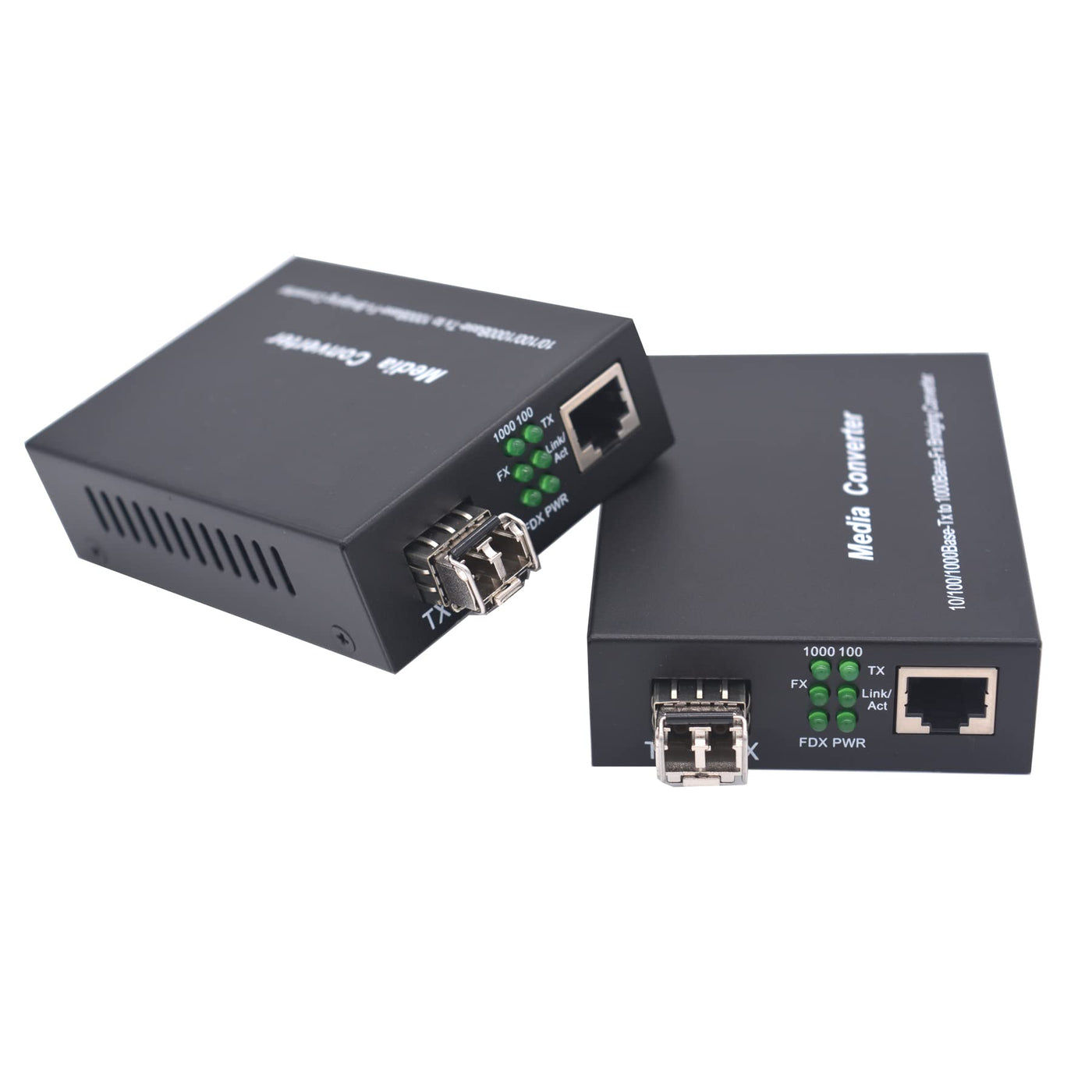

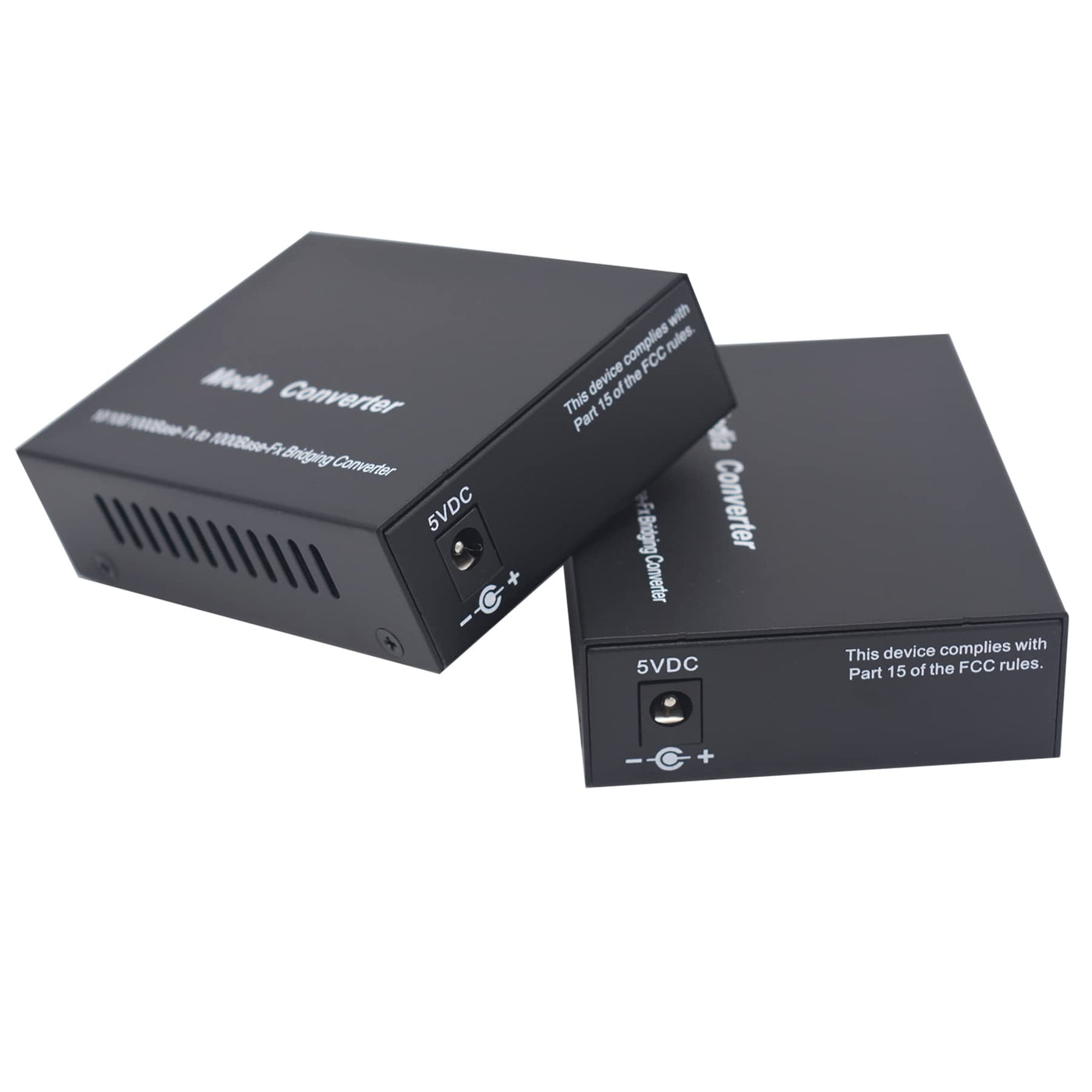

Multi-Mode LC Gigabit Fiber Media Converters - Include 2 SFP Transceiver 550M, Wavelength 850nm, LC to UTP Cat5e 10/100/1000 RJ-45 –Gigabit Ethernet Speed, A Set MM 550M 850nm,LC, Dual Core
Multi-Mode LC Gigabit Fiber Media Converters - Include 2 SFP Transceiver 550M, Wavelength 850nm, LC to UTP Cat5e 10/100/1000 RJ-45 –Gigabit Ethernet Speed, A Set

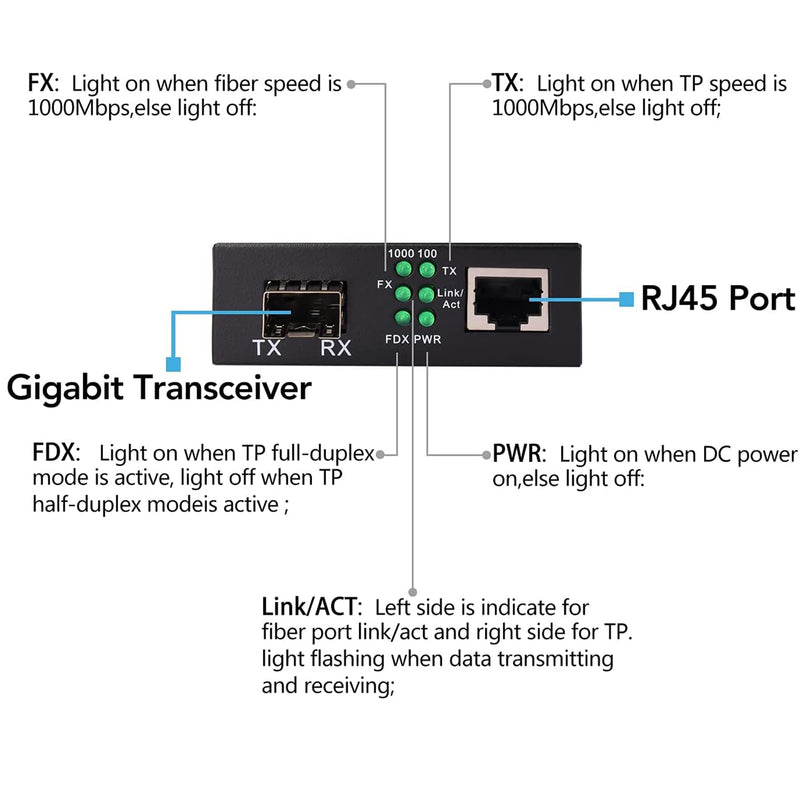

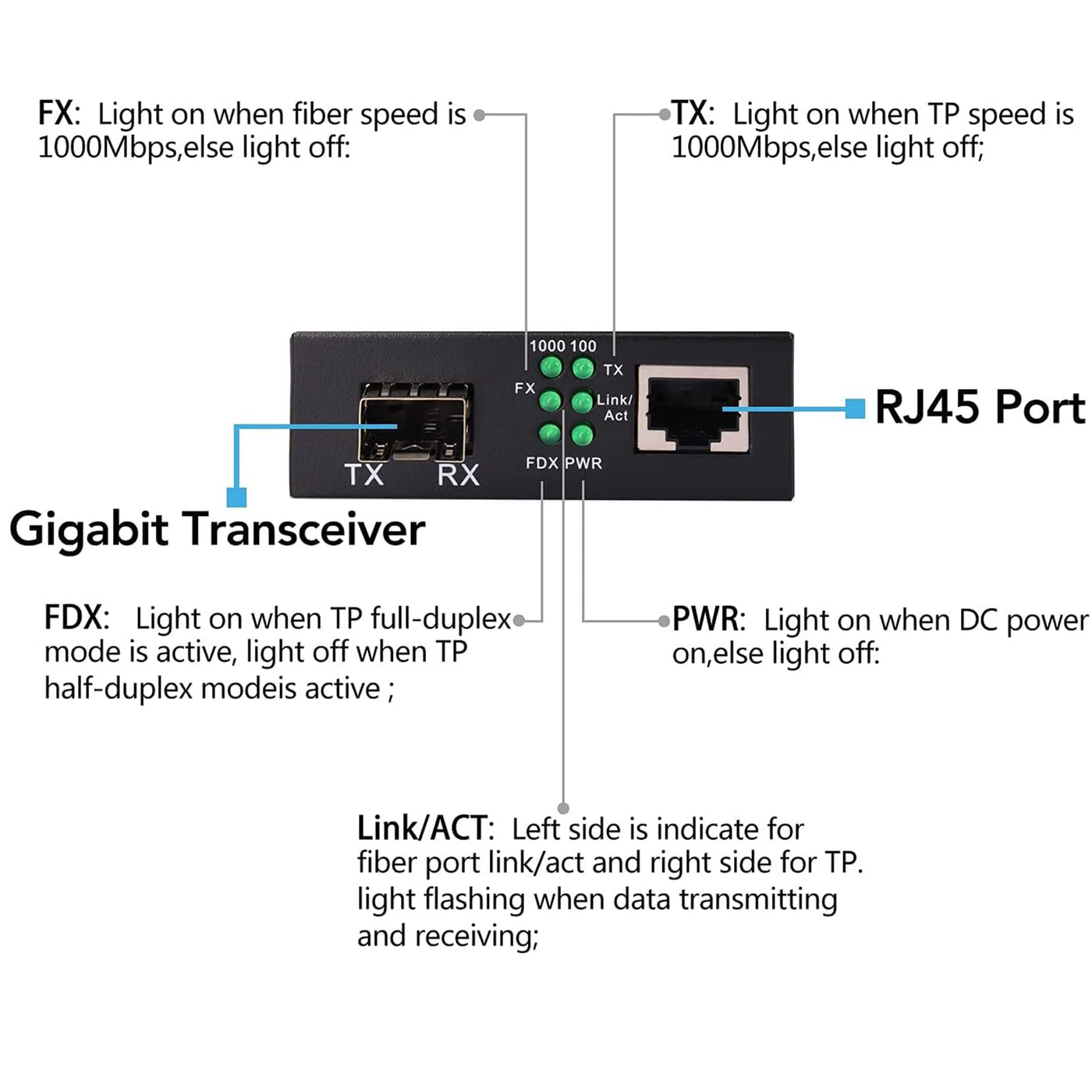

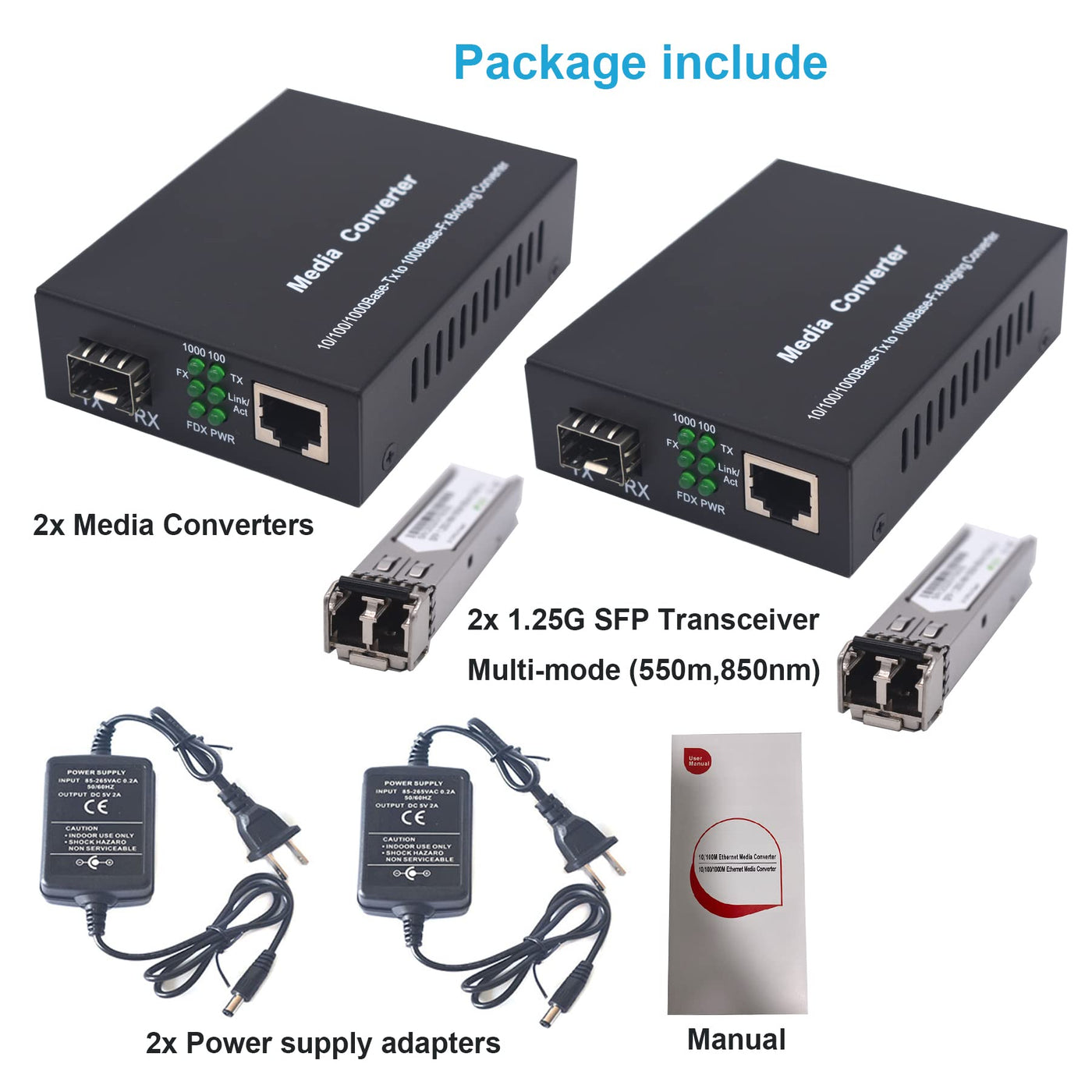

Specification: 1.Dimensions:95x72x27mm (LxWxH) 2.Power Adapter working voltage AC100V~240V DC5V1A, UL Certified. 3.Power Dissipation ≤3 watts. 4. High- quality Conversion Chip & Easy Installation, Operating temperature: 0°C to 60°C. 5. Storage temperature: -20°C to 70°C.Humidity:5% to 90% RH. Product content: 2x Gigabit Ethernet Fiber Media Converter. 2x SFP LC Multi-Mode module (850nm, up to 500M). 2x External Power Adapter (US standard), Output voltage:5V DC/1A, UL Certified. 1x Product Manual. LED Indicators 1.FP:Light on when fiber speed is 1000Mbps,else light off 2.TP:Light on when TP speed is 1000Mbps, else light off 3.Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving 4.FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active 5. PWR: Light on when DC power on, else light off.
Product Features
- Fiber Port: 550M SFP transceiver included (1.25G, Multi-mode, Wavelength 850nm).
- Fiber Type: SFP Multimode, Dual LC Fiber.
- AUTOMATICALLY adapts to 10/100/1000M(Gigabit)bit/s Speed And Extends it over Multi-Mode Fiber to up to 550meters.Use it with Multi-Mode Fiber Only.
- Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
- PLUG & PLAY Fiber Media Converters - Simply plug in SFP LC port and UTP RJ-45 port, it will work immediately.
