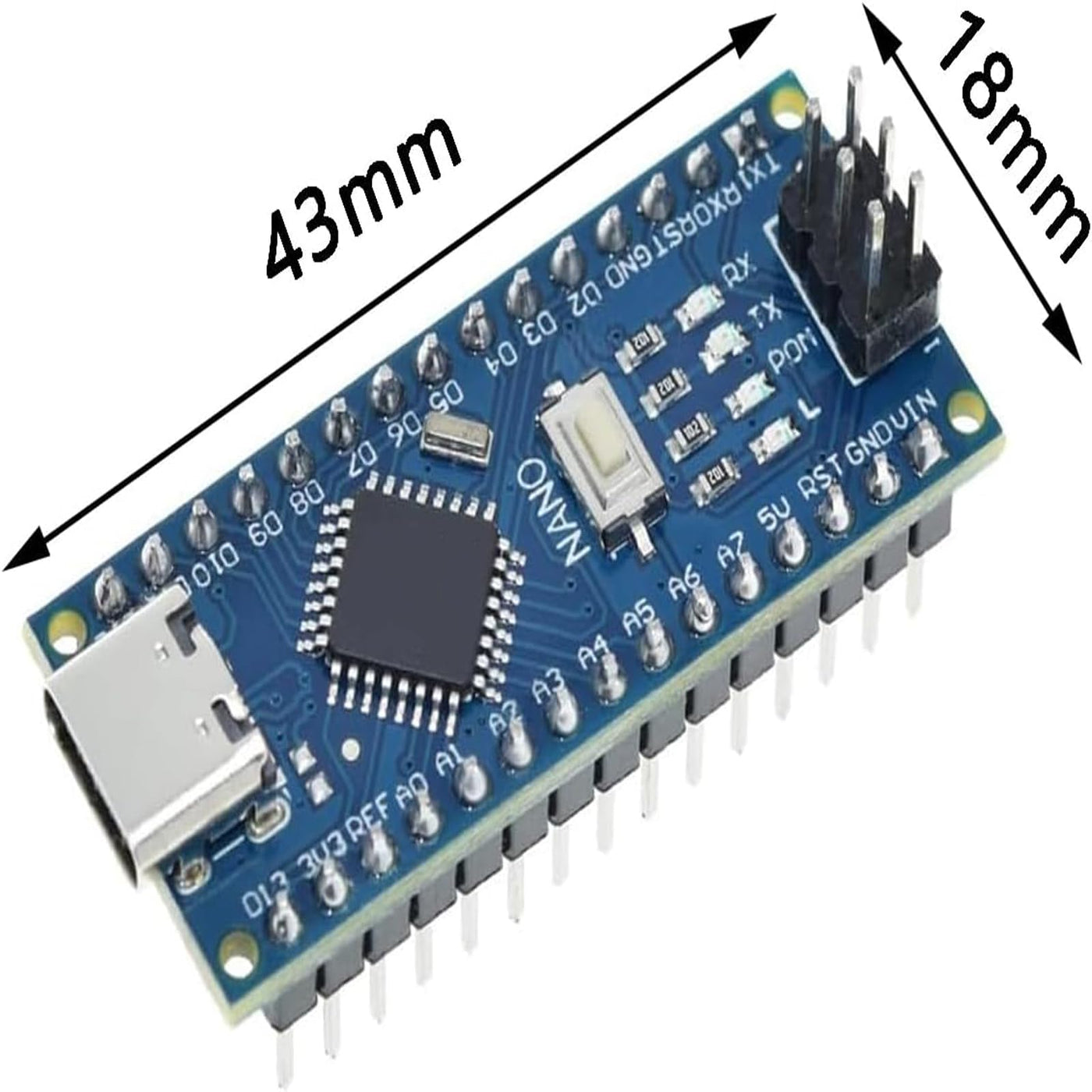

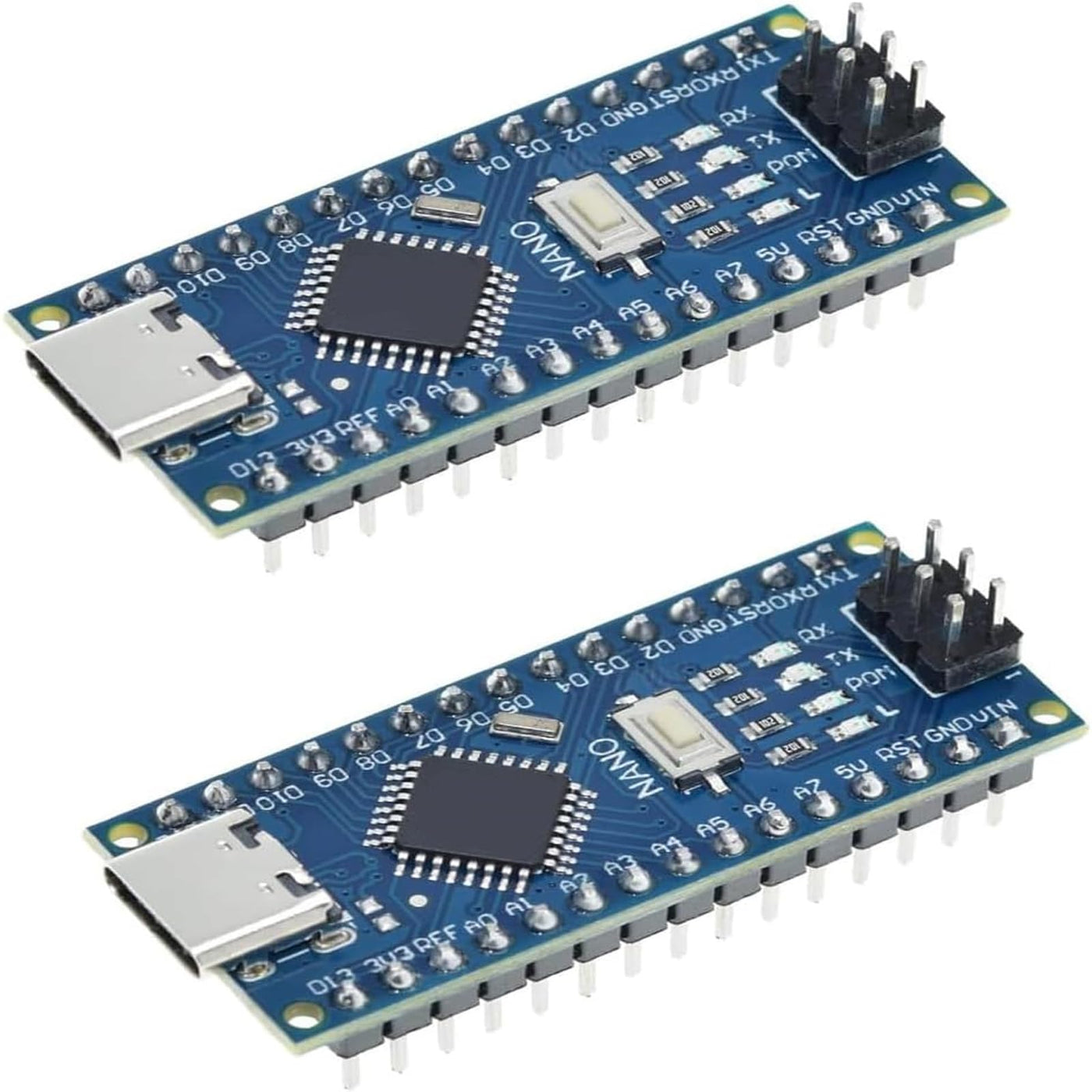

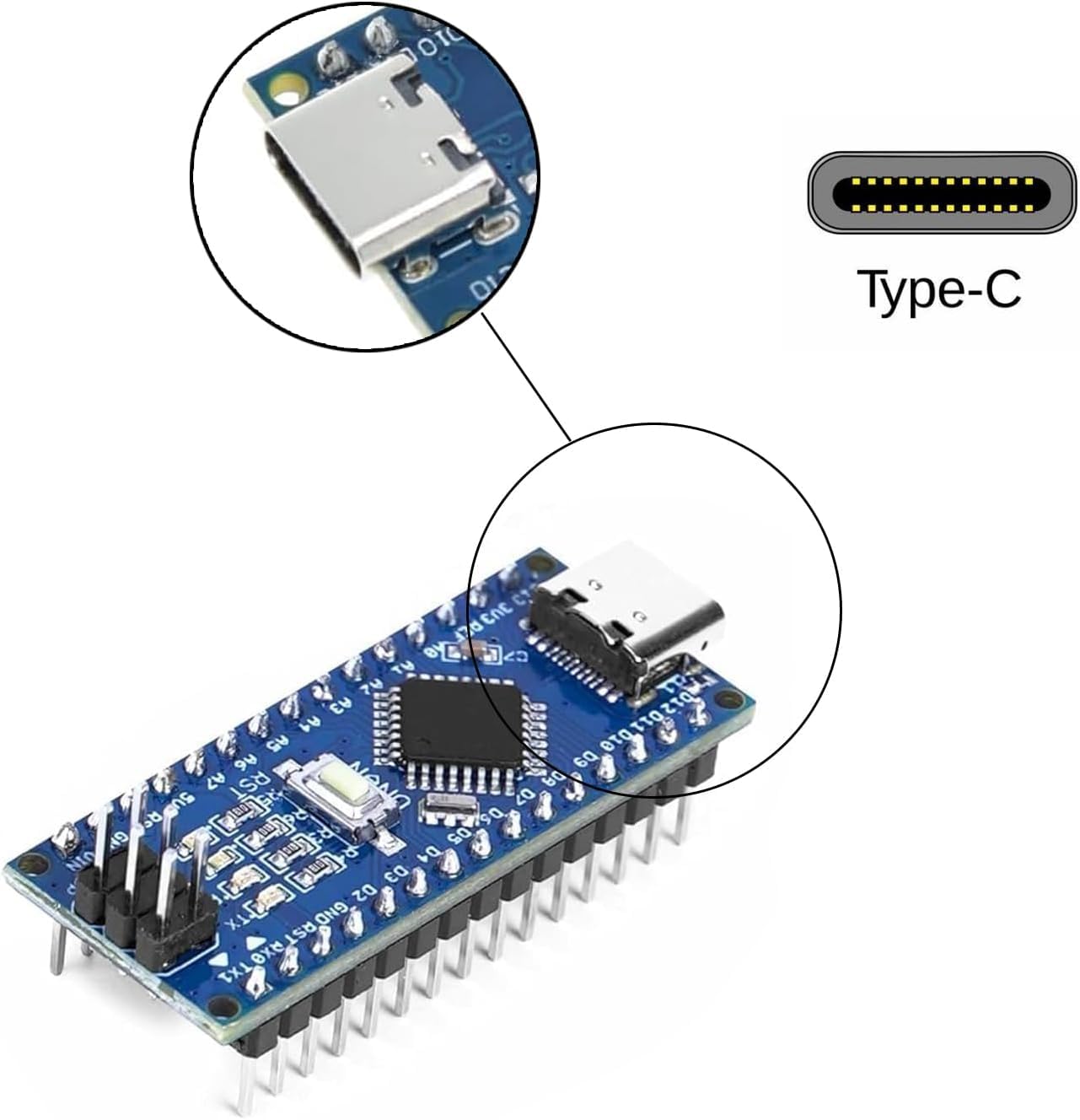

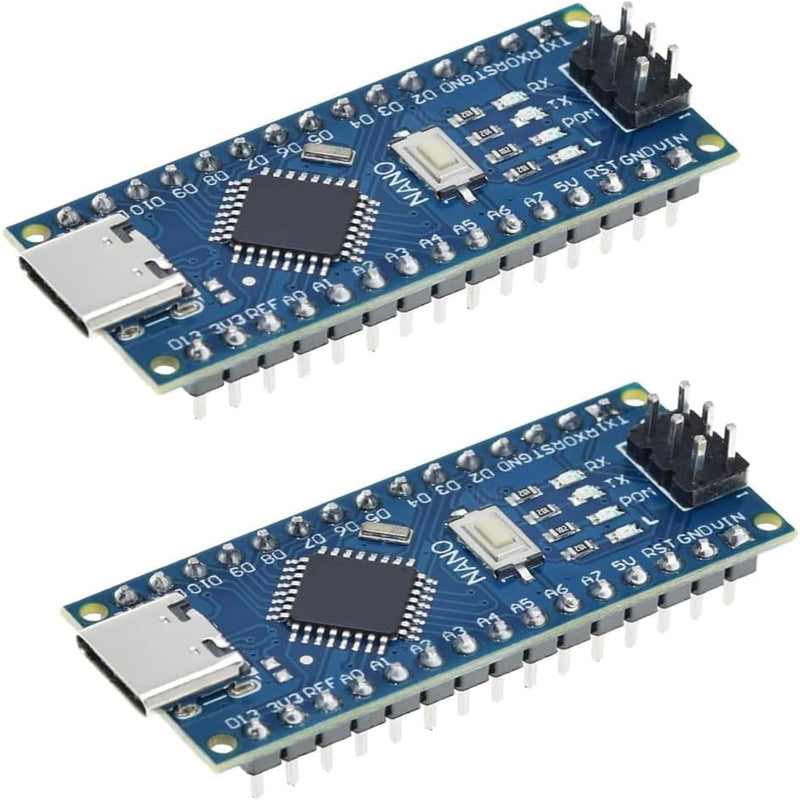

{"id":8534019866777,"title":"Nano Module with CH340 Microchip, 5 V\/16 MHz Nano Board Compatible with Arduino IDE (Type C Port) Pack of 2","handle":"nano-module-with-ch340-microchip-5-v-16-mhz-nano-board-compatible-with-arduino-ide-type-c-port-pack-of-2","description":"\u003ch3\u003eNano Module with CH340 Microchip, 5 V\/16 MHz Nano Board Compatible with Arduino IDE (Type C Port) Pack of 2\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eNano Module USB C Port - Development Board Compatible with Arduino, 5V\/16MHz,\nUSB Type-C Port Technical data: Supply voltage: 5V (USB) \/ 7-12V (Vin). I\/O\nVoltage: 5V Clock speed: 16 MHz. Flash memory: 32 KB (of which 2 KB is used by\nthe bootloader) SRAM 2KB EEPROM: 1 KB. 14 digital input\/output ports: TX, RX,\nD2 ~ D13 6 PWM ports: D3, D5, D6, D9, D10, D11. Analogue inputs: 8 (A0 ~ A7).\nUSB Port: Type C USB Microcontroller: Fully compatible with development board\nInput voltage (recommended) 7V-12V; input voltage (limits) 6V-20V. Bootloader\ninstalled, ready to load sketches from IDE software DC current per I\/O pin:\n40mA DC per pin: 3.3V 50mA Digital I\/O pins: 14 (6 of which have PWM output)\nPackage: 2 pieces development board with CH340 compatible with Arduino\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePERFORMANCE The Nano module is compatible with Arduino and offers high performance with a clock frequency of 16MHz and 32KB flash memory (includes 2KB for the bootloader).\u003c\/li\u003e\n \u003cli\u003eWide Compatibility The module CH340G 5V 16M USB-C microcontroller board development board with PIN headers. The unsoldered module is 100% compatible with Arduino and uses CH340 chips.\u003c\/li\u003e\n \u003cli\u003eUSB Type C Port The development board is equipped with a modern USB Type-C port, which makes it easier to connect and program the device, providing a more robust and reversible connection compared to traditional micro USB ports.\u003c\/li\u003e\n \u003cli\u003ePin Layout It features a pin layout that works well with the Mini (TX, RX, ATN, GND) on one side and the power supply and ground on the other.\u003c\/li\u003e\n \u003cli\u003eFlexible Power Supply: The nano development board supports USB (5V) and VIN pin (7-12V), which allows versatile use in various applications.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T09:12:38+10:00","created_at":"2025-09-27T09:12:35+10:00","vendor":"GERUI","type":"Microcontrollers","tags":["industryDE_Sep2025"],"price":12300,"price_min":12300,"price_max":12300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45749940813977,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0F2F6MF87","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Nano Module with CH340 Microchip, 5 V\/16 MHz Nano Board Compatible with Arduino IDE (Type C Port) Pack of 2","public_title":null,"options":["Default Title"],"price":12300,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"744243203964","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0F2F6MF87.jpg?v=1775754451","\/\/soundstores.net\/cdn\/shop\/files\/71ighmN9wBL.jpg?v=1758928357","\/\/soundstores.net\/cdn\/shop\/files\/71NbGgPSuUL.jpg?v=1758928358","\/\/soundstores.net\/cdn\/shop\/files\/61E7Yx4wN7L.jpg?v=1758928357","\/\/soundstores.net\/cdn\/shop\/files\/81MPEwJDajL.jpg?v=1758928358"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0F2F6MF87.jpg?v=1775754451","options":["Title"],"media":[{"alt":null,"id":34662706806937,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0F2F6MF87.jpg?v=1775754451"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0F2F6MF87.jpg?v=1775754451","width":1600},{"alt":null,"id":34662706839705,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71ighmN9wBL.jpg?v=1758928357"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71ighmN9wBL.jpg?v=1758928357","width":1600},{"alt":null,"id":34662706872473,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71NbGgPSuUL.jpg?v=1758928358"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71NbGgPSuUL.jpg?v=1758928358","width":1600},{"alt":null,"id":34662706905241,"position":4,"preview_image":{"aspect_ratio":0.965,"height":1328,"width":1281,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61E7Yx4wN7L.jpg?v=1758928357"},"aspect_ratio":0.965,"height":1328,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61E7Yx4wN7L.jpg?v=1758928357","width":1281},{"alt":null,"id":34662706938009,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81MPEwJDajL.jpg?v=1758928358"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81MPEwJDajL.jpg?v=1758928358","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNano Module with CH340 Microchip, 5 V\/16 MHz Nano Board Compatible with Arduino IDE (Type C Port) Pack of 2\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eNano Module USB C Port - Development Board Compatible with Arduino, 5V\/16MHz,\nUSB Type-C Port Technical data: Supply voltage: 5V (USB) \/ 7-12V (Vin). I\/O\nVoltage: 5V Clock speed: 16 MHz. Flash memory: 32 KB (of which 2 KB is used by\nthe bootloader) SRAM 2KB EEPROM: 1 KB. 14 digital input\/output ports: TX, RX,\nD2 ~ D13 6 PWM ports: D3, D5, D6, D9, D10, D11. Analogue inputs: 8 (A0 ~ A7).\nUSB Port: Type C USB Microcontroller: Fully compatible with development board\nInput voltage (recommended) 7V-12V; input voltage (limits) 6V-20V. Bootloader\ninstalled, ready to load sketches from IDE software DC current per I\/O pin:\n40mA DC per pin: 3.3V 50mA Digital I\/O pins: 14 (6 of which have PWM output)\nPackage: 2 pieces development board with CH340 compatible with Arduino\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePERFORMANCE The Nano module is compatible with Arduino and offers high performance with a clock frequency of 16MHz and 32KB flash memory (includes 2KB for the bootloader).\u003c\/li\u003e\n \u003cli\u003eWide Compatibility The module CH340G 5V 16M USB-C microcontroller board development board with PIN headers. The unsoldered module is 100% compatible with Arduino and uses CH340 chips.\u003c\/li\u003e\n \u003cli\u003eUSB Type C Port The development board is equipped with a modern USB Type-C port, which makes it easier to connect and program the device, providing a more robust and reversible connection compared to traditional micro USB ports.\u003c\/li\u003e\n \u003cli\u003ePin Layout It features a pin layout that works well with the Mini (TX, RX, ATN, GND) on one side and the power supply and ground on the other.\u003c\/li\u003e\n \u003cli\u003eFlexible Power Supply: The nano development board supports USB (5V) and VIN pin (7-12V), which allows versatile use in various applications.\u003c\/li\u003e\n \u003c\/ul\u003e"}
