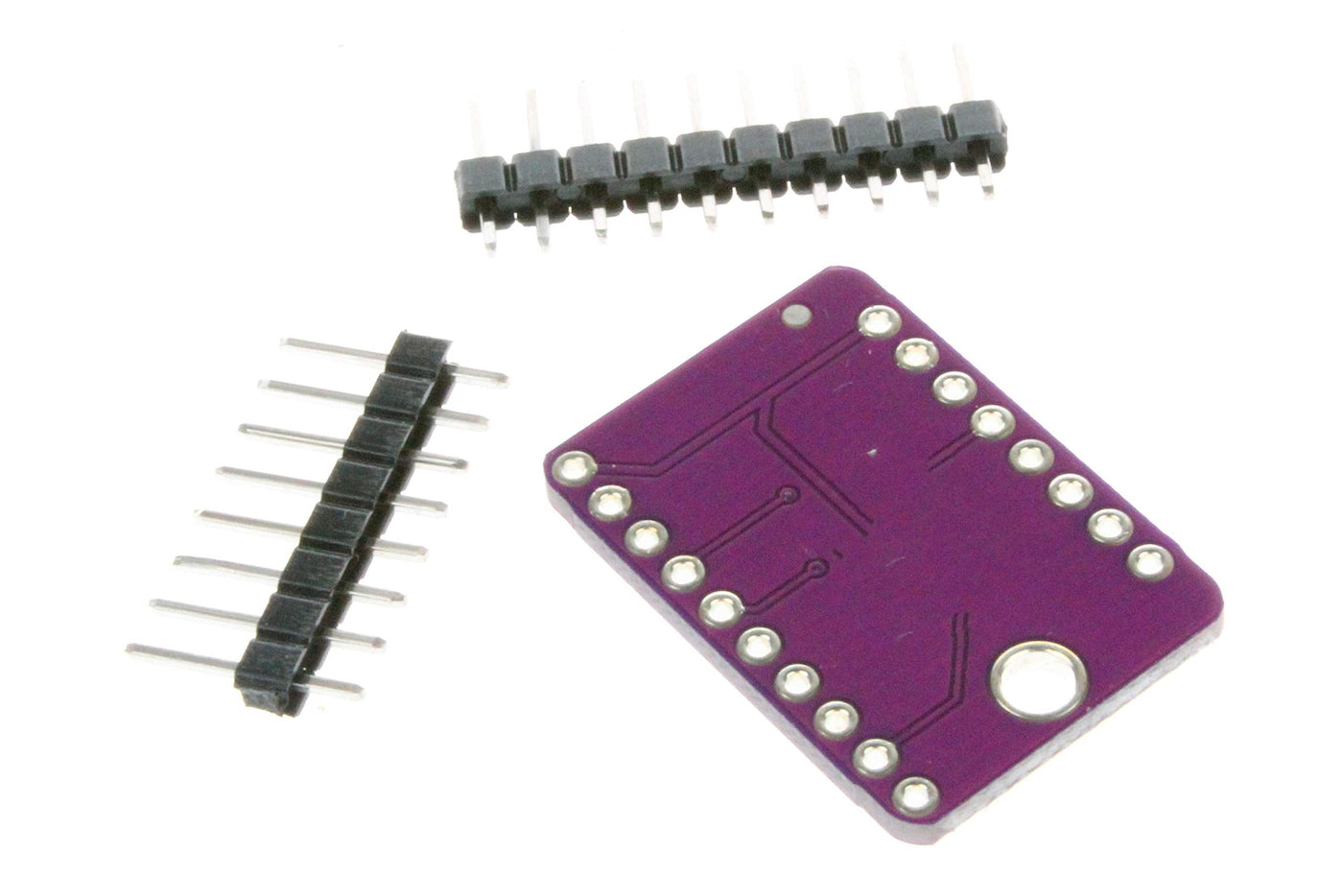

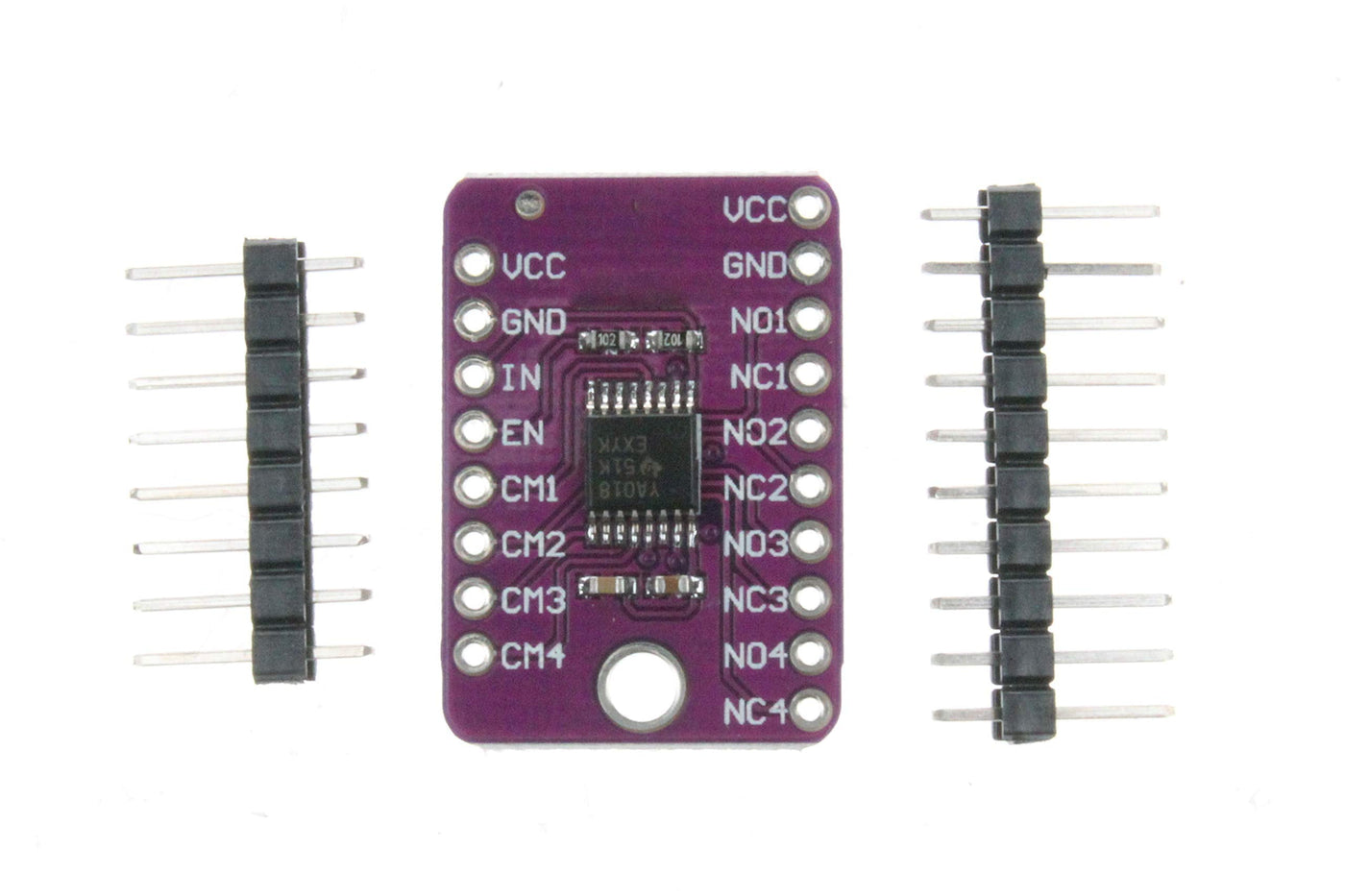

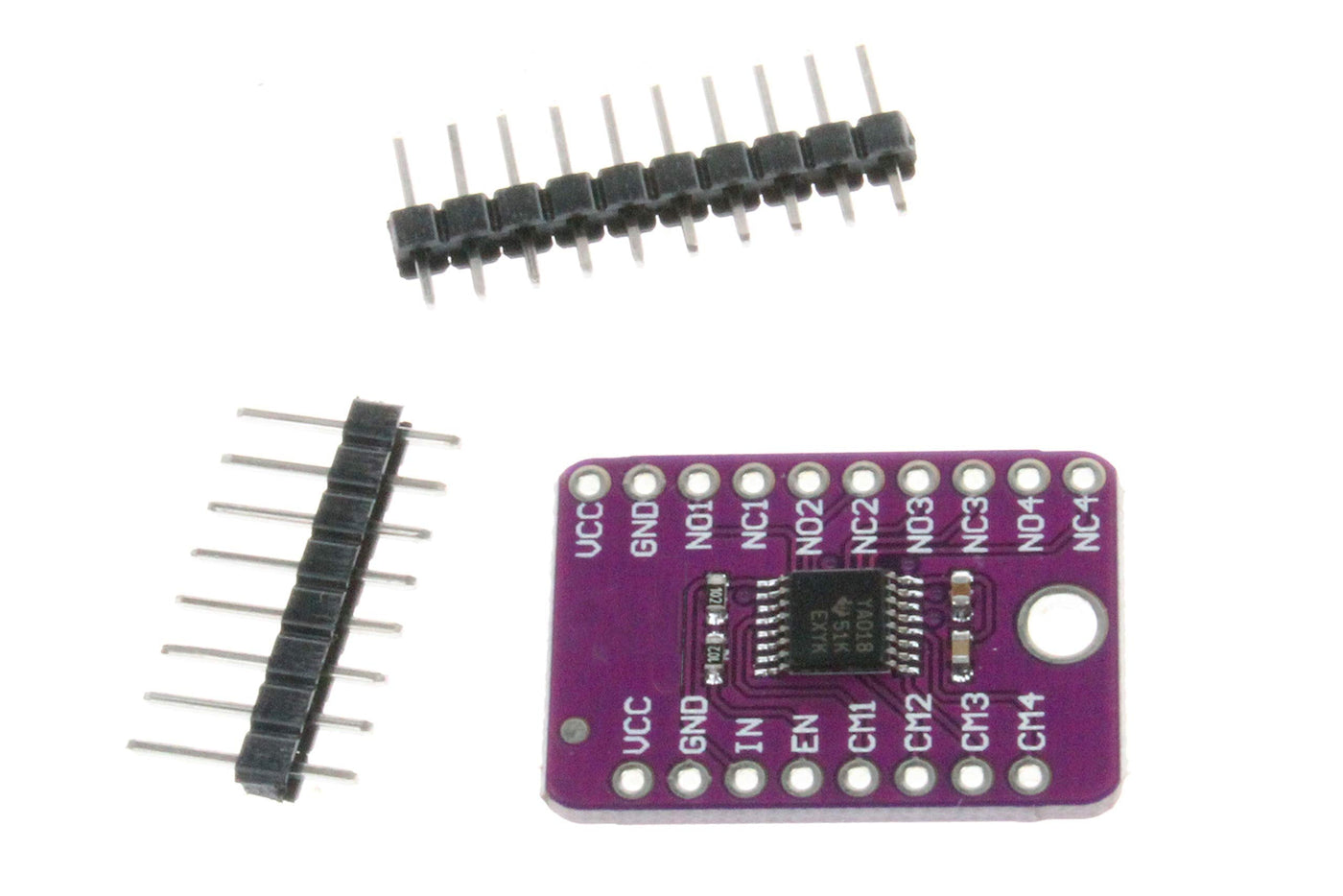

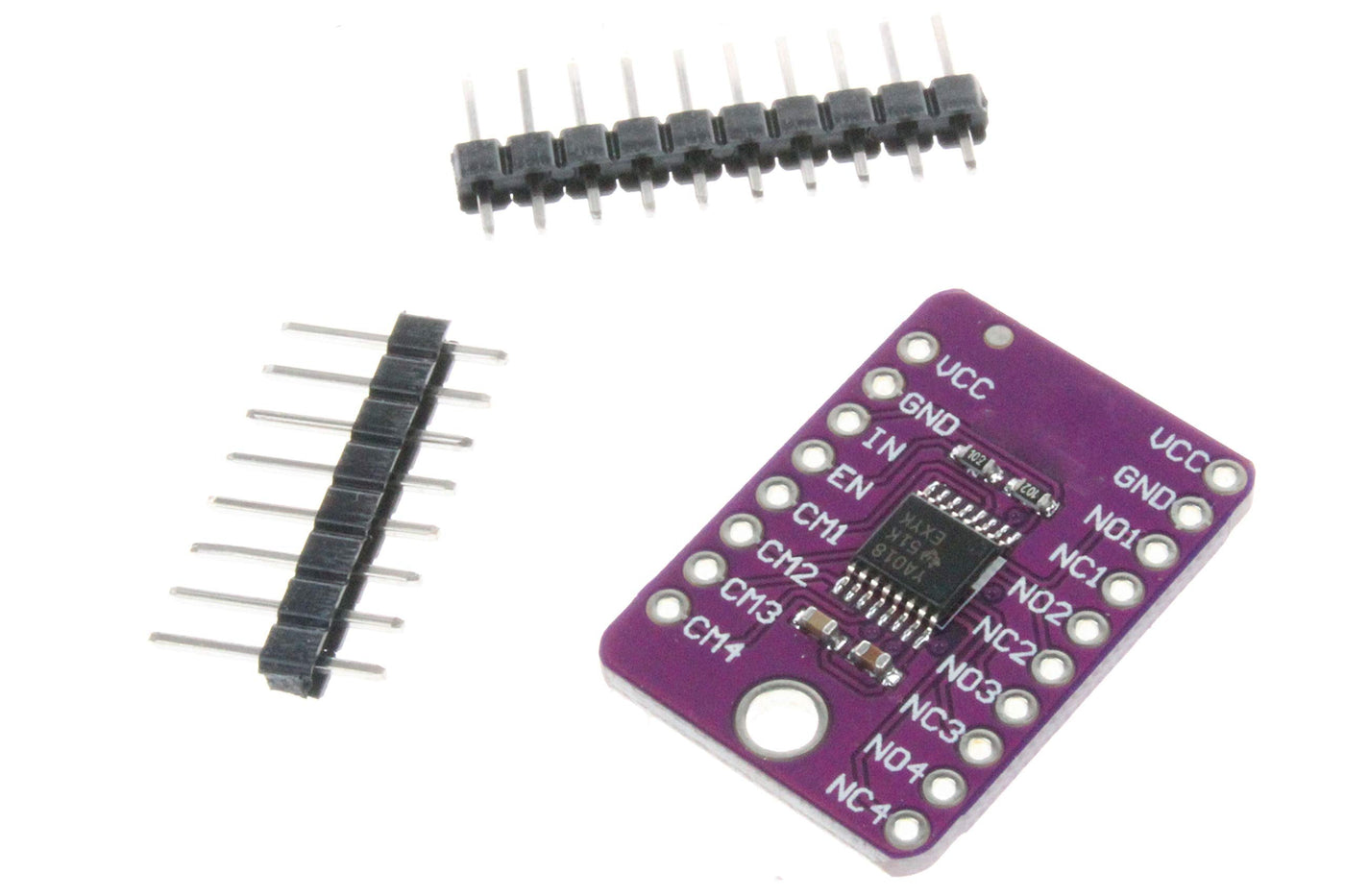

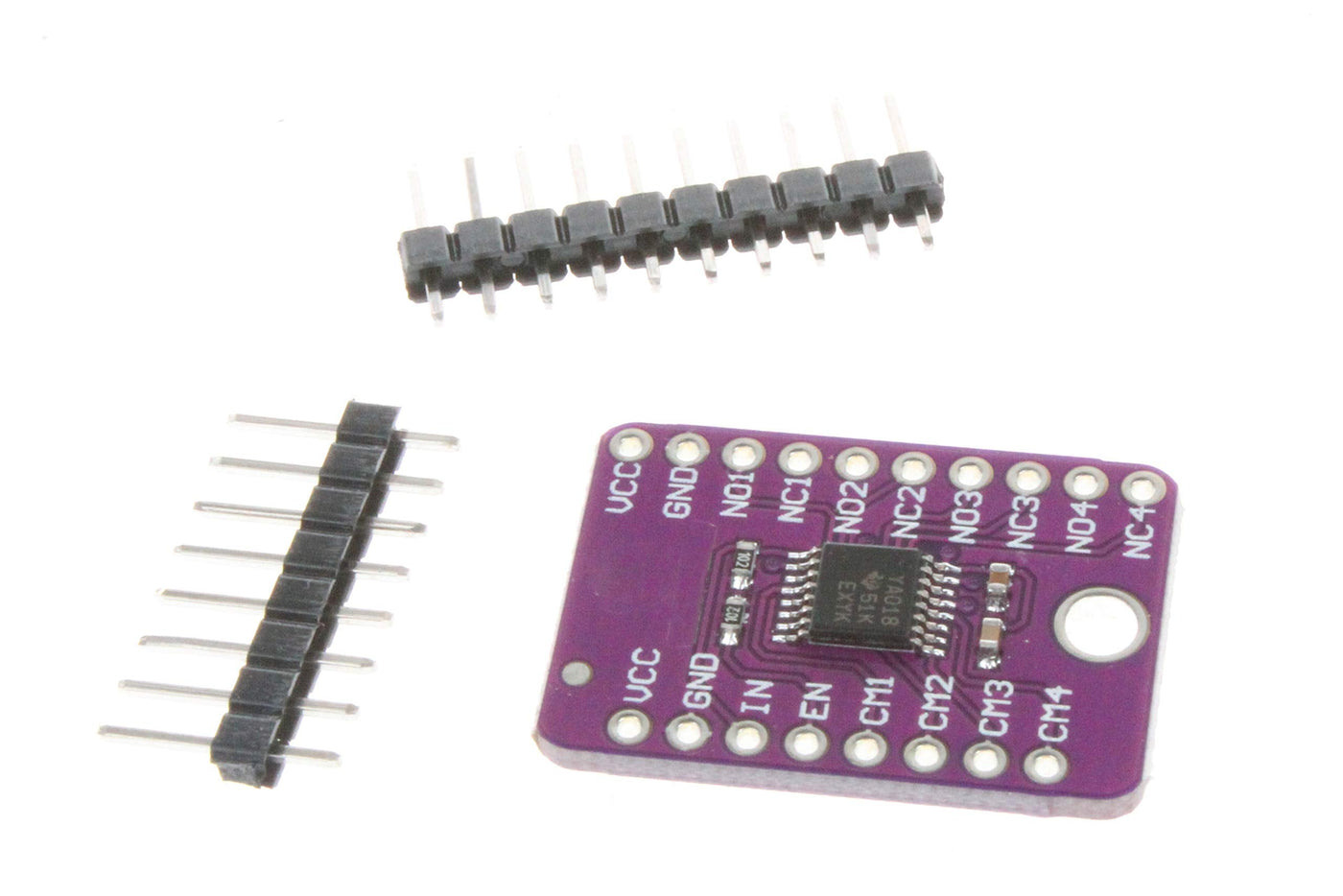

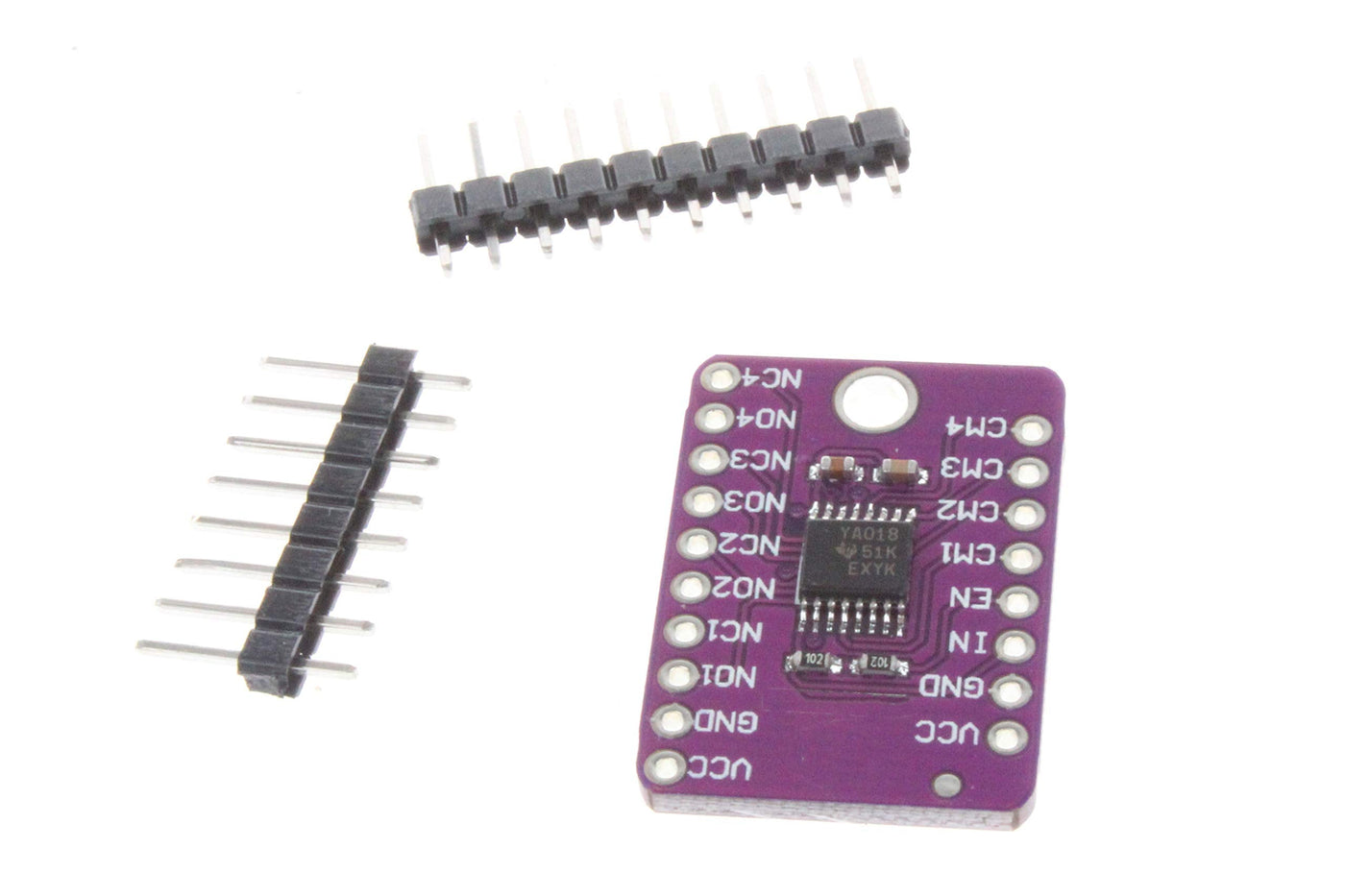

{"id":8810953441433,"title":"NOYITO TS3A5018 10Ohm Quad Channel SPDT Analog Switch Module","handle":"noyito-ts3a5018-10ohm-quad-channel-spdt-analog-switch-module","description":" \u003ch1\u003eNOYITO TS3A5018 10Ohm Quad Channel SPDT Analog Switch Module\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eFeatures Low ON-State Resistance (10 Ω) Low Charge Injection Excellent ON-\nState Resistance Matching ON-state resistance (ron): 7 Ohm ON-state resistance\nmatch (ron): 0.3Ohm ON-state resistance flatness (ron(flat)): 5Ohm Low Total\nHarmonic Distortion (THD) 2.3-V to 3.6-V Single-Supply Operation Control\nInputs are 5-V Tolerant Latch-Up Performance Exceeds 100 mA Per JESD 78, Class\nII Turn-on\/turn-off time (tON\/tOFF) :3.5 ns\/2 ns Charge injection (QC): 2 pC\nBandwidth (BW): 300 MHz OFF isolation (OISO): -48 dB at 10 MHz Crosstalk\n(XTALK): -48 dB at 10 MHz Total harmonic distortion (THD): 0.2% Leakage\ncurrent (ICOM(OFF)): +\/-5 μA Power-supply current (I+) : 2.5 μA Applications\nSample-and-Hold Circuit Battery-Powered Equipment Audio and Video Signal\nRouting Communication Circuits Package Inclucded: 1pcs NOYITO TS3A5018 10Ω\nQuad Channel SPDT Analog Switch Module\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eThe TS3A5018 is a quad single-pole double-throw (SPDT) analog switch that is designed to operate from 2.3 V to 3.6 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.\u003c\/li\u003e\n\u003cli\u003eLow ON-State Resistance (10 )\u003c\/li\u003e\n\u003cli\u003eLow Charge Injection\u003c\/li\u003e\n\u003cli\u003eExcellent ON-State Resistance Matching\u003c\/li\u003e\n\u003cli\u003eLow Total Harmonic Distortion (THD) ,2.3-V to 3.6-V Single-Supply Operation\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n ","published_at":"2026-07-20T15:59:08+10:00","created_at":"2026-07-20T15:59:08+10:00","vendor":"NOYITO","type":"Industrial Switches","tags":["electronics_Sep2022"],"price":10800,"price_min":10800,"price_max":10800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48332092997785,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07PS18HST","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO TS3A5018 10Ohm Quad Channel SPDT Analog Switch Module","public_title":null,"options":["Default Title"],"price":10800,"weight":5,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/B07PS18HST.jpg?v=1784527150","\/\/soundstores.net\/cdn\/shop\/files\/713rol47vNL.jpg?v=1784527150","\/\/soundstores.net\/cdn\/shop\/files\/71nG22NoZoL.jpg?v=1784527150","\/\/soundstores.net\/cdn\/shop\/files\/71w8CAd8mDL.jpg?v=1784527150","\/\/soundstores.net\/cdn\/shop\/files\/71nJa9kL_oL.jpg?v=1784527150","\/\/soundstores.net\/cdn\/shop\/files\/71tx-m6663L.jpg?v=1784527150"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/B07PS18HST.jpg?v=1784527150","options":["Title"],"media":[{"alt":null,"id":36746118398105,"position":1,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/B07PS18HST.jpg?v=1784527150"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/B07PS18HST.jpg?v=1784527150","width":2560},{"alt":null,"id":36746118430873,"position":2,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/713rol47vNL.jpg?v=1784527150"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/713rol47vNL.jpg?v=1784527150","width":2560},{"alt":null,"id":36746118463641,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71nG22NoZoL.jpg?v=1784527150"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71nG22NoZoL.jpg?v=1784527150","width":2560},{"alt":null,"id":36746118496409,"position":4,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71w8CAd8mDL.jpg?v=1784527150"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71w8CAd8mDL.jpg?v=1784527150","width":2560},{"alt":null,"id":36746118529177,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71nJa9kL_oL.jpg?v=1784527150"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71nJa9kL_oL.jpg?v=1784527150","width":2560},{"alt":null,"id":36746118561945,"position":6,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71tx-m6663L.jpg?v=1784527150"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71tx-m6663L.jpg?v=1784527150","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":" \u003ch1\u003eNOYITO TS3A5018 10Ohm Quad Channel SPDT Analog Switch Module\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eFeatures Low ON-State Resistance (10 Ω) Low Charge Injection Excellent ON-\nState Resistance Matching ON-state resistance (ron): 7 Ohm ON-state resistance\nmatch (ron): 0.3Ohm ON-state resistance flatness (ron(flat)): 5Ohm Low Total\nHarmonic Distortion (THD) 2.3-V to 3.6-V Single-Supply Operation Control\nInputs are 5-V Tolerant Latch-Up Performance Exceeds 100 mA Per JESD 78, Class\nII Turn-on\/turn-off time (tON\/tOFF) :3.5 ns\/2 ns Charge injection (QC): 2 pC\nBandwidth (BW): 300 MHz OFF isolation (OISO): -48 dB at 10 MHz Crosstalk\n(XTALK): -48 dB at 10 MHz Total harmonic distortion (THD): 0.2% Leakage\ncurrent (ICOM(OFF)): +\/-5 μA Power-supply current (I+) : 2.5 μA Applications\nSample-and-Hold Circuit Battery-Powered Equipment Audio and Video Signal\nRouting Communication Circuits Package Inclucded: 1pcs NOYITO TS3A5018 10Ω\nQuad Channel SPDT Analog Switch Module\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eThe TS3A5018 is a quad single-pole double-throw (SPDT) analog switch that is designed to operate from 2.3 V to 3.6 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.\u003c\/li\u003e\n\u003cli\u003eLow ON-State Resistance (10 )\u003c\/li\u003e\n\u003cli\u003eLow Charge Injection\u003c\/li\u003e\n\u003cli\u003eExcellent ON-State Resistance Matching\u003c\/li\u003e\n\u003cli\u003eLow Total Harmonic Distortion (THD) ,2.3-V to 3.6-V Single-Supply Operation\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n "}
