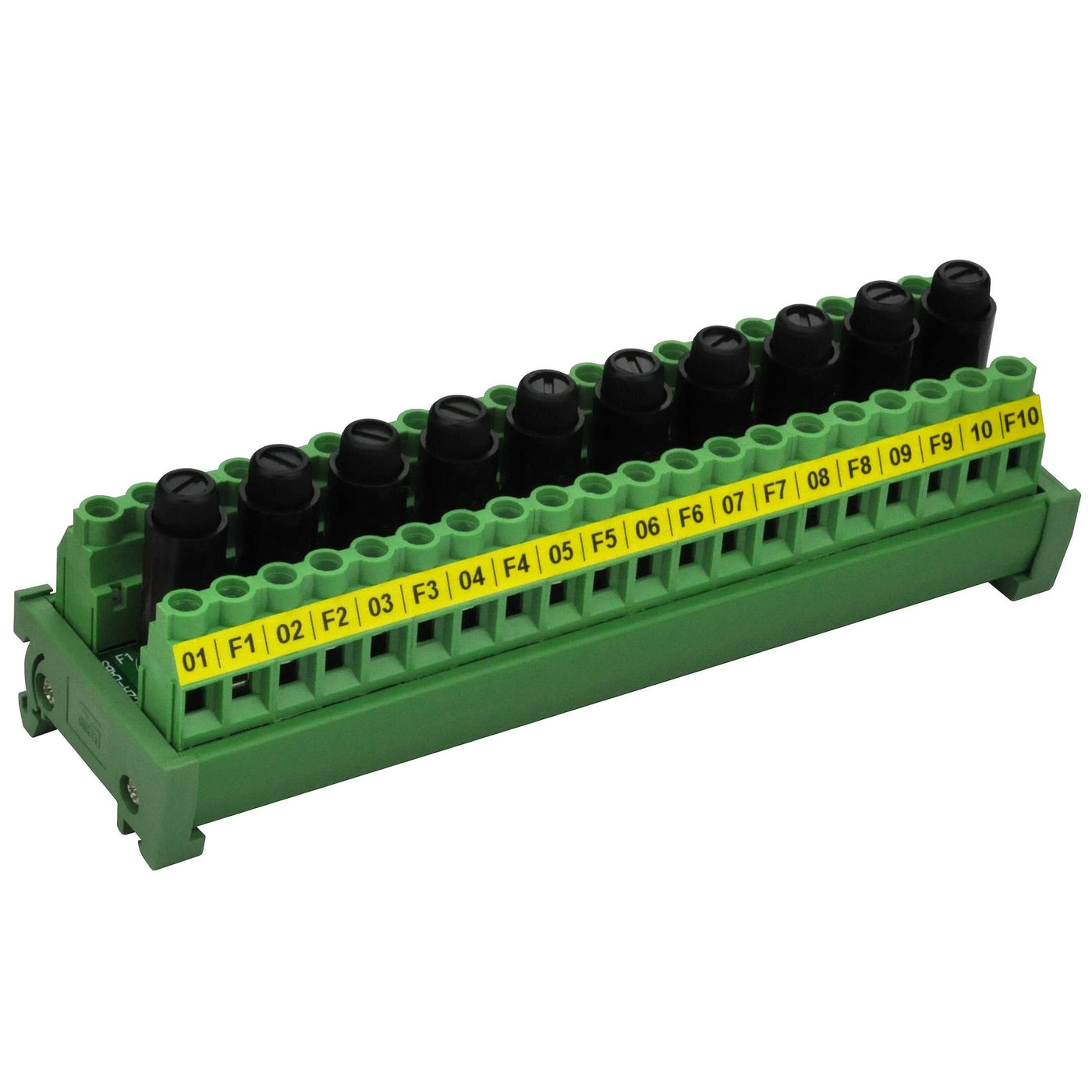

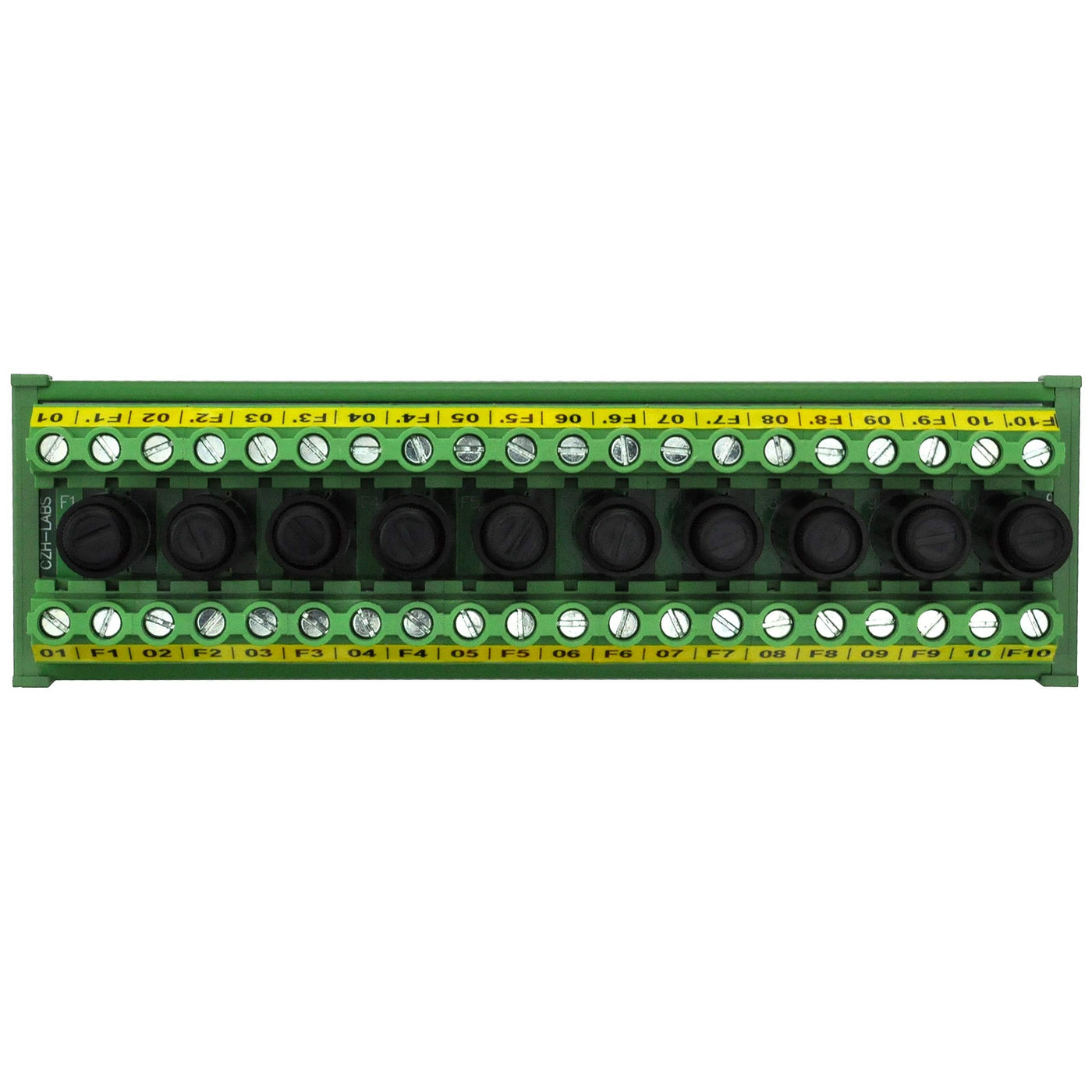

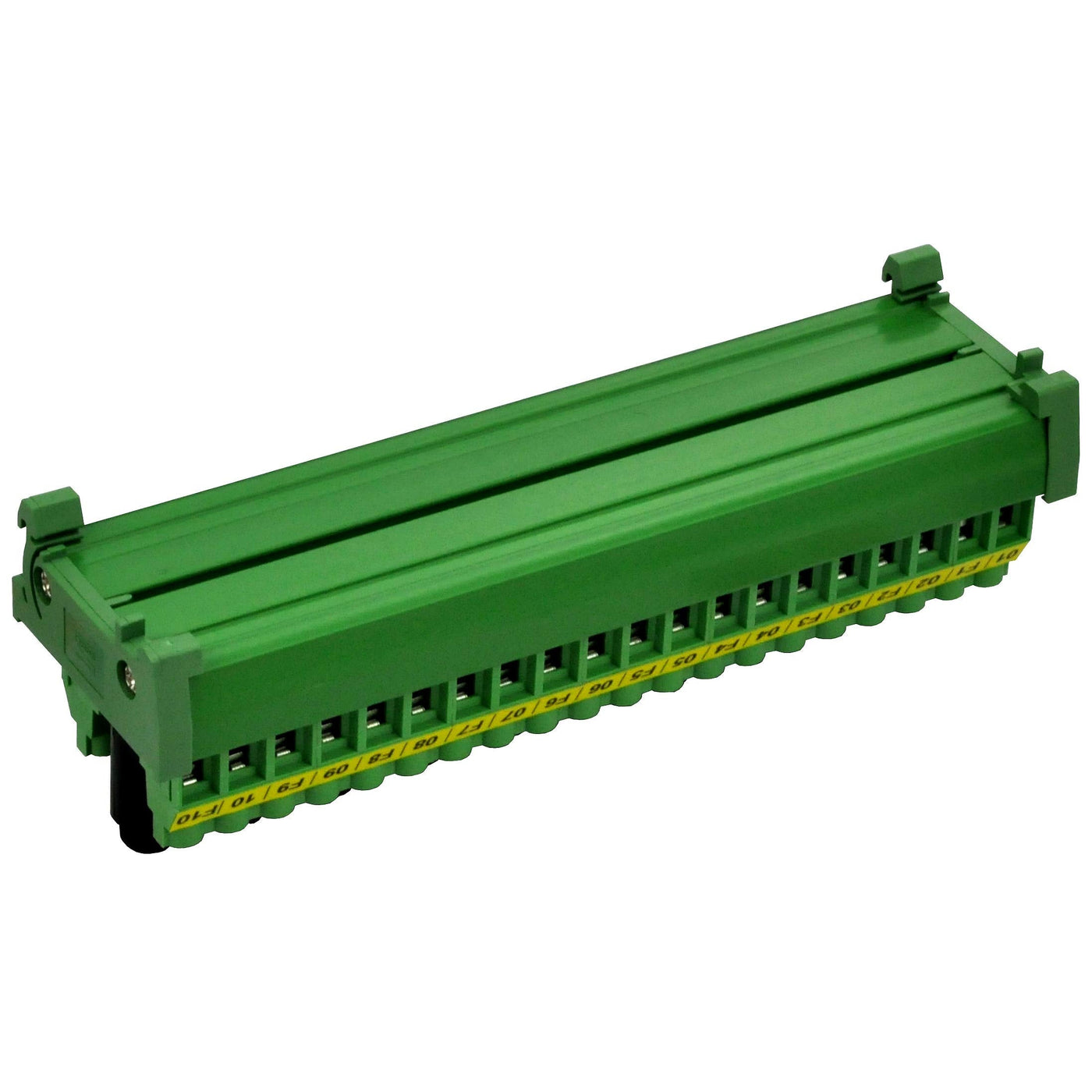

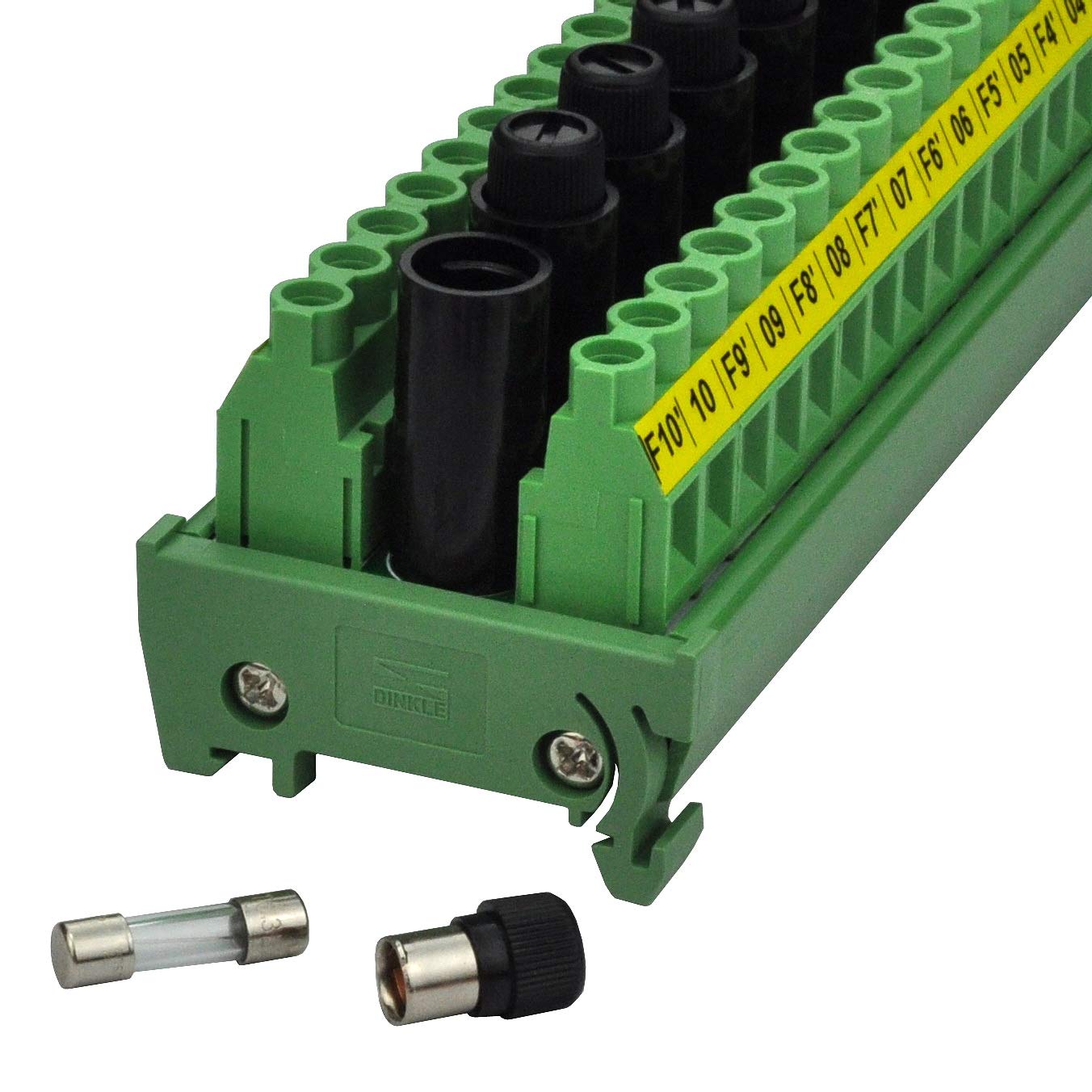

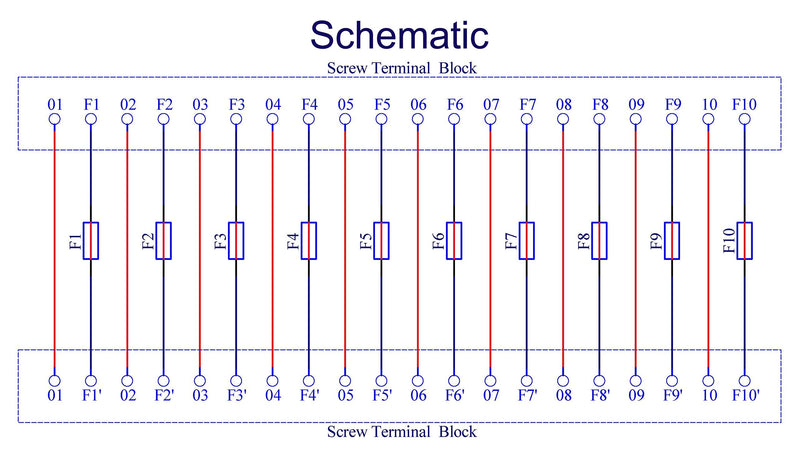

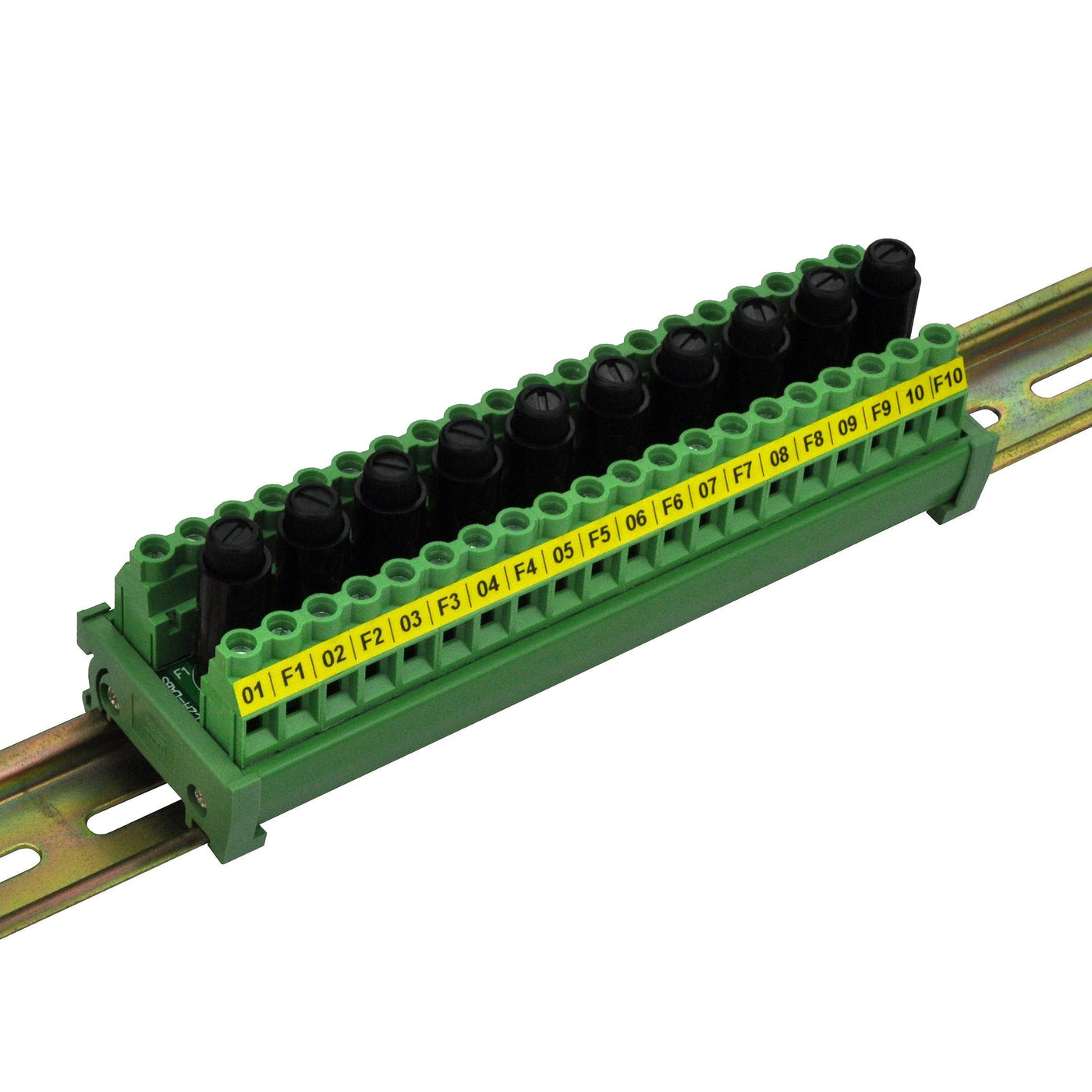

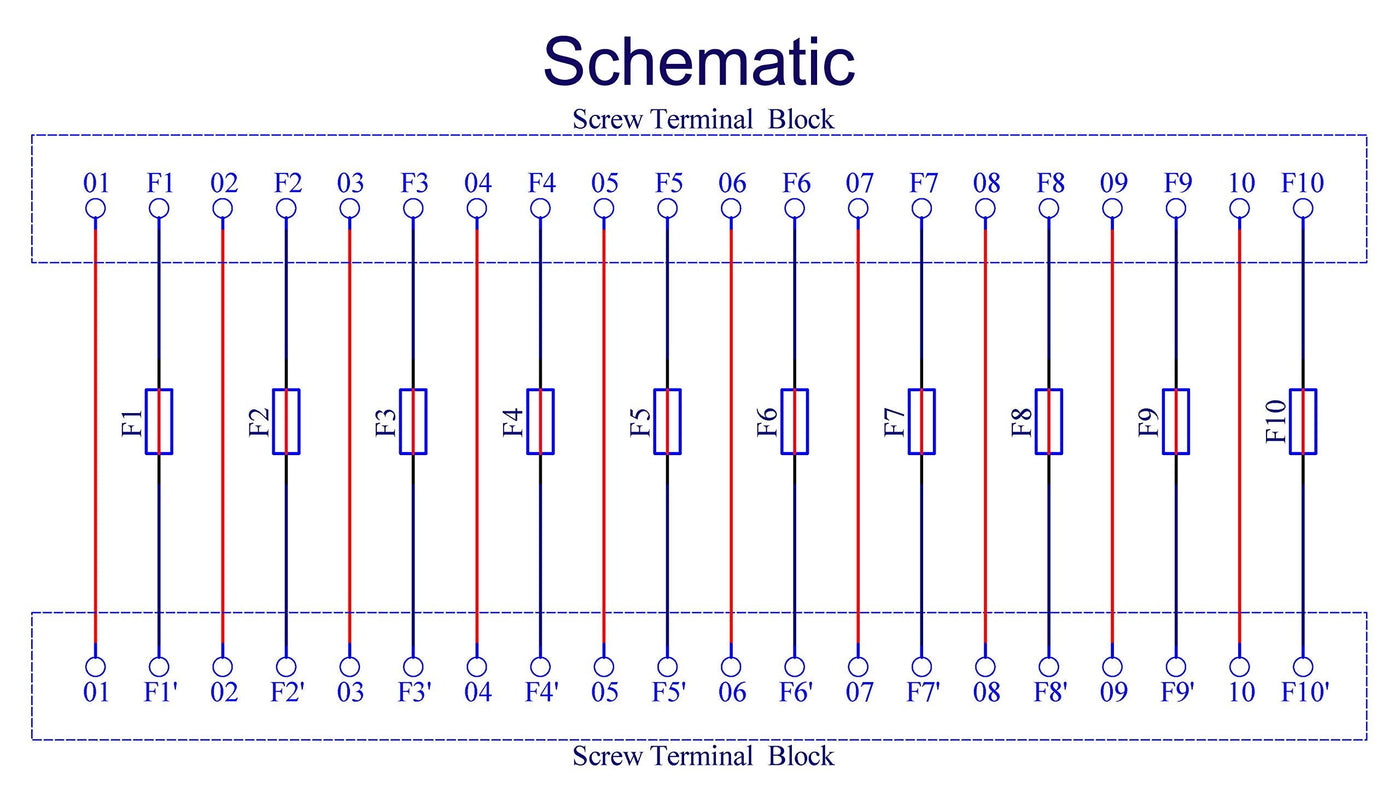

{"id":7495857012889,"title":"OONO DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses","handle":"oono-din-rail-mount-20-position-screw-terminal-block-distribution-module-with-10-channel-fuses","description":"\u003ch3\u003eOONO DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1, DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10\nChannel Fuses.2, Terminal postion 01 to 01, 02 to 02 ......, 10 to 10 direct\nconnected, rated current 30Amp for per channel.3, Terminal postion F1 to F1',\nF2 to F2' ......, F10 to F10' connect via fuses, rated current 10Amp for per\nchannel. Replaceable fuses with easy to operate fuse holders, fuse holders for\nD5mm x L20mm tube fuse, factory-installed fuses Slow Blow 10Amp. 4, Terminal\nBlock: Pitch 7.62mm\/0.3\", Wire range 26AWG ~ 10AWG \/ 4.0mm square. Rated\nvoltage 300V. Strip length 8mm. Screws - M3, steel, Cr3+ Zn plated. Pin header\nand Cage - Brass.5, DIN rail mount carrier: High quality Taiwan DINKLE\nfireproof nylon material DIN rail mount carrier (not China low quality\ncarrier), can support width 35mm rail.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTerminal postion 01 to 01, 02 to 02 ......, 10 to 10 direct connected, rated current 30Amp for per channel.\u003c\/li\u003e\n \u003cli\u003eTerminal postion F1 to F1', F2 to F2' ......, F10 to F10' connect via fuses, rated current 10Amp for per channel. Replaceable fuses with easy to operate fuse holders, fuse holders for D5mm x L20mm tube fuse, factory-installed fuses Slow Blow 10Amp.\u003c\/li\u003e\n \u003cli\u003eTerminal Block: Pitch 7.62mm\/0.3\", Wire range 26AWG ~ 10AWG \/ 4.0mm square. Rated voltage 300V. Strip length 8mm. Screws - M3, steel, Cr3+ Zn plated. Pin header and Cage - Brass.\u003c\/li\u003e\n \u003cli\u003eDIN rail mount carrier: High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-08-22T02:45:06+10:00","created_at":"2022-08-22T02:45:16+10:00","vendor":"OONO","type":"Fuse Blocks","tags":["industrial2"],"price":18700,"price_min":18700,"price_max":18700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42510120550553,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0829M1SCY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"OONO DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses","public_title":null,"options":["Default Title"],"price":18700,"weight":249,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B0829M1SCY.jpg?v=1661100775","\/\/soundstores.net\/cdn\/shop\/products\/81ag-05TI6L.jpg?v=1661100316","\/\/soundstores.net\/cdn\/shop\/products\/81XvLoSdXfL_ea14b8ba-6a23-4bab-95a7-5085bb6e6556.jpg?v=1661100316","\/\/soundstores.net\/cdn\/shop\/products\/71wAvUY1bvL.jpg?v=1661100316","\/\/soundstores.net\/cdn\/shop\/products\/71lq5PfJDKL.jpg?v=1661100316","\/\/soundstores.net\/cdn\/shop\/products\/71HAG6ZbsOL.jpg?v=1661100316","\/\/soundstores.net\/cdn\/shop\/products\/81CjKy7ZRzL.jpg?v=1661100316"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B0829M1SCY.jpg?v=1661100775","options":["Title"],"media":[{"alt":"[AUSTRALIA] - OONO DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses ","id":27649532788889,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2163,"width":2163,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B0829M1SCY.jpg?v=1661100775"},"aspect_ratio":1.0,"height":2163,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B0829M1SCY.jpg?v=1661100775","width":2163},{"alt":"[AUSTRALIA] - OONO DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses ","id":27649503756441,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/products\/81ag-05TI6L.jpg?v=1661100316"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/81ag-05TI6L.jpg?v=1661100316","width":2560},{"alt":"[AUSTRALIA] - OONO DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses ","id":27649503789209,"position":3,"preview_image":{"aspect_ratio":1.746,"height":1466,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/products\/81XvLoSdXfL_ea14b8ba-6a23-4bab-95a7-5085bb6e6556.jpg?v=1661100316"},"aspect_ratio":1.746,"height":1466,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/81XvLoSdXfL_ea14b8ba-6a23-4bab-95a7-5085bb6e6556.jpg?v=1661100316","width":2560},{"alt":"[AUSTRALIA] - OONO DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses ","id":27649503821977,"position":4,"preview_image":{"aspect_ratio":3.464,"height":739,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71wAvUY1bvL.jpg?v=1661100316"},"aspect_ratio":3.464,"height":739,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71wAvUY1bvL.jpg?v=1661100316","width":2560},{"alt":"[AUSTRALIA] - OONO DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses ","id":27649503854745,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1352,"width":1352,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71lq5PfJDKL.jpg?v=1661100316"},"aspect_ratio":1.0,"height":1352,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71lq5PfJDKL.jpg?v=1661100316","width":1352},{"alt":"[AUSTRALIA] - OONO DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses ","id":27649503887513,"position":6,"preview_image":{"aspect_ratio":1.0,"height":2196,"width":2196,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71HAG6ZbsOL.jpg?v=1661100316"},"aspect_ratio":1.0,"height":2196,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71HAG6ZbsOL.jpg?v=1661100316","width":2196},{"alt":"[AUSTRALIA] - OONO DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses ","id":27649503920281,"position":7,"preview_image":{"aspect_ratio":1.0,"height":2287,"width":2287,"src":"\/\/soundstores.net\/cdn\/shop\/products\/81CjKy7ZRzL.jpg?v=1661100316"},"aspect_ratio":1.0,"height":2287,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/81CjKy7ZRzL.jpg?v=1661100316","width":2287}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eOONO DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10 Channel Fuses\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1, DIN Rail Mount 20 Position Screw Terminal Block Distribution Module with 10\nChannel Fuses.2, Terminal postion 01 to 01, 02 to 02 ......, 10 to 10 direct\nconnected, rated current 30Amp for per channel.3, Terminal postion F1 to F1',\nF2 to F2' ......, F10 to F10' connect via fuses, rated current 10Amp for per\nchannel. Replaceable fuses with easy to operate fuse holders, fuse holders for\nD5mm x L20mm tube fuse, factory-installed fuses Slow Blow 10Amp. 4, Terminal\nBlock: Pitch 7.62mm\/0.3\", Wire range 26AWG ~ 10AWG \/ 4.0mm square. Rated\nvoltage 300V. Strip length 8mm. Screws - M3, steel, Cr3+ Zn plated. Pin header\nand Cage - Brass.5, DIN rail mount carrier: High quality Taiwan DINKLE\nfireproof nylon material DIN rail mount carrier (not China low quality\ncarrier), can support width 35mm rail.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTerminal postion 01 to 01, 02 to 02 ......, 10 to 10 direct connected, rated current 30Amp for per channel.\u003c\/li\u003e\n \u003cli\u003eTerminal postion F1 to F1', F2 to F2' ......, F10 to F10' connect via fuses, rated current 10Amp for per channel. Replaceable fuses with easy to operate fuse holders, fuse holders for D5mm x L20mm tube fuse, factory-installed fuses Slow Blow 10Amp.\u003c\/li\u003e\n \u003cli\u003eTerminal Block: Pitch 7.62mm\/0.3\", Wire range 26AWG ~ 10AWG \/ 4.0mm square. Rated voltage 300V. Strip length 8mm. Screws - M3, steel, Cr3+ Zn plated. Pin header and Cage - Brass.\u003c\/li\u003e\n \u003cli\u003eDIN rail mount carrier: High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
