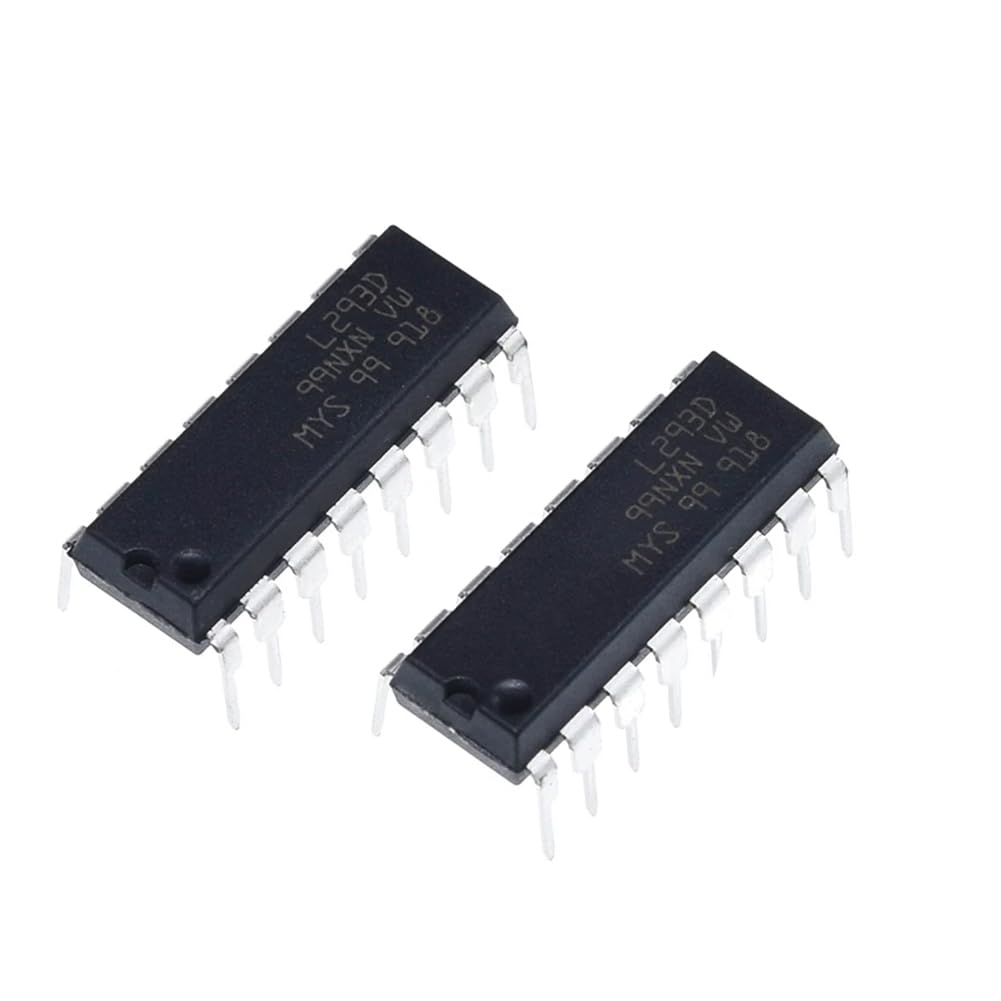

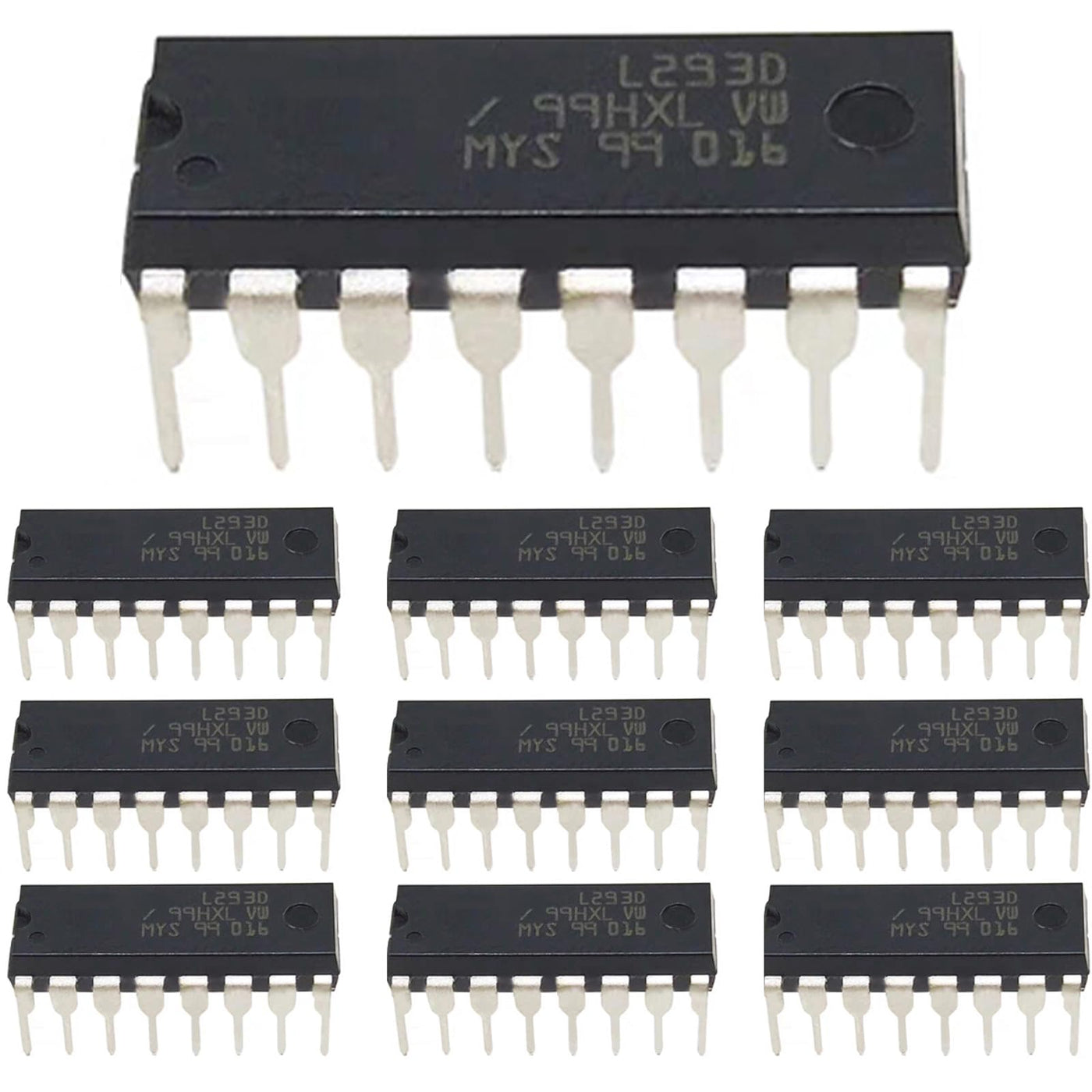

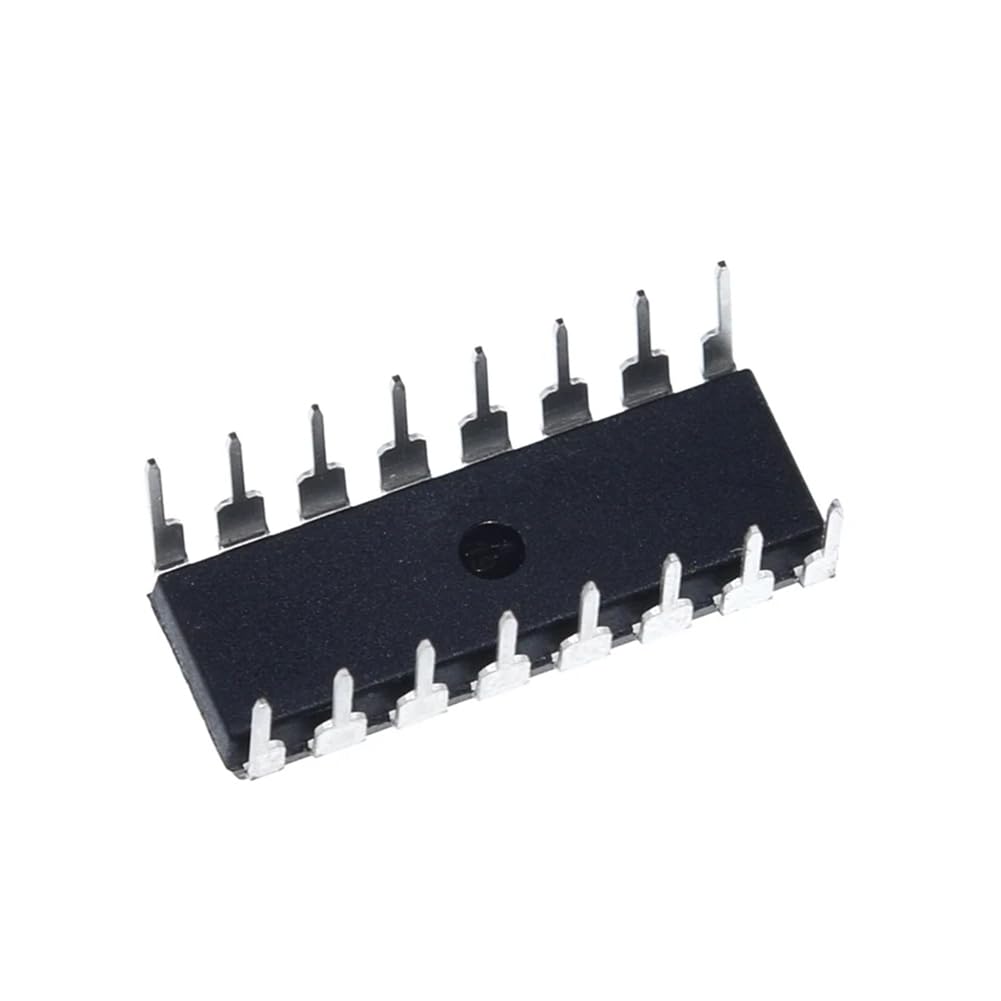

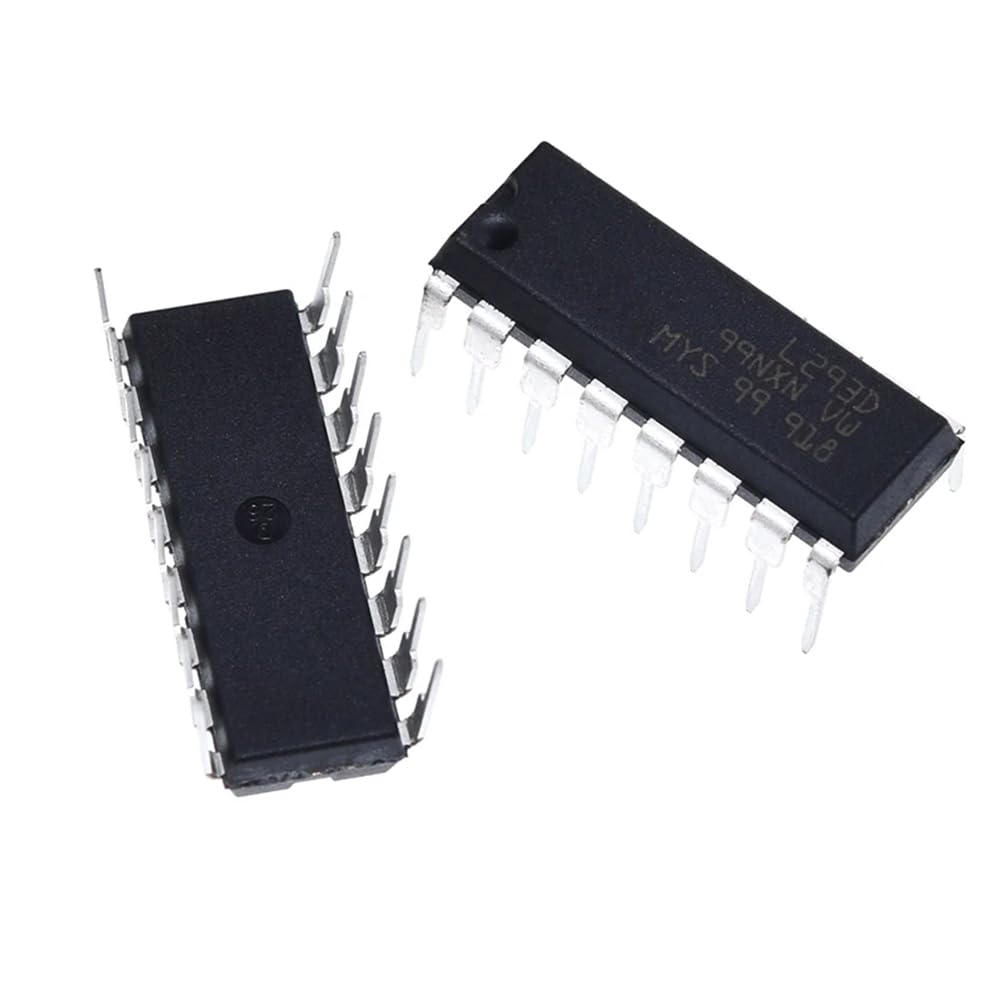

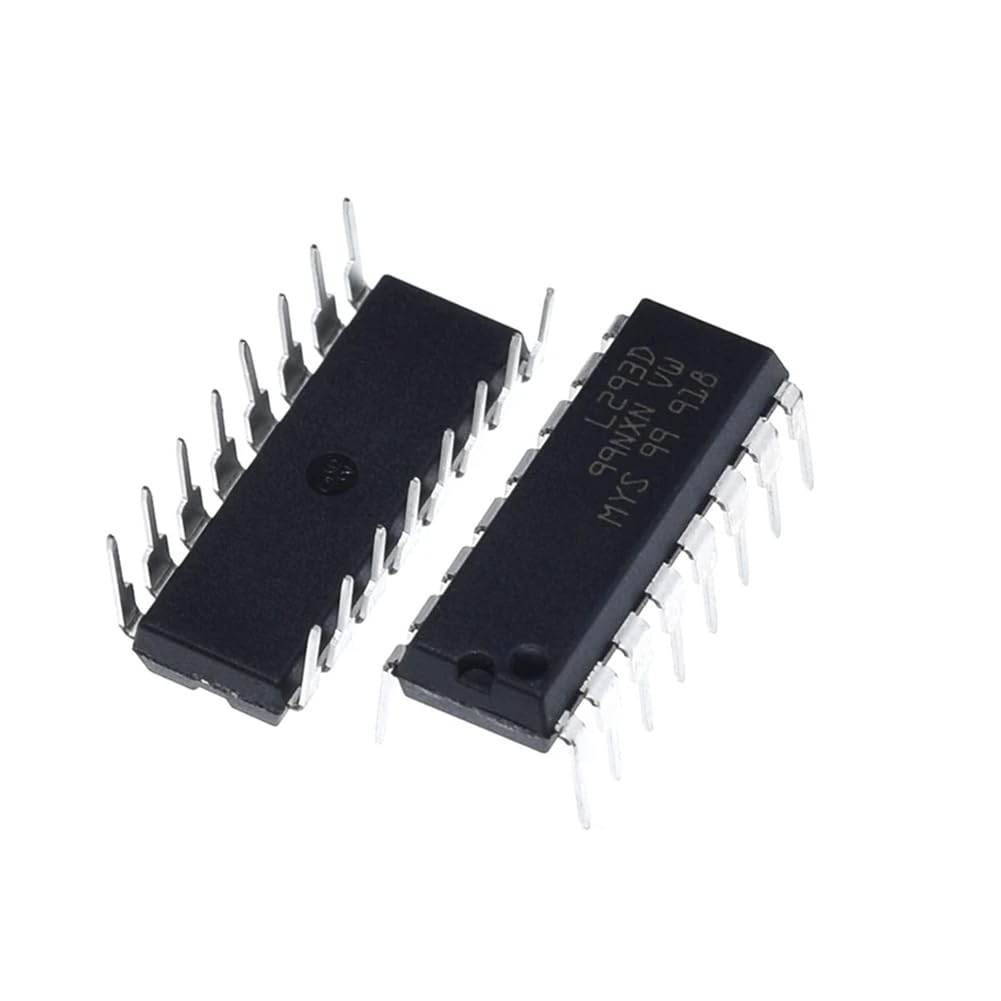

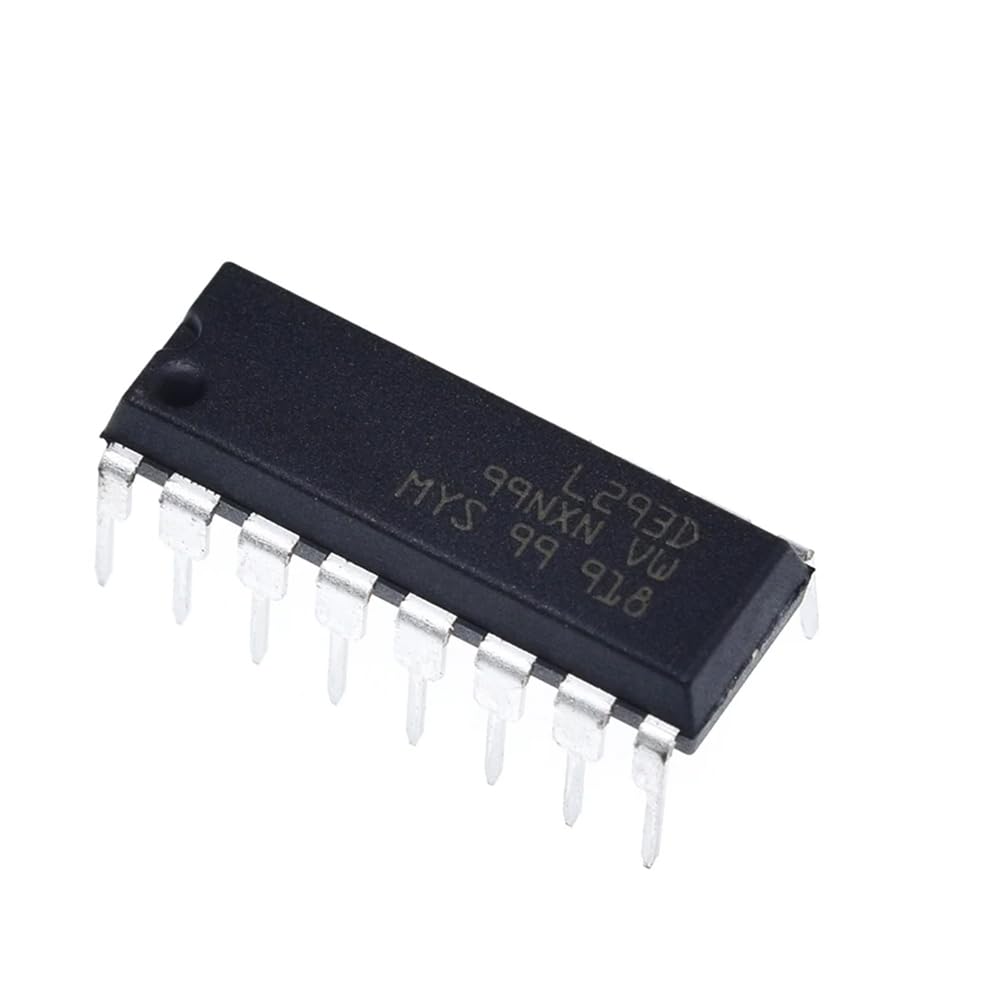

{"id":8534015770777,"title":"PENGLIN 10pcs L293 L293D 16 Pin IC Stepper Motor Driver Controller","handle":"penglin-10pcs-l293-l293d-16-pin-ic-stepper-motor-driver-controller","description":"\u003ch3\u003ePENGLIN 10pcs L293 L293D 16 Pin IC Stepper Motor Driver Controller\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe stepper motor driver L293D is mainly made of durable carbide and plastic\nmaterials. The L293D is a monolithically integrated high-voltage, high-\ncurrent, 4-channel motor driver designed to interface standard DTL or TTL\nlogic levels to drive inductive loads (such as relay coils, DC and stepper\nmotors) and switch power transistors and much more. To simplify dual-bridge\napplication, the L293D is equipped with an enable input for each channel pair.\nThe L293D logic has an independent current input that operates at lower\nvoltages. In addition, the L293D also has a built-in clamping diode. The L293D\nis suitable for switching applications up to 5 kHz. Working voltage: 4.5-36V\nSingle channel output current: 600mA Peak output current: 1.2A L293D Other\nFeatures Number of outputs: 4. Type: half bridge. Input type: normal phase\nPackage includes: 10 x L293D.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eChannel capacity: 16-pin design and channel capacity up to 600mAh output current\u003c\/li\u003e\n \u003cli\u003ePeak output current: peak output current of 1.2 A per channel (not repeating)\u003c\/li\u003e\n \u003cli\u003eOperating voltage: 4.5-36 V. Logical \"0\" input voltage up to 1.5 V (high interference resistance)\u003c\/li\u003e\n \u003cli\u003eAdvantages: high temperature protection, easy to use. Safe and cannot shrink useful for the operation of larger H bridges.\u003c\/li\u003e\n \u003cli\u003eConstruction: Built-in clamping diode, monolithic integrated high voltage and high current four-channel driver, accepts standard DTL or TTL logic level.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T09:05:25+10:00","created_at":"2025-09-27T09:05:22+10:00","vendor":"PENGLIN","type":"Motor Drivers","tags":["industryDE_Sep2025"],"price":11900,"price_min":11900,"price_max":11900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45749932195993,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B6VHXQQD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PENGLIN 10pcs L293 L293D 16 Pin IC Stepper Motor Driver Controller","public_title":null,"options":["Default Title"],"price":11900,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"PLDE127","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0B6VHXQQD.jpg?v=1775754262","\/\/soundstores.net\/cdn\/shop\/files\/41WXbHN_QKL.jpg?v=1758927925","\/\/soundstores.net\/cdn\/shop\/files\/51OgXdfuHgL.jpg?v=1758927925","\/\/soundstores.net\/cdn\/shop\/files\/41QpXPHmHCL.jpg?v=1758927924","\/\/soundstores.net\/cdn\/shop\/files\/41QYH2ye2JL.jpg?v=1758927925","\/\/soundstores.net\/cdn\/shop\/files\/51EdnJmxLXL.jpg?v=1758927925","\/\/soundstores.net\/cdn\/shop\/files\/412j062x6XL.jpg?v=1758927925"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B6VHXQQD.jpg?v=1775754262","options":["Title"],"media":[{"alt":null,"id":34662675447961,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B6VHXQQD.jpg?v=1775754262"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B6VHXQQD.jpg?v=1775754262","width":1600},{"alt":null,"id":34662675480729,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41WXbHN_QKL.jpg?v=1758927925"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41WXbHN_QKL.jpg?v=1758927925","width":1001},{"alt":null,"id":34662675513497,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51OgXdfuHgL.jpg?v=1758927925"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51OgXdfuHgL.jpg?v=1758927925","width":1001},{"alt":null,"id":34662675546265,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41QpXPHmHCL.jpg?v=1758927924"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41QpXPHmHCL.jpg?v=1758927924","width":1001},{"alt":null,"id":34662675579033,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41QYH2ye2JL.jpg?v=1758927925"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41QYH2ye2JL.jpg?v=1758927925","width":1001},{"alt":null,"id":34662675611801,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51EdnJmxLXL.jpg?v=1758927925"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51EdnJmxLXL.jpg?v=1758927925","width":1001},{"alt":null,"id":34662675644569,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/412j062x6XL.jpg?v=1758927925"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/412j062x6XL.jpg?v=1758927925","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePENGLIN 10pcs L293 L293D 16 Pin IC Stepper Motor Driver Controller\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe stepper motor driver L293D is mainly made of durable carbide and plastic\nmaterials. The L293D is a monolithically integrated high-voltage, high-\ncurrent, 4-channel motor driver designed to interface standard DTL or TTL\nlogic levels to drive inductive loads (such as relay coils, DC and stepper\nmotors) and switch power transistors and much more. To simplify dual-bridge\napplication, the L293D is equipped with an enable input for each channel pair.\nThe L293D logic has an independent current input that operates at lower\nvoltages. In addition, the L293D also has a built-in clamping diode. The L293D\nis suitable for switching applications up to 5 kHz. Working voltage: 4.5-36V\nSingle channel output current: 600mA Peak output current: 1.2A L293D Other\nFeatures Number of outputs: 4. Type: half bridge. Input type: normal phase\nPackage includes: 10 x L293D.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eChannel capacity: 16-pin design and channel capacity up to 600mAh output current\u003c\/li\u003e\n \u003cli\u003ePeak output current: peak output current of 1.2 A per channel (not repeating)\u003c\/li\u003e\n \u003cli\u003eOperating voltage: 4.5-36 V. Logical \"0\" input voltage up to 1.5 V (high interference resistance)\u003c\/li\u003e\n \u003cli\u003eAdvantages: high temperature protection, easy to use. Safe and cannot shrink useful for the operation of larger H bridges.\u003c\/li\u003e\n \u003cli\u003eConstruction: Built-in clamping diode, monolithic integrated high voltage and high current four-channel driver, accepts standard DTL or TTL logic level.\u003c\/li\u003e\n \u003c\/ul\u003e"}
