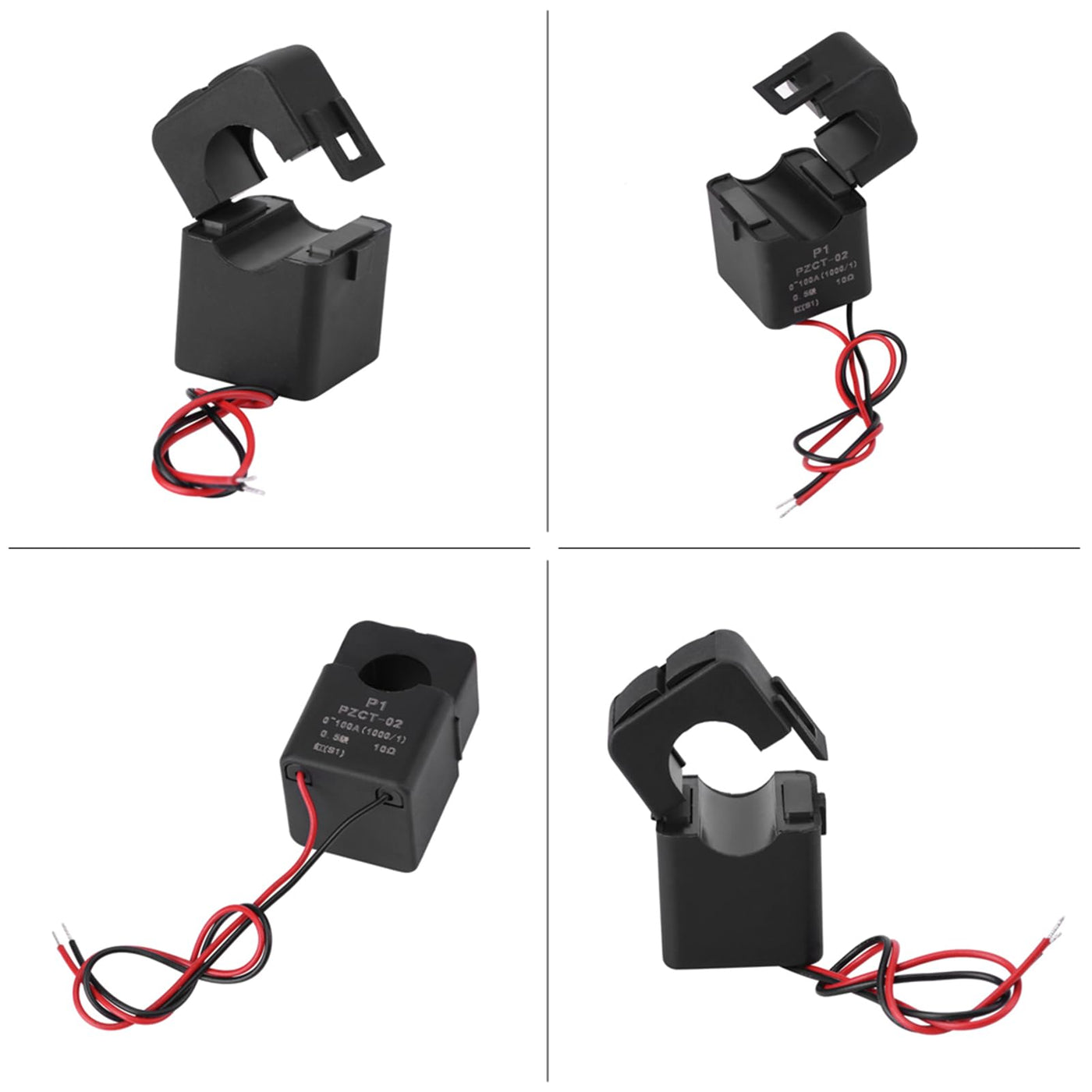

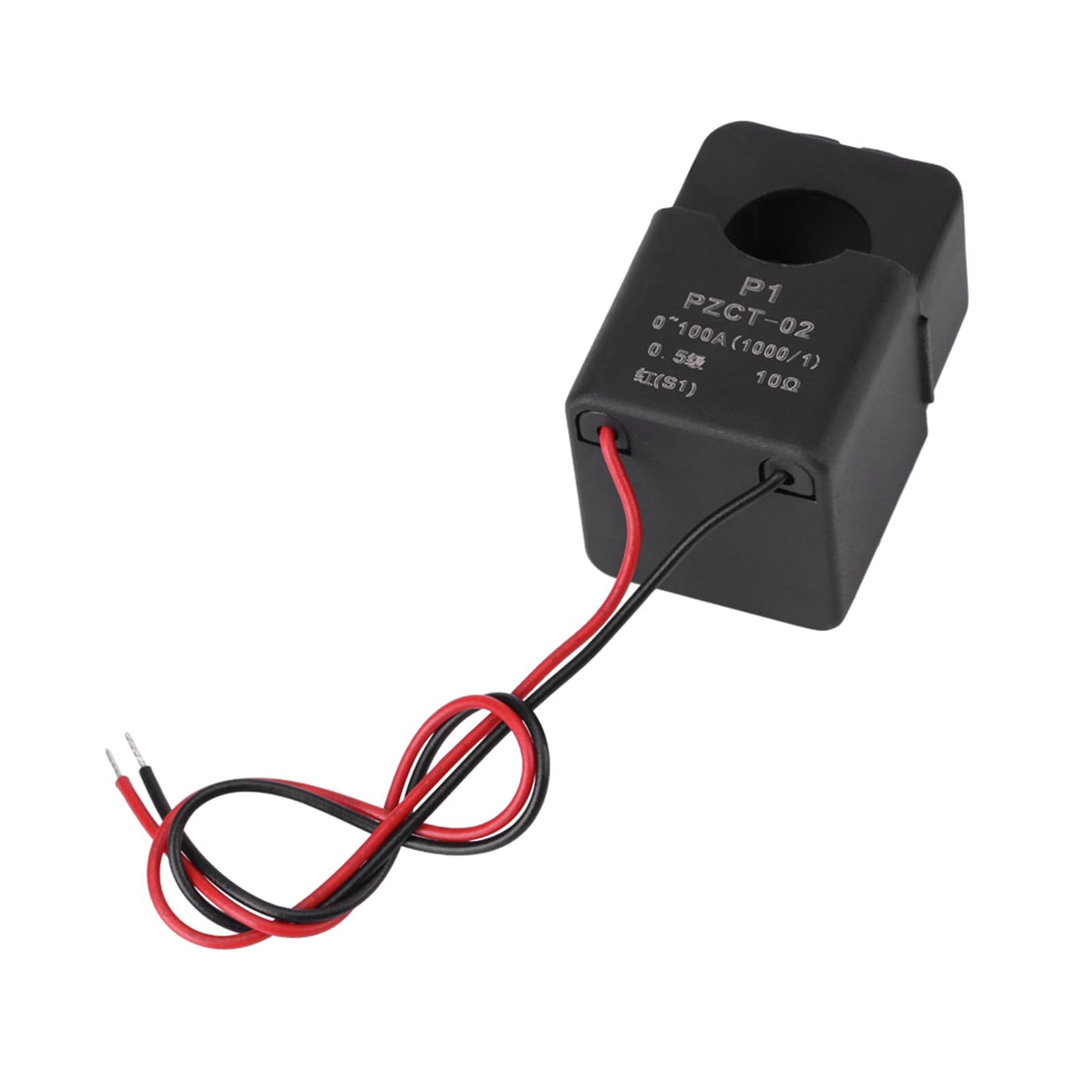

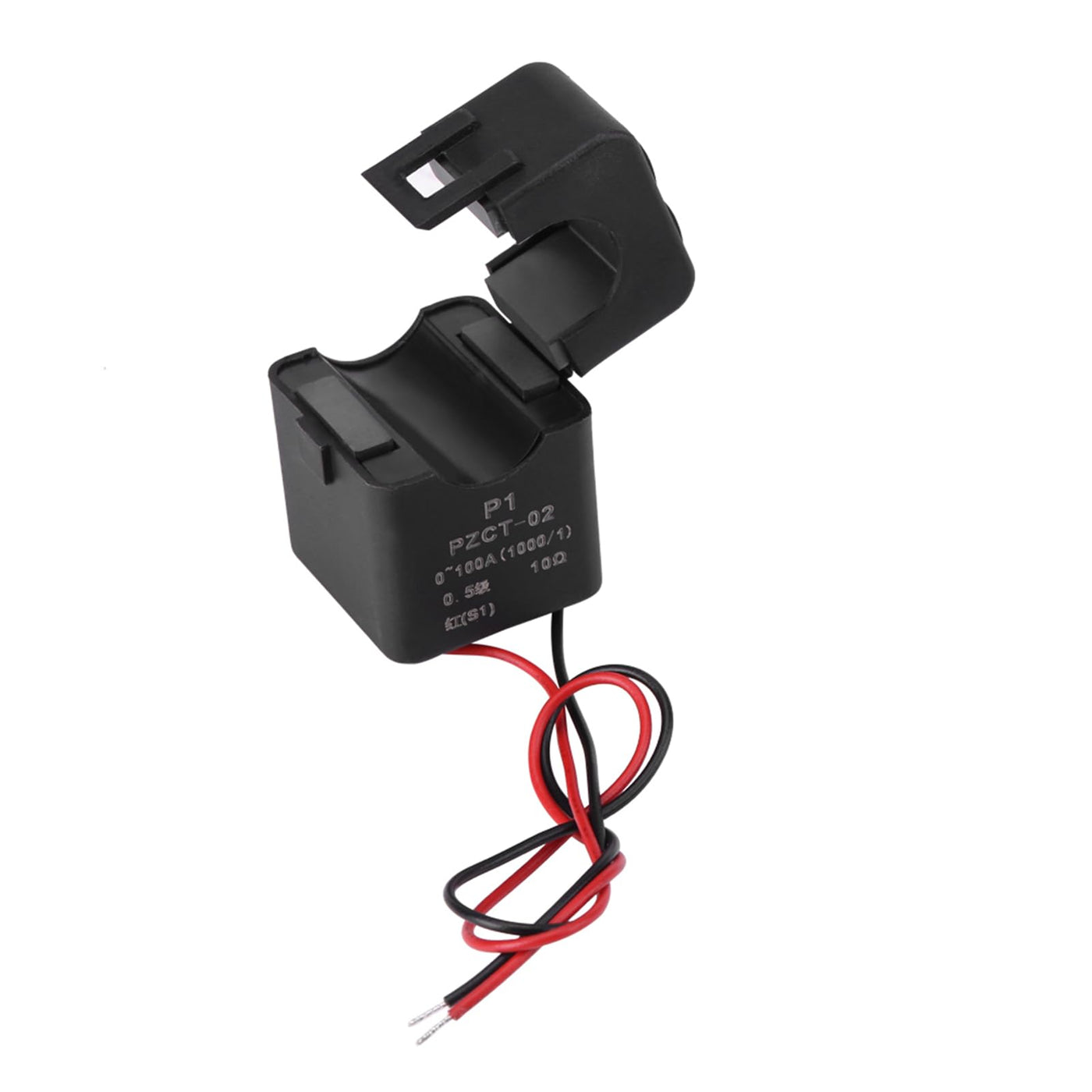

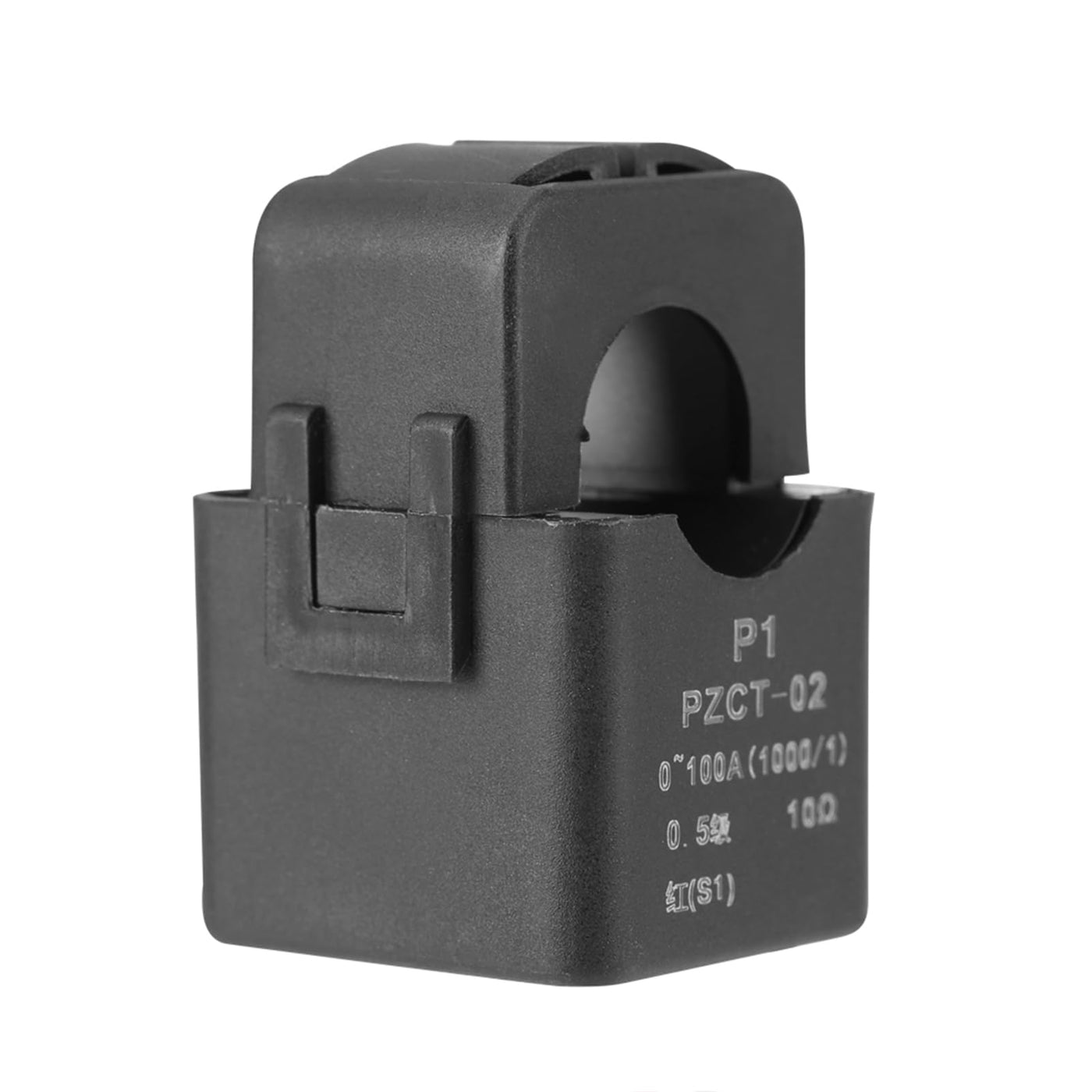

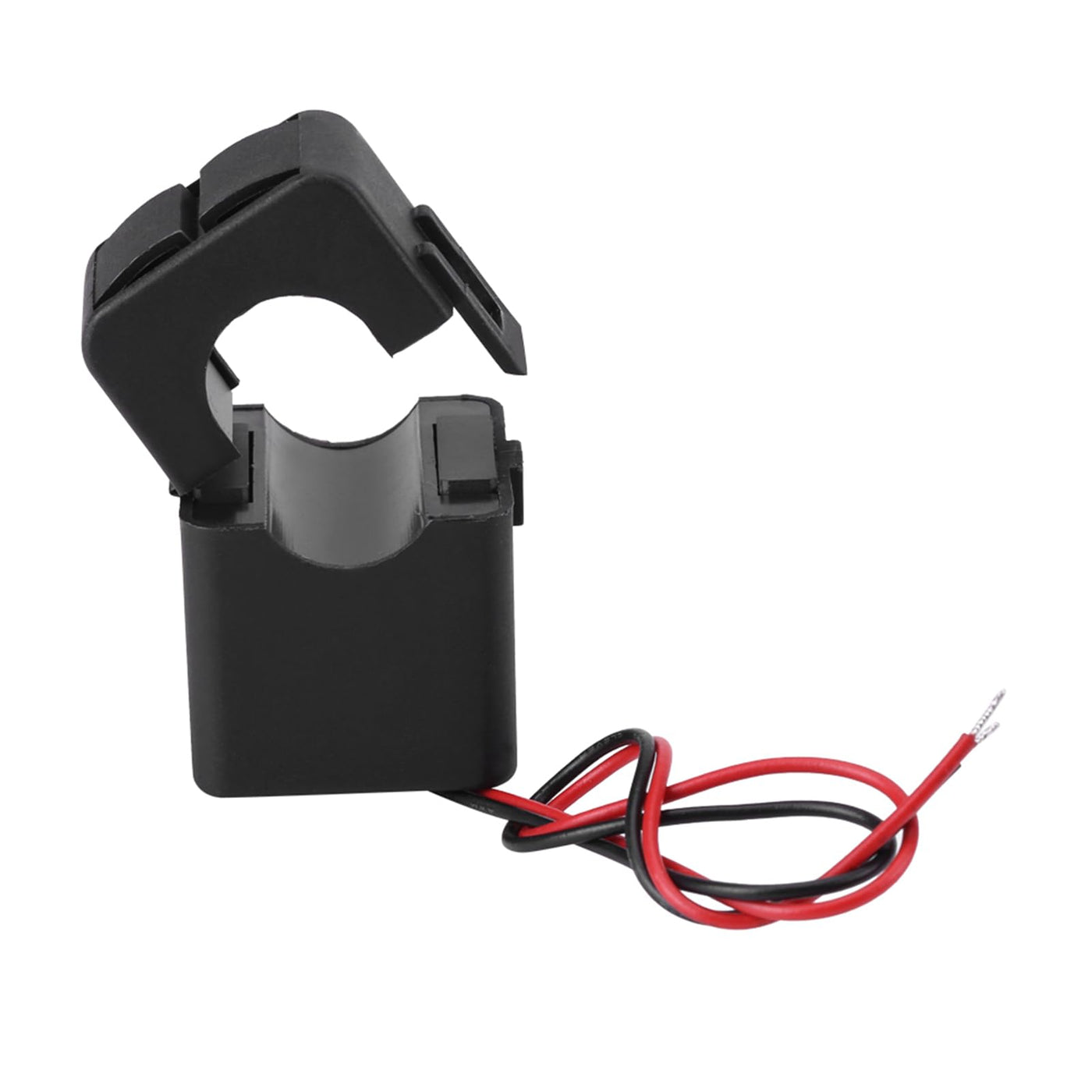

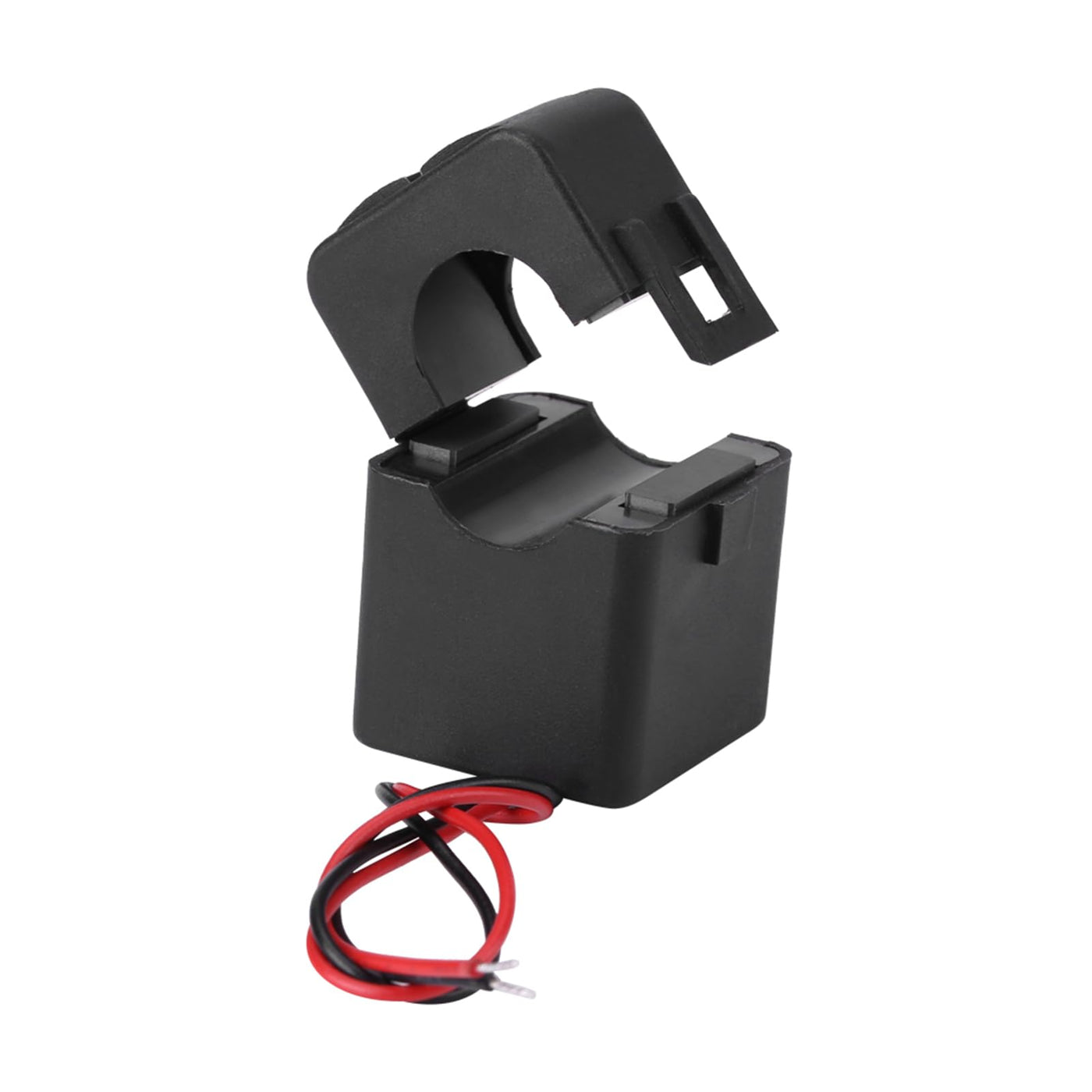

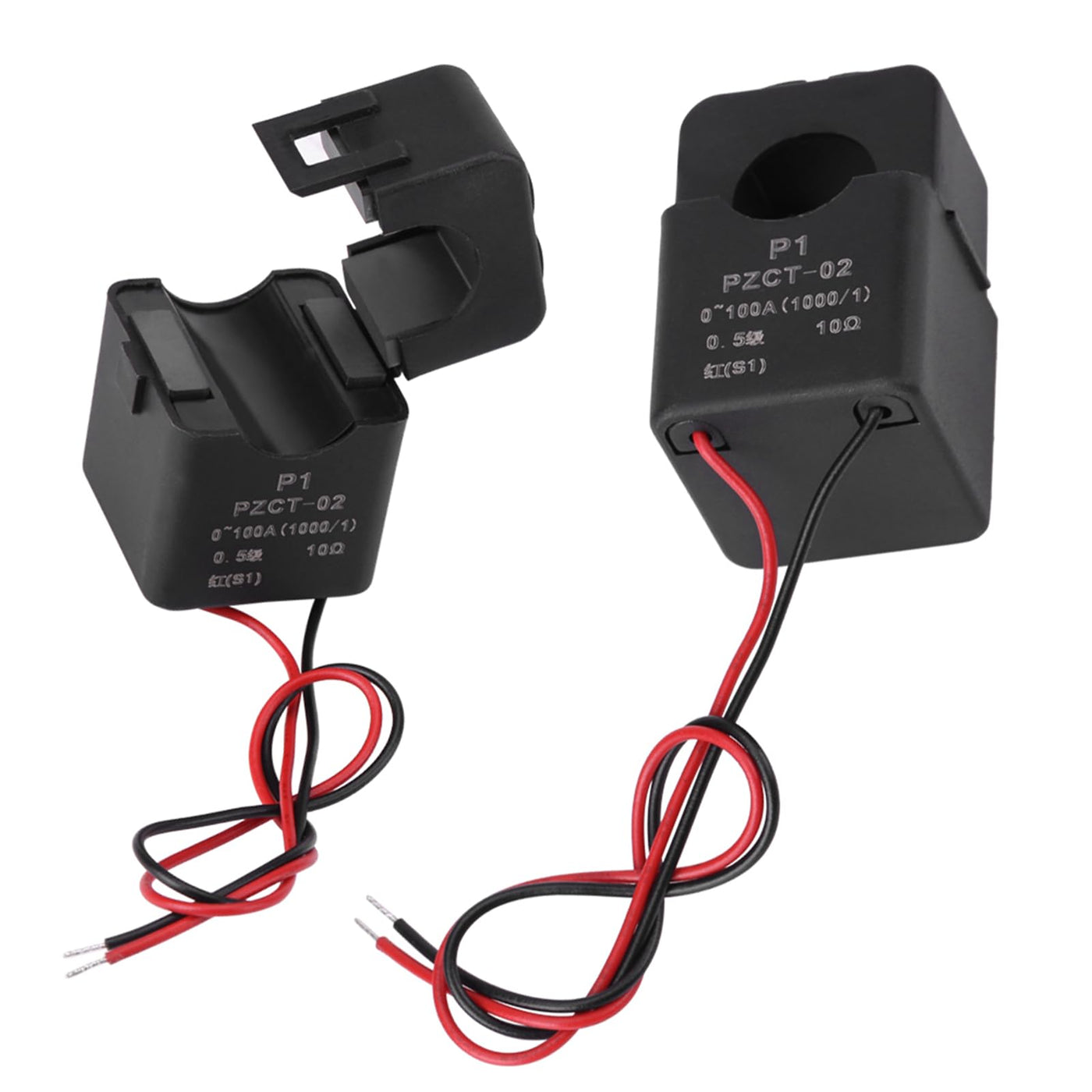

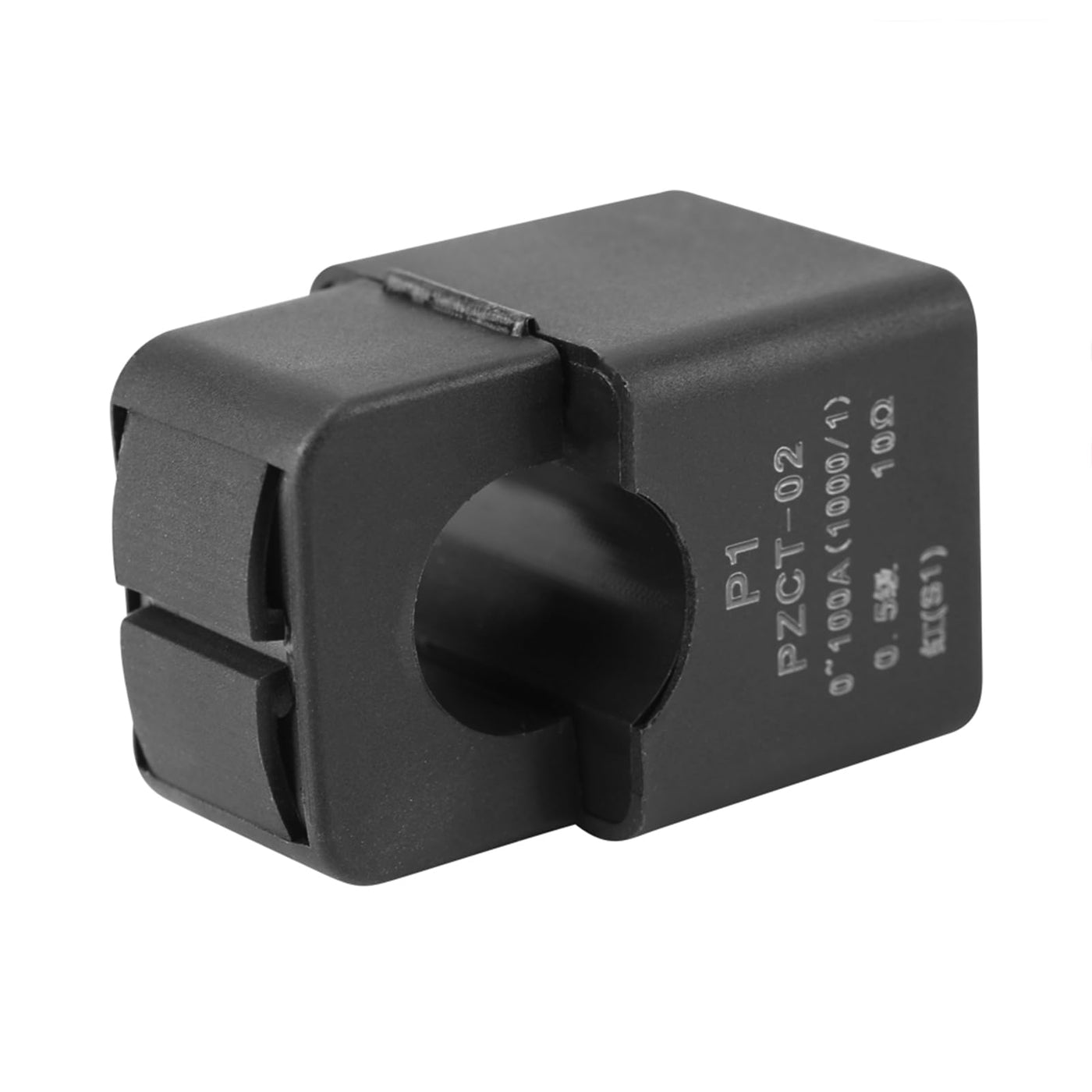

{"id":8530793037977,"title":"PZCT-02 Current Transformer Set 100 A AC Current Sensor for Energy Meter Precision Coil Sensor in Split Design Pack of 3","handle":"pzct-02-current-transformer-set-100-a-ac-current-sensor-for-energy-meter-precision-coil-sensor-in-split-design-pack-of-3","description":"\u003ch3\u003ePZCT-02 Current Transformer Set 100 A AC Current Sensor for Energy Meter Precision Coil Sensor in Split Design Pack of 3\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Brand: PEACEFAIR. Model: PZCT-02. Ambient temperature: -40°C ~\n+85°C. Relative humidity: ≤ 90% (40°C). Operating frequency: 50 Hz ~ 60 Hz.\nInsulation duration: B-class (130°C). Insulation resistance: \u0026gt;1000 MΩ normally\nDielectric strength: mains frequency 1000 V\/1 minute possible. Flame\nresistance: Conforms to UL94 Vo class Internal resistance: 10Ω Measuring\nrange: 0-100A Weight: 59 g Application: 1. The current transformer is\nespecially used for energy meters; both an AC 220 V and a 380 V power supply\ncan be used. 2. When you repair the energy meter, you do not need to interrupt\nthe power when using this product. Package includes: 1 x current transformer.\nNote: 1. The primary side of the current transformer should be connected in\nseries with the test current loop, the secondary side should be in the short\ncircuit state. 2. The secondary circuit must not be open, so please do not\ninstall a fuse.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eRobust housing: fully encapsulated with high mechanical resilience and environmental protection.\u003c\/li\u003e\n \u003cli\u003eEasy to install: snap connection for direct attachment with cable ties (nylon), no tools needed.\u003c\/li\u003e\n \u003cli\u003ePRECISE MEASUREMENT 16mm inner diameter with 0.5 accuracy, ideal for standardized cables.\u003c\/li\u003e\n \u003cli\u003ePlug \u0026amp; Play: Built-in coil, light weight and quick installation without configuration.\u003c\/li\u003e\n \u003cli\u003eCompact design: miniaturized split current transformer (100mA output), more space saving than comparable models.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-25T00:34:25+10:00","created_at":"2025-09-25T00:34:22+10:00","vendor":"FTVOGUE","type":"Transducers","tags":["industryDE_Sep2025"],"price":20700,"price_min":20700,"price_max":20700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45743630254233,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0D6Z8VPH1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PZCT-02 Current Transformer Set 100 A AC Current Sensor for Energy Meter Precision Coil Sensor in Split Design Pack of 3","public_title":null,"options":["Default Title"],"price":20700,"weight":209,"compare_at_price":null,"inventory_management":"shopify","barcode":"FTVOGUEhixngsv82p","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0D6Z8VPH1.jpg?v=1775750578","\/\/soundstores.net\/cdn\/shop\/files\/61q7Di9WRoL.jpg?v=1758724712","\/\/soundstores.net\/cdn\/shop\/files\/61tmpLi1cYL.jpg?v=1758724697","\/\/soundstores.net\/cdn\/shop\/files\/51Z8AvpKfVL.jpg?v=1758724711","\/\/soundstores.net\/cdn\/shop\/files\/51QdlCuWe9L.jpg?v=1758724697","\/\/soundstores.net\/cdn\/shop\/files\/518vRfS0O4L.jpg?v=1758724698","\/\/soundstores.net\/cdn\/shop\/files\/61yyLc-b2rL.jpg?v=1758724698","\/\/soundstores.net\/cdn\/shop\/files\/51SAFa9ryDL.jpg?v=1758724696"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0D6Z8VPH1.jpg?v=1775750578","options":["Title"],"media":[{"alt":null,"id":34627226173593,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0D6Z8VPH1.jpg?v=1775750578"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0D6Z8VPH1.jpg?v=1775750578","width":1601},{"alt":null,"id":34627226206361,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61q7Di9WRoL.jpg?v=1758724712"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61q7Di9WRoL.jpg?v=1758724712","width":1601},{"alt":null,"id":34627226239129,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61tmpLi1cYL.jpg?v=1758724697"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61tmpLi1cYL.jpg?v=1758724697","width":1601},{"alt":null,"id":34627226271897,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51Z8AvpKfVL.jpg?v=1758724711"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51Z8AvpKfVL.jpg?v=1758724711","width":1601},{"alt":null,"id":34627226304665,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51QdlCuWe9L.jpg?v=1758724697"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51QdlCuWe9L.jpg?v=1758724697","width":1601},{"alt":null,"id":34627226337433,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/518vRfS0O4L.jpg?v=1758724698"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/518vRfS0O4L.jpg?v=1758724698","width":1601},{"alt":null,"id":34627226370201,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61yyLc-b2rL.jpg?v=1758724698"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61yyLc-b2rL.jpg?v=1758724698","width":1601},{"alt":null,"id":34627226402969,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51SAFa9ryDL.jpg?v=1758724696"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51SAFa9ryDL.jpg?v=1758724696","width":1601}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePZCT-02 Current Transformer Set 100 A AC Current Sensor for Energy Meter Precision Coil Sensor in Split Design Pack of 3\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Brand: PEACEFAIR. Model: PZCT-02. Ambient temperature: -40°C ~\n+85°C. Relative humidity: ≤ 90% (40°C). Operating frequency: 50 Hz ~ 60 Hz.\nInsulation duration: B-class (130°C). Insulation resistance: \u0026gt;1000 MΩ normally\nDielectric strength: mains frequency 1000 V\/1 minute possible. Flame\nresistance: Conforms to UL94 Vo class Internal resistance: 10Ω Measuring\nrange: 0-100A Weight: 59 g Application: 1. The current transformer is\nespecially used for energy meters; both an AC 220 V and a 380 V power supply\ncan be used. 2. When you repair the energy meter, you do not need to interrupt\nthe power when using this product. Package includes: 1 x current transformer.\nNote: 1. The primary side of the current transformer should be connected in\nseries with the test current loop, the secondary side should be in the short\ncircuit state. 2. The secondary circuit must not be open, so please do not\ninstall a fuse.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eRobust housing: fully encapsulated with high mechanical resilience and environmental protection.\u003c\/li\u003e\n \u003cli\u003eEasy to install: snap connection for direct attachment with cable ties (nylon), no tools needed.\u003c\/li\u003e\n \u003cli\u003ePRECISE MEASUREMENT 16mm inner diameter with 0.5 accuracy, ideal for standardized cables.\u003c\/li\u003e\n \u003cli\u003ePlug \u0026amp; Play: Built-in coil, light weight and quick installation without configuration.\u003c\/li\u003e\n \u003cli\u003eCompact design: miniaturized split current transformer (100mA output), more space saving than comparable models.\u003c\/li\u003e\n \u003c\/ul\u003e"}
