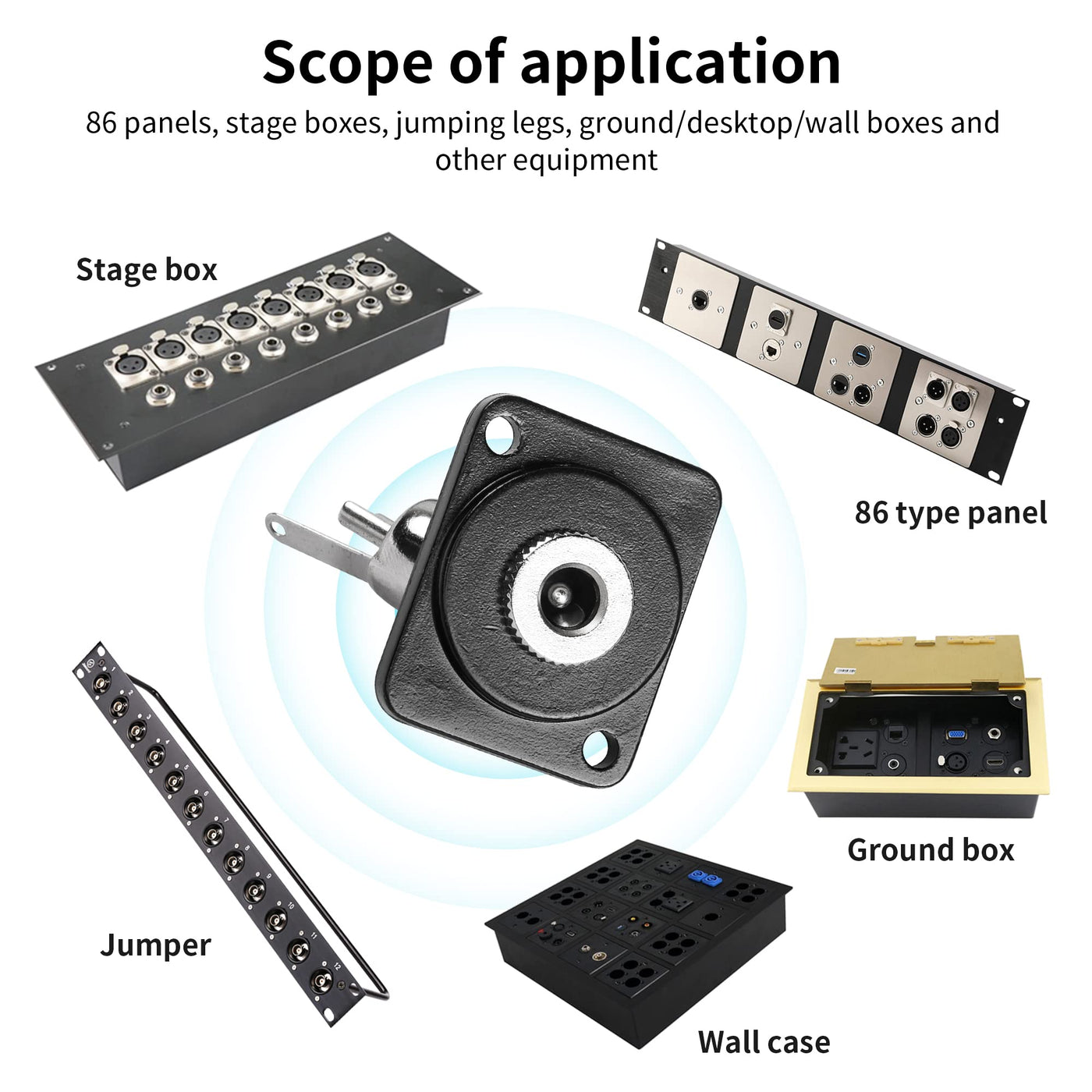

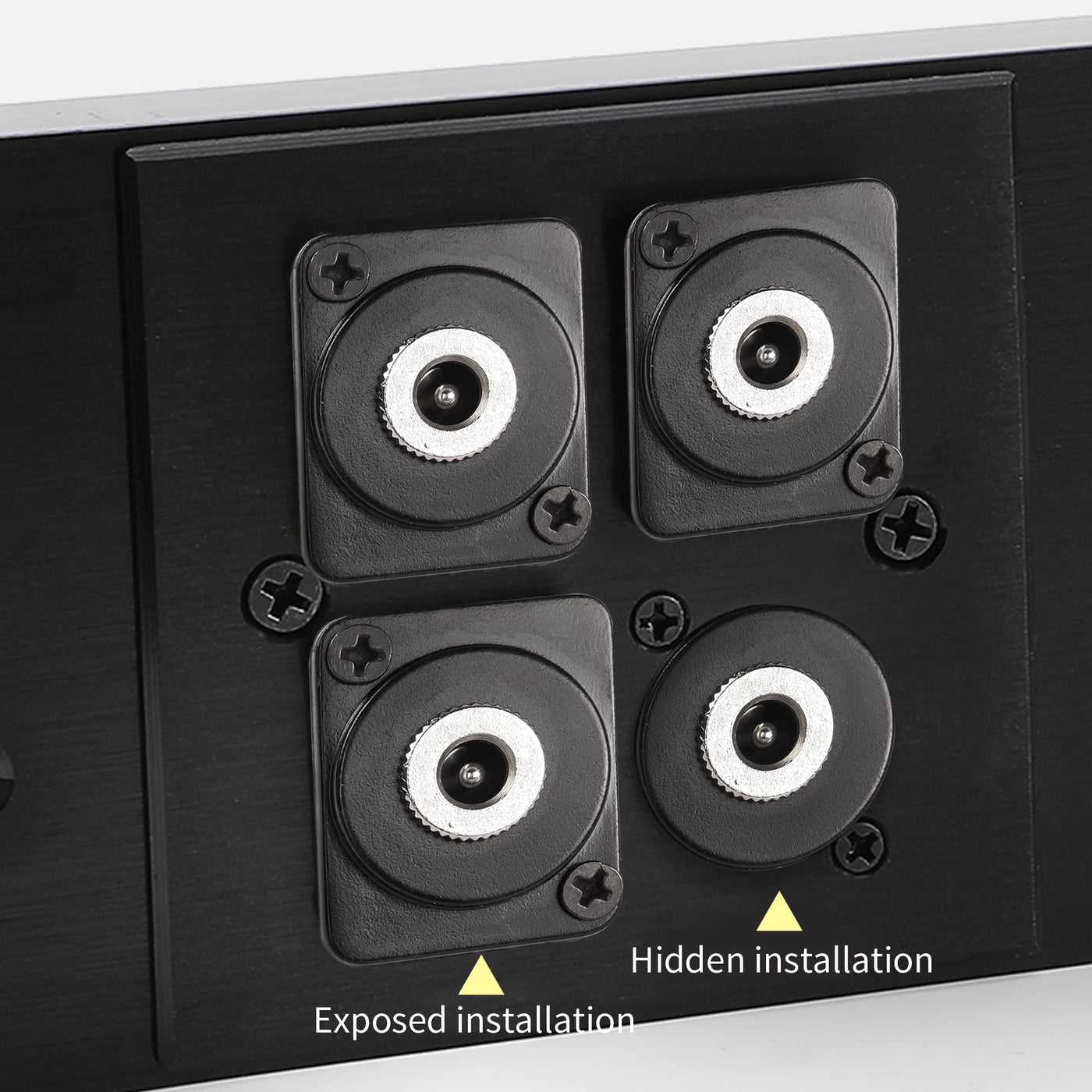

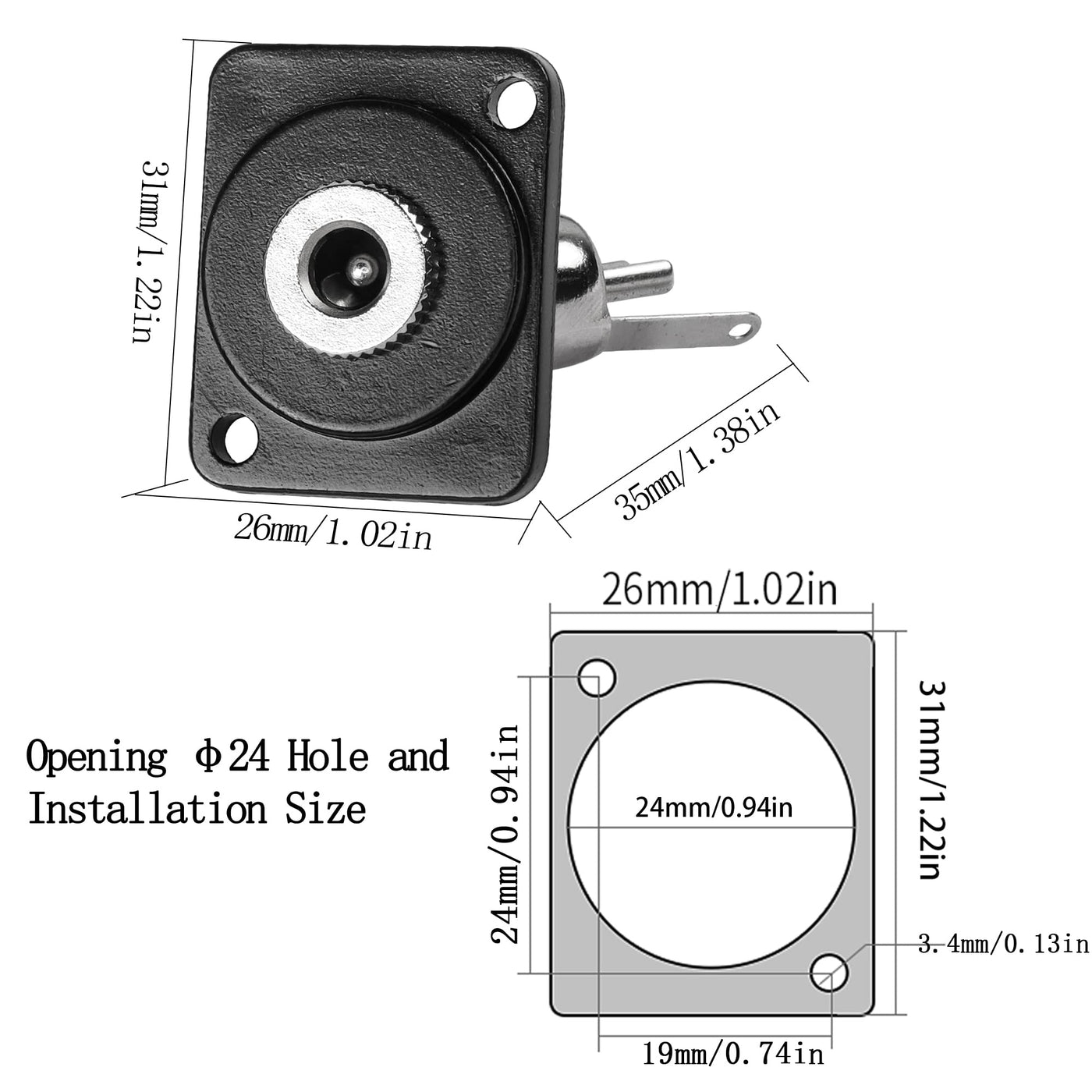

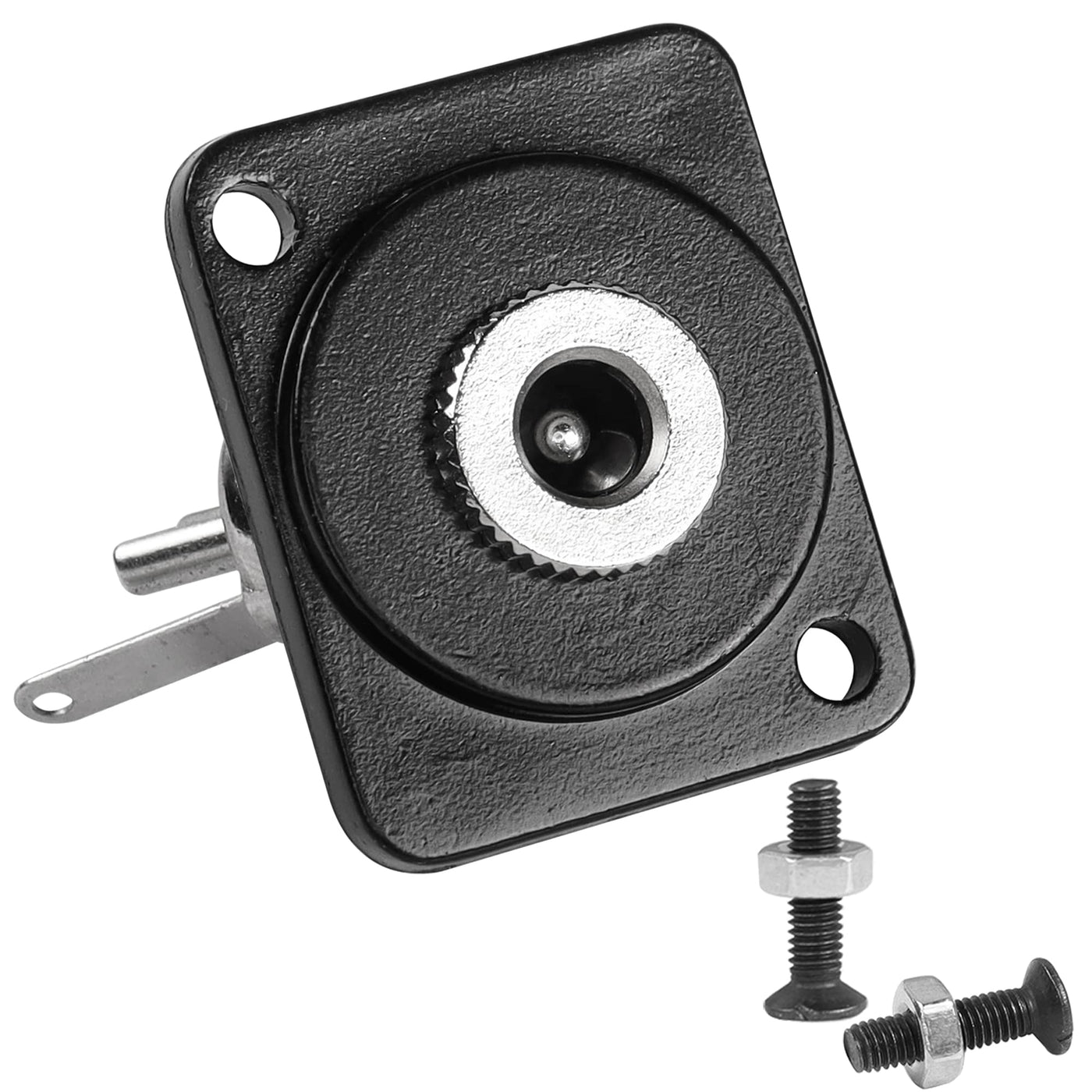

{"id":8530789367961,"title":"QIANRENON DC 5.5mm x 2.5mm Panel Mount, 2 Pole High Current Solder Wire, 5.5x2.5mm DC Socket, 50V 3A, XLR\/D Panel Mount","handle":"qianrenon-dc-5-5mm-x-2-5mm-panel-mount-2-pole-high-current-solder-wire-5-5x2-5mm-dc-socket-50v-3a-xlr-d-panel-mount","description":"\u003ch3\u003eQIANRENON DC 5.5mm x 2.5mm Panel Mount, 2 Pole High Current Solder Wire, 5.5x2.5mm DC Socket, 50V 3A, XLR\/D Panel Mount\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDC 5.5mm x 2.5mm panel mount power connector, built on the industrial standard\nXLR panel\/D panel bezel, is a reinforced and easy to install DC power\nconnection system. Widely used as a charging port for DC electronic devices.\nIdeal for repairs or DIY DC 5.5mm x 2.5mm female power connector. Can be\nmounted exposed or concealed on XLR panel with φ24mm cutout, D type panel or\nappliance housing plate. Interface Type: DC 5.5mm x 2.5mm Female 2 Pin Solder\nPin Rated Current: 5A Rated Voltage: 50V Contact coating: tin plated. Contact:\nCopper Insulator: PBT 15% GR. Case: zinc alloy. Size: 31mm x 26mm x 25.4mm\nPackage Content 1 x DC 5.5x2.5mm Panel Mount Socket 2 x M3 Screws\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePanel Mounting:DC 5.5mm*2.5mm panel power connector, based on the industrial standard XLR panel\/D type panel bezel, is a reinforced and easy to install DC connection system.\u003c\/li\u003e\n \u003cli\u003eWidely used: DC 5.5mm x 2.5mm power connector, widely used for charging port of DC electronic devices. Perfect for repair or DIY DC 5.5mm x 2.5mm power connector.\u003c\/li\u003e\n \u003cli\u003ePractical Solder Cable: DC5525 solderable panel socket, not to be a professional. Simply insert the cable into the hole, twist and lock it and solder.\u003c\/li\u003e\n \u003cli\u003eWiringDC 5.52.5mm 2 Pin Solder Wire Connector, Pin 1 - Internal Shorter Pin Soldered to \"+\" Pole, Pin 2 - External Longer Pin to \"-\" Pole\u003c\/li\u003e\n \u003cli\u003eExposed\/Concealed: DC5525 panel panel mount socket can be mounted exposed or concealed on XLR panel with 24mm aperture, D-type panel or device housing surface.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-25T00:32:51+10:00","created_at":"2025-09-25T00:32:47+10:00","vendor":"QIANRENON","type":"Power Distribution Blocks","tags":["industryDE_Sep2025"],"price":14300,"price_min":14300,"price_max":14300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45743625175193,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0BJ6SRQXC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"QIANRENON DC 5.5mm x 2.5mm Panel Mount, 2 Pole High Current Solder Wire, 5.5x2.5mm DC Socket, 50V 3A, XLR\/D Panel Mount","public_title":null,"options":["Default Title"],"price":14300,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"06496290-d49c-4f16-b56f-373d4b2507a2","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0BJ6SRQXC.jpg?v=1775750535","\/\/soundstores.net\/cdn\/shop\/files\/61fbxJhii2L.jpg?v=1758724606","\/\/soundstores.net\/cdn\/shop\/files\/71mRVgWMI5L.jpg?v=1758724644","\/\/soundstores.net\/cdn\/shop\/files\/71CNMC-Ja_L.jpg?v=1758724625","\/\/soundstores.net\/cdn\/shop\/files\/81qTV270EoL.jpg?v=1758724634","\/\/soundstores.net\/cdn\/shop\/files\/7119Yc6zTiL.jpg?v=1758724625"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0BJ6SRQXC.jpg?v=1775750535","options":["Title"],"media":[{"alt":null,"id":34627207233689,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0BJ6SRQXC.jpg?v=1775750535"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0BJ6SRQXC.jpg?v=1775750535","width":2000},{"alt":null,"id":34627207266457,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61fbxJhii2L.jpg?v=1758724606"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61fbxJhii2L.jpg?v=1758724606","width":2000},{"alt":null,"id":34627207299225,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71mRVgWMI5L.jpg?v=1758724644"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71mRVgWMI5L.jpg?v=1758724644","width":2000},{"alt":null,"id":34627207331993,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71CNMC-Ja_L.jpg?v=1758724625"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71CNMC-Ja_L.jpg?v=1758724625","width":2000},{"alt":null,"id":34627207364761,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81qTV270EoL.jpg?v=1758724634"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81qTV270EoL.jpg?v=1758724634","width":2000},{"alt":null,"id":34627207397529,"position":6,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/7119Yc6zTiL.jpg?v=1758724625"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/7119Yc6zTiL.jpg?v=1758724625","width":2000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eQIANRENON DC 5.5mm x 2.5mm Panel Mount, 2 Pole High Current Solder Wire, 5.5x2.5mm DC Socket, 50V 3A, XLR\/D Panel Mount\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDC 5.5mm x 2.5mm panel mount power connector, built on the industrial standard\nXLR panel\/D panel bezel, is a reinforced and easy to install DC power\nconnection system. Widely used as a charging port for DC electronic devices.\nIdeal for repairs or DIY DC 5.5mm x 2.5mm female power connector. Can be\nmounted exposed or concealed on XLR panel with φ24mm cutout, D type panel or\nappliance housing plate. Interface Type: DC 5.5mm x 2.5mm Female 2 Pin Solder\nPin Rated Current: 5A Rated Voltage: 50V Contact coating: tin plated. Contact:\nCopper Insulator: PBT 15% GR. Case: zinc alloy. Size: 31mm x 26mm x 25.4mm\nPackage Content 1 x DC 5.5x2.5mm Panel Mount Socket 2 x M3 Screws\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePanel Mounting:DC 5.5mm*2.5mm panel power connector, based on the industrial standard XLR panel\/D type panel bezel, is a reinforced and easy to install DC connection system.\u003c\/li\u003e\n \u003cli\u003eWidely used: DC 5.5mm x 2.5mm power connector, widely used for charging port of DC electronic devices. Perfect for repair or DIY DC 5.5mm x 2.5mm power connector.\u003c\/li\u003e\n \u003cli\u003ePractical Solder Cable: DC5525 solderable panel socket, not to be a professional. Simply insert the cable into the hole, twist and lock it and solder.\u003c\/li\u003e\n \u003cli\u003eWiringDC 5.52.5mm 2 Pin Solder Wire Connector, Pin 1 - Internal Shorter Pin Soldered to \"+\" Pole, Pin 2 - External Longer Pin to \"-\" Pole\u003c\/li\u003e\n \u003cli\u003eExposed\/Concealed: DC5525 panel panel mount socket can be mounted exposed or concealed on XLR panel with 24mm aperture, D-type panel or device housing surface.\u003c\/li\u003e\n \u003c\/ul\u003e"}
