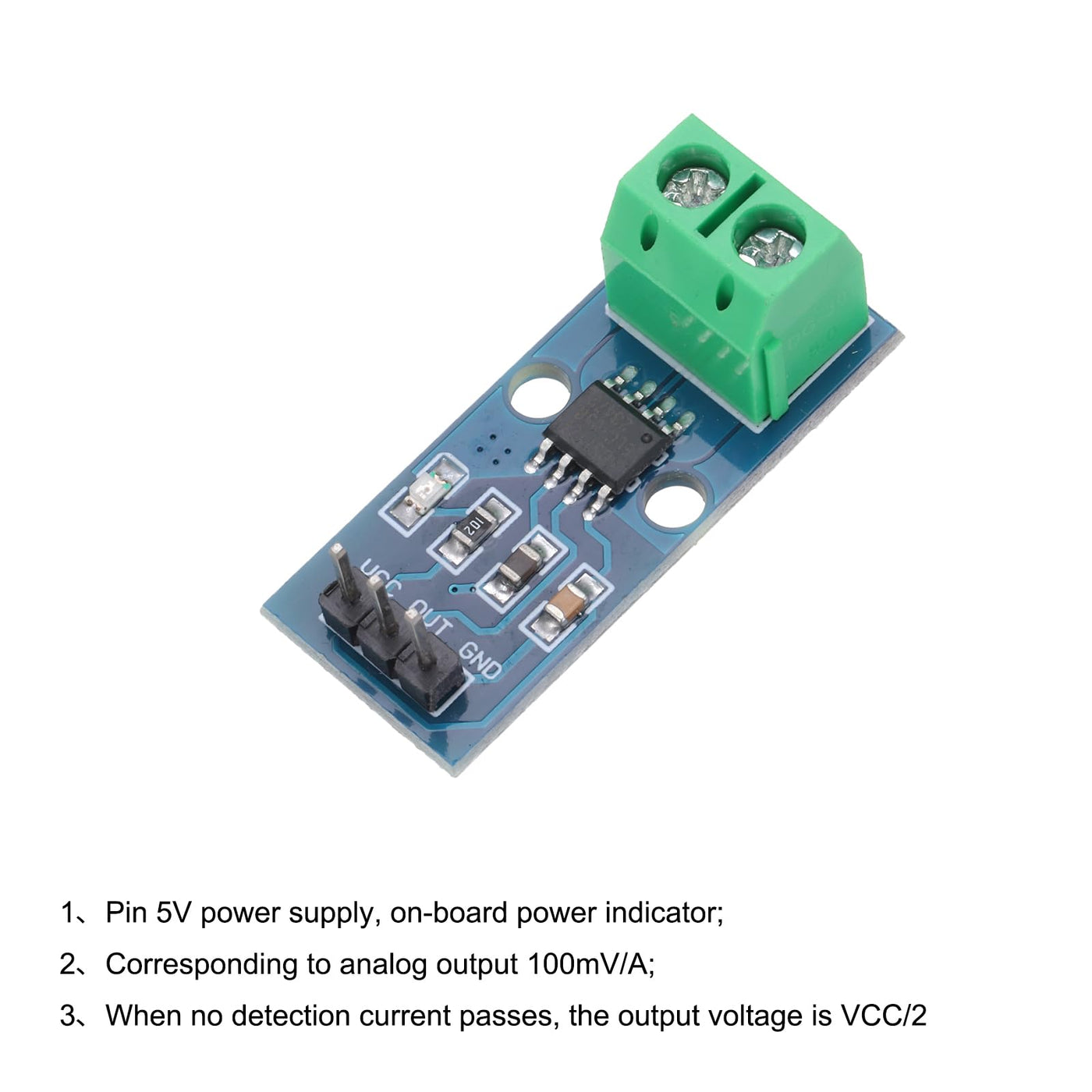

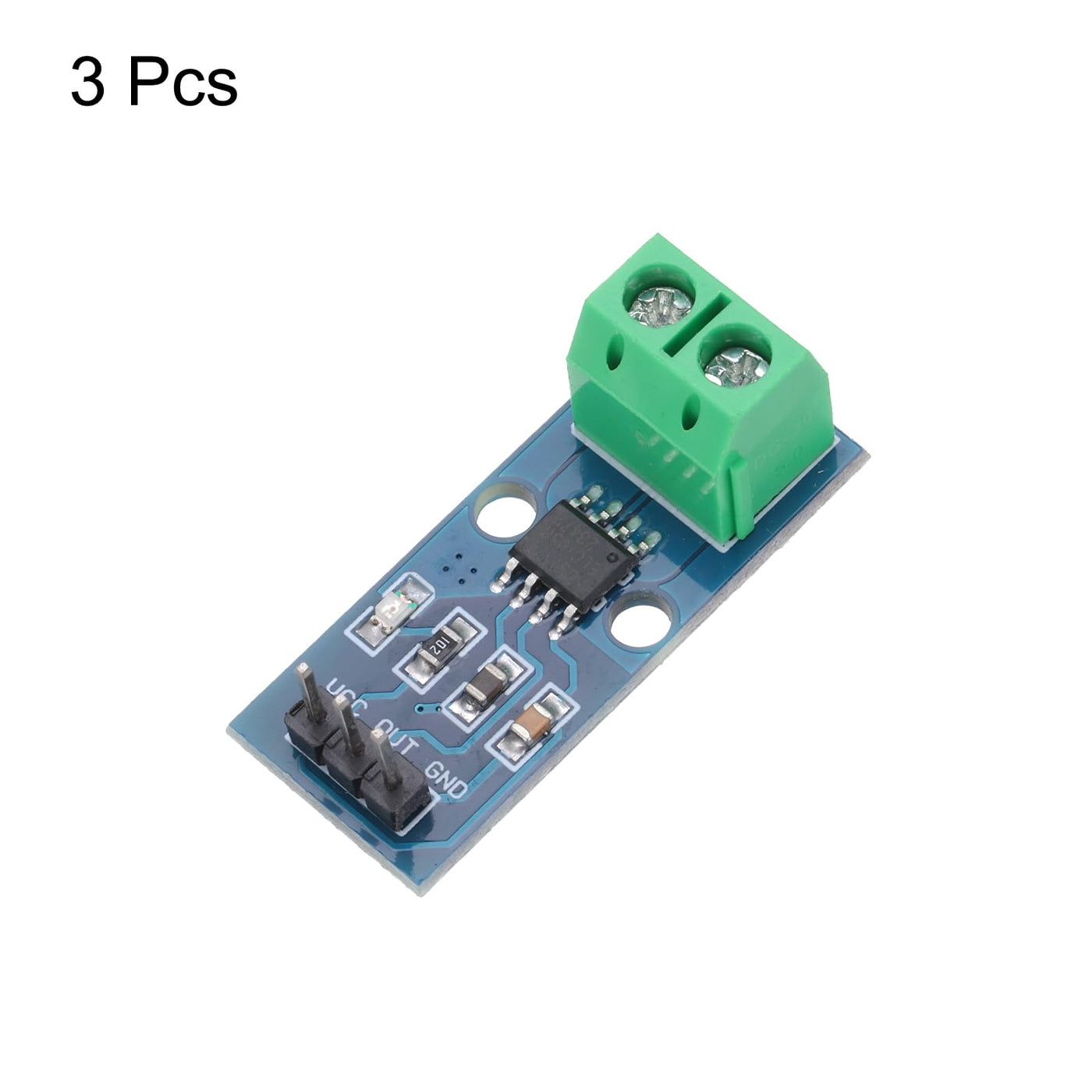

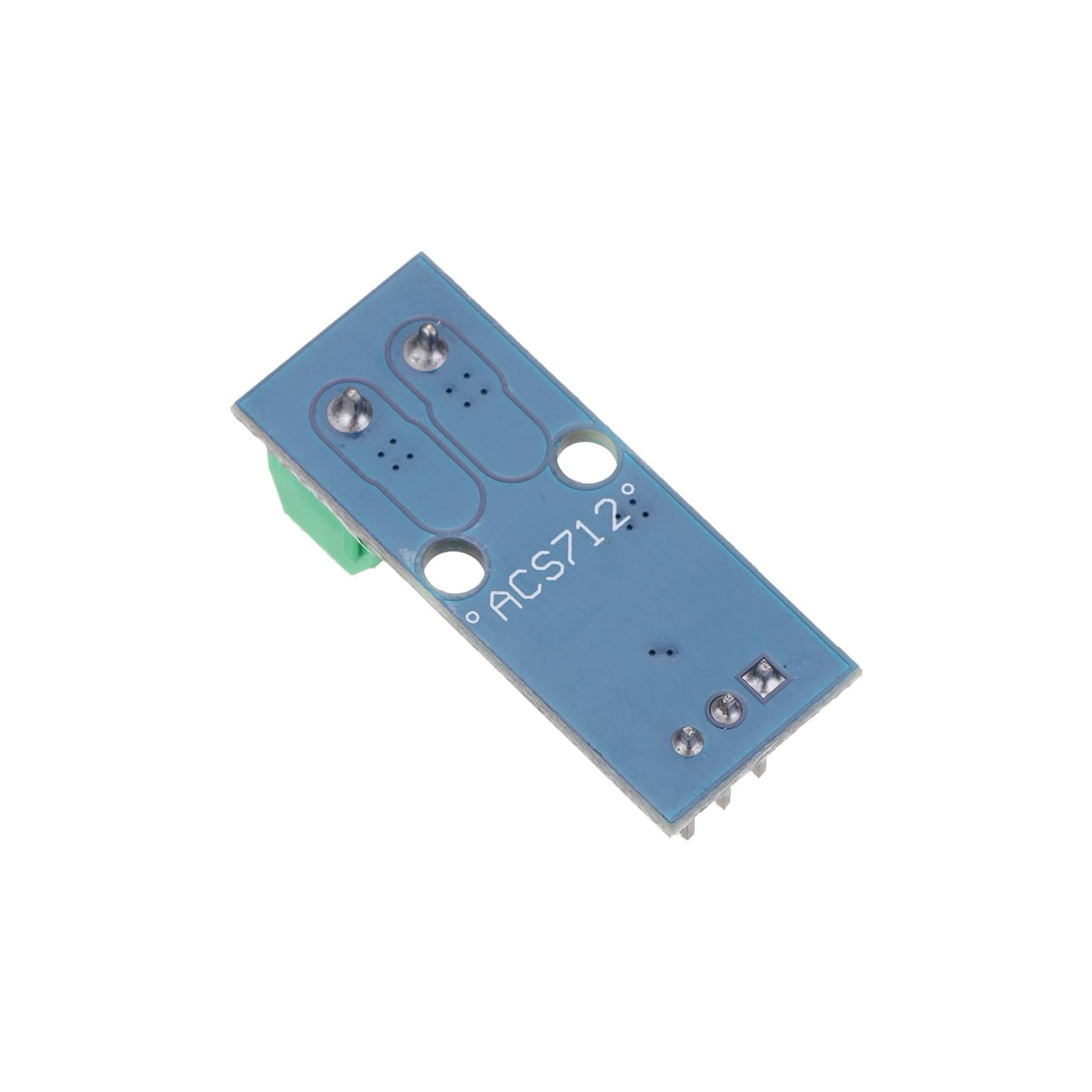

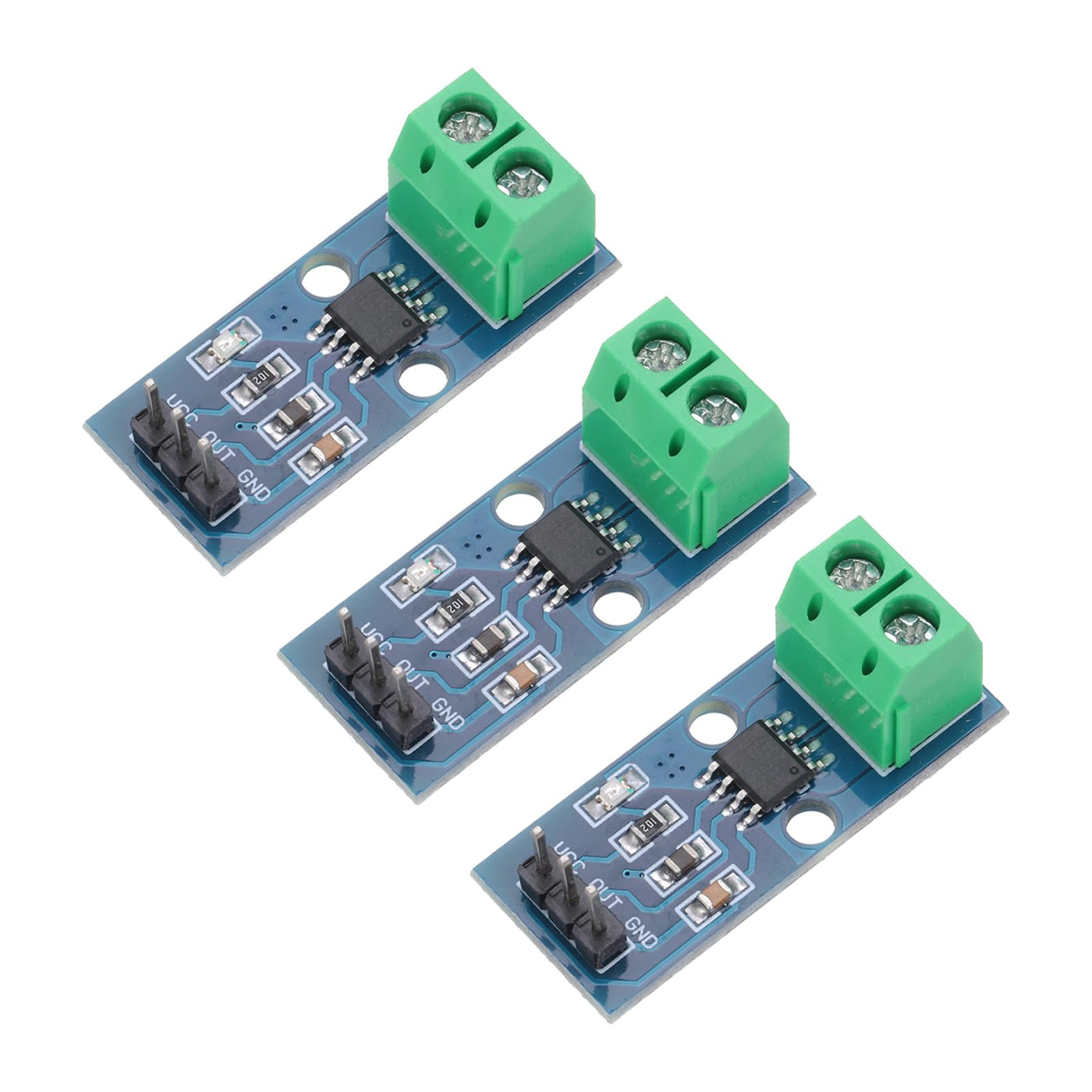

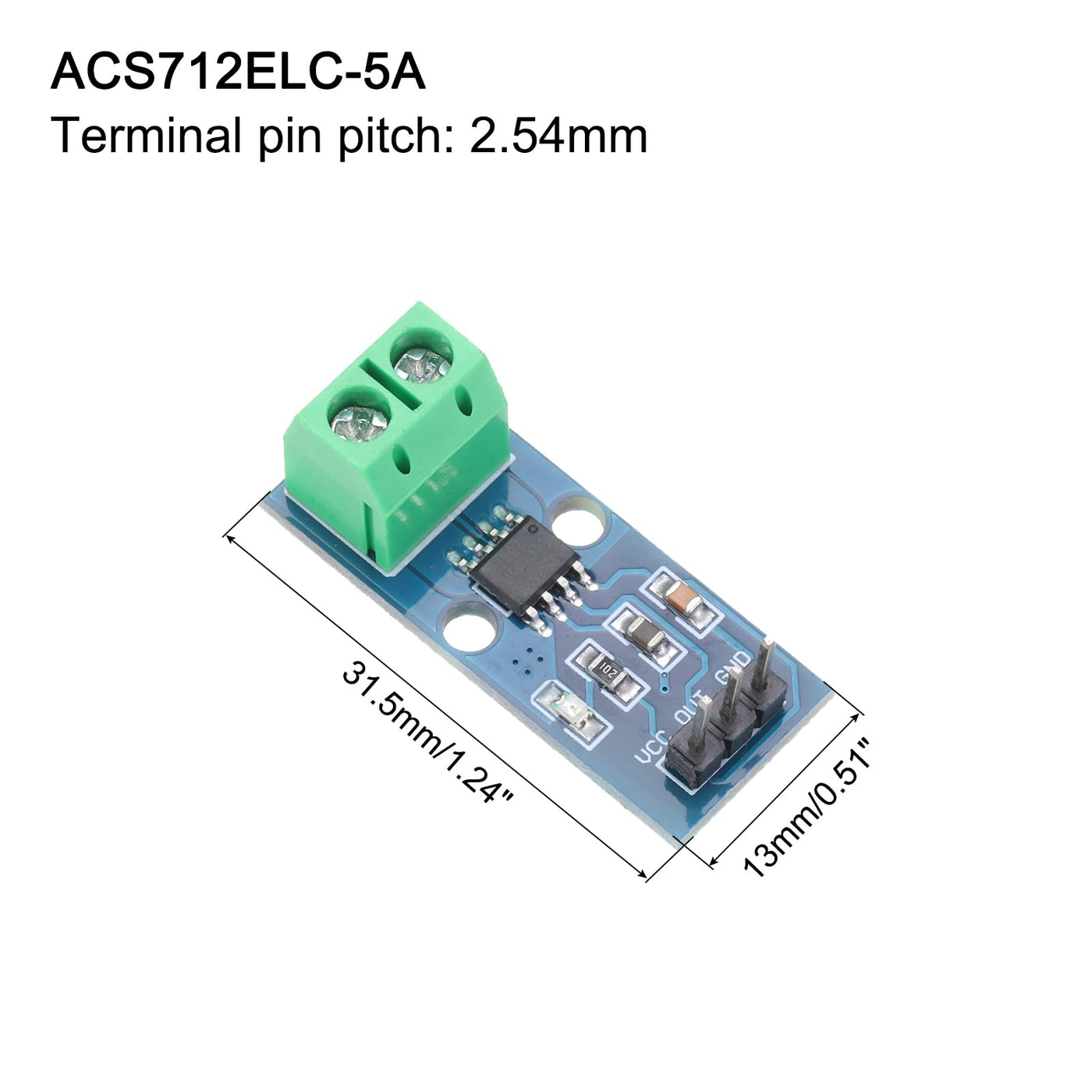

{"id":8534024781977,"title":"QUARKZMAN 3pcs ACS712 Current Sensor Module 5A Range Hall Effect Current Sensor Current Measurement AC\/DC for Current Detection","handle":"quarkzman-3pcs-acs712-current-sensor-module-5a-range-hall-effect-current-sensor-current-measurement-ac-dc-for-current-detection","description":"\u003ch3\u003eQUARKZMAN 3pcs ACS712 Current Sensor Module 5A Range Hall Effect Current Sensor Current Measurement AC\/DC for Current Detection\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWhat is it? The ACS712 Current Sensor Module is a Hall Effect Current Sensor\nIntegrated Circuit (IC) used to measure the intensity of DC or AC current. The\ncurrent measuring sensor accurately detects the current intensity flowing\nthrough the wire, and is widely used in current detection, motor control,\nenergy management, smart home, industrial automation and green energy. What\nwill I get? Current Sensor Chip: ACS712ELC-5A; Pin 5V power supply, integrated\npower supply indicator; Measuring range: ±5A, corresponding to analogue output\n100mV\/A; If no detection current flows, the output voltage is VCC\/2; Size:\n31.5 mm x 13 mm\/1.24 x 0.51 inches (L x W). Terminal pin spacing: 2.54 mm.\nPackage Include: 3pcs x Current Sensor Module Are there any advantages of the\nproduct? Hall effect current sensors are characterised by high accuracy and\nlow drift and can accurately measure the intensity of DC or AC current. They\nhave fast response speed, high reliability and a wide range of applications.\nHow to use it? Connect the current to be measured in series with the input\nterminals of the ACS712, please pay attention to the correct direction. What\nshould I pay attention to? ACS712 is based on the principle of Hall detection.\nPlease try to avoid the influence of a magnetic field when using.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eACS712 Current Sensor Module is a Hall Effect Current Sensor Integrated Circuit (IC) used to measure the intensity of DC or AC current and is widely used in current detection, motor control, energy management, smart home, industrial automation and green energy.\u003c\/li\u003e\n \u003cli\u003eCurrent sensor chip: ACS712ELC-5A; pin 5V power supply, built-in power supply indicator; measuring range: 5A, corresponding analog output 100mV\/A; if no detection current flows, the output voltage is VCC\/2.\u003c\/li\u003e\n \u003cli\u003eHall effect current sensors are characterised by high accuracy and low drift and can accurately measure the intensity of DC or AC current. They have fast response speed, high reliability and a wide range of applications.\u003c\/li\u003e\n \u003cli\u003eConnect the current to be measured in series with the input terminals of the ACS712, please pay attention to the correct direction.\u003c\/li\u003e\n \u003cli\u003eACS712 is based on the principle of Hall detection. Please try to avoid the influence of a magnetic field when using.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T09:21:11+10:00","created_at":"2025-09-27T09:21:07+10:00","vendor":"QUARKZMAN","type":"Current Sensors","tags":["industryDE_Sep2025"],"price":11700,"price_min":11700,"price_max":11700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45749952643225,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DS8L71FW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"QUARKZMAN 3pcs ACS712 Current Sensor Module 5A Range Hall Effect Current Sensor Current Measurement AC\/DC for Current Detection","public_title":null,"options":["Default Title"],"price":11700,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"001963aa240905qmaneu","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0DS8L71FW.jpg?v=1775754677","\/\/soundstores.net\/cdn\/shop\/files\/61WPZ2yE9WL.jpg?v=1758928870","\/\/soundstores.net\/cdn\/shop\/files\/615_dWh9ALL.jpg?v=1758928870","\/\/soundstores.net\/cdn\/shop\/files\/51QgwszmorL.jpg?v=1758928870","\/\/soundstores.net\/cdn\/shop\/files\/61z_6vnLFTL.jpg?v=1758928870"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0DS8L71FW.jpg?v=1775754677","options":["Title"],"media":[{"alt":null,"id":34662745047193,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0DS8L71FW.jpg?v=1775754677"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0DS8L71FW.jpg?v=1775754677","width":1600},{"alt":null,"id":34662745079961,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61WPZ2yE9WL.jpg?v=1758928870"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61WPZ2yE9WL.jpg?v=1758928870","width":1600},{"alt":null,"id":34662745112729,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/615_dWh9ALL.jpg?v=1758928870"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/615_dWh9ALL.jpg?v=1758928870","width":1600},{"alt":null,"id":34662745145497,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51QgwszmorL.jpg?v=1758928870"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51QgwszmorL.jpg?v=1758928870","width":1600},{"alt":null,"id":34662745178265,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61z_6vnLFTL.jpg?v=1758928870"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61z_6vnLFTL.jpg?v=1758928870","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eQUARKZMAN 3pcs ACS712 Current Sensor Module 5A Range Hall Effect Current Sensor Current Measurement AC\/DC for Current Detection\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWhat is it? The ACS712 Current Sensor Module is a Hall Effect Current Sensor\nIntegrated Circuit (IC) used to measure the intensity of DC or AC current. The\ncurrent measuring sensor accurately detects the current intensity flowing\nthrough the wire, and is widely used in current detection, motor control,\nenergy management, smart home, industrial automation and green energy. What\nwill I get? Current Sensor Chip: ACS712ELC-5A; Pin 5V power supply, integrated\npower supply indicator; Measuring range: ±5A, corresponding to analogue output\n100mV\/A; If no detection current flows, the output voltage is VCC\/2; Size:\n31.5 mm x 13 mm\/1.24 x 0.51 inches (L x W). Terminal pin spacing: 2.54 mm.\nPackage Include: 3pcs x Current Sensor Module Are there any advantages of the\nproduct? Hall effect current sensors are characterised by high accuracy and\nlow drift and can accurately measure the intensity of DC or AC current. They\nhave fast response speed, high reliability and a wide range of applications.\nHow to use it? Connect the current to be measured in series with the input\nterminals of the ACS712, please pay attention to the correct direction. What\nshould I pay attention to? ACS712 is based on the principle of Hall detection.\nPlease try to avoid the influence of a magnetic field when using.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eACS712 Current Sensor Module is a Hall Effect Current Sensor Integrated Circuit (IC) used to measure the intensity of DC or AC current and is widely used in current detection, motor control, energy management, smart home, industrial automation and green energy.\u003c\/li\u003e\n \u003cli\u003eCurrent sensor chip: ACS712ELC-5A; pin 5V power supply, built-in power supply indicator; measuring range: 5A, corresponding analog output 100mV\/A; if no detection current flows, the output voltage is VCC\/2.\u003c\/li\u003e\n \u003cli\u003eHall effect current sensors are characterised by high accuracy and low drift and can accurately measure the intensity of DC or AC current. They have fast response speed, high reliability and a wide range of applications.\u003c\/li\u003e\n \u003cli\u003eConnect the current to be measured in series with the input terminals of the ACS712, please pay attention to the correct direction.\u003c\/li\u003e\n \u003cli\u003eACS712 is based on the principle of Hall detection. Please try to avoid the influence of a magnetic field when using.\u003c\/li\u003e\n \u003c\/ul\u003e"}
