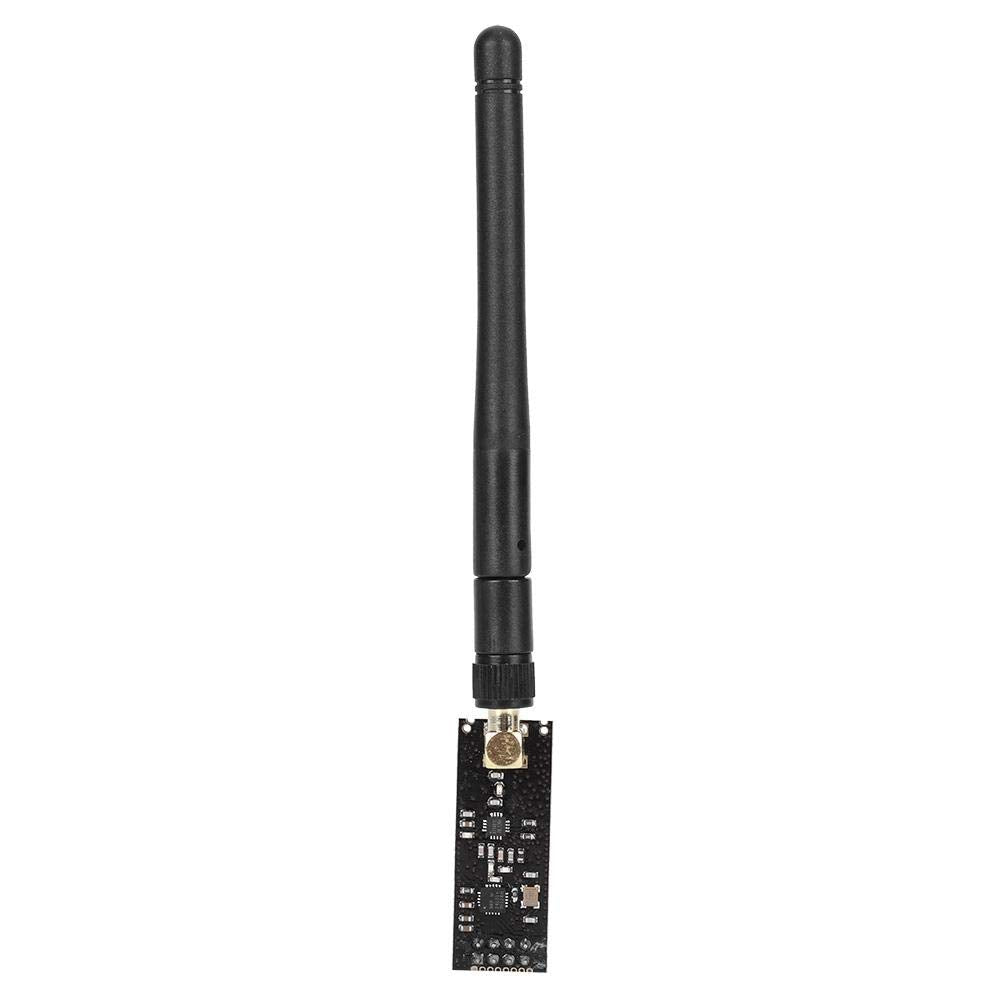

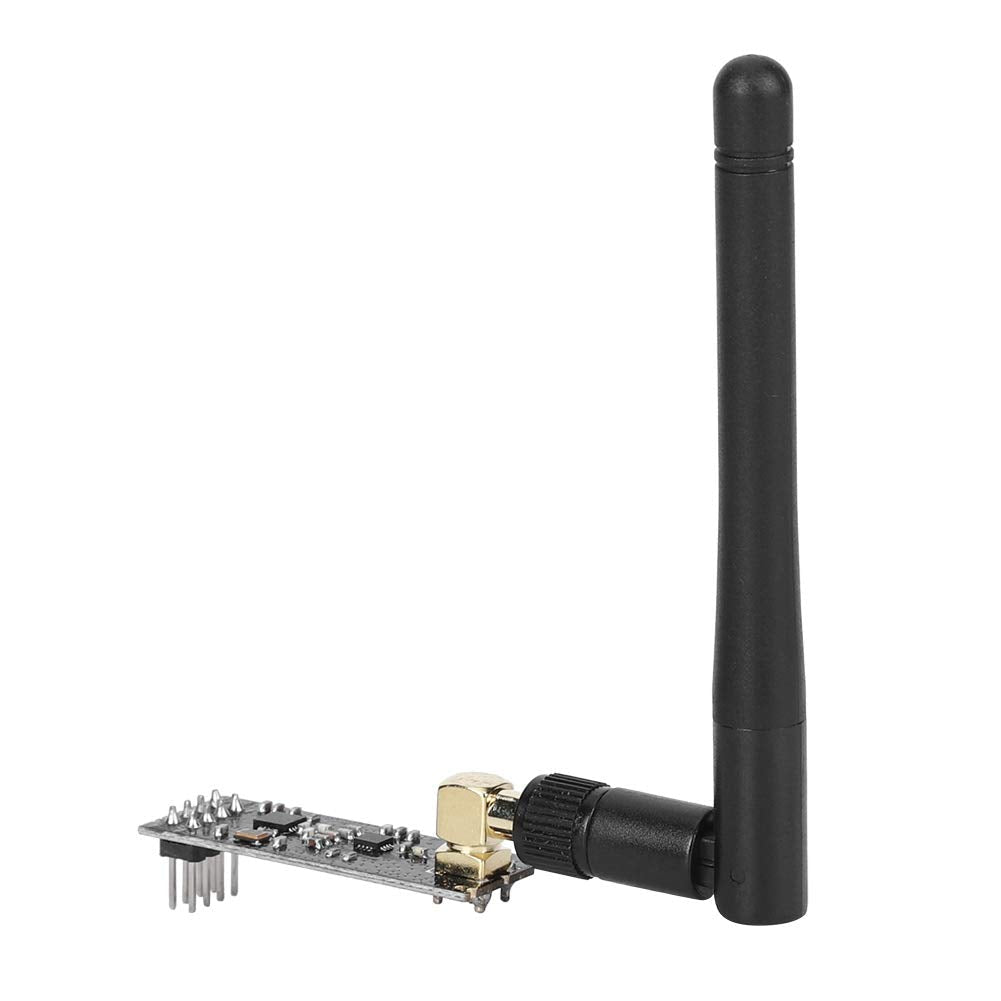

{"id":8534019702937,"title":"Radio Transceiver Module, Electrical Accessory for Radio Modules NRF24L01 + Power Amplifier + LNA for 1100 Metres, Radio Module NRF24L01 + PA + LNA","handle":"radio-transceiver-module-electrical-accessory-for-radio-modules-nrf24l01-power-amplifier-lna-for-1100-metres-radio-module-nrf24l01-pa-lna","description":"\u003ch3\u003eRadio Transceiver Module, Electrical Accessory for Radio Modules NRF24L01 + Power Amplifier + LNA for 1100 Metres, Radio Module NRF24L01 + PA + LNA\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Item Type: Wireless Module Size: approx. 41 x 15.5 mm \/ 1.6 x\n0.6 inches. Maximum output power: +20 dBm. Working current (peak) in start\nmode: 115mA Working current in reception mode (peak value): 45 mA. Power off\nmode: 4.2uA Working Temperature: -20-70℃ Reception sensitivity in 2 Mbps mode:\n-92 dBm Reception sensitivity in 1 Mbps mode: -95 dBm Reception sensitivity\nmode for 250 kbit\/s: -104 dBm Power amplifier gain: 20 dB. LNA Gain: 10dB LNA\nnoise figure: 2.6 dB. Antenna gain (peak value): 2 dBI At 2 MB rate (open\nspace): 520 metres. Error: approx. ± 0.5 mm \/ 0.02 inches. Detail Size:\nApprox. 5 mm \/ 0.2 inches. Approx. 3.6 mm \/ 0.14 inches. Approx. 2.54 mm \/ 0.1\ninch spacing. Approx. 1.27 mm \/ 0.05 inch spacing. Approx. 40.8 mm \/ 1.6\ninches. Approx. 15.3 mm \/ 0.6 inches. Approx. 3.5 mm \/ 0.1 inches. Package\nincludes: 1 x radio module. 1 x antenna.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWireless transceiver module, the wireless module NRF24L01 + power amplifier + LNA is a powerful and highly sensitive wireless data transfer module specially designed for data transmission over ultra-long distances of 1100 metres.\u003c\/li\u003e\n \u003cli\u003eWireless transceiver module, the wireless module NRF24L01P + power amplifier + LNA works in the 2.4G frequency band without license and can support point-to-point applications and also form a star network.\u003c\/li\u003e\n \u003cli\u003eWireless transceiver, digital transmission chip NRF24L01+, which adds a high-performance amplifier and an LNA chip, a high frequency switch, a bandpass filter, etc. And they form a professional, fully bi-directional RF power amplifier, which greatly extends the effective communication distance.\u003c\/li\u003e\n \u003cli\u003eWireless transceiver module, in the high frequency range, many optimisations and adjustments are made to maximise transmission efficiency and keep the harmonics as low as possible. As a result, the NRF24L01P wireless module + power amplifier + LNA has the least radio frequency interference to external devices and is not susceptible to interference from other devices, which greatly improves working stability.\u003c\/li\u003e\n \u003cli\u003eWireless transceiver receiver, and the wireless module NRF24L01P + power amplifier + LNA is highly integrated and can be easily embedded in any product with space restrictions. Customers must add a microcontroller unit to control NRF24L01P + power amplifier + LNA via the serial peripheral interface port.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T09:12:19+10:00","created_at":"2025-09-27T09:12:15+10:00","vendor":"CHICIRIS","type":"Signal Components","tags":["industryDE_Sep2025"],"price":11200,"price_min":11200,"price_max":11200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45749940486297,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B08D7JY6ZJ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Radio Transceiver Module, Electrical Accessory for Radio Modules NRF24L01 + Power Amplifier + LNA for 1100 Metres, Radio Module NRF24L01 + PA + LNA","public_title":null,"options":["Default Title"],"price":11200,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"Qiter0r6czt9eh1","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B08D7JY6ZJ.jpg?v=1775754443","\/\/soundstores.net\/cdn\/shop\/files\/51UMsNPFsBL.jpg?v=1758928337","\/\/soundstores.net\/cdn\/shop\/files\/61gg0RrBCjL.jpg?v=1758928338","\/\/soundstores.net\/cdn\/shop\/files\/61XmJtFlcNL.jpg?v=1758928337","\/\/soundstores.net\/cdn\/shop\/files\/51O7UCE3gKL.jpg?v=1758928338","\/\/soundstores.net\/cdn\/shop\/files\/41_qQ-gXmcL.jpg?v=1758928337","\/\/soundstores.net\/cdn\/shop\/files\/41Qx35PSF5L.jpg?v=1758928337","\/\/soundstores.net\/cdn\/shop\/files\/51fNY8gQ6YL.jpg?v=1758928338","\/\/soundstores.net\/cdn\/shop\/files\/51WqrciAKeL.jpg?v=1758928337"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08D7JY6ZJ.jpg?v=1775754443","options":["Title"],"media":[{"alt":null,"id":34662704873625,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08D7JY6ZJ.jpg?v=1775754443"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08D7JY6ZJ.jpg?v=1775754443","width":1001},{"alt":null,"id":34662704906393,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51UMsNPFsBL.jpg?v=1758928337"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51UMsNPFsBL.jpg?v=1758928337","width":1001},{"alt":null,"id":34662704939161,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61gg0RrBCjL.jpg?v=1758928338"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61gg0RrBCjL.jpg?v=1758928338","width":1001},{"alt":null,"id":34662704971929,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61XmJtFlcNL.jpg?v=1758928337"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61XmJtFlcNL.jpg?v=1758928337","width":1001},{"alt":null,"id":34662705004697,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51O7UCE3gKL.jpg?v=1758928338"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51O7UCE3gKL.jpg?v=1758928338","width":1001},{"alt":null,"id":34662705037465,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41_qQ-gXmcL.jpg?v=1758928337"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41_qQ-gXmcL.jpg?v=1758928337","width":1001},{"alt":null,"id":34662705070233,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41Qx35PSF5L.jpg?v=1758928337"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41Qx35PSF5L.jpg?v=1758928337","width":1001},{"alt":null,"id":34662705103001,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51fNY8gQ6YL.jpg?v=1758928338"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51fNY8gQ6YL.jpg?v=1758928338","width":1001},{"alt":null,"id":34662705135769,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51WqrciAKeL.jpg?v=1758928337"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51WqrciAKeL.jpg?v=1758928337","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eRadio Transceiver Module, Electrical Accessory for Radio Modules NRF24L01 + Power Amplifier + LNA for 1100 Metres, Radio Module NRF24L01 + PA + LNA\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Item Type: Wireless Module Size: approx. 41 x 15.5 mm \/ 1.6 x\n0.6 inches. Maximum output power: +20 dBm. Working current (peak) in start\nmode: 115mA Working current in reception mode (peak value): 45 mA. Power off\nmode: 4.2uA Working Temperature: -20-70℃ Reception sensitivity in 2 Mbps mode:\n-92 dBm Reception sensitivity in 1 Mbps mode: -95 dBm Reception sensitivity\nmode for 250 kbit\/s: -104 dBm Power amplifier gain: 20 dB. LNA Gain: 10dB LNA\nnoise figure: 2.6 dB. Antenna gain (peak value): 2 dBI At 2 MB rate (open\nspace): 520 metres. Error: approx. ± 0.5 mm \/ 0.02 inches. Detail Size:\nApprox. 5 mm \/ 0.2 inches. Approx. 3.6 mm \/ 0.14 inches. Approx. 2.54 mm \/ 0.1\ninch spacing. Approx. 1.27 mm \/ 0.05 inch spacing. Approx. 40.8 mm \/ 1.6\ninches. Approx. 15.3 mm \/ 0.6 inches. Approx. 3.5 mm \/ 0.1 inches. Package\nincludes: 1 x radio module. 1 x antenna.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWireless transceiver module, the wireless module NRF24L01 + power amplifier + LNA is a powerful and highly sensitive wireless data transfer module specially designed for data transmission over ultra-long distances of 1100 metres.\u003c\/li\u003e\n \u003cli\u003eWireless transceiver module, the wireless module NRF24L01P + power amplifier + LNA works in the 2.4G frequency band without license and can support point-to-point applications and also form a star network.\u003c\/li\u003e\n \u003cli\u003eWireless transceiver, digital transmission chip NRF24L01+, which adds a high-performance amplifier and an LNA chip, a high frequency switch, a bandpass filter, etc. And they form a professional, fully bi-directional RF power amplifier, which greatly extends the effective communication distance.\u003c\/li\u003e\n \u003cli\u003eWireless transceiver module, in the high frequency range, many optimisations and adjustments are made to maximise transmission efficiency and keep the harmonics as low as possible. As a result, the NRF24L01P wireless module + power amplifier + LNA has the least radio frequency interference to external devices and is not susceptible to interference from other devices, which greatly improves working stability.\u003c\/li\u003e\n \u003cli\u003eWireless transceiver receiver, and the wireless module NRF24L01P + power amplifier + LNA is highly integrated and can be easily embedded in any product with space restrictions. Customers must add a microcontroller unit to control NRF24L01P + power amplifier + LNA via the serial peripheral interface port.\u003c\/li\u003e\n \u003c\/ul\u003e"}
