RC-36 NC/NO Magnetic Reed Switch Recessed Wired Door Window Alarm, Magneti Door Switch, Contact Sensor, for Home Security and Burglar Alarm Systems, Sets of 10, (Brown) RC-36 NC/NO Brown

In Stock. Leaves warehouse within 2 - 3 business days

$198.00 AUD
Maximum quantity available reached.
Shop with us and enjoy FREE shipping on every order.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

RC-36 NC/NO Magnetic Reed Switch Recessed Wired Door Window Alarm, Magneti Door Switch, Contact Sensor, for Home Security and Burglar Alarm Systems, Sets of 10, (Brown)

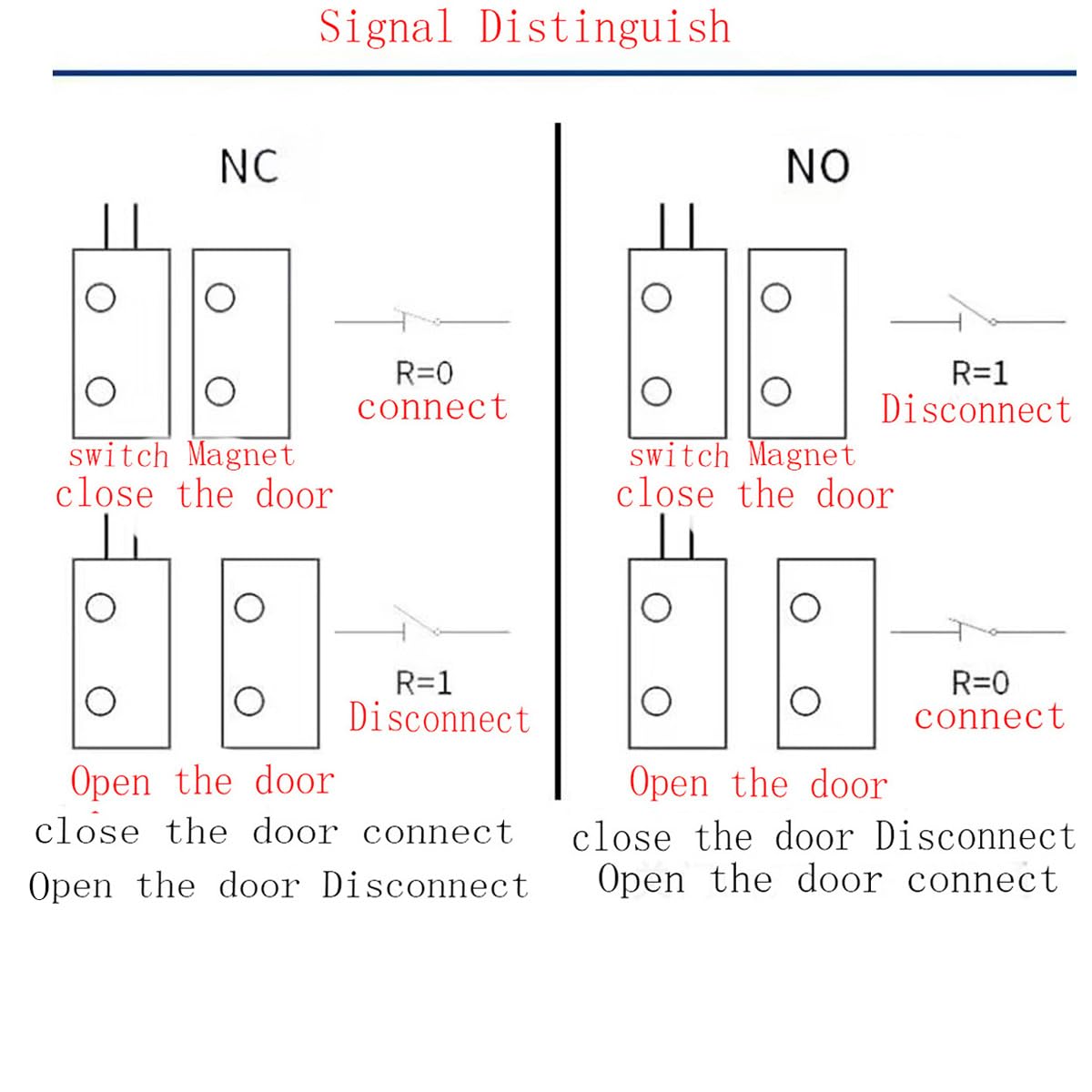

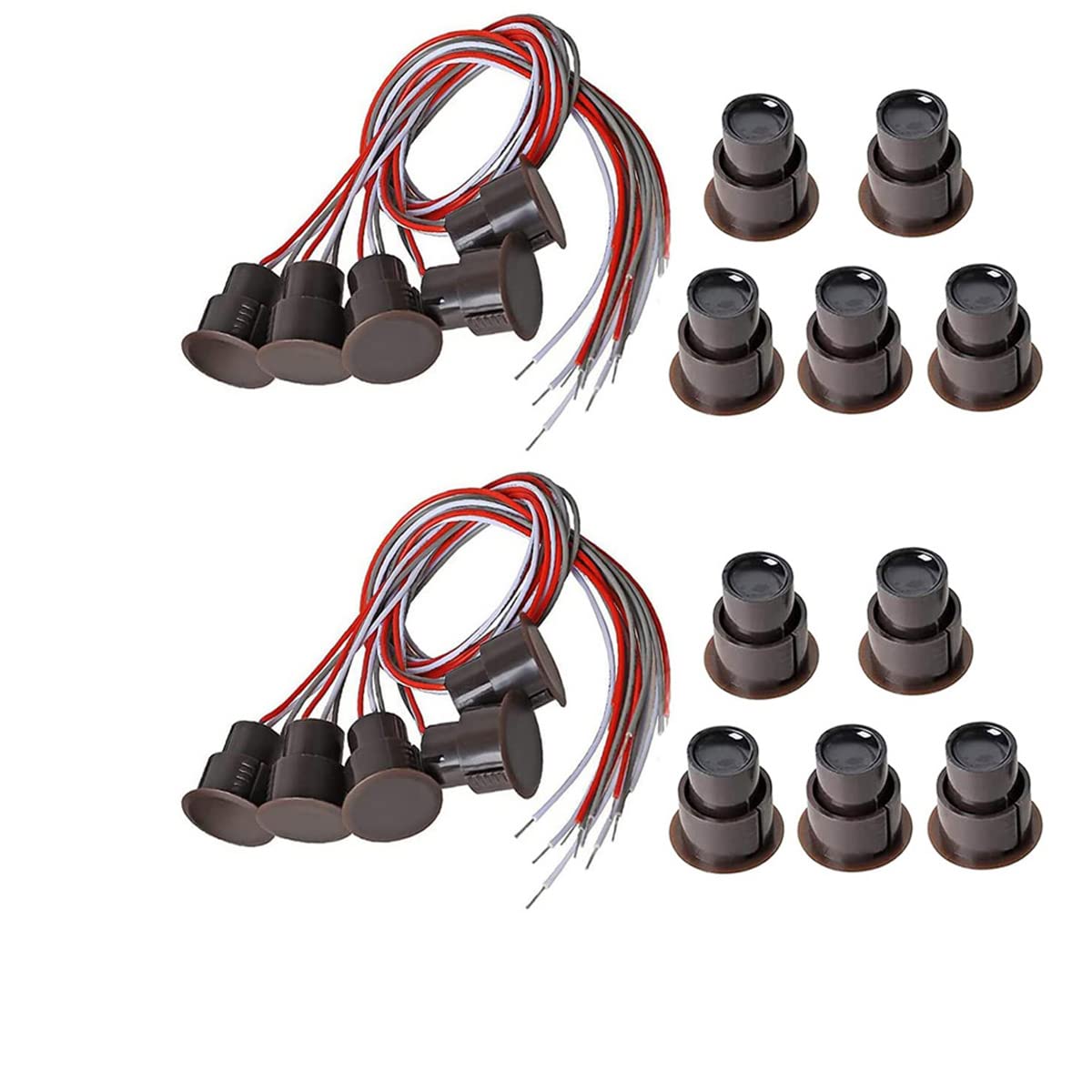

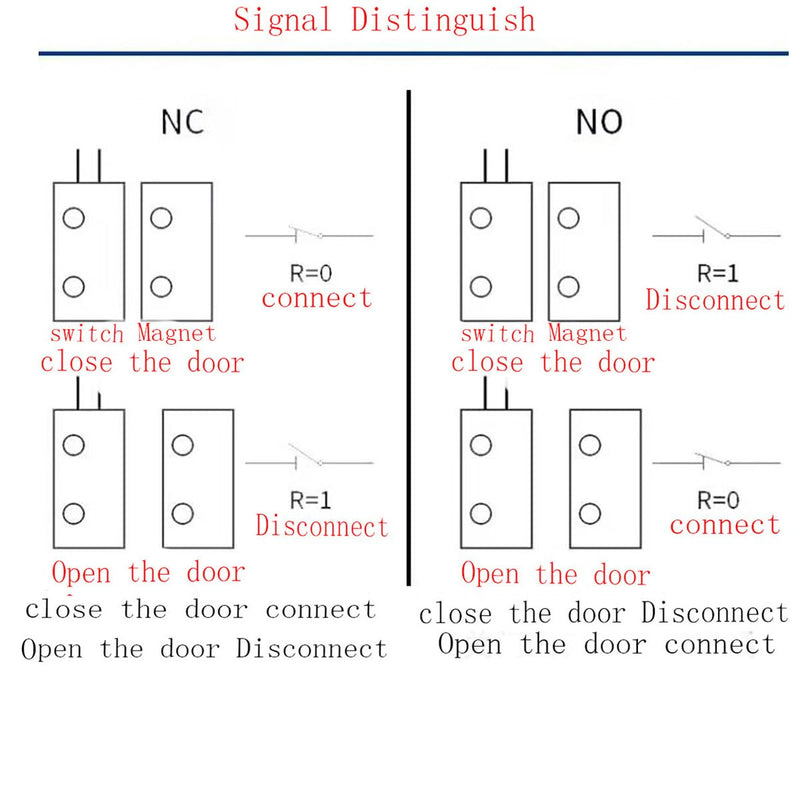

Name：RC-36 NC/NO Magnetic Reed Switch.Feature:Widely Used - This Recessed Door Contact Sensor works with any access control or burglar alarm system available.Note - the Magnetic Door Switch must be installed according to the sensing distance. It can only provide a switch signal to the transmitter. It cannot directly load the power, nor directly connect the lamp!Specification:Model : RC-36.Material: ABS.Rated power: 10W.Rated current: 500(mA).Rated voltage: (VDC) 100.Mounting Type: Recessed.Anti-fire ABS shield Connecting mode: NC/NO.Operating distance: more than 15mm, less than 25mm.Switch Type: NO(normal open type), NO means Normally Open: when the magnet separate, the circuit is not conductive( light on ); When the magnet together, the circuit is conductive ( light ooff ).Package Includes: 10 Sets x RC-36 Magnetic Door Window Contact SensorWarm Tip:Due to manual measurement, there may be a slight error in size.【Worry-free Warranty】:With our 90-day money-back risk-free purchase guarantee, order now! If you are not satisfied in any way, any quality problem can be

Product Features

  • Product Name:RC-36 NC/NO Magnetic Door Swith.
  • Specification: Rated Voltage: 100V;Contact Capacity: 500(mA) (Maximum Switch Current), Rated Power: 10W(Maximum Switch Power); Contact Type: NC/NO/COM,Trigger Range: 15-25mm.

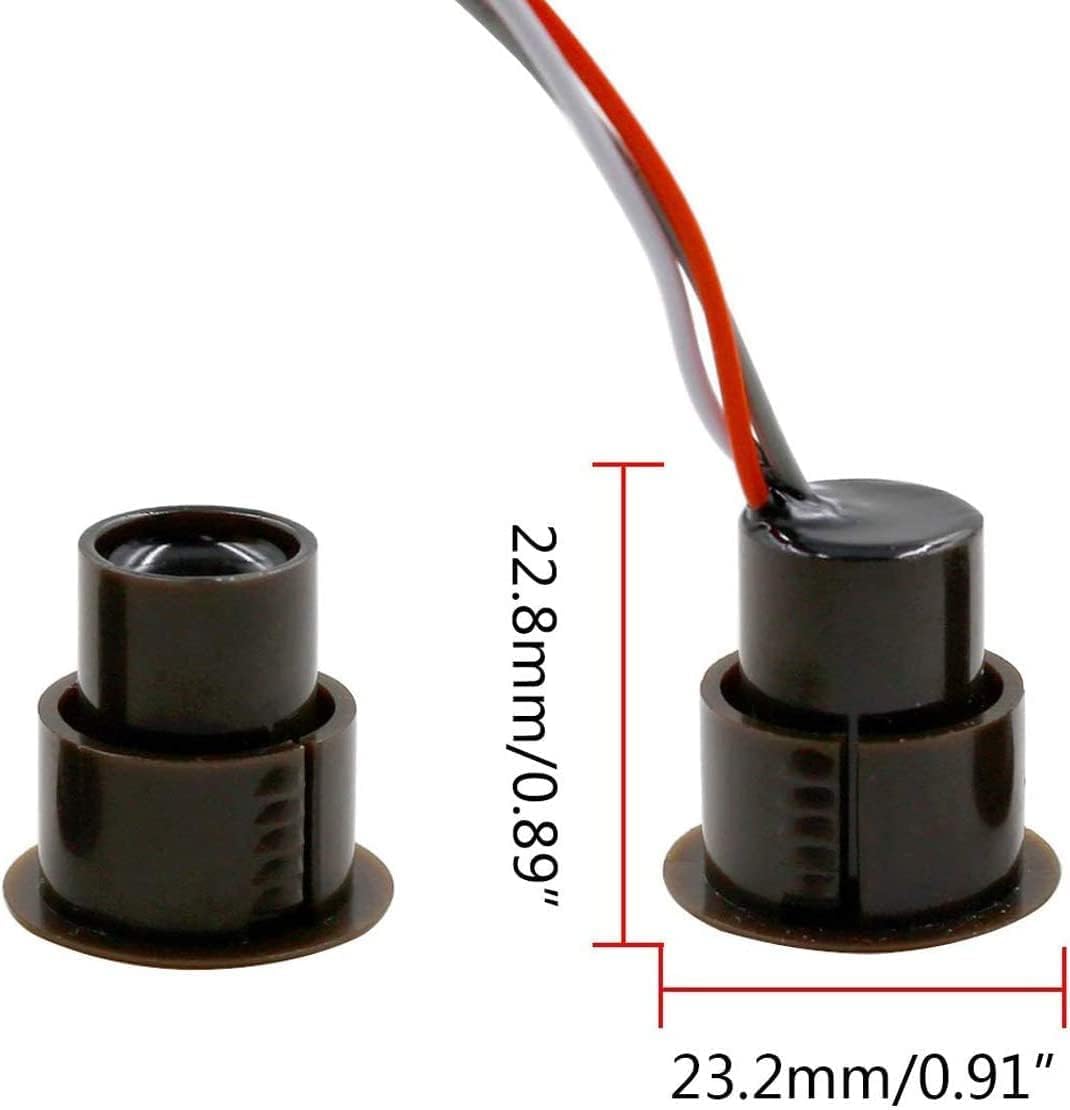

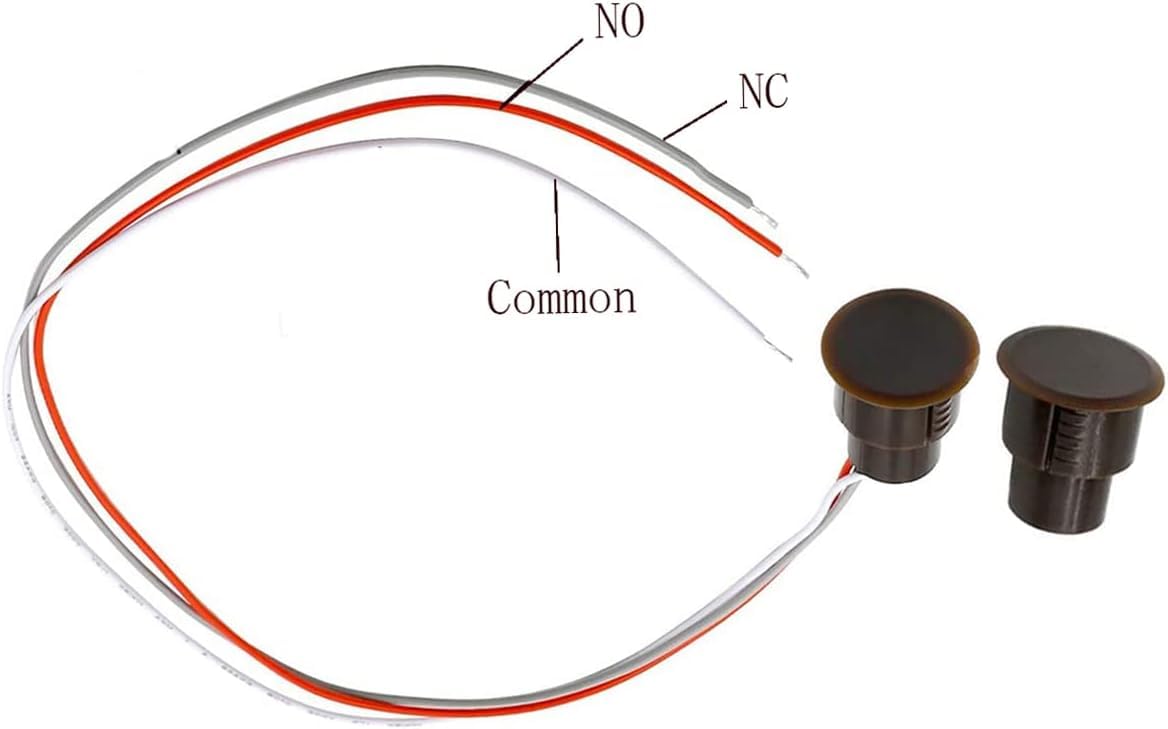

  • Normally Open Normally Closed: Use Normally Open or Normally Closed freely, Cable definition: Gray for NC, Red for NO, White for common . Cable Length : 34cm/13.4", Overall Size: 23.2 x 22.8 mm / 2.2" x 0.91" x 0.89"(D*L).
  • Application: Magnetic door contact reed switch great for door alarm sensor, alarm, LED Switch, Relay, GPS low voltage devices...etc., Effective for Theft Deterrence. Yes ideal wooden door or window use.
