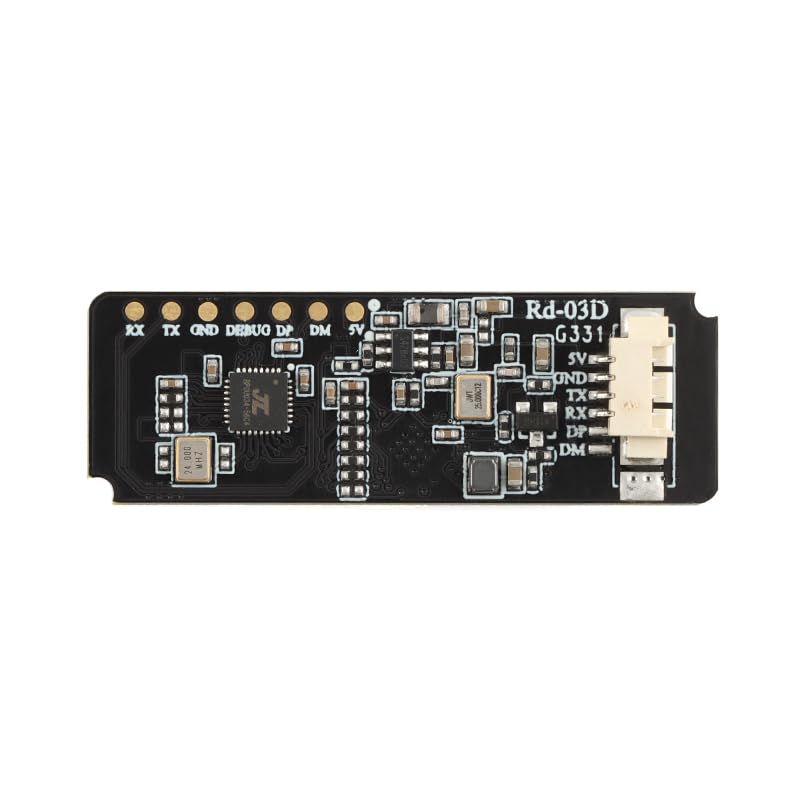

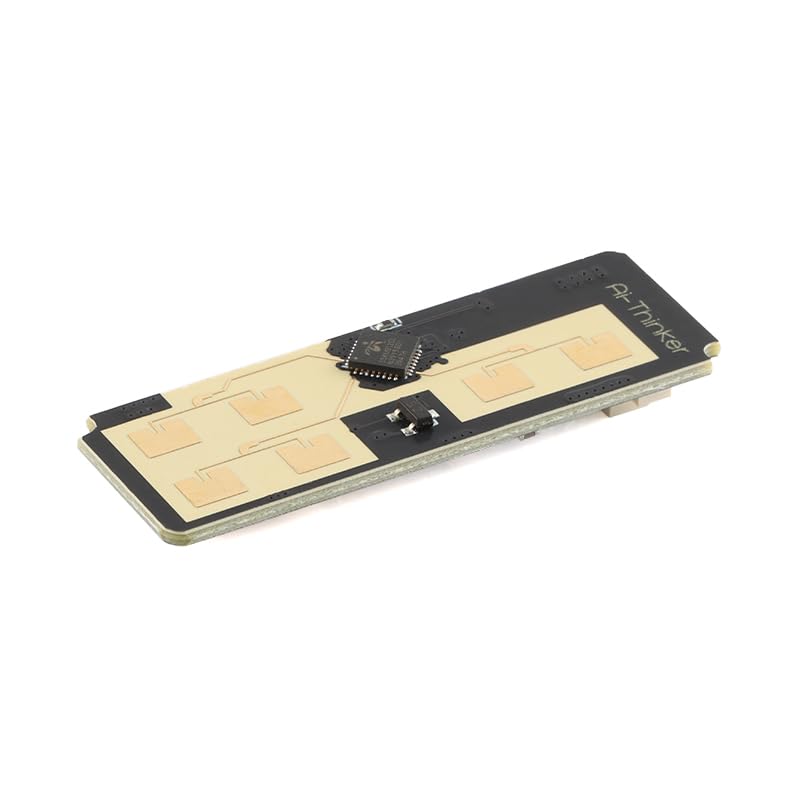

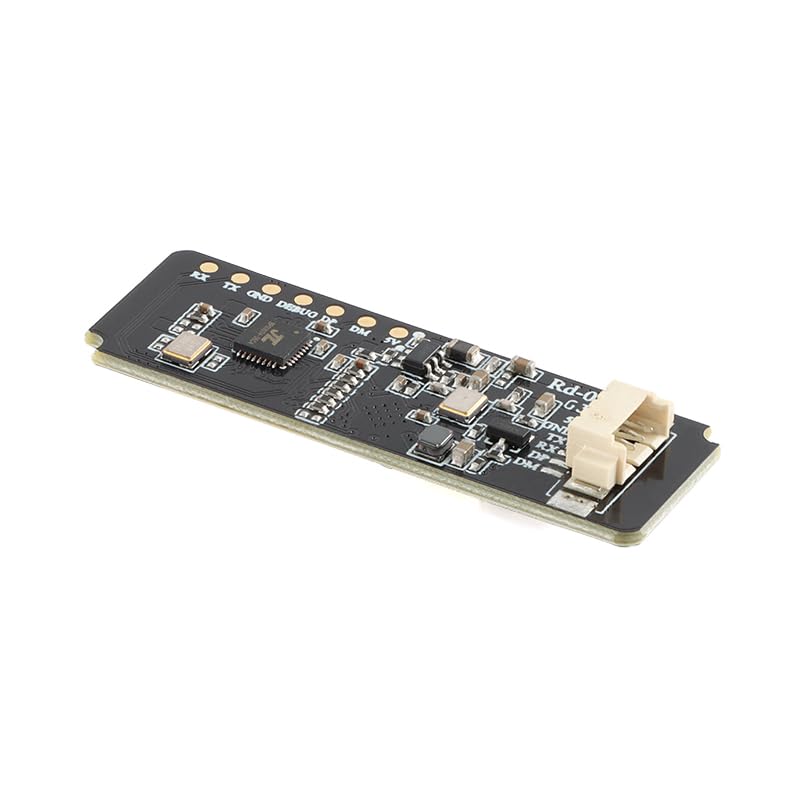

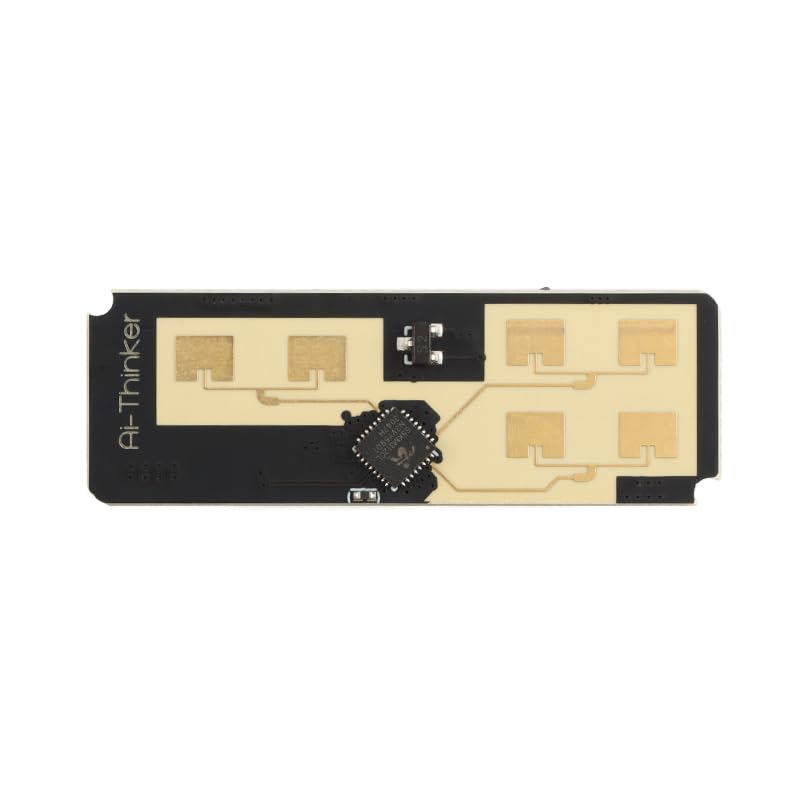

{"id":8150331654297,"title":"Rd-03D 24G Radar Sensor Module Multi-target Human Motion Trajectory Localization and Tracking Radar Module 8M Detection Onboard PCB Antenna","handle":"rd-03d-24g-radar-sensor-module-multi-target-human-motion-trajectory-localization-and-tracking-radar-module-8m-detection-onboard-pcb-antenna","description":"\u003ch3\u003eRd-03D 24G Radar Sensor Module Multi-target Human Motion Trajectory Localization and Tracking Radar Module 8M Detection Onboard PCB Antenna\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRd-03D is a radar module equipped with the S5KM312CL chip. S5KM312CL is an\nintegrated single-chip millimeter wave sensor SoC based on FMCW radar\ntransceiver technology. It operates in the K band of 24 GHz and has a maximum\nsweep bandwidth of 0.25 GHz. This module adopts FMCW waveform and advanced\nsignal processing technology exclusive to S5 series chips, combined with MCU\nexclusive radar signal processing and built-in intelligent positioning and\ntracking algorithm. It can detect multiple targets in designated areas and\nreport results in real time. Users can quickly develop corresponding target\npositioning and tracking products. The Rd-03D module accurately perceives the\nmovement status of the human body and regions, and is equipped with\nintelligent algorithms to achieve motion trajectory recognition and tracking,\nenabling speed and distance measurement of targets within the region. The\nrecognition speed is faster and the power consumption is lower. The module can\nbe quickly configured and is suitable for various public propaganda\nfacilities. It intelligently distinguishes the forms of the human body in\nmotion, micro movement, and stillness, and controls device switches. This\nmodule has good resistance to external interference and is not affected by\nwireless signals such as WIFI. The radar supports the 24GHz ISM frequency band\nAccurate target positioning and tracking The farthest sensing distance is 8m\nThe distance resolution is 0.75m, and the ranging accuracy is 0.15m Detection\nrange azimuth angle ± 60 °, elevation angle ± 30 ° Model: Rd-03D Packaging:\nStandard 1 4P-1.25mm socket interface Size: 15.0 44.0 (± 0.2) mm Antenna\nform: onboard antenna Spectrum range: 24G~24.25GHz Working temperature: -40\n℃~85 ℃ Storage environment: -40 ℃~125 ℃,\u0026lt;90% RH Power supply range: Power\nsupply voltage 5V, power supply current ≥ 200mA Supported interface: UART\nSerial port speed: default 256000 bps\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh performance Rd-03D 24G radar sensor module with multi-target human motion trajectory localization and tracking, featuring 8m detection range and 0.75m distance resolution for precise target positioning and tracking\u003c\/li\u003e\n \u003cli\u003eEasily integrate the radar module into various applications such as smart homes, smart businesses, bathrooms, and smart lighting, thanks to its compact size of 15*44mm and the convenience of automatic default configuration loading\u003c\/li\u003e\n \u003cli\u003eSupport 24GHz ISM frequency band and provide accurate detection with a detection range of 60 azimuth angle and 30 elevation angle, making it ideal for smart home, smart business, bathroom, and smart lighting applications\u003c\/li\u003e\n \u003cli\u003eOnboard PCB antenna and high-performance microstrip antenna for high detection accuracy and the ability to support UART for smart radar tuning via serial communication, providing quick and convenient operation\u003c\/li\u003e\n \u003cli\u003eThe radar module comes with a 5V single power supply and offers a visual tool for configuring tracking detection range, data reporting interval, and target retention time, ensuring a seamless and efficient user experience\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-07-21T06:51:17+10:00","created_at":"2024-07-21T06:51:18+10:00","vendor":"EC Buying","type":"Radar Detectors","tags":["electronics_July2024_update"],"price":11700,"price_min":11700,"price_max":11700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44629324529817,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0D3CXVCFK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Rd-03D 24G Radar Sensor Module Multi-target Human Motion Trajectory Localization and Tracking Radar Module 8M Detection Onboard PCB Antenna","public_title":null,"options":["Default Title"],"price":11700,"weight":9,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/B0D3CXVCFK.jpg?v=1721577530","\/\/soundstores.net\/cdn\/shop\/files\/41lLITf3YNL.jpg?v=1721508683","\/\/soundstores.net\/cdn\/shop\/files\/41ZOy7U3yAL.jpg?v=1721508683","\/\/soundstores.net\/cdn\/shop\/files\/41SqyZSlkRL.jpg?v=1721508683"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/B0D3CXVCFK.jpg?v=1721577530","options":["Title"],"media":[{"alt":"[AUSTRALIA] - Rd-03D 24G Radar Sensor Module Multi-target Human Motion Trajectory Localization and Tracking Radar Module 8M Detection Onboard PCB Antenna ","id":31457809039513,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/soundstores.net\/cdn\/shop\/files\/B0D3CXVCFK.jpg?v=1721577530"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/B0D3CXVCFK.jpg?v=1721577530","width":800},{"alt":"[AUSTRALIA] - Rd-03D 24G Radar Sensor Module Multi-target Human Motion Trajectory Localization and Tracking Radar Module 8M Detection Onboard PCB Antenna ","id":31455475105945,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41lLITf3YNL.jpg?v=1721508683"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41lLITf3YNL.jpg?v=1721508683","width":800},{"alt":"[AUSTRALIA] - Rd-03D 24G Radar Sensor Module Multi-target Human Motion Trajectory Localization and Tracking Radar Module 8M Detection Onboard PCB Antenna ","id":31455475138713,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41ZOy7U3yAL.jpg?v=1721508683"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41ZOy7U3yAL.jpg?v=1721508683","width":800},{"alt":"[AUSTRALIA] - Rd-03D 24G Radar Sensor Module Multi-target Human Motion Trajectory Localization and Tracking Radar Module 8M Detection Onboard PCB Antenna ","id":31455475171481,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/soundstores.net\/cdn\/shop\/files\/41SqyZSlkRL.jpg?v=1721508683"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/41SqyZSlkRL.jpg?v=1721508683","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eRd-03D 24G Radar Sensor Module Multi-target Human Motion Trajectory Localization and Tracking Radar Module 8M Detection Onboard PCB Antenna\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRd-03D is a radar module equipped with the S5KM312CL chip. S5KM312CL is an\nintegrated single-chip millimeter wave sensor SoC based on FMCW radar\ntransceiver technology. It operates in the K band of 24 GHz and has a maximum\nsweep bandwidth of 0.25 GHz. This module adopts FMCW waveform and advanced\nsignal processing technology exclusive to S5 series chips, combined with MCU\nexclusive radar signal processing and built-in intelligent positioning and\ntracking algorithm. It can detect multiple targets in designated areas and\nreport results in real time. Users can quickly develop corresponding target\npositioning and tracking products. The Rd-03D module accurately perceives the\nmovement status of the human body and regions, and is equipped with\nintelligent algorithms to achieve motion trajectory recognition and tracking,\nenabling speed and distance measurement of targets within the region. The\nrecognition speed is faster and the power consumption is lower. The module can\nbe quickly configured and is suitable for various public propaganda\nfacilities. It intelligently distinguishes the forms of the human body in\nmotion, micro movement, and stillness, and controls device switches. This\nmodule has good resistance to external interference and is not affected by\nwireless signals such as WIFI. The radar supports the 24GHz ISM frequency band\nAccurate target positioning and tracking The farthest sensing distance is 8m\nThe distance resolution is 0.75m, and the ranging accuracy is 0.15m Detection\nrange azimuth angle ± 60 °, elevation angle ± 30 ° Model: Rd-03D Packaging:\nStandard 1 4P-1.25mm socket interface Size: 15.0 44.0 (± 0.2) mm Antenna\nform: onboard antenna Spectrum range: 24G~24.25GHz Working temperature: -40\n℃~85 ℃ Storage environment: -40 ℃~125 ℃,\u0026lt;90% RH Power supply range: Power\nsupply voltage 5V, power supply current ≥ 200mA Supported interface: UART\nSerial port speed: default 256000 bps\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh performance Rd-03D 24G radar sensor module with multi-target human motion trajectory localization and tracking, featuring 8m detection range and 0.75m distance resolution for precise target positioning and tracking\u003c\/li\u003e\n \u003cli\u003eEasily integrate the radar module into various applications such as smart homes, smart businesses, bathrooms, and smart lighting, thanks to its compact size of 15*44mm and the convenience of automatic default configuration loading\u003c\/li\u003e\n \u003cli\u003eSupport 24GHz ISM frequency band and provide accurate detection with a detection range of 60 azimuth angle and 30 elevation angle, making it ideal for smart home, smart business, bathroom, and smart lighting applications\u003c\/li\u003e\n \u003cli\u003eOnboard PCB antenna and high-performance microstrip antenna for high detection accuracy and the ability to support UART for smart radar tuning via serial communication, providing quick and convenient operation\u003c\/li\u003e\n \u003cli\u003eThe radar module comes with a 5V single power supply and offers a visual tool for configuring tracking detection range, data reporting interval, and target retention time, ensuring a seamless and efficient user experience\u003c\/li\u003e\n \u003c\/ul\u003e"}
