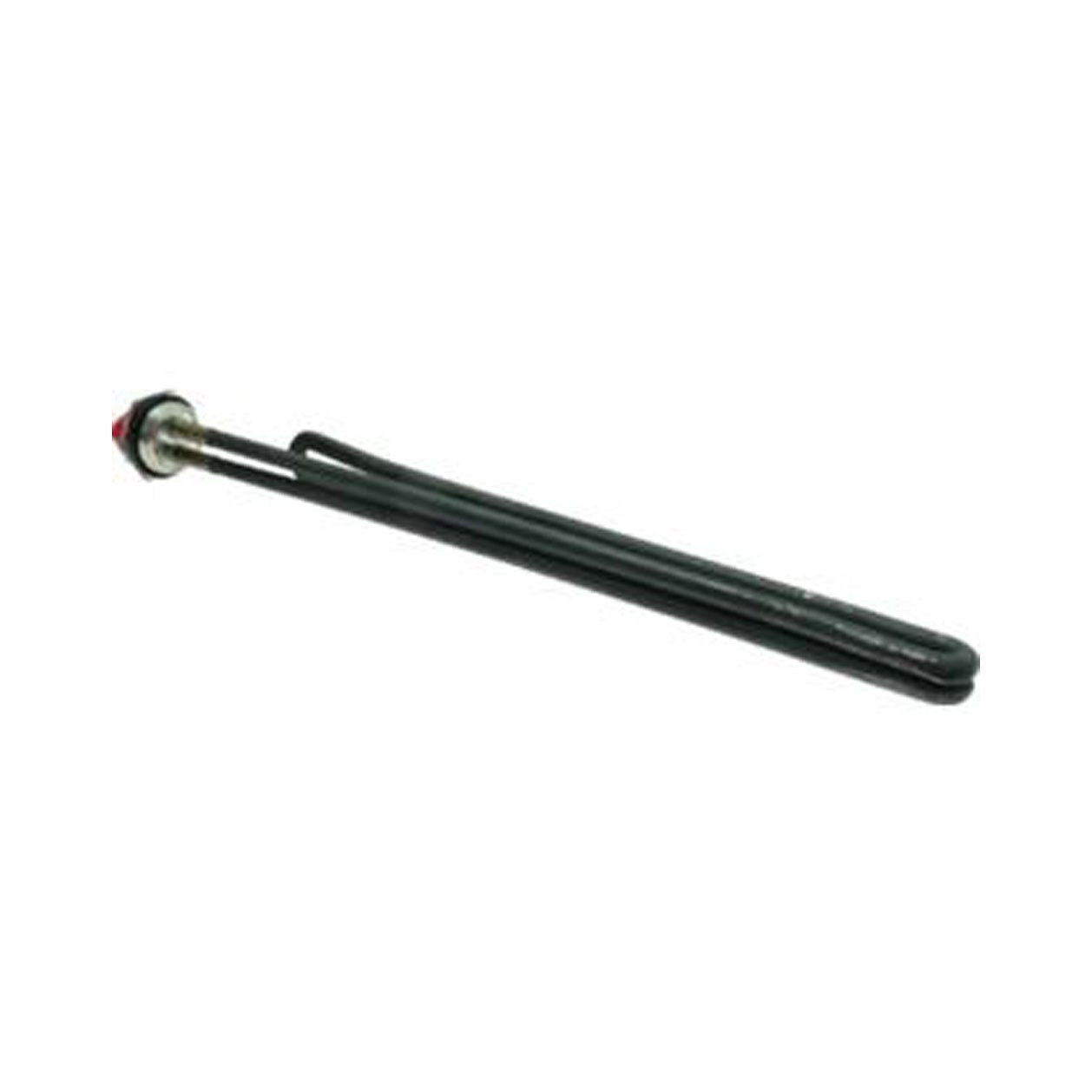

{"id":7492158488729,"title":"Rheem SP10870QL Resistor Element","handle":"rheem-sp10870ql-resistor-element","description":"\u003ch3\u003eRheem SP10870QL Resistor Element\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe Rheem SP10870QL is an element - 480V\/6000W stainless\nsteel resistored LWD - 1-inch screw-in. Watt Density Classification: LWD.\nInput Voltage (V): 480. Wattage at 480V (W): 6000. Watt Density at 480V (W\/sq.\nin.): 84. Cold Resistance (ohms): 38.40. Outer Sheath Material: Stainless\nSteel (Incoloy). Resistored: Yes. Configuration: Foldback. Element Diameter\n(in.): .316. Element Length - Flange to Tip (in.): 19.21. Mounting Type:\nThreaded. Actual Thread Size - Outside Diameter (in.): 1-9\/32. Nominal Thread\nSize - (in.): 1. Threads per Inch: 11-1\/2. Thread Type Series Designation:\nNPSM. Hex Head Size - Across Flats (in.): 1-1\/2. From the Manufacturer The\nRheem SP10870QL is an element - 480V\/6000W stainless steel resistored LWD -\n1-inch screw-in. Watt Density Classification: LWD. Input Voltage (V): 480.\nWattage at 480V (W): 6000. Watt Density at 480V (W\/sq. in.): 84. Cold\nResistance (ohms): 38.40. Outer Sheath Material: Stainless Steel (Incoloy).\nResistored: Yes. Configuration: Foldback. Element Diameter (in.): .316.\nElement Length - Flange to Tip (in.): 19.21. Mounting Type: Threaded. Actual\nThread Size - Outside Diameter (in.): 1-9\/32. Nominal Thread Size - (in.): 1.\nThreads per Inch: 11-1\/2. Thread Type Series Designation: NPSM. Hex Head Size\n- Across Flats (in.): 1-1\/2.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eElement - 480V\/6000W Stainless Steel Resistored LWD - 1 in. Screw-in\u003c\/li\u003e\n \u003cli\u003eOuter Sheath Material: Stainless Steel (Incoloy)\u003c\/li\u003e\n \u003cli\u003eElement Diameter (in.): .316\u003c\/li\u003e\n \u003cli\u003eElement Length - Flange to Tip (in.): 19.21\u003c\/li\u003e\n \u003cli\u003eMounting Type: Threaded\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-08-16T20:57:34+10:00","created_at":"2022-08-16T20:57:35+10:00","vendor":"Rheem","type":"Electrical Wire","tags":["industrial2"],"price":25300,"price_min":25300,"price_max":25300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42490572046489,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00G2DL7TC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Rheem SP10870QL Resistor Element","public_title":null,"options":["Default Title"],"price":25300,"weight":567,"compare_at_price":null,"inventory_management":null,"barcode":"020352193526","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B00G2DL7TC.jpg?v=1660664396"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B00G2DL7TC.jpg?v=1660664396","options":["Title"],"media":[{"alt":null,"id":27623556645017,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1258,"width":1258,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B00G2DL7TC.jpg?v=1660664396"},"aspect_ratio":1.0,"height":1258,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B00G2DL7TC.jpg?v=1660664396","width":1258}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eRheem SP10870QL Resistor Element\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe Rheem SP10870QL is an element - 480V\/6000W stainless\nsteel resistored LWD - 1-inch screw-in. Watt Density Classification: LWD.\nInput Voltage (V): 480. Wattage at 480V (W): 6000. Watt Density at 480V (W\/sq.\nin.): 84. Cold Resistance (ohms): 38.40. Outer Sheath Material: Stainless\nSteel (Incoloy). Resistored: Yes. Configuration: Foldback. Element Diameter\n(in.): .316. Element Length - Flange to Tip (in.): 19.21. Mounting Type:\nThreaded. Actual Thread Size - Outside Diameter (in.): 1-9\/32. Nominal Thread\nSize - (in.): 1. Threads per Inch: 11-1\/2. Thread Type Series Designation:\nNPSM. Hex Head Size - Across Flats (in.): 1-1\/2. From the Manufacturer The\nRheem SP10870QL is an element - 480V\/6000W stainless steel resistored LWD -\n1-inch screw-in. Watt Density Classification: LWD. Input Voltage (V): 480.\nWattage at 480V (W): 6000. Watt Density at 480V (W\/sq. in.): 84. Cold\nResistance (ohms): 38.40. Outer Sheath Material: Stainless Steel (Incoloy).\nResistored: Yes. Configuration: Foldback. Element Diameter (in.): .316.\nElement Length - Flange to Tip (in.): 19.21. Mounting Type: Threaded. Actual\nThread Size - Outside Diameter (in.): 1-9\/32. Nominal Thread Size - (in.): 1.\nThreads per Inch: 11-1\/2. Thread Type Series Designation: NPSM. Hex Head Size\n- Across Flats (in.): 1-1\/2.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eElement - 480V\/6000W Stainless Steel Resistored LWD - 1 in. Screw-in\u003c\/li\u003e\n \u003cli\u003eOuter Sheath Material: Stainless Steel (Incoloy)\u003c\/li\u003e\n \u003cli\u003eElement Diameter (in.): .316\u003c\/li\u003e\n \u003cli\u003eElement Length - Flange to Tip (in.): 19.21\u003c\/li\u003e\n \u003cli\u003eMounting Type: Threaded\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
