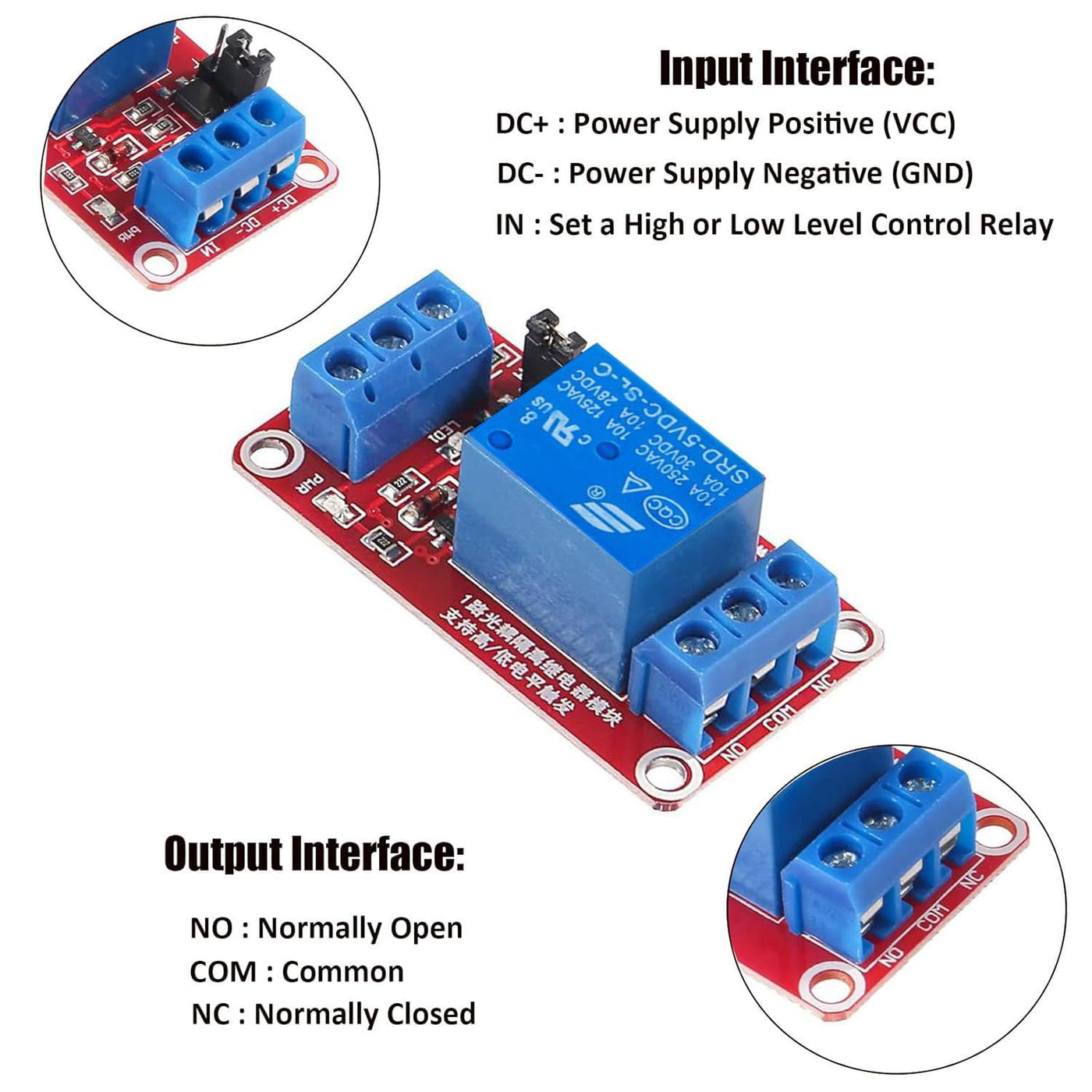

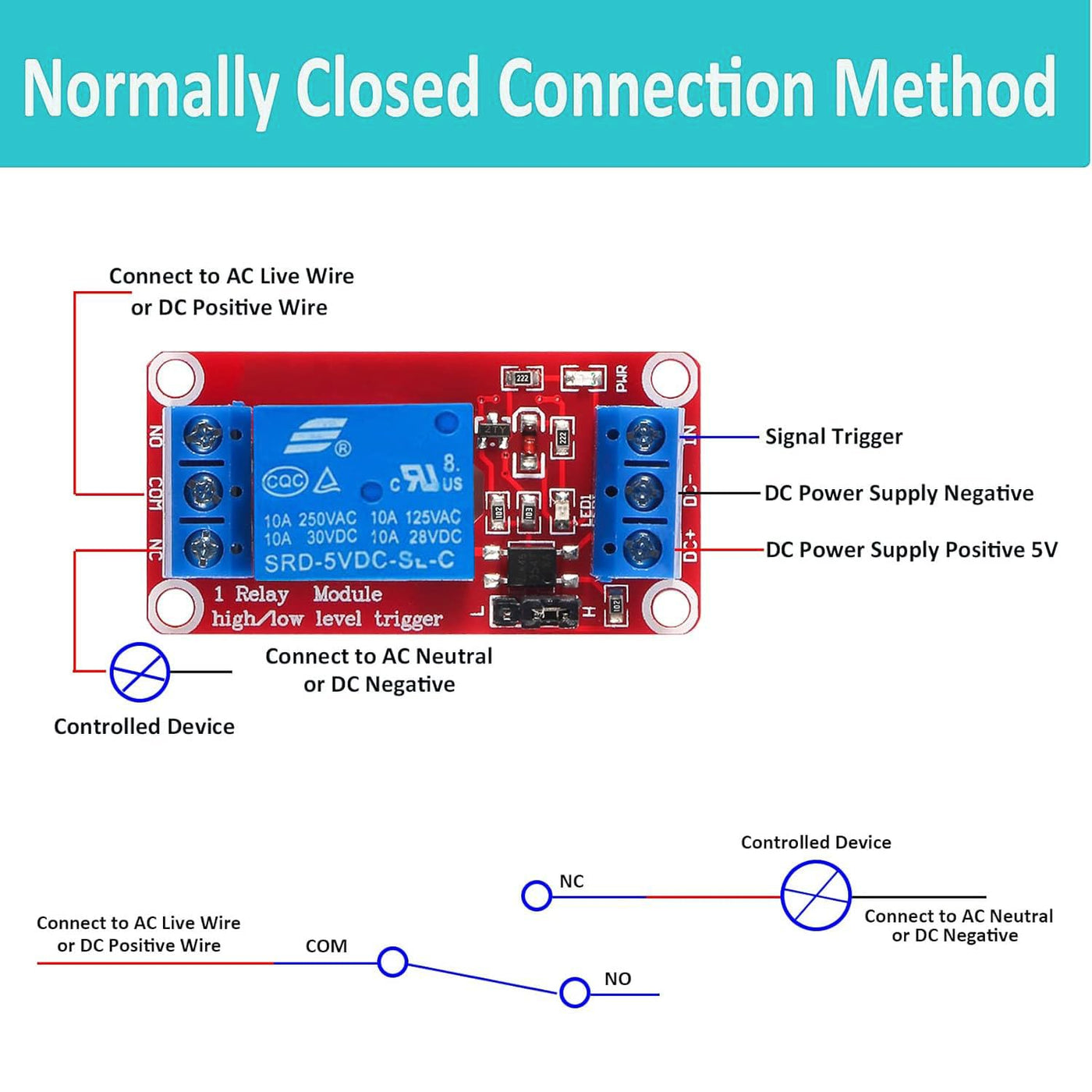

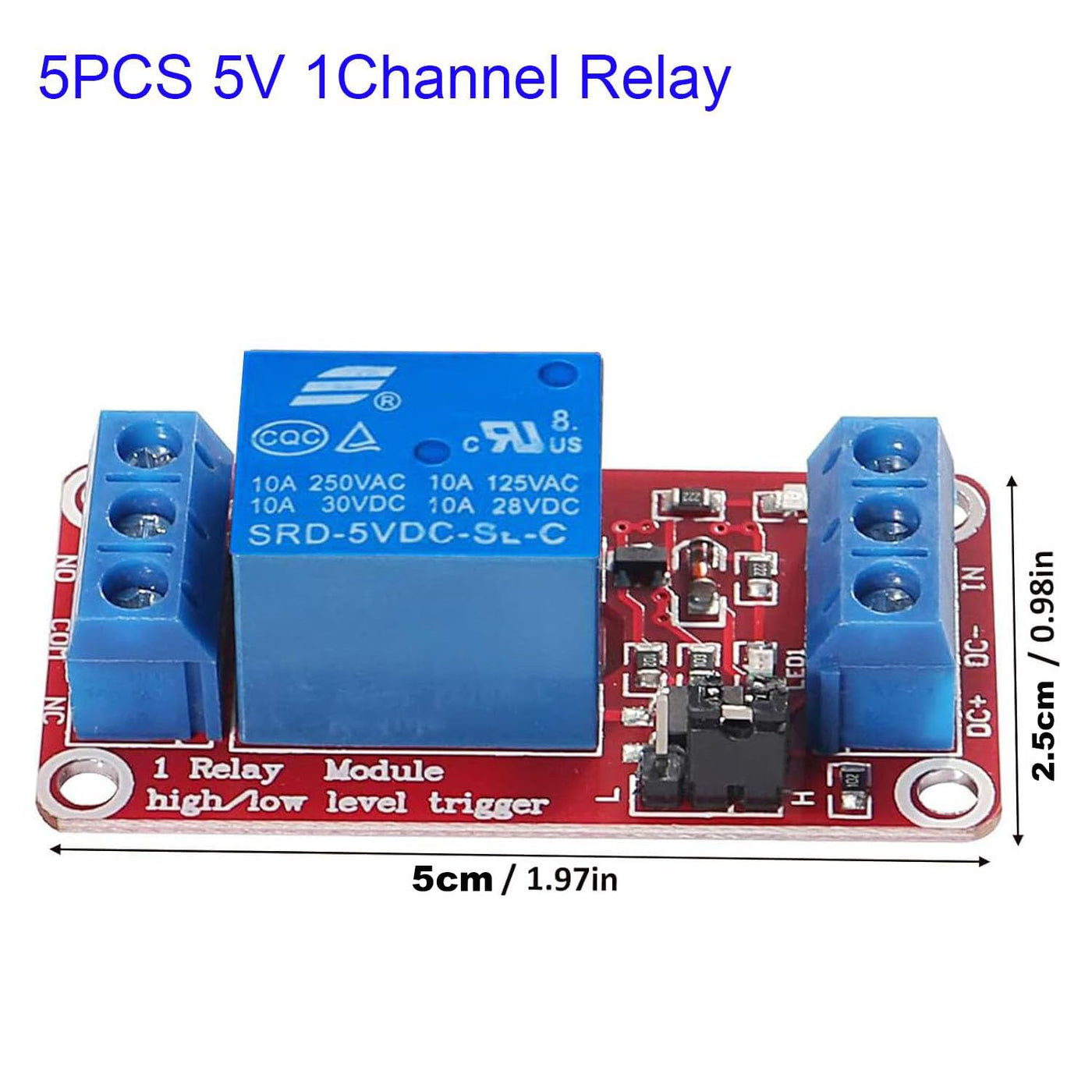

{"id":8530808668313,"title":"RUNCCI-YUN Pack of 5 One Channel Relay Module 5 V, 1 Channel Relay Module with Optocoupler High or Low Level Trigger Extension Board Relay Switch for Raspberry Pi Arduino Board 5 V 1 channel - 5 pieces, red","handle":"runcci-yun-pack-of-5-one-channel-relay-module-5-v-1-channel-relay-module-with-optocoupler-high-or-low-level-trigger-extension-board-relay-switch-for-raspberry-pi-arduino-board-5-v-1-channel-5-pieces-red","description":"\u003ch3\u003eRUNCCI-YUN Pack of 5 One Channel Relay Module 5 V, 1 Channel Relay Module with Optocoupler High or Low Level Trigger Extension Board Relay Switch for Raspberry Pi Arduino Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Channel: 1 channel. Material: PCB Control signal: TTL. Max.\nSwitching voltage: 250 V AC, 30 V. Rated load: AC 125-250V\/10A, DC 28-30V\/10A\nResponse current: 70mA Dimensions: 22 mm x 34 mm x 17 mm. 5v relay connector\n1. NC: Opener (120-240V) 2. NO: NO NO (120-240V) 3. COM: Common Port 5V Module\nPins: Ground: connect to the ground pin of the Arduino. 5V Vcc: Connect to\nArduino's 5V pin Signal: transmits the trigger signal from the Arduino that\nactivates the relay Function of the 5V relay: The SRD-05VDC-SL-C relay has\nthree high-voltage connections (NC, C and NO) for connecting the device to be\ncontrolled. The other side has three low voltage terminals (ground, Vcc and\nsignal) for connection to the Arduino. Package includes: 5 x 5V Relay Board\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e5V 1-channel relay module- This relay card provides a single relay that can be controlled via any 5V digital output of your microcontroller.\u003c\/li\u003e\n \u003cli\u003eMain Specifications- Peak load of the normally open connection: AC 125-250V\/10A, DC 28-30V\/10A; Trigger current: 5mA; Module operating voltage: 12V; 4pcs x 3.1mm fixed bolt hole.\u003c\/li\u003e\n \u003cli\u003eSMD Optocoupler Isolation \u0026amp; Jumper Set- The isolation circuit prevents damage to the I\/O port due to relay switching current. The module has a jumper, so you can adjust the device status with high or low value depending on the signal state. It has screw terminals for relay (NC, C, NO) and input; coil +, coil and trigger.\u003c\/li\u003e\n \u003cli\u003eWide Application- This 5V relay board works well with ARM\/PIC\/AVR\/MCU\/Raspberry\/CNC machine\/PS4 etc.\u003c\/li\u003e\n \u003cli\u003eUser-friendly design of interfaces- All interfaces can be wired directly via the terminals. Fault tolerant design, even if the control line is interrupted, the relay will not work.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-25T00:42:05+10:00","created_at":"2025-09-25T00:42:01+10:00","vendor":"RUNCCI-YUN","type":"Relays","tags":["industryDE_Sep2025"],"price":11400,"price_min":11400,"price_max":11400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45743654109337,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0F59PPVZB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RUNCCI-YUN Pack of 5 One Channel Relay Module 5 V, 1 Channel Relay Module with Optocoupler High or Low Level Trigger Extension Board Relay Switch for Raspberry Pi Arduino Board 5 V 1 channel - 5 pieces, red","public_title":null,"options":["Default Title"],"price":11400,"weight":90,"compare_at_price":null,"inventory_management":"shopify","barcode":"R1354","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0F59PPVZB.jpg?v=1775750778","\/\/soundstores.net\/cdn\/shop\/files\/71WmbdZEuYL.jpg?v=1758725239","\/\/soundstores.net\/cdn\/shop\/files\/71ssUZtn50L.jpg?v=1758725225","\/\/soundstores.net\/cdn\/shop\/files\/71LCIt8EeiL.jpg?v=1758725225","\/\/soundstores.net\/cdn\/shop\/files\/71PODnb51AL.jpg?v=1758725242","\/\/soundstores.net\/cdn\/shop\/files\/71DgkRGjtJL.jpg?v=1758725225"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0F59PPVZB.jpg?v=1775750778","options":["Title"],"media":[{"alt":null,"id":34627317235865,"position":1,"preview_image":{"aspect_ratio":0.973,"height":1500,"width":1460,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0F59PPVZB.jpg?v=1775750778"},"aspect_ratio":0.973,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0F59PPVZB.jpg?v=1775750778","width":1460},{"alt":null,"id":34627317268633,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71WmbdZEuYL.jpg?v=1758725239"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71WmbdZEuYL.jpg?v=1758725239","width":1500},{"alt":null,"id":34627317301401,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71ssUZtn50L.jpg?v=1758725225"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71ssUZtn50L.jpg?v=1758725225","width":1500},{"alt":null,"id":34627317334169,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71LCIt8EeiL.jpg?v=1758725225"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71LCIt8EeiL.jpg?v=1758725225","width":1500},{"alt":null,"id":34627317366937,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71PODnb51AL.jpg?v=1758725242"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71PODnb51AL.jpg?v=1758725242","width":1500},{"alt":null,"id":34627317399705,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71DgkRGjtJL.jpg?v=1758725225"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71DgkRGjtJL.jpg?v=1758725225","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eRUNCCI-YUN Pack of 5 One Channel Relay Module 5 V, 1 Channel Relay Module with Optocoupler High or Low Level Trigger Extension Board Relay Switch for Raspberry Pi Arduino Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Channel: 1 channel. Material: PCB Control signal: TTL. Max.\nSwitching voltage: 250 V AC, 30 V. Rated load: AC 125-250V\/10A, DC 28-30V\/10A\nResponse current: 70mA Dimensions: 22 mm x 34 mm x 17 mm. 5v relay connector\n1. NC: Opener (120-240V) 2. NO: NO NO (120-240V) 3. COM: Common Port 5V Module\nPins: Ground: connect to the ground pin of the Arduino. 5V Vcc: Connect to\nArduino's 5V pin Signal: transmits the trigger signal from the Arduino that\nactivates the relay Function of the 5V relay: The SRD-05VDC-SL-C relay has\nthree high-voltage connections (NC, C and NO) for connecting the device to be\ncontrolled. The other side has three low voltage terminals (ground, Vcc and\nsignal) for connection to the Arduino. Package includes: 5 x 5V Relay Board\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e5V 1-channel relay module- This relay card provides a single relay that can be controlled via any 5V digital output of your microcontroller.\u003c\/li\u003e\n \u003cli\u003eMain Specifications- Peak load of the normally open connection: AC 125-250V\/10A, DC 28-30V\/10A; Trigger current: 5mA; Module operating voltage: 12V; 4pcs x 3.1mm fixed bolt hole.\u003c\/li\u003e\n \u003cli\u003eSMD Optocoupler Isolation \u0026amp; Jumper Set- The isolation circuit prevents damage to the I\/O port due to relay switching current. The module has a jumper, so you can adjust the device status with high or low value depending on the signal state. It has screw terminals for relay (NC, C, NO) and input; coil +, coil and trigger.\u003c\/li\u003e\n \u003cli\u003eWide Application- This 5V relay board works well with ARM\/PIC\/AVR\/MCU\/Raspberry\/CNC machine\/PS4 etc.\u003c\/li\u003e\n \u003cli\u003eUser-friendly design of interfaces- All interfaces can be wired directly via the terminals. Fault tolerant design, even if the control line is interrupted, the relay will not work.\u003c\/li\u003e\n \u003c\/ul\u003e"}
