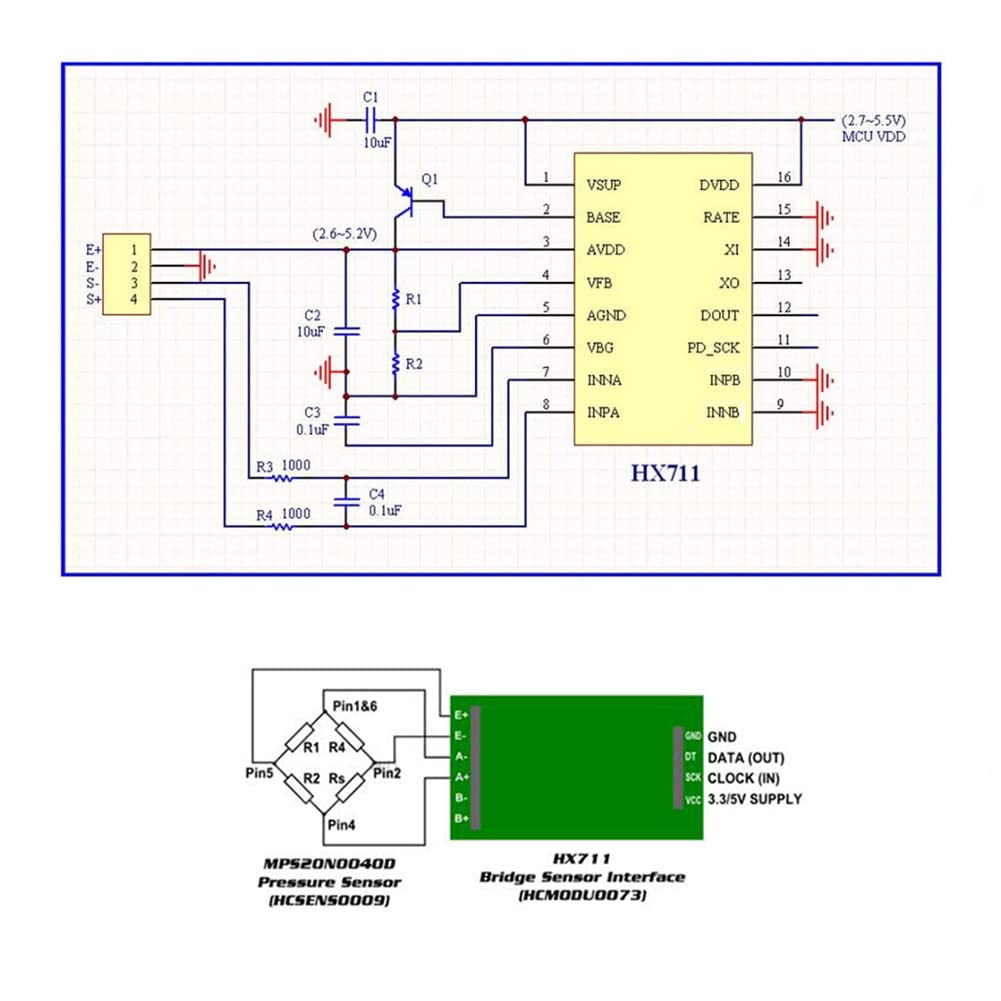

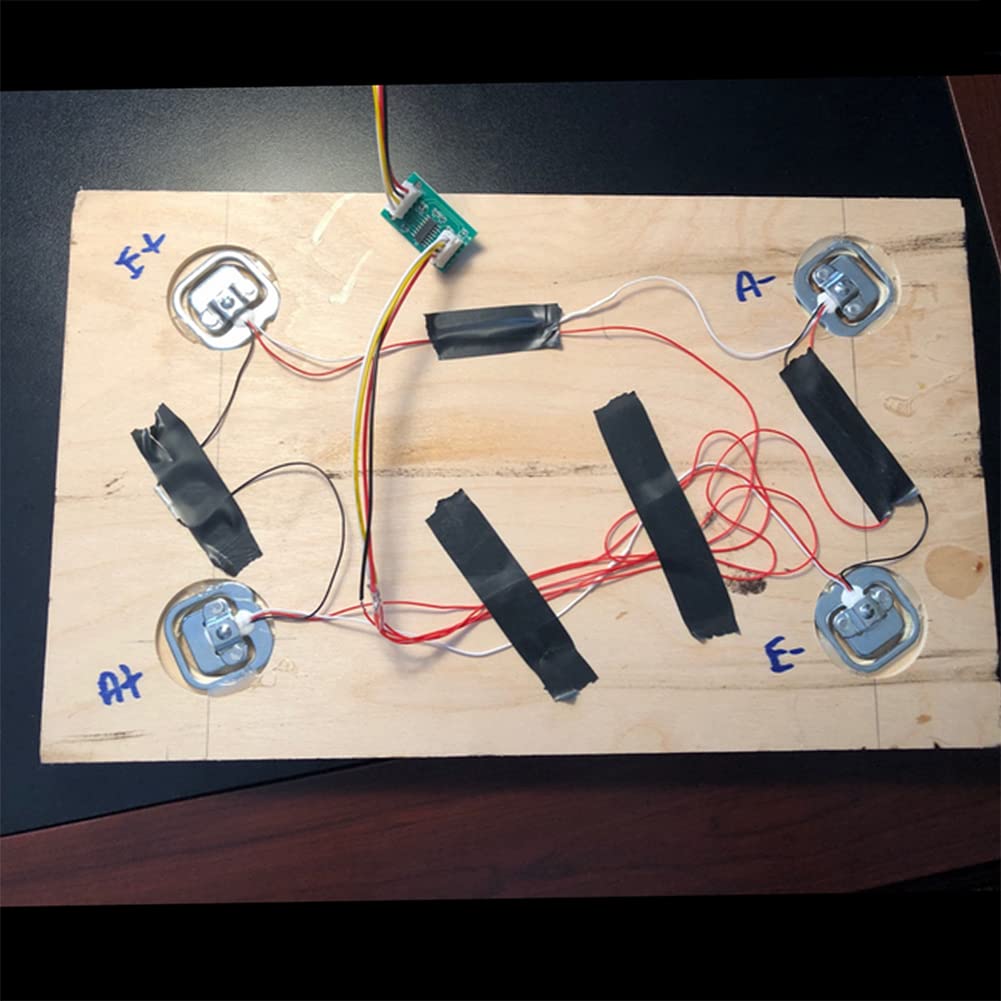

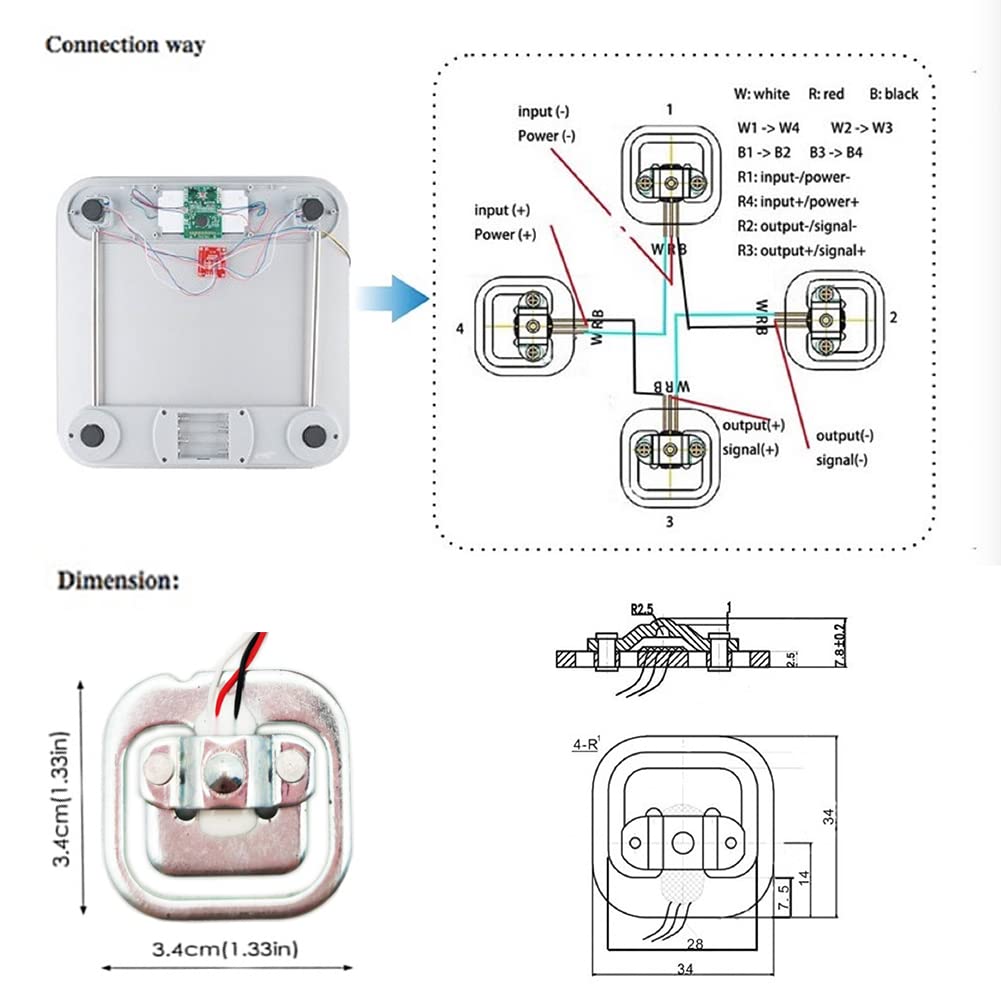

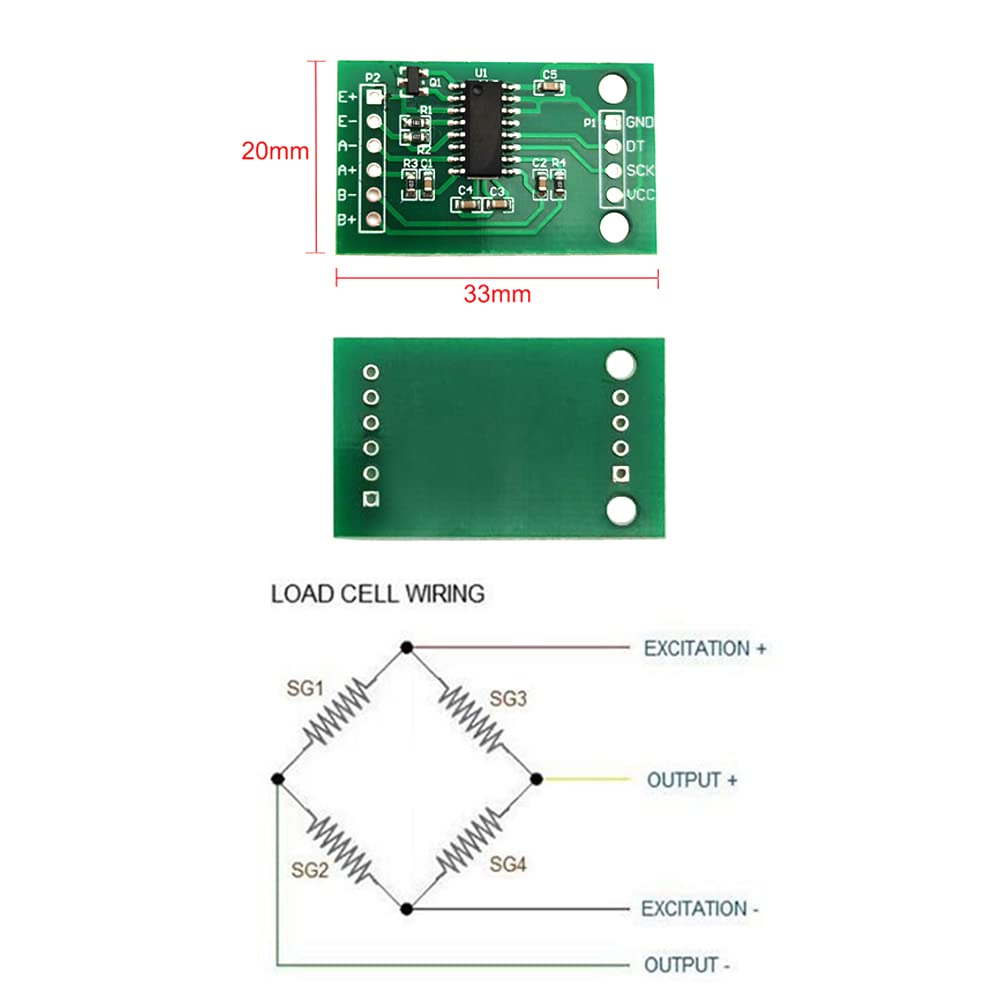

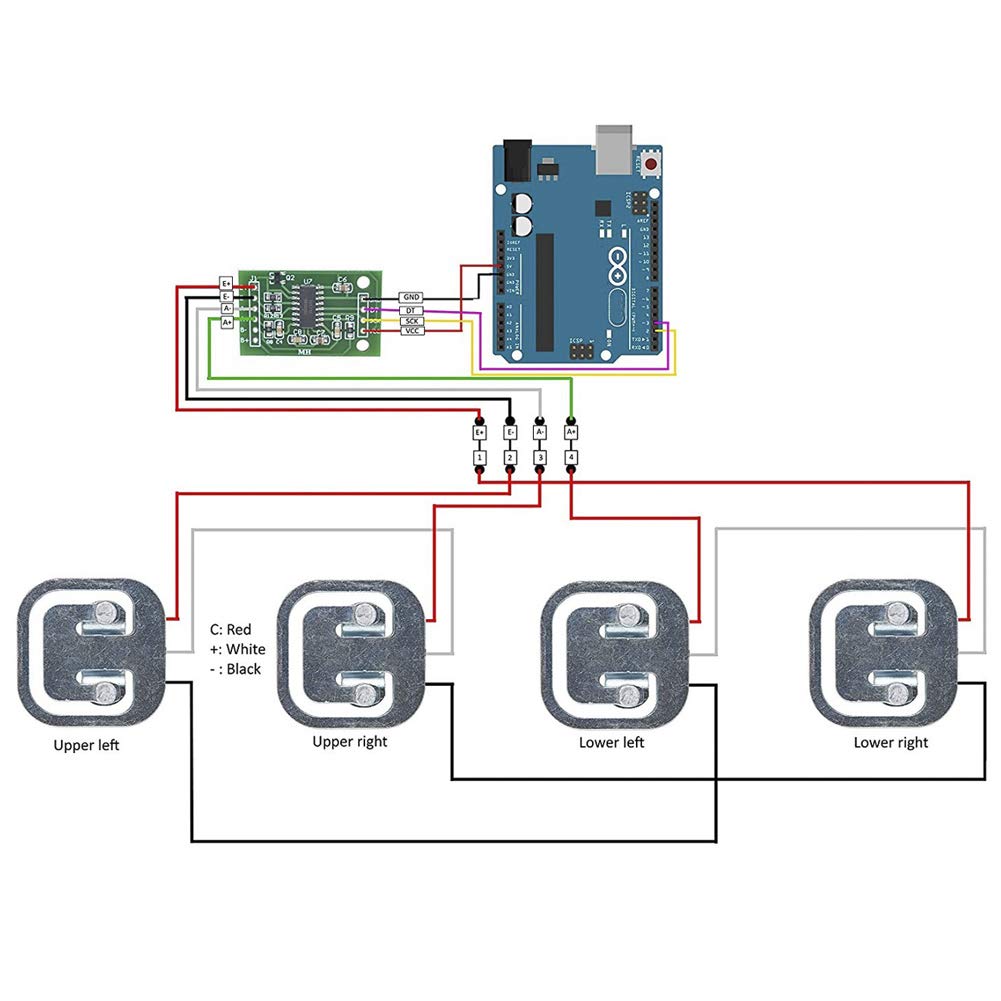

{"id":7502393507993,"title":"ShangHJ 8pcs Load Cell 50KG Half Bridge Strain Gauge Human Body Digital Scale Weight Sensor + 2pcs HX711 Amplifier AD Module for Arduino Raspberry Pi","handle":"shanghj-8pcs-load-cell-50kg-half-bridge-strain-gauge-human-body-digital-scale-weight-sensor-2pcs-hx711-amplifier-ad-module-for-arduino-raspberry-pi","description":"\u003ch3\u003eShangHJ 8pcs Load Cell 50KG Half Bridge Strain Gauge Human Body Digital Scale Weight Sensor + 2pcs HX711 Amplifier AD Module for Arduino Raspberry Pi\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: 1. Using a Single Load Cell 1x50kg by Adding 2 Resistors -Connect\nouter wire(white and black) of load cell to E+ and E- outputs of hx711 module.\n-Connect middle cable(red) of load cell to A+ input of hx711 module. -Connect\ntwo 1k resistors to A- input of hx711 module. Then the other end of resistor\nto white and black wires. -Connect GND of hx711 module to board GND, and VCC\nto board 5V pin. -Connect DT and SCK of hx711 module to any digital IO pins of\nboard. 2. Using Two Load Cells in a Singel Circuit 2x50kg (100kg) -Connect\nopposite sides of outer wires(white and black) of two load cells. -Connect\nouter wire pairs to E+ and E- output of hx711 module. -Connect middle\nwire(red) of load cell to A+ and A- inputs of hx711 module. -Connect GND of\nhx711 module to board GND, and VCC to board 5V pin. -Connect DT and SCK of\nhx711 module to any digital IO pins of board. 3. Using 4 Load Cells in a\nSingle circuit 4x50kg (200kg) -Form a loop by linking same color outer\nwires(white and black) of the four load cells. -Connect middle cable(red) of\none of the diagonals to the E+ and E- outputs of the HX711 module. -Connect\nthe other diagonal to the A+ and A- inputs of the HX711 module. -Connect GND\nand hx711 module to board GND, and VCC to board 5V pin. -Connect DT and SCK of\nhx711 module to any digital IO pins of board. Package Included: 8 x 50kg Half-\nbridge Load Cell 2 x HX711 AD Weight Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis module uses 24 high precision A\/D converter chip hx711, specially designed for the high precision electronic scale\u003c\/li\u003e\n \u003cli\u003eThe load sensor is a group of half-bridge strain gauge, there are 3 ways to use it.\u003c\/li\u003e\n \u003cli\u003eUse one load sensor 50kg with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements.\u003c\/li\u003e\n \u003cli\u003eUse two weight sensor 50kg to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg\u003c\/li\u003e\n \u003cli\u003eUse four weight scale 50kg to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-08-28T02:35:40+10:00","created_at":"2022-08-28T02:35:46+10:00","vendor":"ShangHJ","type":"Sensor Blocks","tags":["industrial2"],"price":11400,"price_min":11400,"price_max":11400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42536000749721,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09TH6CRMS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ShangHJ 8pcs Load Cell 50KG Half Bridge Strain Gauge Human Body Digital Scale Weight Sensor + 2pcs HX711 Amplifier AD Module for Arduino Raspberry Pi","public_title":null,"options":["Default Title"],"price":11400,"weight":141,"compare_at_price":null,"inventory_management":null,"barcode":"S02X8+S19X2-","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B09TH6CRMS.jpg?v=1661698240","\/\/soundstores.net\/cdn\/shop\/products\/61w5AaeaqVL.jpg?v=1661618147","\/\/soundstores.net\/cdn\/shop\/products\/51QkkZ08pvL_e78946b3-da36-40c2-88ea-5f5fb45ecdcf.jpg?v=1661618147","\/\/soundstores.net\/cdn\/shop\/products\/51iM35KR1pL_b823959d-f2c3-407b-9d57-e66c506cf7e3.jpg?v=1661618147","\/\/soundstores.net\/cdn\/shop\/products\/61mavqXA3cL.jpg?v=1661618147","\/\/soundstores.net\/cdn\/shop\/products\/61TJlYleMrL.jpg?v=1661618147"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B09TH6CRMS.jpg?v=1661698240","options":["Title"],"media":[{"alt":null,"id":27693452689561,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B09TH6CRMS.jpg?v=1661698240"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B09TH6CRMS.jpg?v=1661698240","width":1001},{"alt":null,"id":27689463414937,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61w5AaeaqVL.jpg?v=1661618147"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61w5AaeaqVL.jpg?v=1661618147","width":1001},{"alt":null,"id":27689463447705,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51QkkZ08pvL_e78946b3-da36-40c2-88ea-5f5fb45ecdcf.jpg?v=1661618147"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51QkkZ08pvL_e78946b3-da36-40c2-88ea-5f5fb45ecdcf.jpg?v=1661618147","width":1001},{"alt":null,"id":27689463480473,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51iM35KR1pL_b823959d-f2c3-407b-9d57-e66c506cf7e3.jpg?v=1661618147"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51iM35KR1pL_b823959d-f2c3-407b-9d57-e66c506cf7e3.jpg?v=1661618147","width":1001},{"alt":null,"id":27689463513241,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61mavqXA3cL.jpg?v=1661618147"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61mavqXA3cL.jpg?v=1661618147","width":1001},{"alt":null,"id":27689463546009,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61TJlYleMrL.jpg?v=1661618147"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61TJlYleMrL.jpg?v=1661618147","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eShangHJ 8pcs Load Cell 50KG Half Bridge Strain Gauge Human Body Digital Scale Weight Sensor + 2pcs HX711 Amplifier AD Module for Arduino Raspberry Pi\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: 1. Using a Single Load Cell 1x50kg by Adding 2 Resistors -Connect\nouter wire(white and black) of load cell to E+ and E- outputs of hx711 module.\n-Connect middle cable(red) of load cell to A+ input of hx711 module. -Connect\ntwo 1k resistors to A- input of hx711 module. Then the other end of resistor\nto white and black wires. -Connect GND of hx711 module to board GND, and VCC\nto board 5V pin. -Connect DT and SCK of hx711 module to any digital IO pins of\nboard. 2. Using Two Load Cells in a Singel Circuit 2x50kg (100kg) -Connect\nopposite sides of outer wires(white and black) of two load cells. -Connect\nouter wire pairs to E+ and E- output of hx711 module. -Connect middle\nwire(red) of load cell to A+ and A- inputs of hx711 module. -Connect GND of\nhx711 module to board GND, and VCC to board 5V pin. -Connect DT and SCK of\nhx711 module to any digital IO pins of board. 3. Using 4 Load Cells in a\nSingle circuit 4x50kg (200kg) -Form a loop by linking same color outer\nwires(white and black) of the four load cells. -Connect middle cable(red) of\none of the diagonals to the E+ and E- outputs of the HX711 module. -Connect\nthe other diagonal to the A+ and A- inputs of the HX711 module. -Connect GND\nand hx711 module to board GND, and VCC to board 5V pin. -Connect DT and SCK of\nhx711 module to any digital IO pins of board. Package Included: 8 x 50kg Half-\nbridge Load Cell 2 x HX711 AD Weight Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis module uses 24 high precision A\/D converter chip hx711, specially designed for the high precision electronic scale\u003c\/li\u003e\n \u003cli\u003eThe load sensor is a group of half-bridge strain gauge, there are 3 ways to use it.\u003c\/li\u003e\n \u003cli\u003eUse one load sensor 50kg with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements.\u003c\/li\u003e\n \u003cli\u003eUse two weight sensor 50kg to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg\u003c\/li\u003e\n \u003cli\u003eUse four weight scale 50kg to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
