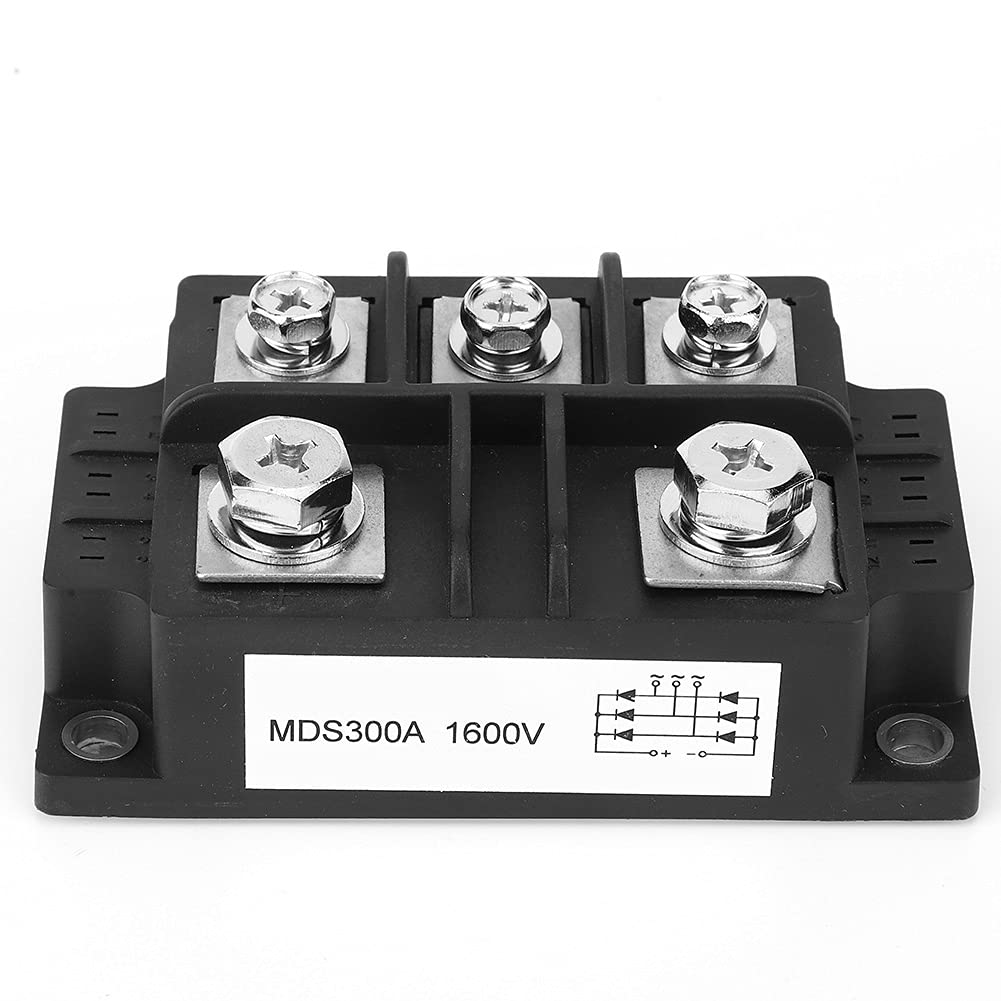

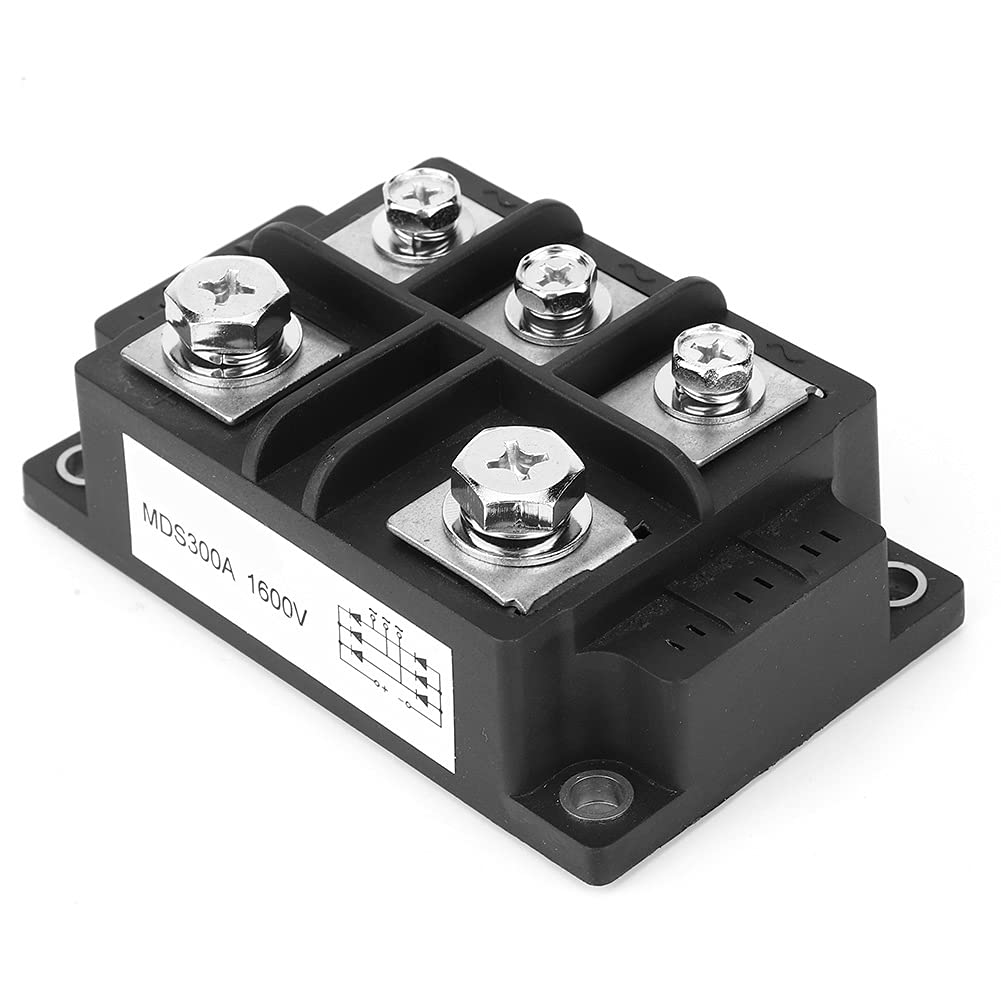

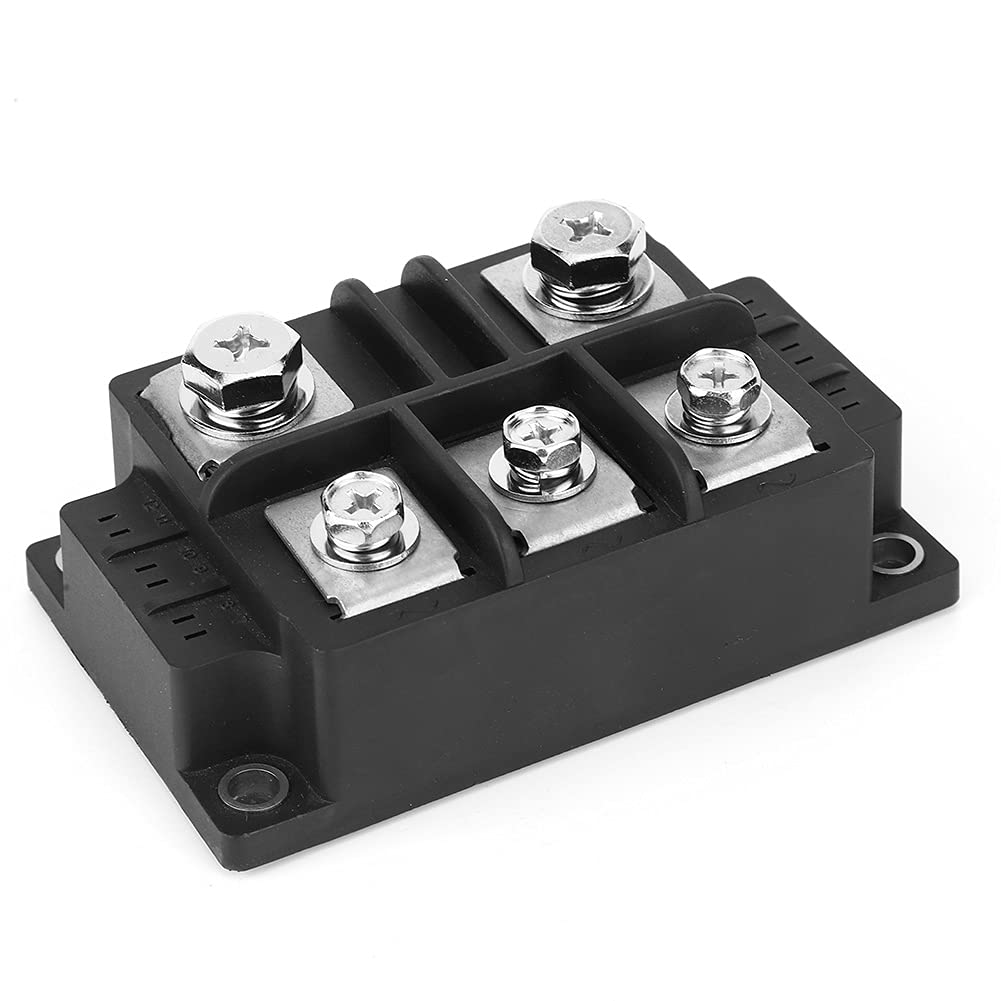

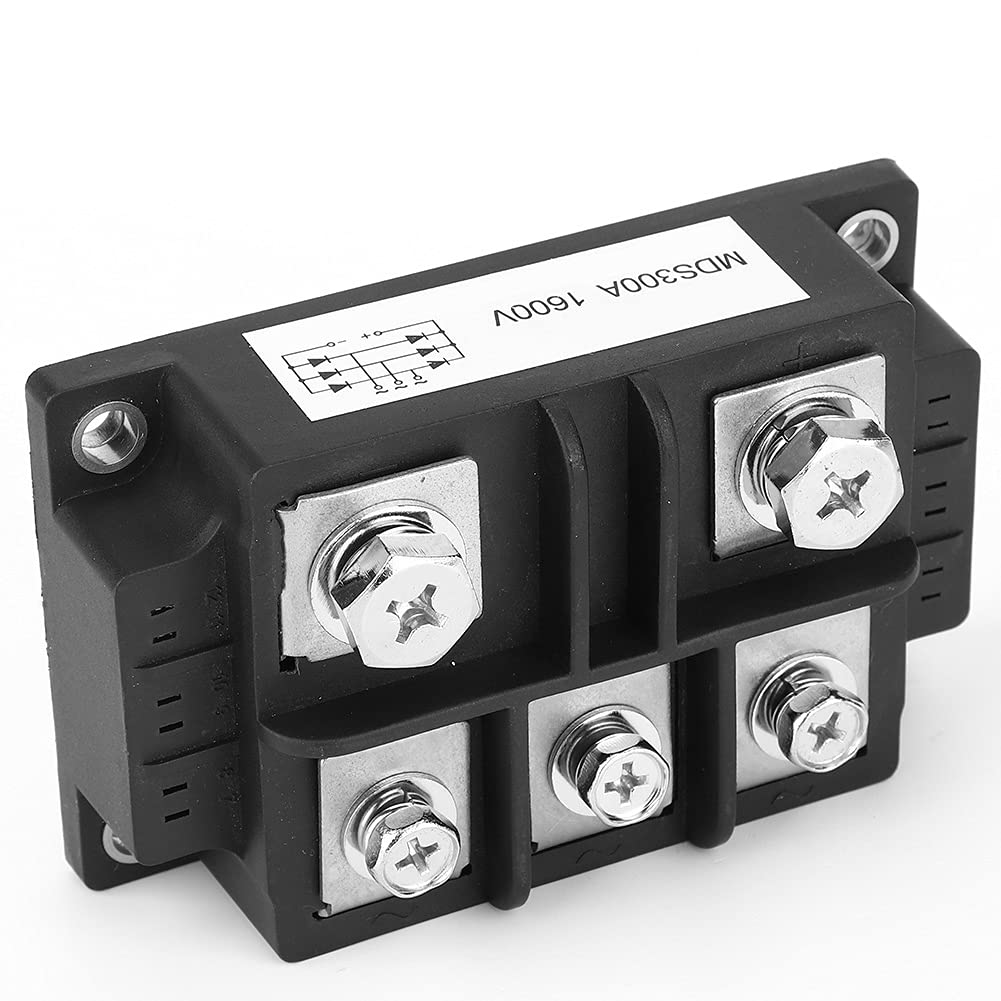

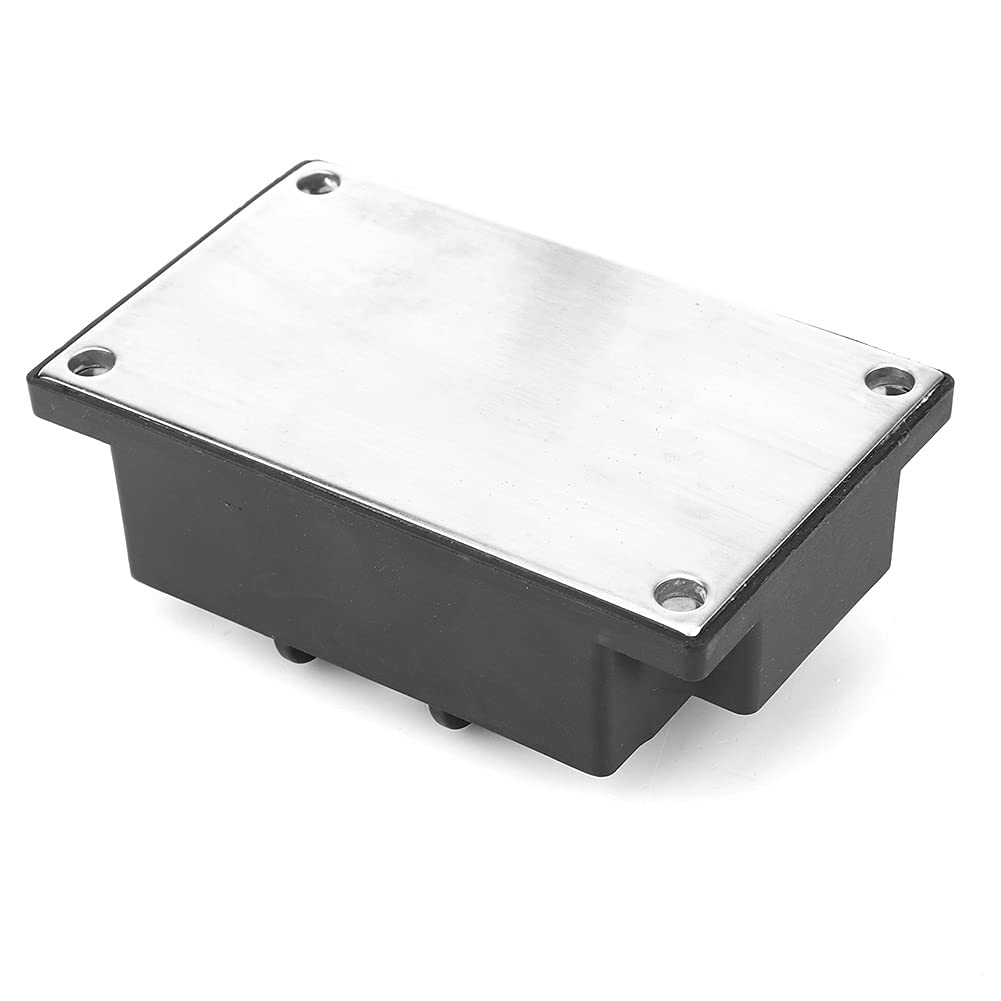

{"id":7492129489049,"title":"Silicon Bridge Rectifier, MDS Full Wave Three Phase Rectifier Bridge 3-Phase Resin Packed Rectification Module 300A 1600V","handle":"silicon-bridge-rectifier-mds-full-wave-three-phase-rectifier-bridge-3-phase-resin-packed-rectification-module-300a-1600v","description":"\u003ch3\u003eSilicon Bridge Rectifier, MDS Full Wave Three Phase Rectifier Bridge 3-Phase Resin Packed Rectification Module 300A 1600V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeature: 1. The chip is electrically insulated from the backplane, 2500V AC\nvoltage. 2. Fully crimping structure, excellent temperature characteristics\nand power cycling capability. 3. Small size and light weight,easy to carry and\nportable. 4. Resin packing provides excellent protection for inside\ncomponents. 5. Applicable to military\/aerospace, home appliances, automotive\nelectronics, new energy. Specification: Item Type:Rectifier Model: MDS300A\n1600V Package: Resin Package Installation Type: Welding DC Output Current:\n300A Reverse Repeat Peak Voltage: 600-1600V Reverse Repeat Peak Current: 15mA\nPositive Non-Repetitive Surge Current: 2.1KA Threshold Voltage: 0.8V Slope\nResistance: 2.8mΩ Forward Peak Voltage: 1.35V Insulation Voltage: 2500V\nInstallation Torsion (M5): 4N·M Installation Torsion (M6): 6N·M Storage\nTemperature: -40~125°C Package List: 1 x Rectifier\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e2500V AC VOLTAGE CHIP -- The chip is electrically insulated from the backplane, 2500V AC voltage.\u003c\/li\u003e\n \u003cli\u003eMADE OF PREMIUM QUALITY MATERIAL -- Fully crimping structure, excellent temperature characteristics and power cycling capability.\u003c\/li\u003e\n \u003cli\u003eEASY TO CARRY AND OPERATE -- Small size and light weight,easy to carry and portable.\u003c\/li\u003e\n \u003cli\u003eWITH AN EXCELLENT PROTECTION -- Resin packing provides excellent protection for inside components.\u003c\/li\u003e\n \u003cli\u003eSCOPE OF APPLICATION -- Applicable to military\/aerospace, home appliances, automotive electronics, new energy.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-08-16T20:19:53+10:00","created_at":"2022-08-16T20:20:01+10:00","vendor":"Walfront","type":"Radio Frequency Transceivers","tags":["industrial2"],"price":24300,"price_min":24300,"price_max":24300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42490493501593,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0861S86V1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Silicon Bridge Rectifier, MDS Full Wave Three Phase Rectifier Bridge 3-Phase Resin Packed Rectification Module 300A 1600V","public_title":null,"options":["Default Title"],"price":24300,"weight":612,"compare_at_price":null,"inventory_management":null,"barcode":"WALFRONToh8mswe5rc","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B0861S86V1.jpg?v=1660662900","\/\/soundstores.net\/cdn\/shop\/products\/61i2P_8Q8xS.jpg?v=1660645201","\/\/soundstores.net\/cdn\/shop\/products\/5172ryWwWwS.jpg?v=1660645201","\/\/soundstores.net\/cdn\/shop\/products\/61vUrG0PHxS.jpg?v=1660645202","\/\/soundstores.net\/cdn\/shop\/products\/61qxsmFINHS.jpg?v=1660645202","\/\/soundstores.net\/cdn\/shop\/products\/61oKsdxH6oS.jpg?v=1660645202","\/\/soundstores.net\/cdn\/shop\/products\/519YzuPo0LS.jpg?v=1660645202","\/\/soundstores.net\/cdn\/shop\/products\/41SsOU1KbLS.jpg?v=1660645202"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B0861S86V1.jpg?v=1660662900","options":["Title"],"media":[{"alt":null,"id":27623419904153,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B0861S86V1.jpg?v=1660662900"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B0861S86V1.jpg?v=1660662900","width":1001},{"alt":null,"id":27622182420633,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61i2P_8Q8xS.jpg?v=1660645201"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61i2P_8Q8xS.jpg?v=1660645201","width":1001},{"alt":null,"id":27622182453401,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/5172ryWwWwS.jpg?v=1660645201"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/5172ryWwWwS.jpg?v=1660645201","width":1001},{"alt":null,"id":27622182486169,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61vUrG0PHxS.jpg?v=1660645202"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61vUrG0PHxS.jpg?v=1660645202","width":1001},{"alt":null,"id":27622182518937,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61qxsmFINHS.jpg?v=1660645202"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61qxsmFINHS.jpg?v=1660645202","width":1001},{"alt":null,"id":27622182551705,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61oKsdxH6oS.jpg?v=1660645202"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61oKsdxH6oS.jpg?v=1660645202","width":1001},{"alt":null,"id":27622182584473,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/519YzuPo0LS.jpg?v=1660645202"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/519YzuPo0LS.jpg?v=1660645202","width":1001},{"alt":null,"id":27622182617241,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/41SsOU1KbLS.jpg?v=1660645202"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/41SsOU1KbLS.jpg?v=1660645202","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSilicon Bridge Rectifier, MDS Full Wave Three Phase Rectifier Bridge 3-Phase Resin Packed Rectification Module 300A 1600V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeature: 1. The chip is electrically insulated from the backplane, 2500V AC\nvoltage. 2. Fully crimping structure, excellent temperature characteristics\nand power cycling capability. 3. Small size and light weight,easy to carry and\nportable. 4. Resin packing provides excellent protection for inside\ncomponents. 5. Applicable to military\/aerospace, home appliances, automotive\nelectronics, new energy. Specification: Item Type:Rectifier Model: MDS300A\n1600V Package: Resin Package Installation Type: Welding DC Output Current:\n300A Reverse Repeat Peak Voltage: 600-1600V Reverse Repeat Peak Current: 15mA\nPositive Non-Repetitive Surge Current: 2.1KA Threshold Voltage: 0.8V Slope\nResistance: 2.8mΩ Forward Peak Voltage: 1.35V Insulation Voltage: 2500V\nInstallation Torsion (M5): 4N·M Installation Torsion (M6): 6N·M Storage\nTemperature: -40~125°C Package List: 1 x Rectifier\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e2500V AC VOLTAGE CHIP -- The chip is electrically insulated from the backplane, 2500V AC voltage.\u003c\/li\u003e\n \u003cli\u003eMADE OF PREMIUM QUALITY MATERIAL -- Fully crimping structure, excellent temperature characteristics and power cycling capability.\u003c\/li\u003e\n \u003cli\u003eEASY TO CARRY AND OPERATE -- Small size and light weight,easy to carry and portable.\u003c\/li\u003e\n \u003cli\u003eWITH AN EXCELLENT PROTECTION -- Resin packing provides excellent protection for inside components.\u003c\/li\u003e\n \u003cli\u003eSCOPE OF APPLICATION -- Applicable to military\/aerospace, home appliances, automotive electronics, new energy.\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
