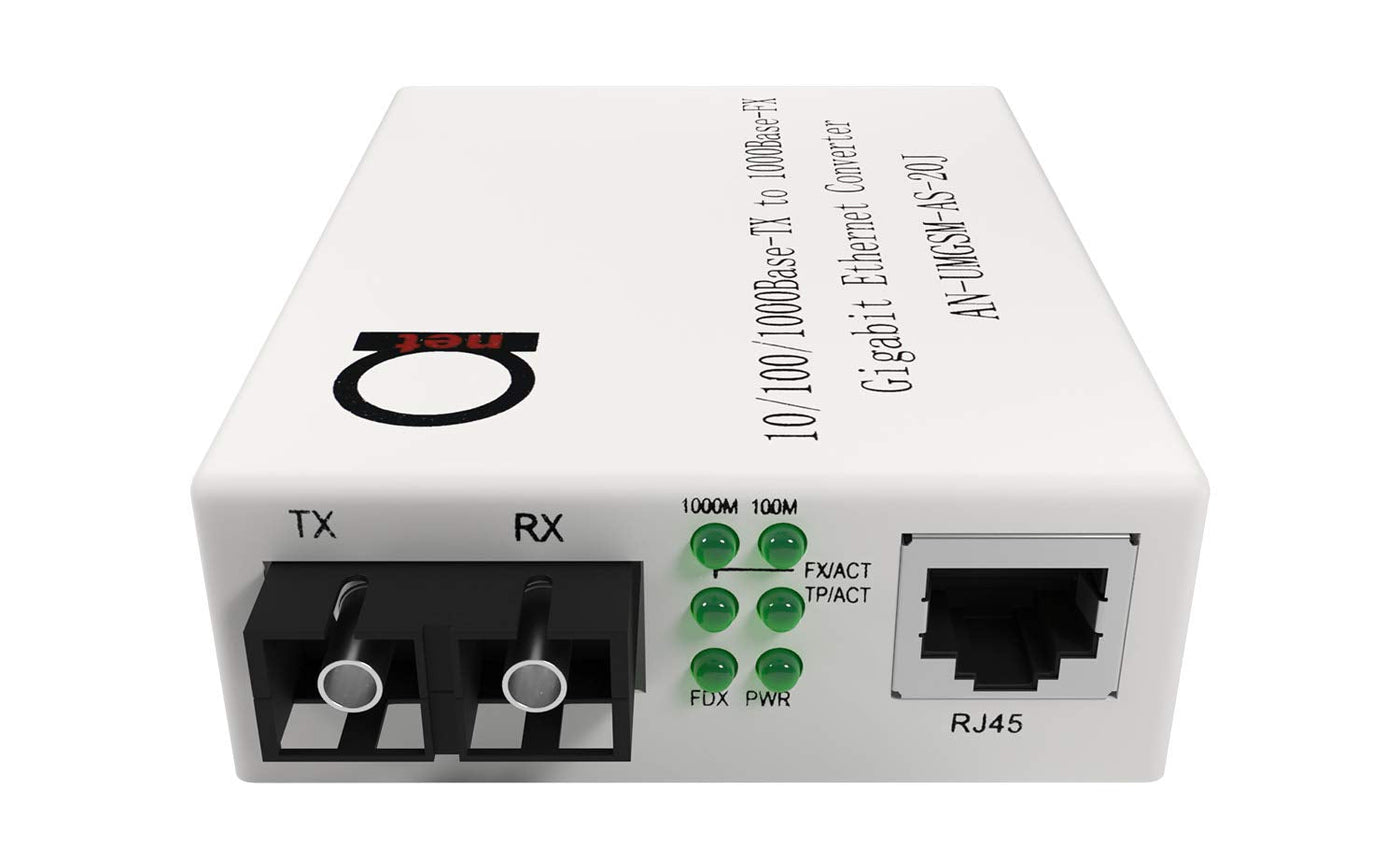

{"id":8934345670809,"title":"Single Mode SC Gigabit Fiber Media Converter to Ethernet RJ45, 20km\/12.43mi | 1310nm dual-fiber, built-in SC module - duplex SC cord over OS2 9\/125 - copper Cat5e or Cat6, auto-sensing 10\/100\/1000, LLF","handle":"single-mode-sc-gigabit-fiber-media-converter-to-ethernet-rj45-20km-12-43mi-1310nm-dual-fiber-built-in-sc-module-duplex-sc-cord-over-os2-9-125-copper-cat5e-or-cat6-auto-sensing-10-100-1000-llf","description":"\u003ch3\u003eSingle Mode SC Gigabit Fiber Media Converter to Ethernet RJ45, 20km\/12.43mi | 1310nm dual-fiber, built-in SC module - duplex SC cord over OS2 9\/125 - copper Cat5e or Cat6, auto-sensing 10\/100\/1000, LLF\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1000BASE-LX SINGLE-MODE SC, 20 KM \/ 12.43 MILES - Converts 10\/100\/1000 copper Ethernet to 1310nm single-mode fiber and back. The SC module is built into the unit and factory-aligned - nothing to fit, match or configure. Optical budget reaches 20 km over OS2 9\/125 single-mode. Compliant with IEEE 802.3z 1000Base-LX.\u003c\/li\u003e\n \u003cli\u003eDUAL-FIBER: TWO STRANDS, ONE TX AND ONE RX - The optical interface is a duplex SC pair, so the link needs two single-mode strands between the ends - transmit on one, receive on the other, with TX at each end landing on RX at the other. The patch cord to order is duplex SC-to-SC single-mode.\u003c\/li\u003e\n \u003cli\u003eRJ45 10\/100\/1000BASE-T AUTO-NEGOTIATING, AUTO MDI\/MDI-X - Copper port negotiates 10Base-T, 100Base-TX and 1000Base-T automatically against switches, routers, NAS, NVRs, access points and PCs. Cat5e or Cat6 UTP. Compliant with IEEE 802.3, 802.3u and 802.3ab.\u003c\/li\u003e\n \u003cli\u003e9000-BYTE JUMBO FRAMES, QinQ AND 802.1Q TRANSPARENT, FOUR DIP SWITCHES - MTU carries stacked VLAN tags intact, so the link passes a tagged trunk without stripping or re-writing. Four rear DIP switches: LLF link-loss forwarding on\/off, broadcast storm control on\/off, fiber port dropped to 100Base-LX for legacy Fast Ethernet nodes, and copper port forced to 100M. All four ship off.\u003c\/li\u003e\n \u003cli\u003eSUPPLIED READY TO LINK - SC fiber module built in, 100-240 VAC power adapter, a 1 m (39 in) Cat6 patch cord, wall-mount ears and anti-slip rubber buttons for desktop use. External requirement is a duplex SC single-mode patch cord at each end and two single-mode strands between them.\u003c\/li\u003e\n \u003cli\u003e0 TO 70 C, FANLESS, 94 X 70.5 X 26.5 MM - Operating range 0 to 70 C (32 to 158 F), relative humidity 5 to 90 percent, no moving parts. Desktop or wall mount. Status LEDs: Power, Link\/Activity, Full-Duplex, Speed. Runs on standard AC via the supplied adapter.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-08-26T23:28:02+10:00","created_at":"2026-08-26T16:57:52+10:00","vendor":"ADnet","type":"Network Transceivers","tags":["electronics_selected_Aug2026"],"price":21500,"price_min":21500,"price_max":21500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48936907276441,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B01MY12KPU","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single Mode SC Gigabit Fiber Media Converter to Ethernet RJ45, 20km\/12.43mi | 1310nm dual-fiber, built-in SC module - duplex SC cord over OS2 9\/125 - copper Cat5e or Cat6, auto-sensing 10\/100\/1000, LLF","public_title":null,"options":["Default Title"],"price":21500,"weight":370,"compare_at_price":null,"inventory_management":"shopify","barcode":"789185566562","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/B01MY12KPU.jpg?v=1787727474","\/\/soundstores.net\/cdn\/shop\/files\/81L_zfT06jL.jpg?v=1787727474","\/\/soundstores.net\/cdn\/shop\/files\/910bITzGEcL.jpg?v=1787727475","\/\/soundstores.net\/cdn\/shop\/files\/71Nr8ThJDEL_ab69616f-8b79-4232-8394-a3fdf269a111.jpg?v=1787727474","\/\/soundstores.net\/cdn\/shop\/files\/81Ndr5l7drL.jpg?v=1787727474","\/\/soundstores.net\/cdn\/shop\/files\/91oUVBRTCnL_83651953-9eba-4553-bd54-8c98095b0e52.jpg?v=1787727474","\/\/soundstores.net\/cdn\/shop\/files\/51EYxvquMTL.jpg?v=1787727474","\/\/soundstores.net\/cdn\/shop\/files\/51DivSD9lWL.jpg?v=1787727474"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/B01MY12KPU.jpg?v=1787727474","options":["Title"],"media":[{"alt":null,"id":37274640253081,"position":1,"preview_image":{"aspect_ratio":1.657,"height":892,"width":1478,"src":"\/\/soundstores.net\/cdn\/shop\/files\/B01MY12KPU.jpg?v=1787727474"},"aspect_ratio":1.657,"height":892,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/B01MY12KPU.jpg?v=1787727474","width":1478},{"alt":null,"id":37274640285849,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81L_zfT06jL.jpg?v=1787727474"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81L_zfT06jL.jpg?v=1787727474","width":2000},{"alt":null,"id":37274640318617,"position":3,"preview_image":{"aspect_ratio":0.886,"height":2560,"width":2268,"src":"\/\/soundstores.net\/cdn\/shop\/files\/910bITzGEcL.jpg?v=1787727475"},"aspect_ratio":0.886,"height":2560,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/910bITzGEcL.jpg?v=1787727475","width":2268},{"alt":null,"id":37274640351385,"position":4,"preview_image":{"aspect_ratio":2.615,"height":979,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71Nr8ThJDEL_ab69616f-8b79-4232-8394-a3fdf269a111.jpg?v=1787727474"},"aspect_ratio":2.615,"height":979,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71Nr8ThJDEL_ab69616f-8b79-4232-8394-a3fdf269a111.jpg?v=1787727474","width":2560},{"alt":null,"id":37274640384153,"position":5,"preview_image":{"aspect_ratio":0.725,"height":2560,"width":1856,"src":"\/\/soundstores.net\/cdn\/shop\/files\/81Ndr5l7drL.jpg?v=1787727474"},"aspect_ratio":0.725,"height":2560,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/81Ndr5l7drL.jpg?v=1787727474","width":1856},{"alt":null,"id":37274640416921,"position":6,"preview_image":{"aspect_ratio":1.498,"height":1709,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/files\/91oUVBRTCnL_83651953-9eba-4553-bd54-8c98095b0e52.jpg?v=1787727474"},"aspect_ratio":1.498,"height":1709,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/91oUVBRTCnL_83651953-9eba-4553-bd54-8c98095b0e52.jpg?v=1787727474","width":2560},{"alt":null,"id":37274640449689,"position":7,"preview_image":{"aspect_ratio":1.63,"height":920,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51EYxvquMTL.jpg?v=1787727474"},"aspect_ratio":1.63,"height":920,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51EYxvquMTL.jpg?v=1787727474","width":1500},{"alt":null,"id":37274640482457,"position":8,"preview_image":{"aspect_ratio":1.63,"height":920,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51DivSD9lWL.jpg?v=1787727474"},"aspect_ratio":1.63,"height":920,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51DivSD9lWL.jpg?v=1787727474","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSingle Mode SC Gigabit Fiber Media Converter to Ethernet RJ45, 20km\/12.43mi | 1310nm dual-fiber, built-in SC module - duplex SC cord over OS2 9\/125 - copper Cat5e or Cat6, auto-sensing 10\/100\/1000, LLF\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1000BASE-LX SINGLE-MODE SC, 20 KM \/ 12.43 MILES - Converts 10\/100\/1000 copper Ethernet to 1310nm single-mode fiber and back. The SC module is built into the unit and factory-aligned - nothing to fit, match or configure. Optical budget reaches 20 km over OS2 9\/125 single-mode. Compliant with IEEE 802.3z 1000Base-LX.\u003c\/li\u003e\n \u003cli\u003eDUAL-FIBER: TWO STRANDS, ONE TX AND ONE RX - The optical interface is a duplex SC pair, so the link needs two single-mode strands between the ends - transmit on one, receive on the other, with TX at each end landing on RX at the other. The patch cord to order is duplex SC-to-SC single-mode.\u003c\/li\u003e\n \u003cli\u003eRJ45 10\/100\/1000BASE-T AUTO-NEGOTIATING, AUTO MDI\/MDI-X - Copper port negotiates 10Base-T, 100Base-TX and 1000Base-T automatically against switches, routers, NAS, NVRs, access points and PCs. Cat5e or Cat6 UTP. Compliant with IEEE 802.3, 802.3u and 802.3ab.\u003c\/li\u003e\n \u003cli\u003e9000-BYTE JUMBO FRAMES, QinQ AND 802.1Q TRANSPARENT, FOUR DIP SWITCHES - MTU carries stacked VLAN tags intact, so the link passes a tagged trunk without stripping or re-writing. Four rear DIP switches: LLF link-loss forwarding on\/off, broadcast storm control on\/off, fiber port dropped to 100Base-LX for legacy Fast Ethernet nodes, and copper port forced to 100M. All four ship off.\u003c\/li\u003e\n \u003cli\u003eSUPPLIED READY TO LINK - SC fiber module built in, 100-240 VAC power adapter, a 1 m (39 in) Cat6 patch cord, wall-mount ears and anti-slip rubber buttons for desktop use. External requirement is a duplex SC single-mode patch cord at each end and two single-mode strands between them.\u003c\/li\u003e\n \u003cli\u003e0 TO 70 C, FANLESS, 94 X 70.5 X 26.5 MM - Operating range 0 to 70 C (32 to 158 F), relative humidity 5 to 90 percent, no moving parts. Desktop or wall mount. Status LEDs: Power, Link\/Activity, Full-Duplex, Speed. Runs on standard AC via the supplied adapter.\u003c\/li\u003e\n \u003c\/ul\u003e"}
