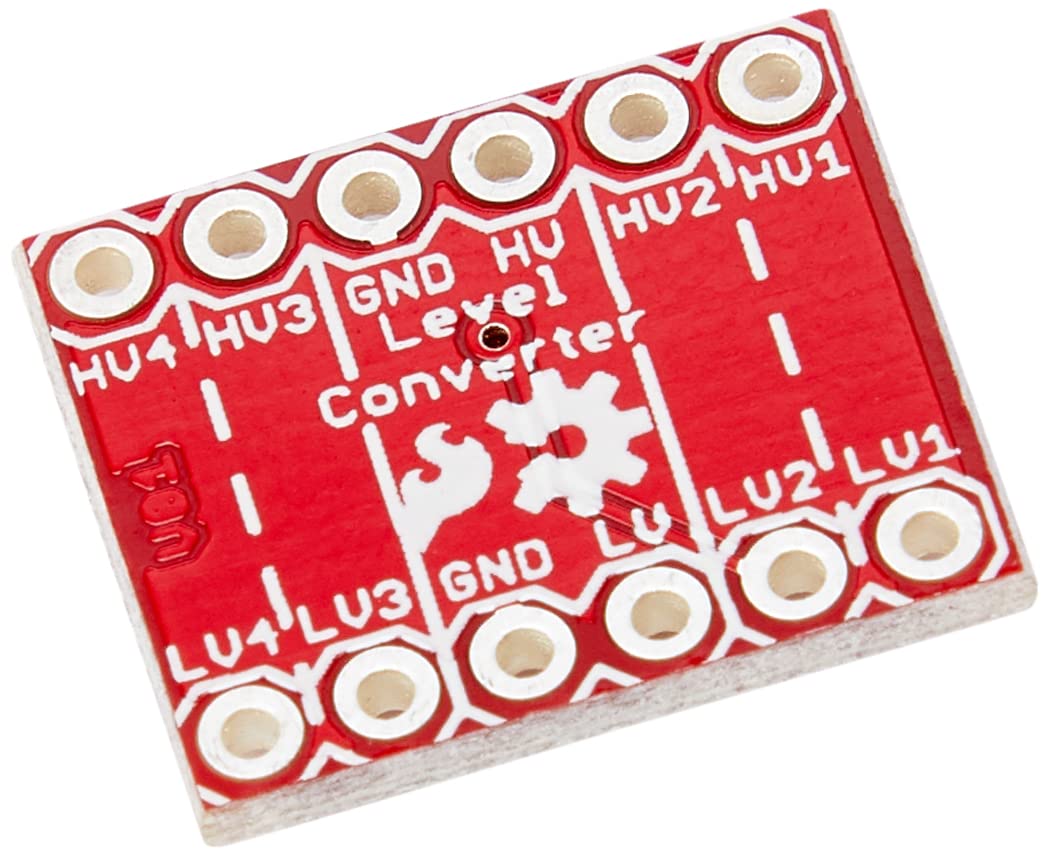

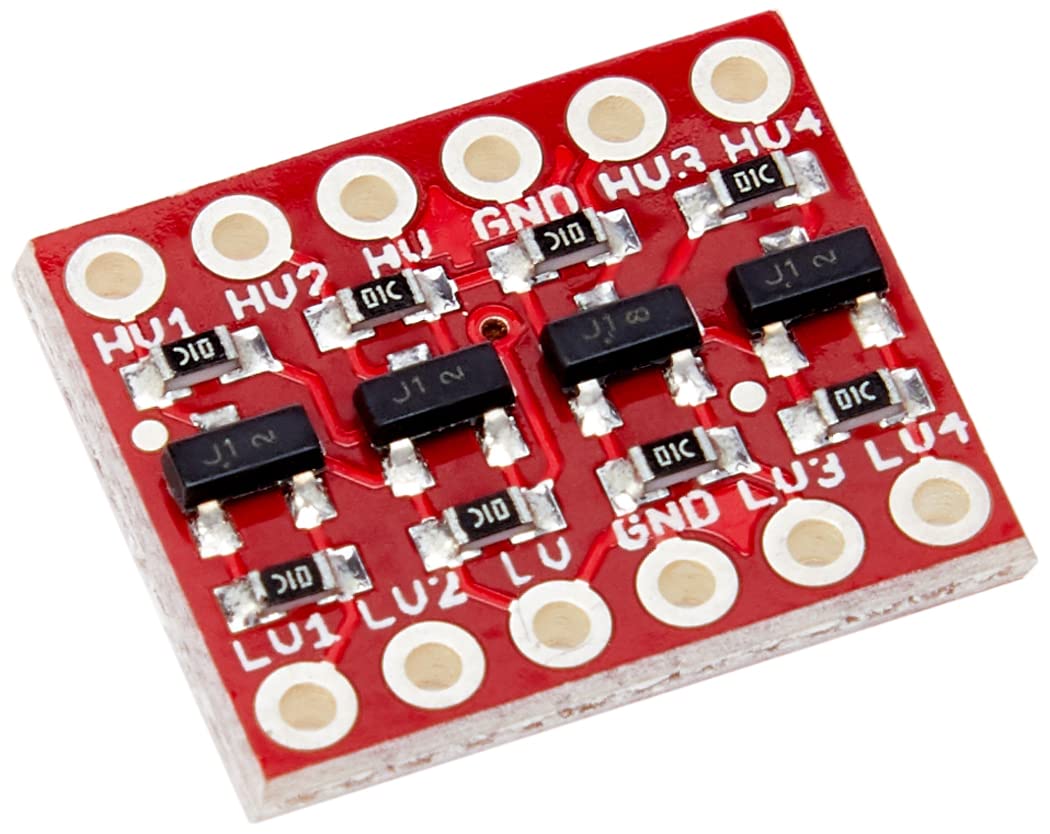

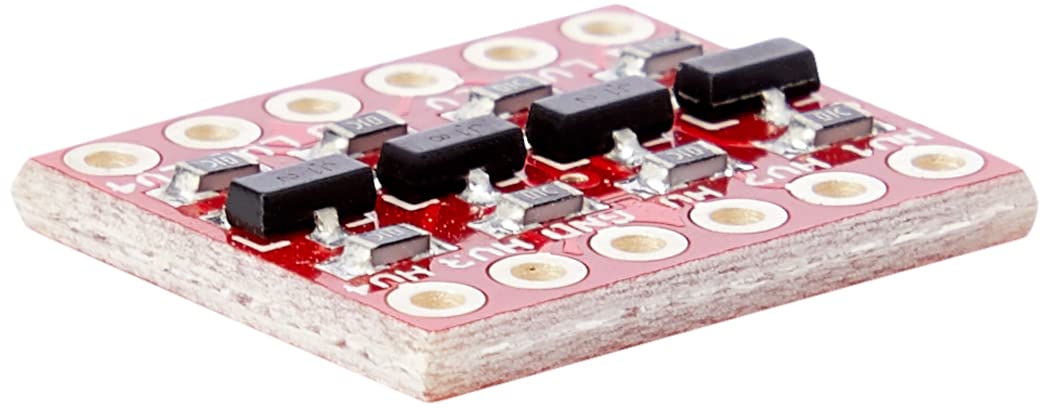

{"id":8528996827289,"title":"SparkFun Logic Level Converter - Bi-Directional","handle":"sparkfun-logic-level-converter-bi-directional","description":"\u003ch3\u003eSparkFun Logic Level Converter - Bi-Directional\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eIf you have ever tried to connect a 3.3V device to a 5V system, you know the\nchallenge. The Bidirectional Logic Level Converter is a small device that\nsafely drops signals from 5V to 3.3V while also simultaneously increasing them\nfrom 3.3V to 5V. This level converter will also work with 2.8V and 1.8V\ndevices. What really sets this Logic Level Converter apart from our previous\nversions is that you can successfully set your high and low voltages and\nsafely step in and out between them on the same channel. Each level converter\nhas the ability to convert 4 pins on the high side to 4 pins on the low side\nwith two inputs and two outputs on each side. The level converter is very\nsimple to use. The board must be powered by the two voltage sources (high\nvoltage and low voltage) that the system uses. High voltage (5V for example)\nto the 'HV' pin, low voltage (3.3V for example) to 'LV' and ground from the\nsystem to the 'GND' pin.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSafely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time.\u003c\/li\u003e\n \u003cli\u003eThis level converter also works with 2.8V and 1.8V devices.\u003c\/li\u003e\n \u003cli\u003eThe level converter is very easy to use. The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using.\u003c\/li\u003e\n \u003cli\u003eColor: Red\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T10:38:04+10:00","created_at":"2025-09-23T10:38:00+10:00","vendor":"SparkFun","type":"Signal Converters","tags":["industryDE_Sep2025"],"price":9400,"price_min":9400,"price_max":9400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45739273257113,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B00M7U5DV2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SparkFun Logic Level Converter - Bi-Directional","public_title":null,"options":["Default Title"],"price":9400,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"748347523706","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B00M7U5DV2.jpg?v=1775748754","\/\/soundstores.net\/cdn\/shop\/files\/61knADy4S7L.jpg?v=1758587883","\/\/soundstores.net\/cdn\/shop\/files\/512LcXd13GL.jpg?v=1758587883"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B00M7U5DV2.jpg?v=1775748754","options":["Title"],"media":[{"alt":null,"id":34597118509209,"position":1,"preview_image":{"aspect_ratio":1.259,"height":834,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B00M7U5DV2.jpg?v=1775748754"},"aspect_ratio":1.259,"height":834,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B00M7U5DV2.jpg?v=1775748754","width":1050},{"alt":null,"id":34597118541977,"position":2,"preview_image":{"aspect_ratio":1.225,"height":857,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61knADy4S7L.jpg?v=1758587883"},"aspect_ratio":1.225,"height":857,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61knADy4S7L.jpg?v=1758587883","width":1050},{"alt":null,"id":34597118574745,"position":3,"preview_image":{"aspect_ratio":2.574,"height":408,"width":1050,"src":"\/\/soundstores.net\/cdn\/shop\/files\/512LcXd13GL.jpg?v=1758587883"},"aspect_ratio":2.574,"height":408,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/512LcXd13GL.jpg?v=1758587883","width":1050}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSparkFun Logic Level Converter - Bi-Directional\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eIf you have ever tried to connect a 3.3V device to a 5V system, you know the\nchallenge. The Bidirectional Logic Level Converter is a small device that\nsafely drops signals from 5V to 3.3V while also simultaneously increasing them\nfrom 3.3V to 5V. This level converter will also work with 2.8V and 1.8V\ndevices. What really sets this Logic Level Converter apart from our previous\nversions is that you can successfully set your high and low voltages and\nsafely step in and out between them on the same channel. Each level converter\nhas the ability to convert 4 pins on the high side to 4 pins on the low side\nwith two inputs and two outputs on each side. The level converter is very\nsimple to use. The board must be powered by the two voltage sources (high\nvoltage and low voltage) that the system uses. High voltage (5V for example)\nto the 'HV' pin, low voltage (3.3V for example) to 'LV' and ground from the\nsystem to the 'GND' pin.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSafely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time.\u003c\/li\u003e\n \u003cli\u003eThis level converter also works with 2.8V and 1.8V devices.\u003c\/li\u003e\n \u003cli\u003eThe level converter is very easy to use. The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using.\u003c\/li\u003e\n \u003cli\u003eColor: Red\u003c\/li\u003e\n \u003c\/ul\u003e"}
