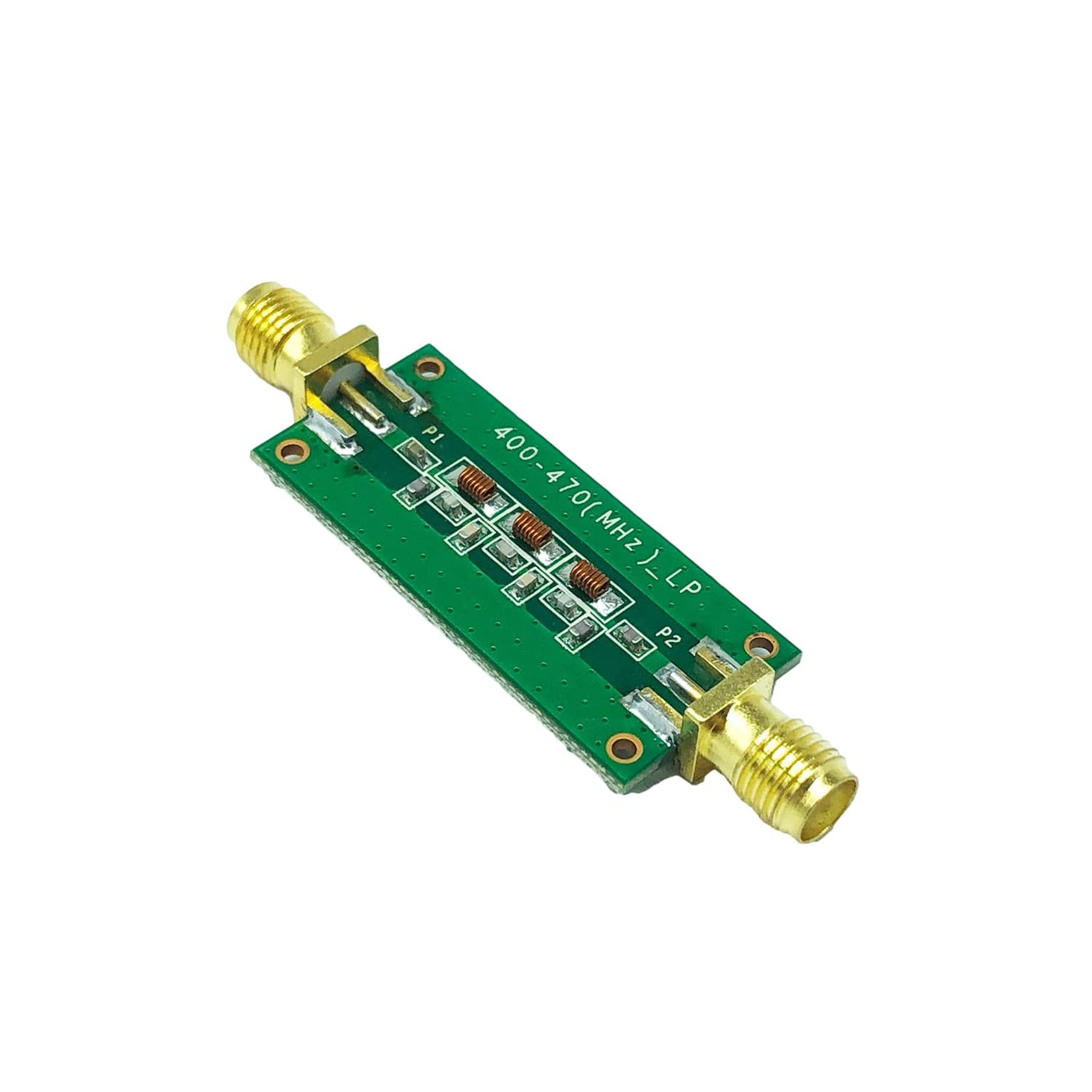

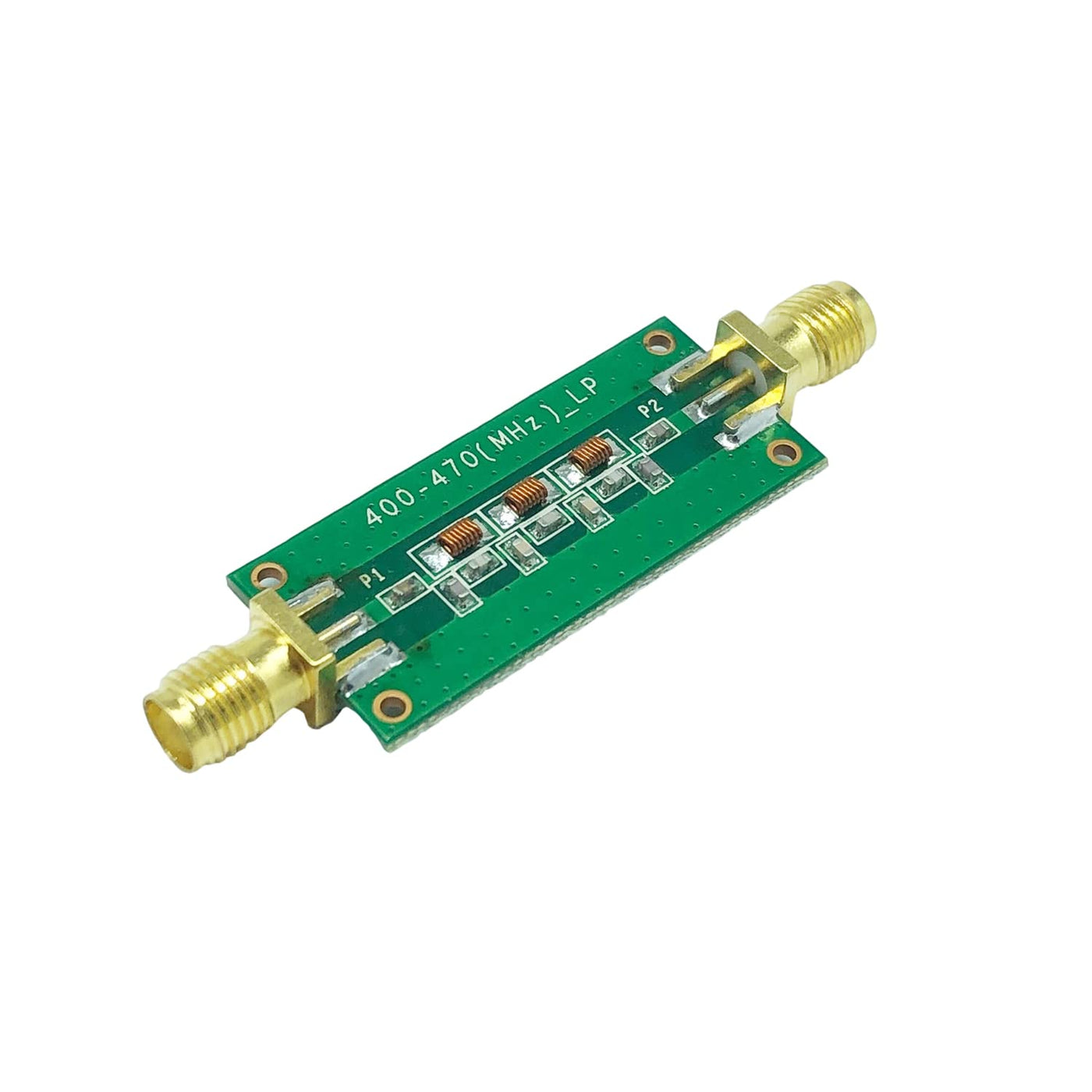

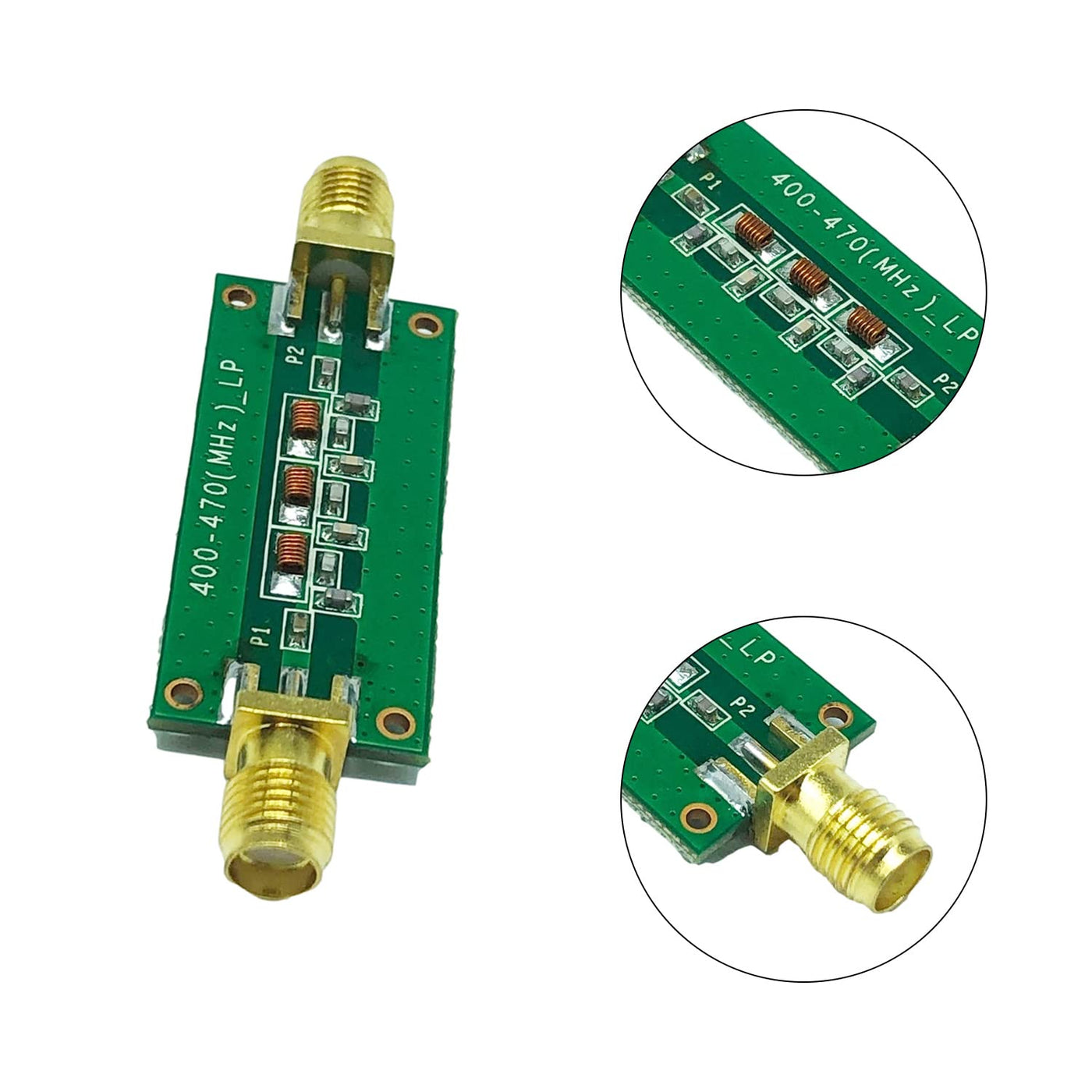

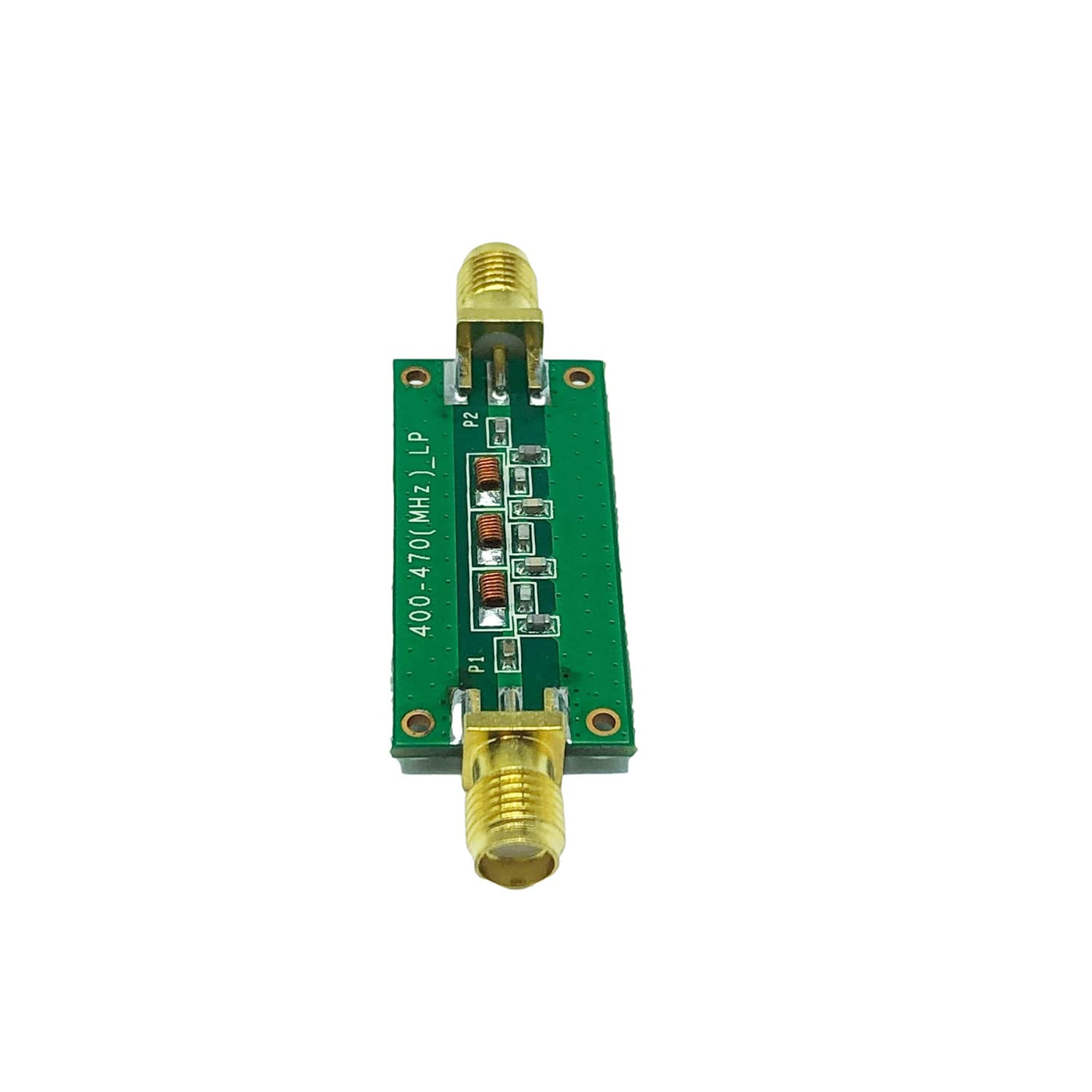

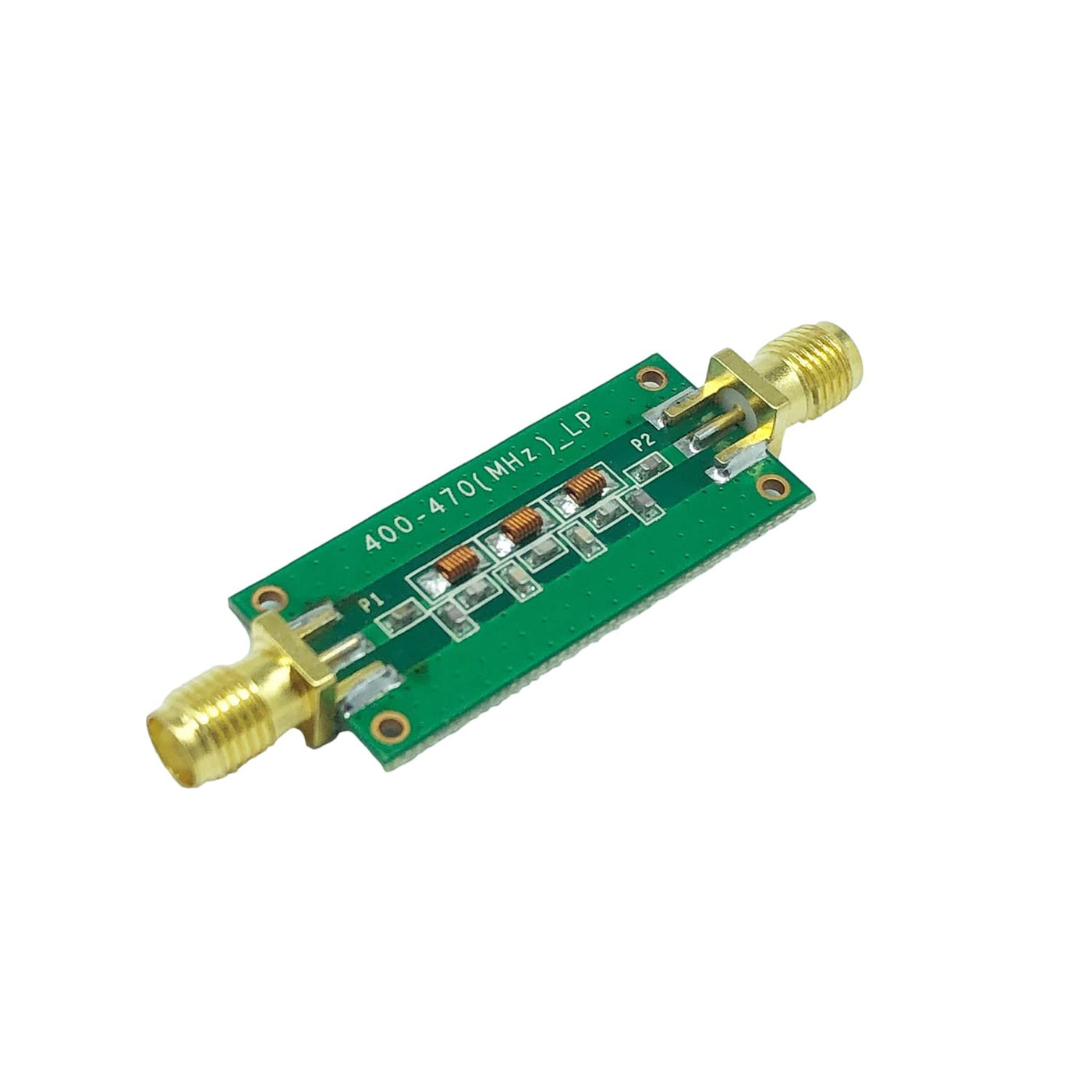

SPORTARC 433MHz LPF Low Pass Filter, Harmonic Anti-Interference Capability is about 50dbc
SPORTARC 433MHz LPF Low Pass Filter, Harmonic Anti-Interference Capability is about 50dbc
Function: Multiple low-pass filters are compared. Under the state of the elliptical filter, the filter can get a smaller transition bandwidth and a tighter stop band fluctuation than Butterworth filters and Chebyshev filters. In this regard, the elliptical filter is the best. This is a low-pass filter with elliptical function of the 7th Order. The steepness of the filter is better than that of the filter. Features: 1. The low pass filter emits the signal below the shut-off frequency, but the signal above the shut-off frequency is weakened. 2. Harmonic suppression is often used in electromagnetic signals or placed at the rear end of the mixer to filter out high-frequency noise and play a selective frequency. 3. The filter can greatly weaken the signal of 470 m and above, and the harmonic anti-interference ability is approx. 50dbc Specification Parameters: 1. S11 <- 20 dB, standing wave ratio SWR <1.22; 2. S22 <- 20 dB, standing wave ratio SWR <1.22; 3. S21 > - 0.5 dB, insertion loss <0.5 dB; 4. Overall PCB Dimension(Excluding SMA Plug):36mm×16mm Package includes: 1 x Low Pass Filter Module
Product Features
- 1. The low pass filter emits the signal below the shut-off frequency, but the signal above the shut-off frequency is weakened.
- 2. Harmonic suppression is often used in electromagnetic signals or placed at the rear end of the mixer to filter out high-frequency noise and play a selective frequency.
- 3. The filter can greatly weaken the signal of 470 m and above, and the harmonic anti-interference ability is approx. 50dbc
- 4. Multiple low-pass filters are compared. Under the state of the elliptical filter, the filter can get a smaller transition bandwidth and a tighter stop band fluctuation than Butterworth filters and Chebyshev filters. In this regard, the elliptical filter is the best. This is a low-pass filter with elliptical function of the 7th Order. The steepness of the filter is better than that of the filter.
- 5. Package Content:1 x Low Pass Filter Module
