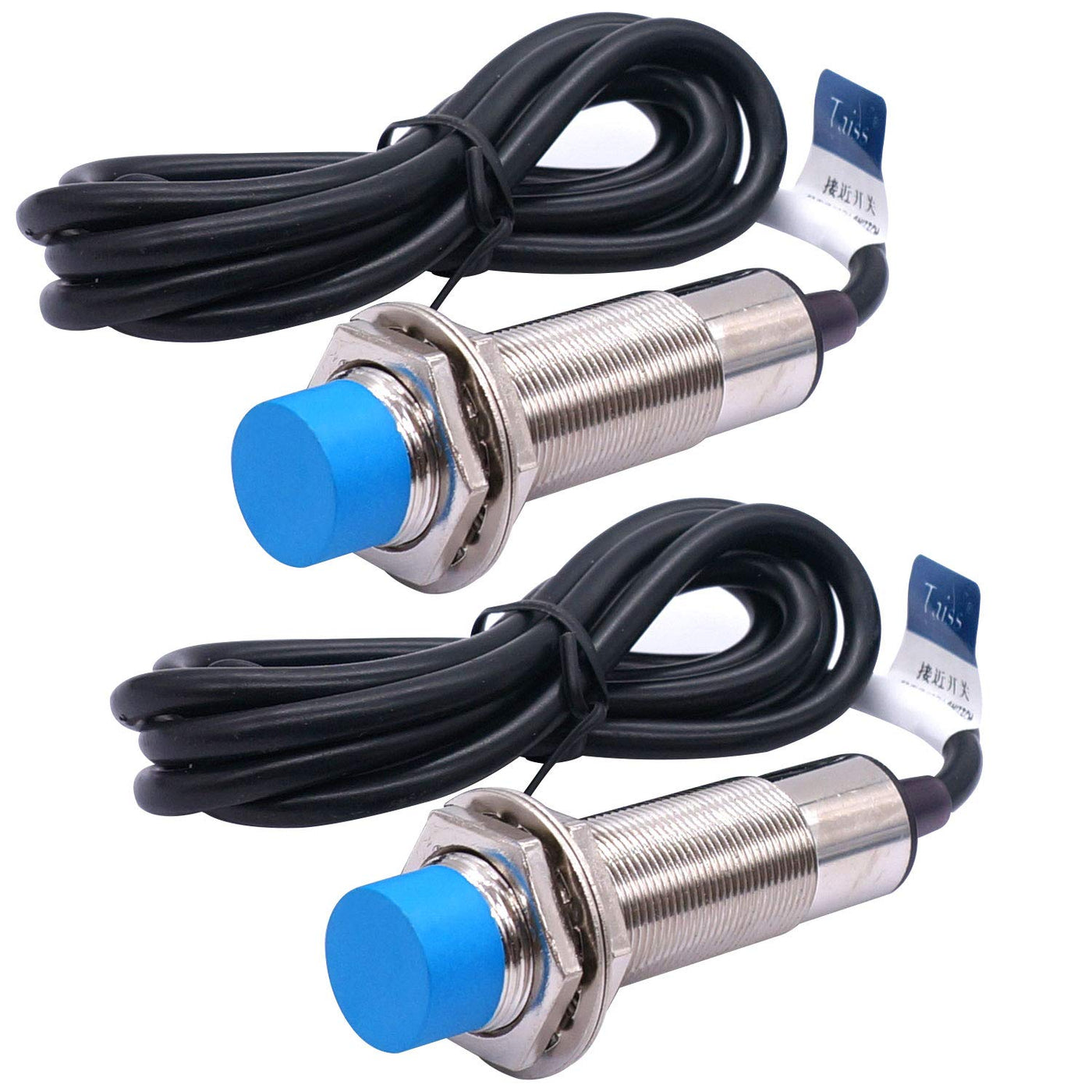

{"id":7501287129241,"title":"Taiss\/ 2Pcs M18 Proximity Sensor NPN NO（Normally Open） 6-36VDC 8mm Detective Approach Sensor Inductive Proximity Switch LJ18A3-8-Z\/BX","handle":"taiss-2pcs-m18-proximity-sensor-npn-no-normally-open-6-36vdc-8mm-detective-approach-sensor-inductive-proximity-switch-lj18a3-8-z-bx","description":"\u003ch3\u003eTaiss\/ 2Pcs M18 Proximity Sensor NPN NO（Normally Open） 6-36VDC 8mm Detective Approach Sensor Inductive Proximity Switch LJ18A3-8-Z\/BX\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eModel number: LJ18A3-8 series External dimensions: M18x60 Installation type:\nShielded Detection distance: 8mm Setting distance: 0-7 mm Supply voltage:\n6-36Vdc Output current: DC type: 300mA max; AC Type: 400mA Standard detected\nobject: Mild steel (18x18x1mm) Sensing object: Magnetic metals (if it is not\nmagnetic metals, the sensing distance would decrease) Response frequency:\n500Hz Output indication: Red LED Short-circuit protection: NO Reverse\nconnection protection: Yes Insulation resistance: 50MΩ min (between charging\npart and housing) Dielectric strength: 1000Vac, 1min (between charging part\nand housing) IP Rating: IP65 Operating temperature: 25 to 70 °C (13 to 158 °F)\nCable length: 1.2m, PVC cable Material: Case: Brass-nickel plated; Sensing\nsurface: ABS\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Name : Inductive Proximity Switch;Model : LJ18A3-8-Z\/BX;Wire Type : DC 3 Wire Type (Black, Brown, Blue);Switch Appearance Type : Cylinder Type\u003c\/li\u003e\n \u003cli\u003eTheory : Inductive Sensor;Output Type: NPN NO(Normal Open);Thread diameter: 18mm : 18mm;Detecting Distance : 8mm\u003c\/li\u003e\n \u003cli\u003eSupply Voltage : DC 6-36V;Current Output : 300mA;Detect Object : Iron\u003c\/li\u003e\n \u003cli\u003eOperating Temperature : -25C to +55C (Non-freezing Condition);Size : 7 x 3cm\/2.8'' x 1.2'' (L*Max. Dia);Cable Length : 103cm \/ 40.55\"\u003c\/li\u003e\n \u003cli\u003eExternal Material : Plastic, Alloy;Net Weight : 160g;Package Content : 2 x Inductive Proximity Switch\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n","published_at":"2022-08-27T02:19:07+10:00","created_at":"2022-08-27T02:19:14+10:00","vendor":"Taiss","type":"Inductive","tags":["industrial2"],"price":13100,"price_min":13100,"price_max":13100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42532006690969,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B073XDRSK4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Taiss\/ 2Pcs M18 Proximity Sensor NPN NO（Normally Open） 6-36VDC 8mm Detective Approach Sensor Inductive Proximity Switch LJ18A3-8-Z\/BX","public_title":null,"options":["Default Title"],"price":13100,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":"726146000147","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/products\/B073XDRSK4.jpg?v=1661612192","\/\/soundstores.net\/cdn\/shop\/products\/71WOzP_0vPL_234e271a-df86-4d51-a4ef-e91e6699fe9d.jpg?v=1661530754","\/\/soundstores.net\/cdn\/shop\/products\/71cLn8wWcEL_eb270558-a7c3-4cd0-b123-b9b5876f0890.jpg?v=1661530754","\/\/soundstores.net\/cdn\/shop\/products\/71zwvUZxIYL_92d1e78b-1bb5-4d30-a0c2-ec4e0520abf4.jpg?v=1661530754","\/\/soundstores.net\/cdn\/shop\/products\/61c5JVjekJL.jpg?v=1661530754","\/\/soundstores.net\/cdn\/shop\/products\/61TwCaRR5-L_5947a8a2-9d09-4d71-9a11-1adb9d2fd8cb.jpg?v=1661530754","\/\/soundstores.net\/cdn\/shop\/products\/51NB9BtbjEL_9db05f83-5eab-4c34-af3c-4f8e69d3ca89.jpg?v=1661530754"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/products\/B073XDRSK4.jpg?v=1661612192","options":["Title"],"media":[{"alt":null,"id":27689157165209,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/products\/B073XDRSK4.jpg?v=1661612192"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/B073XDRSK4.jpg?v=1661612192","width":1500},{"alt":null,"id":27682514075801,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71WOzP_0vPL_234e271a-df86-4d51-a4ef-e91e6699fe9d.jpg?v=1661530754"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71WOzP_0vPL_234e271a-df86-4d51-a4ef-e91e6699fe9d.jpg?v=1661530754","width":1500},{"alt":null,"id":27682514141337,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71cLn8wWcEL_eb270558-a7c3-4cd0-b123-b9b5876f0890.jpg?v=1661530754"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71cLn8wWcEL_eb270558-a7c3-4cd0-b123-b9b5876f0890.jpg?v=1661530754","width":1500},{"alt":null,"id":27682514239641,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71zwvUZxIYL_92d1e78b-1bb5-4d30-a0c2-ec4e0520abf4.jpg?v=1661530754"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71zwvUZxIYL_92d1e78b-1bb5-4d30-a0c2-ec4e0520abf4.jpg?v=1661530754","width":1500},{"alt":null,"id":27682514305177,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61c5JVjekJL.jpg?v=1661530754"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61c5JVjekJL.jpg?v=1661530754","width":1001},{"alt":null,"id":27682514337945,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/soundstores.net\/cdn\/shop\/products\/61TwCaRR5-L_5947a8a2-9d09-4d71-9a11-1adb9d2fd8cb.jpg?v=1661530754"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/61TwCaRR5-L_5947a8a2-9d09-4d71-9a11-1adb9d2fd8cb.jpg?v=1661530754","width":1500},{"alt":null,"id":27682514370713,"position":7,"preview_image":{"aspect_ratio":1.068,"height":468,"width":500,"src":"\/\/soundstores.net\/cdn\/shop\/products\/51NB9BtbjEL_9db05f83-5eab-4c34-af3c-4f8e69d3ca89.jpg?v=1661530754"},"aspect_ratio":1.068,"height":468,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/51NB9BtbjEL_9db05f83-5eab-4c34-af3c-4f8e69d3ca89.jpg?v=1661530754","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTaiss\/ 2Pcs M18 Proximity Sensor NPN NO（Normally Open） 6-36VDC 8mm Detective Approach Sensor Inductive Proximity Switch LJ18A3-8-Z\/BX\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eModel number: LJ18A3-8 series External dimensions: M18x60 Installation type:\nShielded Detection distance: 8mm Setting distance: 0-7 mm Supply voltage:\n6-36Vdc Output current: DC type: 300mA max; AC Type: 400mA Standard detected\nobject: Mild steel (18x18x1mm) Sensing object: Magnetic metals (if it is not\nmagnetic metals, the sensing distance would decrease) Response frequency:\n500Hz Output indication: Red LED Short-circuit protection: NO Reverse\nconnection protection: Yes Insulation resistance: 50MΩ min (between charging\npart and housing) Dielectric strength: 1000Vac, 1min (between charging part\nand housing) IP Rating: IP65 Operating temperature: 25 to 70 °C (13 to 158 °F)\nCable length: 1.2m, PVC cable Material: Case: Brass-nickel plated; Sensing\nsurface: ABS\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct Name : Inductive Proximity Switch;Model : LJ18A3-8-Z\/BX;Wire Type : DC 3 Wire Type (Black, Brown, Blue);Switch Appearance Type : Cylinder Type\u003c\/li\u003e\n \u003cli\u003eTheory : Inductive Sensor;Output Type: NPN NO(Normal Open);Thread diameter: 18mm : 18mm;Detecting Distance : 8mm\u003c\/li\u003e\n \u003cli\u003eSupply Voltage : DC 6-36V;Current Output : 300mA;Detect Object : Iron\u003c\/li\u003e\n \u003cli\u003eOperating Temperature : -25C to +55C (Non-freezing Condition);Size : 7 x 3cm\/2.8'' x 1.2'' (L*Max. Dia);Cable Length : 103cm \/ 40.55\"\u003c\/li\u003e\n \u003cli\u003eExternal Material : Plastic, Alloy;Net Weight : 160g;Package Content : 2 x Inductive Proximity Switch\u003c\/li\u003e\n \u003c\/ul\u003e\n\u003chr class=\"py-vbody\" style=\"display: none\"\u003e\n\n\n"}
