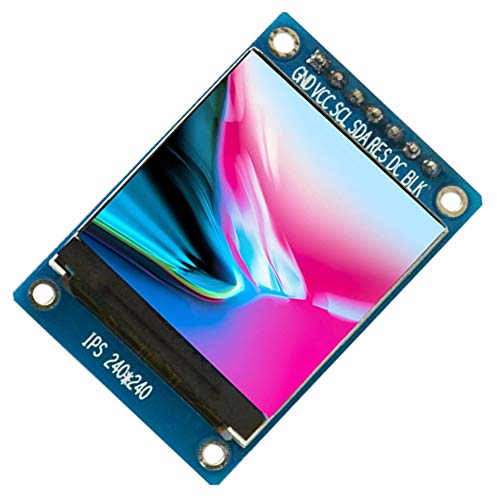

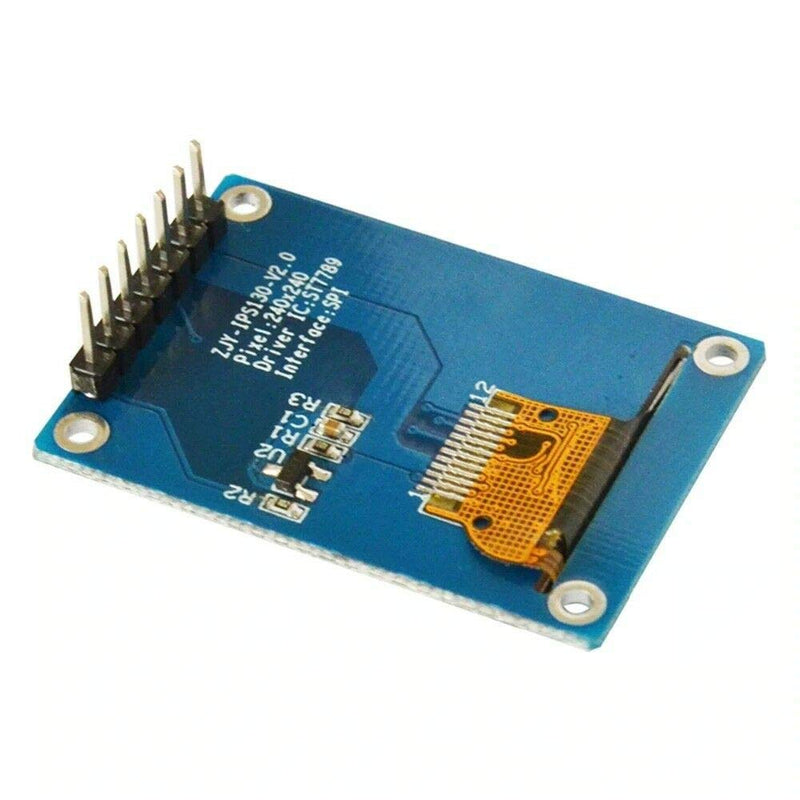

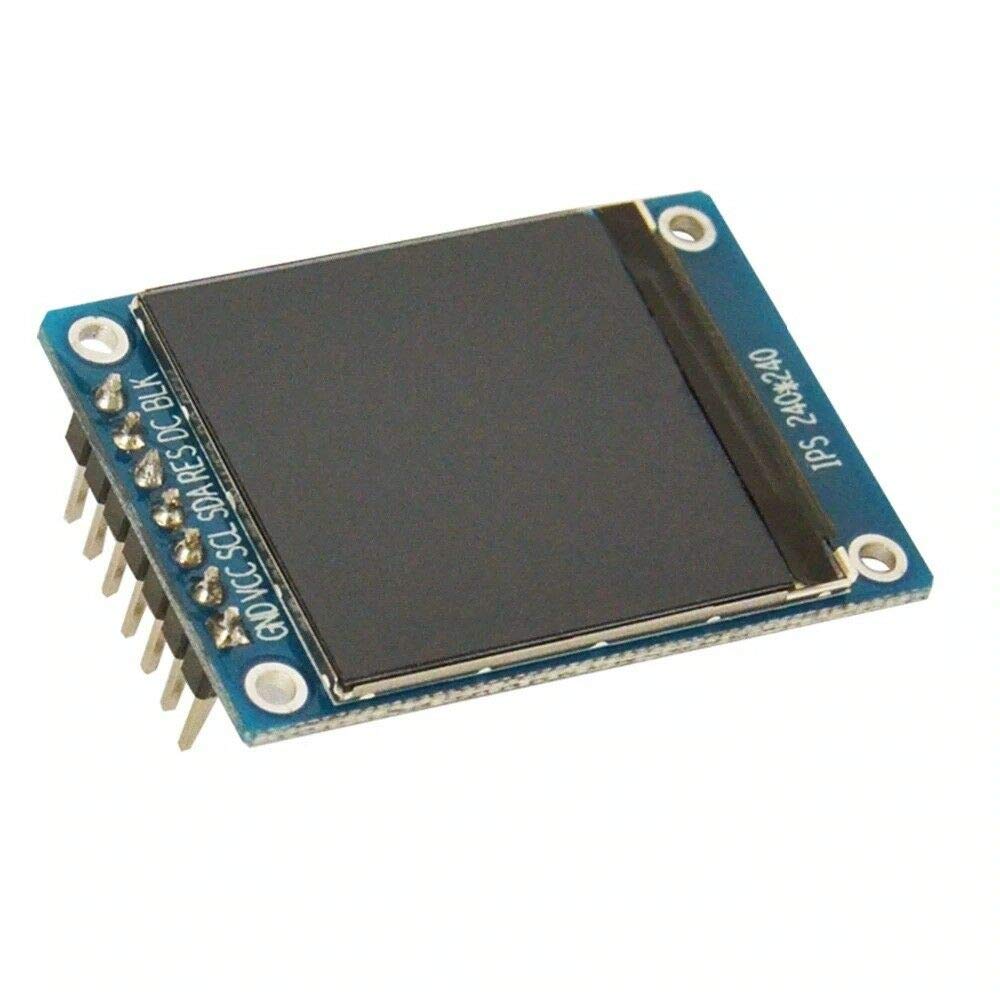

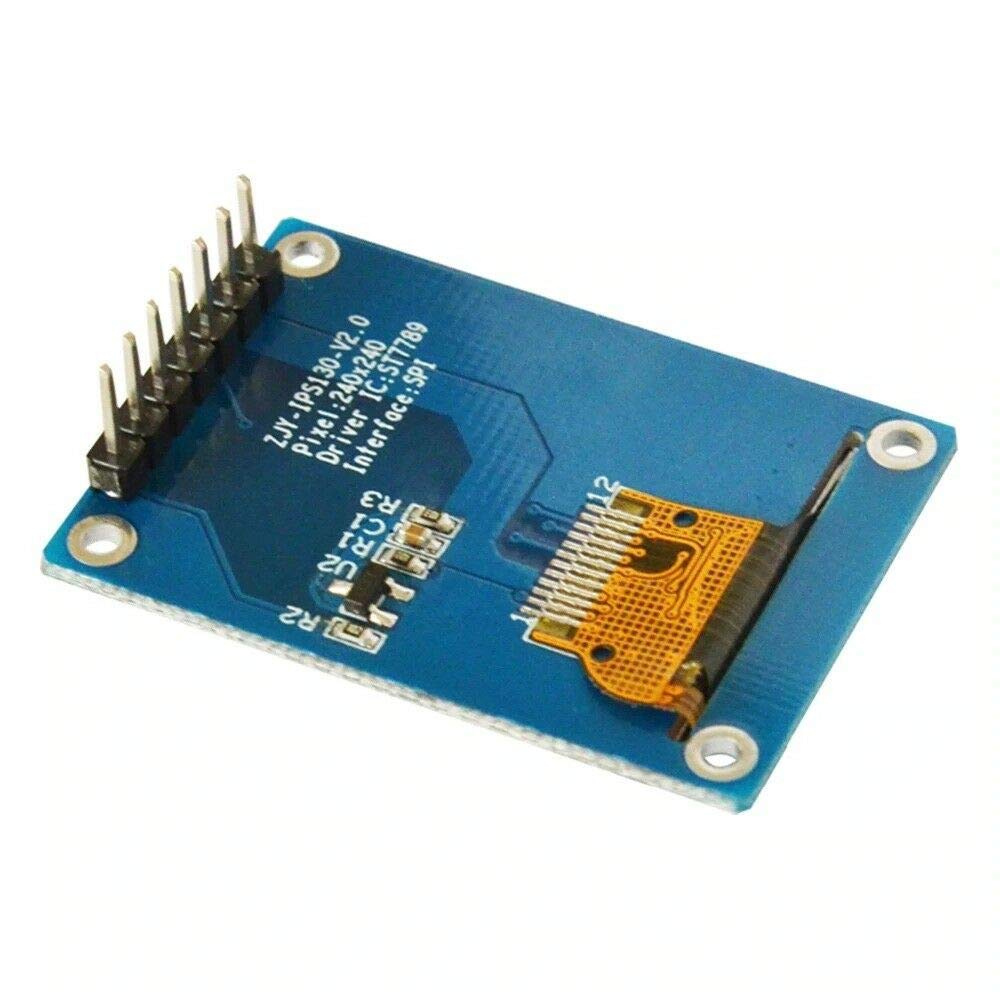

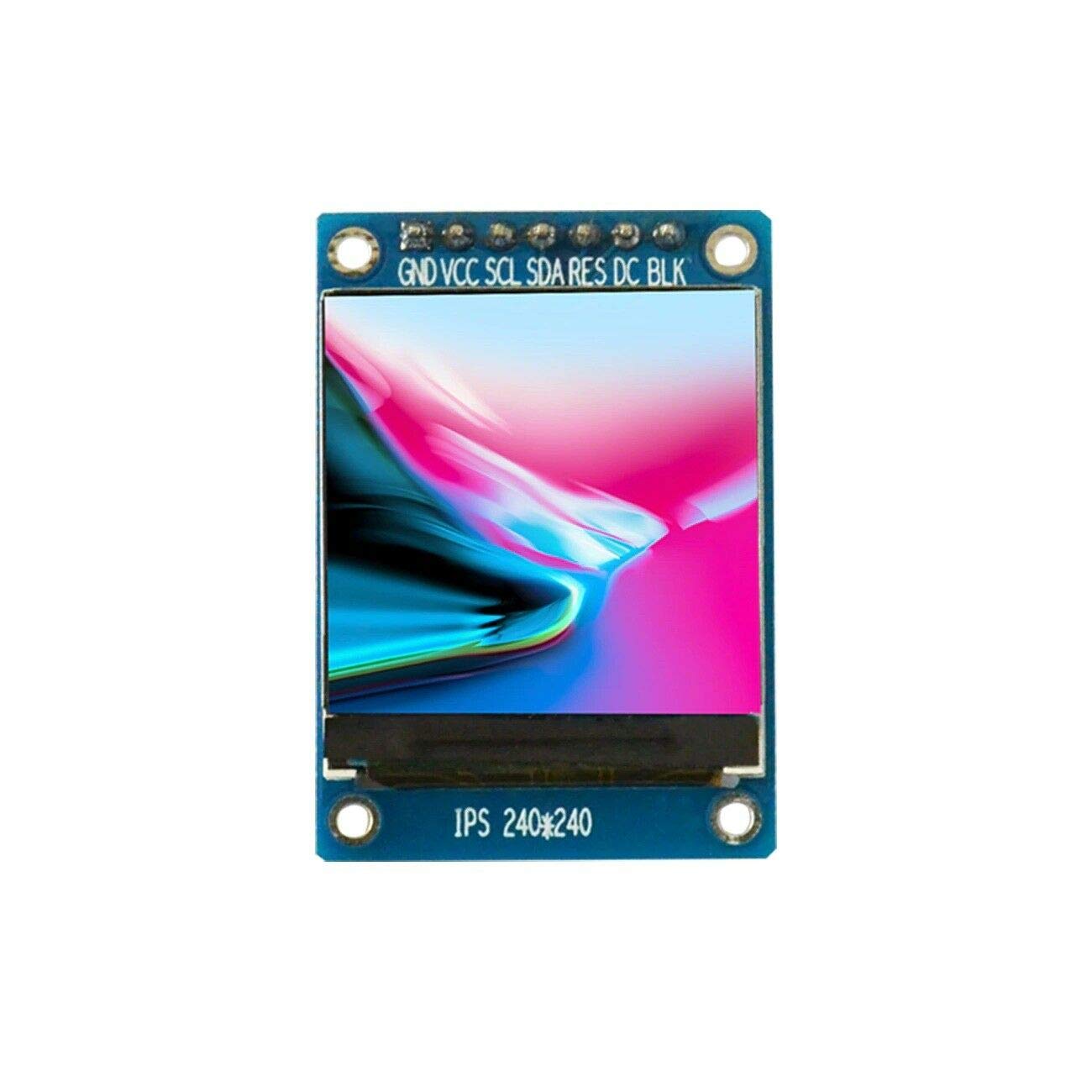

{"id":8534016655513,"title":"TECNOIOT 1.3 inch IPS HD TFT ST7789 Drive IC 240 x 240 Full Colour LCD Display Module | 1.3 Inch IPS HD TFT ST7789 IC 240 x 240 Full Colour LCD Display Module","handle":"tecnoiot-1-3-inch-ips-hd-tft-st7789-drive-ic-240-x-240-full-colour-lcd-display-module-1-3-inch-ips-hd-tft-st7789-ic-240-x-240-full-colour-lcd-display-module","description":"\u003ch3\u003eTECNOIOT 1.3 inch IPS HD TFT ST7789 Drive IC 240 x 240 Full Colour LCD Display Module | 1.3 Inch IPS HD TFT ST7789 IC 240 x 240 Full Colour LCD Display Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1 x 1.3 inch IPS HD TFT ST7789 drive IC 240 x 240 full colour LCD display\nmodule. Features: Size: 1.3 inches. Active area: 23.4 x 23.4 mm. Module size:\n26.16 x 29.22 mm. Resolution: 240 x 240 (display direction can be adjusted,\nhorizontal screen and vertical screen are OK). Drive IC: ST7789. Colour: full\ncolour. Viewing Direction: Full viewing angle. Interface: 4-wire SPI\ninterface. PIN NO. : 12 pin. Voltage: 3.3 V. Working Temp. : -20 ~ 70 degrees.\nPin Descriptions: PIN No Symbol Description 1 GND Soil 2 VDC power 3.3 V. 3\nSCL Series watch pin. 4 SDA Data Entry Series 5 RES LCM reset pin. This pin is\nresetting the signal input. When the pin is low, the initialization of the\nchip is Executed! Keep this plug high during normal operation. 6 DC data \/\ncontrol. 7 BLK control pin background Package contains: 1 x 1.3 inch IPS HD\nTFT ST7789 drive display module.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eResolution: 240 x 240 (the direction of the screen can be adjusted, the horizontal and vertical screen are fine)\u003c\/li\u003e\n \u003cli\u003eCompact DesignInterface: 4-wire SPI interface, NO. Pin: 12 pin\u003c\/li\u003e\n \u003cli\u003eHigh performance: display direction: full viewing angle\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T09:07:00+10:00","created_at":"2025-09-27T09:06:56+10:00","vendor":"TECNOIOT","type":"Displays","tags":["industryDE_Sep2025"],"price":11800,"price_min":11800,"price_max":11800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45749933867161,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07QGQ1SR2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TECNOIOT 1.3 inch IPS HD TFT ST7789 Drive IC 240 x 240 Full Colour LCD Display Module | 1.3 Inch IPS HD TFT ST7789 IC 240 x 240 Full Colour LCD Display Module","public_title":null,"options":["Default Title"],"price":11800,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"A184-OLED240-69-1PCS","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B07QGQ1SR2.jpg?v=1775754304","\/\/soundstores.net\/cdn\/shop\/files\/61kkwxB9lsL.jpg?v=1758928019","\/\/soundstores.net\/cdn\/shop\/files\/61oeDRVxyjL.jpg?v=1758928019","\/\/soundstores.net\/cdn\/shop\/files\/61yHGahLt8L.jpg?v=1758928019","\/\/soundstores.net\/cdn\/shop\/files\/61ZqHvrU_fL.jpg?v=1758928019"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07QGQ1SR2.jpg?v=1775754304","options":["Title"],"media":[{"alt":null,"id":34662682198169,"position":1,"preview_image":{"aspect_ratio":0.994,"height":500,"width":497,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07QGQ1SR2.jpg?v=1775754304"},"aspect_ratio":0.994,"height":500,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B07QGQ1SR2.jpg?v=1775754304","width":497},{"alt":null,"id":34662682230937,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61kkwxB9lsL.jpg?v=1758928019"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61kkwxB9lsL.jpg?v=1758928019","width":1300},{"alt":null,"id":34662682263705,"position":3,"preview_image":{"aspect_ratio":0.726,"height":1600,"width":1162,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61oeDRVxyjL.jpg?v=1758928019"},"aspect_ratio":0.726,"height":1600,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61oeDRVxyjL.jpg?v=1758928019","width":1162},{"alt":null,"id":34662682296473,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61yHGahLt8L.jpg?v=1758928019"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61yHGahLt8L.jpg?v=1758928019","width":1000},{"alt":null,"id":34662682329241,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61ZqHvrU_fL.jpg?v=1758928019"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61ZqHvrU_fL.jpg?v=1758928019","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTECNOIOT 1.3 inch IPS HD TFT ST7789 Drive IC 240 x 240 Full Colour LCD Display Module | 1.3 Inch IPS HD TFT ST7789 IC 240 x 240 Full Colour LCD Display Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1 x 1.3 inch IPS HD TFT ST7789 drive IC 240 x 240 full colour LCD display\nmodule. Features: Size: 1.3 inches. Active area: 23.4 x 23.4 mm. Module size:\n26.16 x 29.22 mm. Resolution: 240 x 240 (display direction can be adjusted,\nhorizontal screen and vertical screen are OK). Drive IC: ST7789. Colour: full\ncolour. Viewing Direction: Full viewing angle. Interface: 4-wire SPI\ninterface. PIN NO. : 12 pin. Voltage: 3.3 V. Working Temp. : -20 ~ 70 degrees.\nPin Descriptions: PIN No Symbol Description 1 GND Soil 2 VDC power 3.3 V. 3\nSCL Series watch pin. 4 SDA Data Entry Series 5 RES LCM reset pin. This pin is\nresetting the signal input. When the pin is low, the initialization of the\nchip is Executed! Keep this plug high during normal operation. 6 DC data \/\ncontrol. 7 BLK control pin background Package contains: 1 x 1.3 inch IPS HD\nTFT ST7789 drive display module.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eResolution: 240 x 240 (the direction of the screen can be adjusted, the horizontal and vertical screen are fine)\u003c\/li\u003e\n \u003cli\u003eCompact DesignInterface: 4-wire SPI interface, NO. Pin: 12 pin\u003c\/li\u003e\n \u003cli\u003eHigh performance: display direction: full viewing angle\u003c\/li\u003e\n \u003c\/ul\u003e"}
