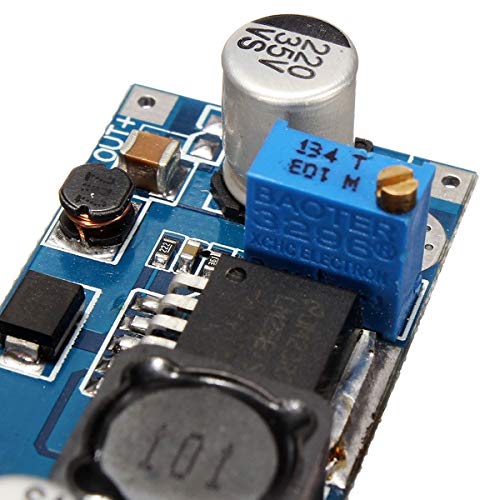

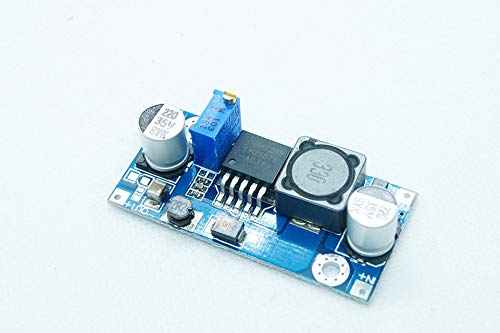

TECNOULAB 5pcs LM2587 DC DC Step-up 3-30V Step-up 4-35V Power Supply Modules Max 5A

In Stock. Leaves warehouse within 2 - 3 business days

$143.00 AUD
Maximum quantity available reached.
Shop with us and enjoy FREE shipping on every order.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

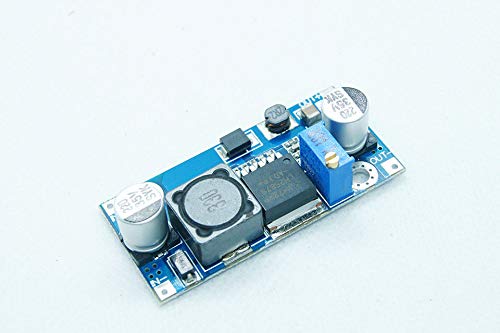

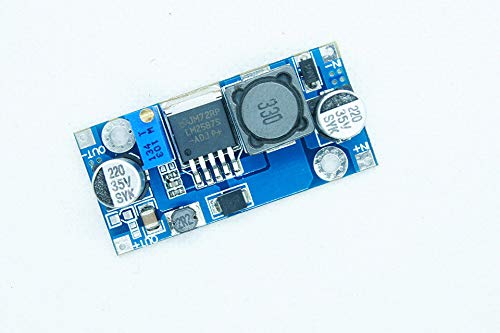

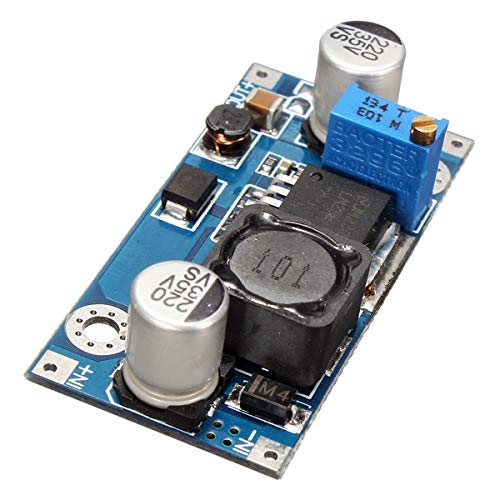

TECNOULAB 5pcs LM2587 DC DC Step-up 3-30V Step-up 4-35V Power Supply Modules Max 5A

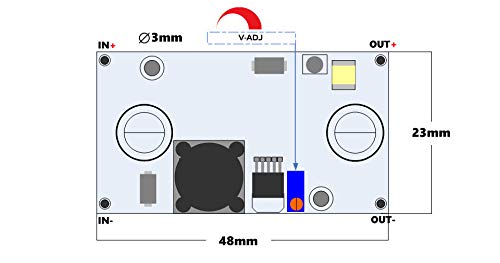

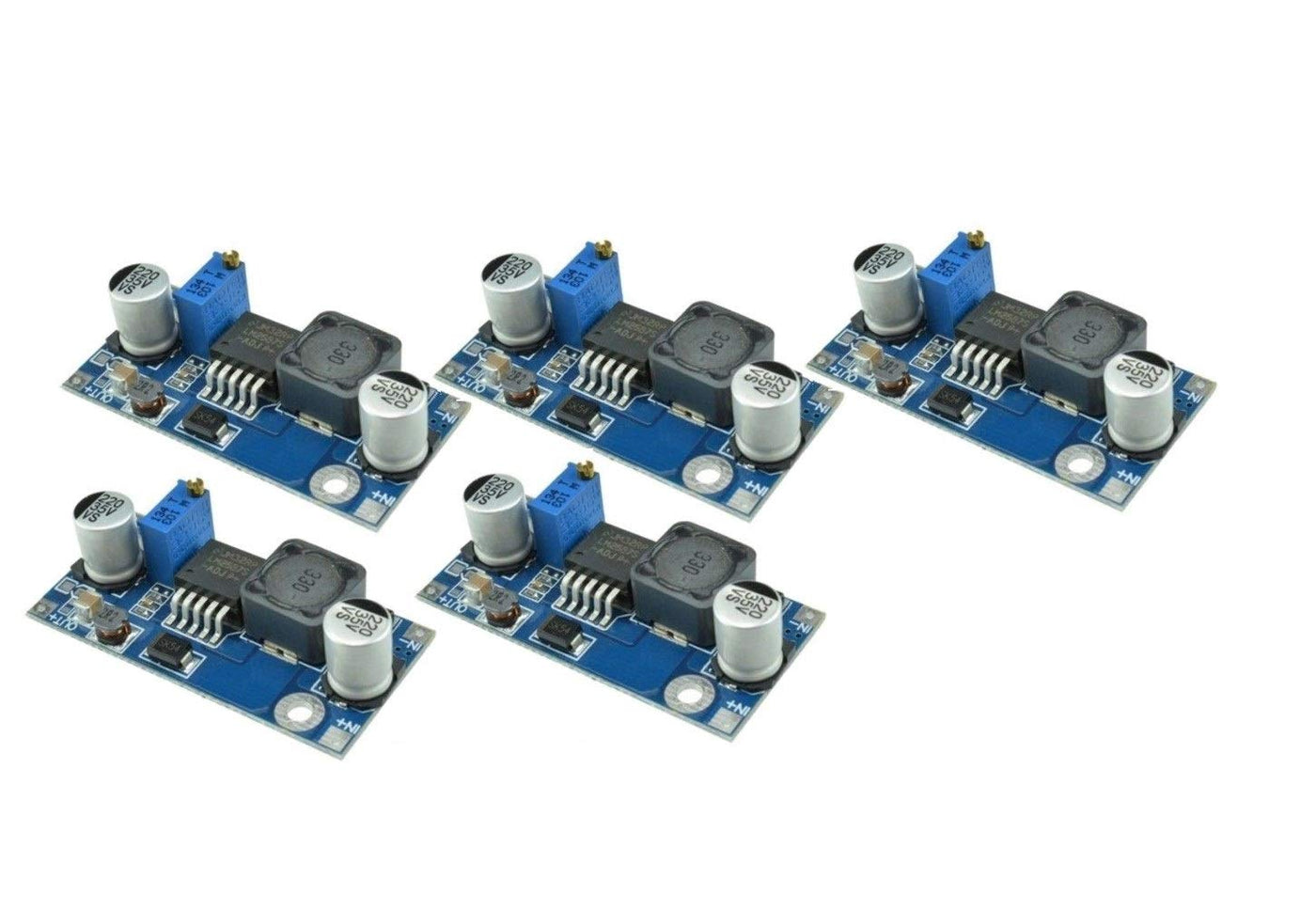

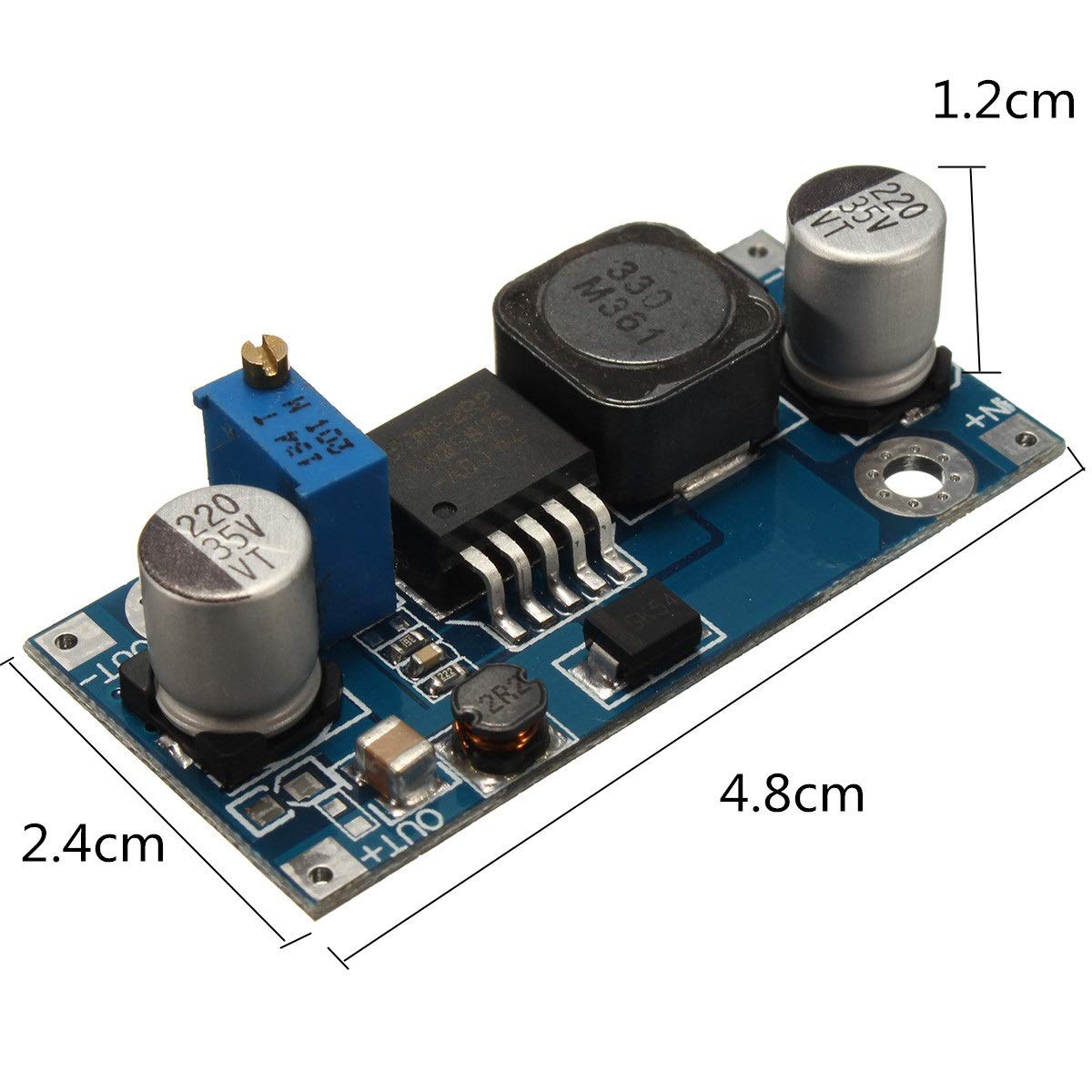

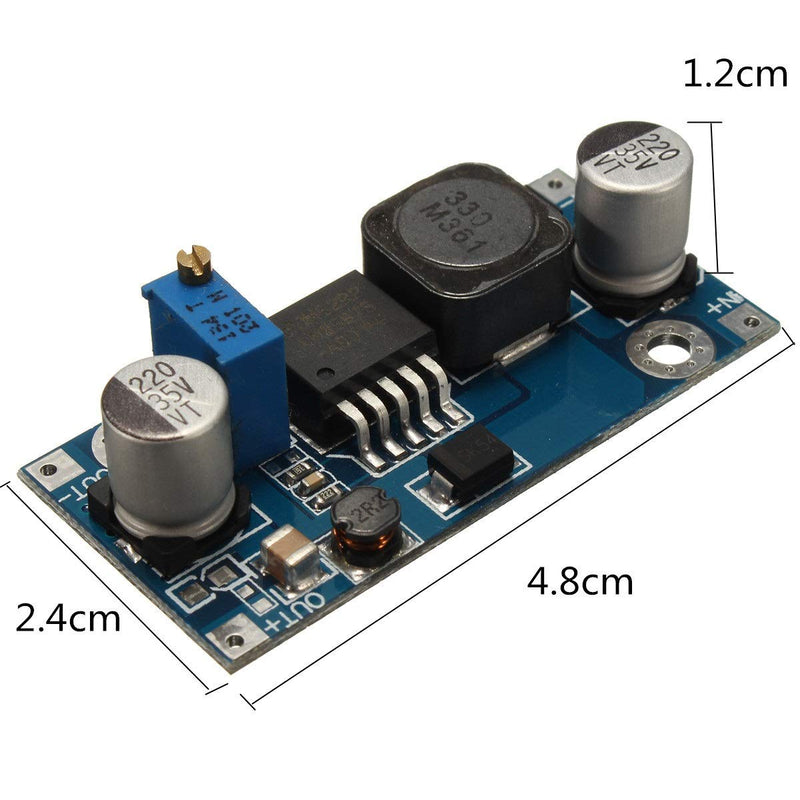

x5pcs LM2587 DC-DC Boost Converter 3-30V Step up to 4-35V Power Supply Module MAX 5A. Module properties: non-isolated step-up module(Boost). Rectification: Non-Synchronous Rectification Input voltage: DC 3-30 V (note: the boost module input voltage can not be higher than the output voltage, the output stable at the set value) Output voltage: DC 4-35V. Output current: 5A MAX, (15mA unload). Conversion efficiency: 92% (max). Switching frequency: 100KHz. Output ripple: 50mV (max). Load regulation: ± 0.5%. Voltage regulation: ± 0.5%. Operating temperature: -40°C to +85°C. Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease). Dimensions: 48 x 23 x 14 mm ( 1 7/8 x 15/16 x 9/16 in ) Package contents: 5pcs x LM2587 DC-DC Boost Converter.

Product Features

  • LM2587LM2587 DC-DC Step-up Converter 3-30V Boost up to 4-35V MAX 5A Power Supply Module
  • Compact DesignInput voltage: DC 3-30V (Note: the input voltage of the boost module cannot be higher than the output voltage, the output is stable on the set value);
  • High PerformanceConversion Efficiency: 92% (MAX); Switching Frequency: 100KHz; Output Ripple: 50mV (MAX); Load Control: 0.5%; Voltage Regulation: 0.5%.
  • Easy to use: adjustment direction of the potentiometer: clockwise (increase), counterclockwise (decrease). Output voltage: DC 4-35V; Output current: 5A MAX, (discharge 15mA)
  • Fast deliveryFast delivery and high quality from Spain by buying from TECNOULAB SL
