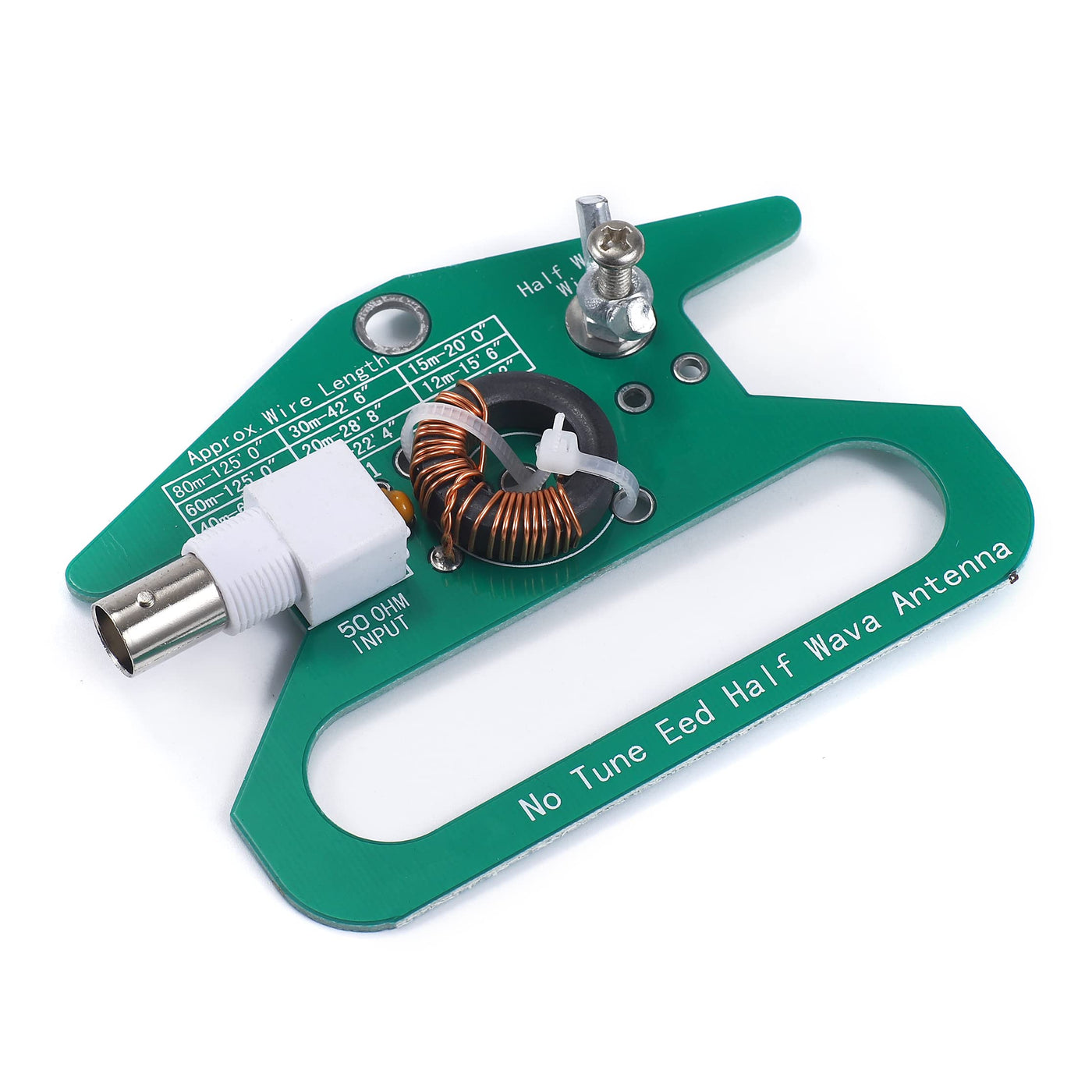

{"id":7674039730329,"title":"Teyleten Robot Portable No Tune End Fed Half Wave Antenna Module Range 80m-10m 50ohm Welded","handle":"teyleten-robot-portable-no-tune-end-fed-half-wave-antenna-module-range-80m-10m-50ohm-welded","description":"\u003ch3\u003eTeyleten Robot Portable No Tune End Fed Half Wave Antenna Module Range 80m-10m 50ohm Welded\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSingle frequency 80m-10m end-fed half-wave linear antenna provides antenna. It\nis designed as a highly portable wired antenna that can easily be set up as an\ninverted-V, horizontal, tilted or vertical radiator (in the case of higher\nfrequencies). Your feeder is basically balanced, so there is no need for a\nseparate feeder. The high impedance half wave line is matched to your 50 ohm\nfeed point via an integrated impedance matching toroidal transformer and is\nrated for 10 watts. Using a high voltage capacitor with a specific radiator\nlength on the primary of the transformer further expands and reduces the SWR\nin the range of 80m-10m. It is designed to be used without a tuner. After\noptimizing the driving components, the standing wave ratio of any part of the\nfrequency band is ≤1.2. 1. Impedance: 50 ohms\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePortable No Tune End Fed Half Wave Antenna Module Range 80m-10m 50ohm Welded\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-06-06T19:10:44+10:00","created_at":"2023-06-06T19:10:52+10:00","vendor":"Teyleten Robot","type":"Radio Antennas","tags":["June2023_cocoonwix"],"price":13400,"price_min":13400,"price_max":13400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43198389321881,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0949DRLV5","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teyleten Robot Portable No Tune End Fed Half Wave Antenna Module Range 80m-10m 50ohm Welded","public_title":null,"options":["Default Title"],"price":13400,"weight":39,"compare_at_price":null,"inventory_management":null,"barcode":"DA14","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/B0949DRLV5.jpg?v=1775806971","\/\/soundstores.net\/cdn\/shop\/products\/713W-5GHCSL.jpg?v=1686042653","\/\/soundstores.net\/cdn\/shop\/products\/71IaUfFCXtL.jpg?v=1686042653","\/\/soundstores.net\/cdn\/shop\/products\/71hTuvofy-L.jpg?v=1686042653","\/\/soundstores.net\/cdn\/shop\/products\/71xcVrM1MyL.jpg?v=1686042653"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/B0949DRLV5.jpg?v=1775806971","options":["Title"],"media":[{"alt":"[AUSTRALIA] - Teyleten Robot Portable No Tune End Fed Half Wave Antenna Module Range 80m-10m 50ohm Welded ","id":29175927373977,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2232,"width":2232,"src":"\/\/soundstores.net\/cdn\/shop\/files\/B0949DRLV5.jpg?v=1775806971"},"aspect_ratio":1.0,"height":2232,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/B0949DRLV5.jpg?v=1775806971","width":2232},{"alt":"[AUSTRALIA] - Teyleten Robot Portable No Tune End Fed Half Wave Antenna Module Range 80m-10m 50ohm Welded ","id":29175359242393,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2402,"width":2402,"src":"\/\/soundstores.net\/cdn\/shop\/products\/713W-5GHCSL.jpg?v=1686042653"},"aspect_ratio":1.0,"height":2402,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/713W-5GHCSL.jpg?v=1686042653","width":2402},{"alt":"[AUSTRALIA] - Teyleten Robot Portable No Tune End Fed Half Wave Antenna Module Range 80m-10m 50ohm Welded ","id":29175359275161,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71IaUfFCXtL.jpg?v=1686042653"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71IaUfFCXtL.jpg?v=1686042653","width":2560},{"alt":"[AUSTRALIA] - Teyleten Robot Portable No Tune End Fed Half Wave Antenna Module Range 80m-10m 50ohm Welded ","id":29175359307929,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1784,"width":1784,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71hTuvofy-L.jpg?v=1686042653"},"aspect_ratio":1.0,"height":1784,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71hTuvofy-L.jpg?v=1686042653","width":1784},{"alt":"[AUSTRALIA] - Teyleten Robot Portable No Tune End Fed Half Wave Antenna Module Range 80m-10m 50ohm Welded ","id":29175359340697,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2548,"width":2548,"src":"\/\/soundstores.net\/cdn\/shop\/products\/71xcVrM1MyL.jpg?v=1686042653"},"aspect_ratio":1.0,"height":2548,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/products\/71xcVrM1MyL.jpg?v=1686042653","width":2548}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTeyleten Robot Portable No Tune End Fed Half Wave Antenna Module Range 80m-10m 50ohm Welded\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSingle frequency 80m-10m end-fed half-wave linear antenna provides antenna. It\nis designed as a highly portable wired antenna that can easily be set up as an\ninverted-V, horizontal, tilted or vertical radiator (in the case of higher\nfrequencies). Your feeder is basically balanced, so there is no need for a\nseparate feeder. The high impedance half wave line is matched to your 50 ohm\nfeed point via an integrated impedance matching toroidal transformer and is\nrated for 10 watts. Using a high voltage capacitor with a specific radiator\nlength on the primary of the transformer further expands and reduces the SWR\nin the range of 80m-10m. It is designed to be used without a tuner. After\noptimizing the driving components, the standing wave ratio of any part of the\nfrequency band is ≤1.2. 1. Impedance: 50 ohms\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePortable No Tune End Fed Half Wave Antenna Module Range 80m-10m 50ohm Welded\u003c\/li\u003e\n \u003c\/ul\u003e"}
