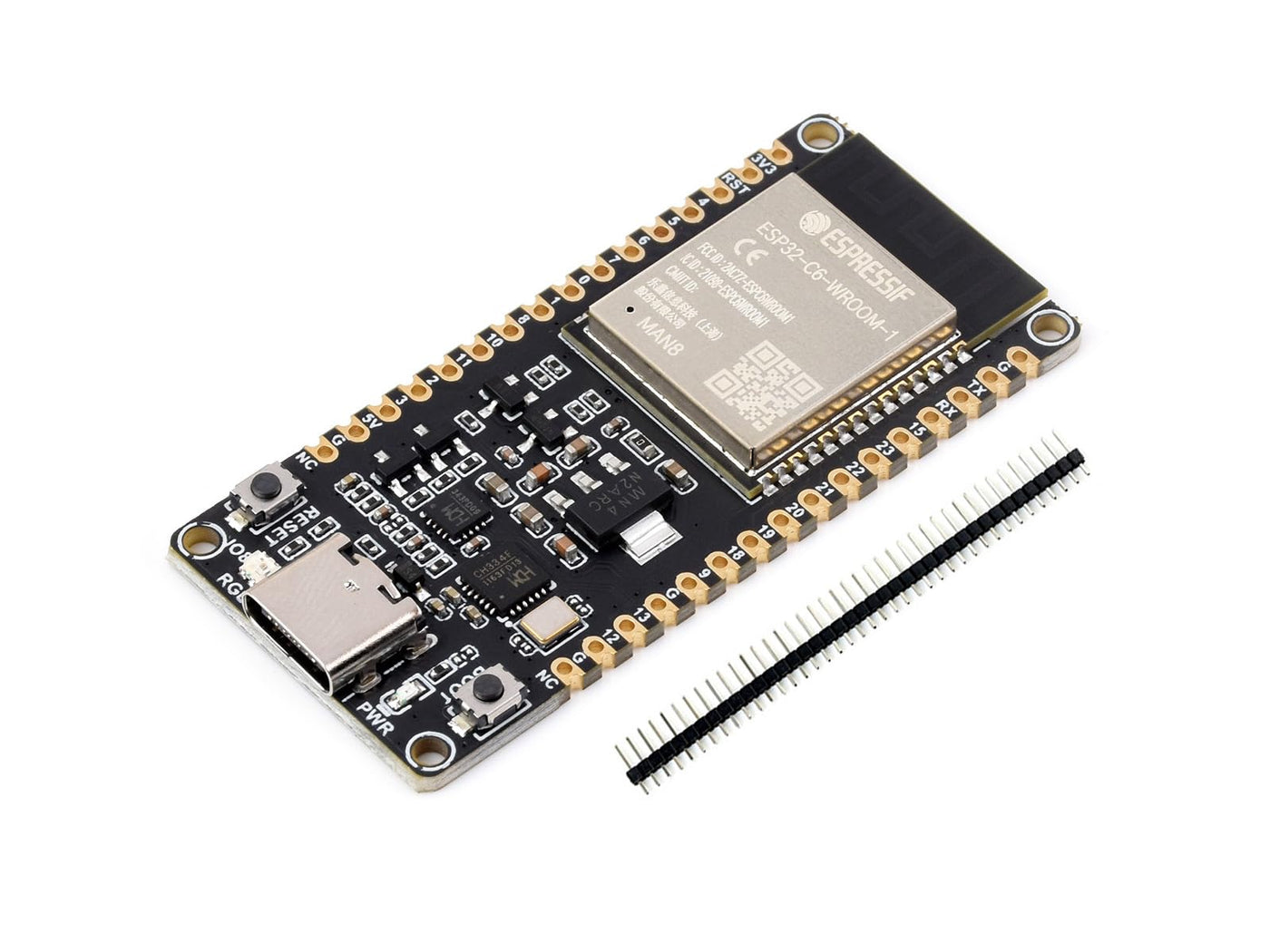

{"id":8528991748249,"title":"waveshare ESP32-C6 RISC-V Microcontroller Development Board Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0\u0026Thread), Adopts ESP32-C6-WROOM-1-N8 Module, Support USB and UART Development","handle":"waveshare-esp32-c6-risc-v-microcontroller-development-board-integrated-wifi-6-bluetooth-5-and-ieee-802-15-4-zigbee-3-0-thread-adopts-esp32-c6-wroom-1-n8-module-support-usb-and-uart-development","description":"\u003ch3\u003ewaveshare ESP32-C6 RISC-V Microcontroller Development Board Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0\u0026amp;Thread), Adopts ESP32-C6-WROOM-1-N8 Module, Support USB and UART Development\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOverview The ESP32-C6-DEV-KIT-N8 is a compact microcontroller development\nboard with multiple peripheral interfaces. In terms of hardware, it adopts\nESP32-C6-WROOM-1 module with a RISC-V 32-bit single-core processor. It\nsupports up to 160MHz clock frequency with built-in 320KB ROM, 512KB HP SRAM,\nand 16KB LP SRAM. Onboard CH343 UART and CH334 USB HUB chips, it supports USB\nand UART development at the same time via a USB-C port. Compatible with the\npinout of ESP32-C6-DevKitC-1-N8 development board, it is more convenient to\nuse and expand a variety of peripheral modules. Comes with online examples and\ntutorials for ESP-IDF development environment, so that you can easily and\nquickly get started and apply it to the product. Features -- Adopts\nESP32-C6-WROOM-1-N8 module with RISC-V 32-bit single-core processor, up to\n160MHz main frequency, built-in 8MB Flash. -- Integrated 320KB ROM, 512KB HP\nSRAM, 16KB LP SRAM, and 8MB Flash memory. -- Integrated 2.4GHz WiFi 6, low-\npower Bluetooth (Bluetooth LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread)\nwireless communication, with superior RF performance. -- Type-C connector,\neasier to use. -- Onboard CH343 and CH334 chips can meet the needs of USB and\nUART development via a Type-C interface. -- Rich peripheral interfaces,\ncompatible with the pinout of ESP32-C6-DevKitC-1-N8 development board, offer\nstrong compatibility and expandability. -- The castellated module allows\nsoldering directly to carrier boards. -- Supports a variety of low-power\noperating states, adjustable communication distance, data rate, and power\nconsumption balance, to meet the power requirements of various application\nscenarios. Package Content 1. ESP32-C6-DEV-KIT-N8 x1 2. 40PIN male\npinheader(black) x2 NOTE: Development Resources and Technical Support are\nprovided, please feel free to contact us if you have any problem!\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eESP32-C6 WiFi 6 microcontroller development board adopts ESP32-C6-WROOM-1-N8 module, which is equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 8MB Flash\u003c\/li\u003e\n \u003cli\u003eIntegrates WiFi 6, Bluetooth 5 and and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance\u003c\/li\u003e\n \u003cli\u003eIntegrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, SDIO and other interfaces, compatible with the pinout of ESP32-C6-DevKitC-1-N8 development board, more convenient to use and expand a variety of peripheral modules\u003c\/li\u003e\n \u003cli\u003eOnboard CH343 and CH334 USB HUB chips, supports USB and UART development at the same time via a USB-C port\u003c\/li\u003e\n \u003cli\u003eComes with online examples and tutorials for ESP-IDF development environment\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T10:31:58+10:00","created_at":"2025-09-23T10:31:55+10:00","vendor":"waveshare","type":"Single Board Computers","tags":["industryDE_Sep2025"],"price":10300,"price_min":10300,"price_max":10300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45739258347673,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0CKTK996T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"waveshare ESP32-C6 RISC-V Microcontroller Development Board Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0\u0026Thread), Adopts ESP32-C6-WROOM-1-N8 Module, Support USB and UART Development","public_title":null,"options":["Default Title"],"price":10300,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"790885235382","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0CKTK996T.jpg?v=1775748611","\/\/soundstores.net\/cdn\/shop\/files\/61Aagy7XuzL.jpg?v=1758587517","\/\/soundstores.net\/cdn\/shop\/files\/61RfcEmYACL.jpg?v=1758587517","\/\/soundstores.net\/cdn\/shop\/files\/61R6kfHh7dL.jpg?v=1758587517","\/\/soundstores.net\/cdn\/shop\/files\/71z5d2upscL.jpg?v=1758587517","\/\/soundstores.net\/cdn\/shop\/files\/6111wsnPo_L.jpg?v=1758587517"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0CKTK996T.jpg?v=1775748611","options":["Title"],"media":[{"alt":null,"id":34597088034969,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0CKTK996T.jpg?v=1775748611"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0CKTK996T.jpg?v=1775748611","width":1600},{"alt":null,"id":34597088067737,"position":2,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61Aagy7XuzL.jpg?v=1758587517"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61Aagy7XuzL.jpg?v=1758587517","width":1600},{"alt":null,"id":34597088100505,"position":3,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61RfcEmYACL.jpg?v=1758587517"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61RfcEmYACL.jpg?v=1758587517","width":1600},{"alt":null,"id":34597088133273,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61R6kfHh7dL.jpg?v=1758587517"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61R6kfHh7dL.jpg?v=1758587517","width":1600},{"alt":null,"id":34597088166041,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71z5d2upscL.jpg?v=1758587517"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71z5d2upscL.jpg?v=1758587517","width":1600},{"alt":null,"id":34597088198809,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/soundstores.net\/cdn\/shop\/files\/6111wsnPo_L.jpg?v=1758587517"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/6111wsnPo_L.jpg?v=1758587517","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ewaveshare ESP32-C6 RISC-V Microcontroller Development Board Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0\u0026amp;Thread), Adopts ESP32-C6-WROOM-1-N8 Module, Support USB and UART Development\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOverview The ESP32-C6-DEV-KIT-N8 is a compact microcontroller development\nboard with multiple peripheral interfaces. In terms of hardware, it adopts\nESP32-C6-WROOM-1 module with a RISC-V 32-bit single-core processor. It\nsupports up to 160MHz clock frequency with built-in 320KB ROM, 512KB HP SRAM,\nand 16KB LP SRAM. Onboard CH343 UART and CH334 USB HUB chips, it supports USB\nand UART development at the same time via a USB-C port. Compatible with the\npinout of ESP32-C6-DevKitC-1-N8 development board, it is more convenient to\nuse and expand a variety of peripheral modules. Comes with online examples and\ntutorials for ESP-IDF development environment, so that you can easily and\nquickly get started and apply it to the product. Features -- Adopts\nESP32-C6-WROOM-1-N8 module with RISC-V 32-bit single-core processor, up to\n160MHz main frequency, built-in 8MB Flash. -- Integrated 320KB ROM, 512KB HP\nSRAM, 16KB LP SRAM, and 8MB Flash memory. -- Integrated 2.4GHz WiFi 6, low-\npower Bluetooth (Bluetooth LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread)\nwireless communication, with superior RF performance. -- Type-C connector,\neasier to use. -- Onboard CH343 and CH334 chips can meet the needs of USB and\nUART development via a Type-C interface. -- Rich peripheral interfaces,\ncompatible with the pinout of ESP32-C6-DevKitC-1-N8 development board, offer\nstrong compatibility and expandability. -- The castellated module allows\nsoldering directly to carrier boards. -- Supports a variety of low-power\noperating states, adjustable communication distance, data rate, and power\nconsumption balance, to meet the power requirements of various application\nscenarios. Package Content 1. ESP32-C6-DEV-KIT-N8 x1 2. 40PIN male\npinheader(black) x2 NOTE: Development Resources and Technical Support are\nprovided, please feel free to contact us if you have any problem!\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eESP32-C6 WiFi 6 microcontroller development board adopts ESP32-C6-WROOM-1-N8 module, which is equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 8MB Flash\u003c\/li\u003e\n \u003cli\u003eIntegrates WiFi 6, Bluetooth 5 and and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance\u003c\/li\u003e\n \u003cli\u003eIntegrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, SDIO and other interfaces, compatible with the pinout of ESP32-C6-DevKitC-1-N8 development board, more convenient to use and expand a variety of peripheral modules\u003c\/li\u003e\n \u003cli\u003eOnboard CH343 and CH334 USB HUB chips, supports USB and UART development at the same time via a USB-C port\u003c\/li\u003e\n \u003cli\u003eComes with online examples and tutorials for ESP-IDF development environment\u003c\/li\u003e\n \u003c\/ul\u003e"}
