WS2812B LED Strip Individual Addressable Light SMD5050 RGB Strip 3.2FT 144Pixels/m 144Pixels Black PCB Full Color LED Pixel Strip Non-Waterproof DC5V 3.2FT 144LEDS Non-Waterproof
WS2812B LED Strip Individual Addressable Light SMD5050 RGB Strip 3.2FT 144Pixels/m 144Pixels Black PCB Full Color LED Pixel Strip Non-Waterproof DC5V

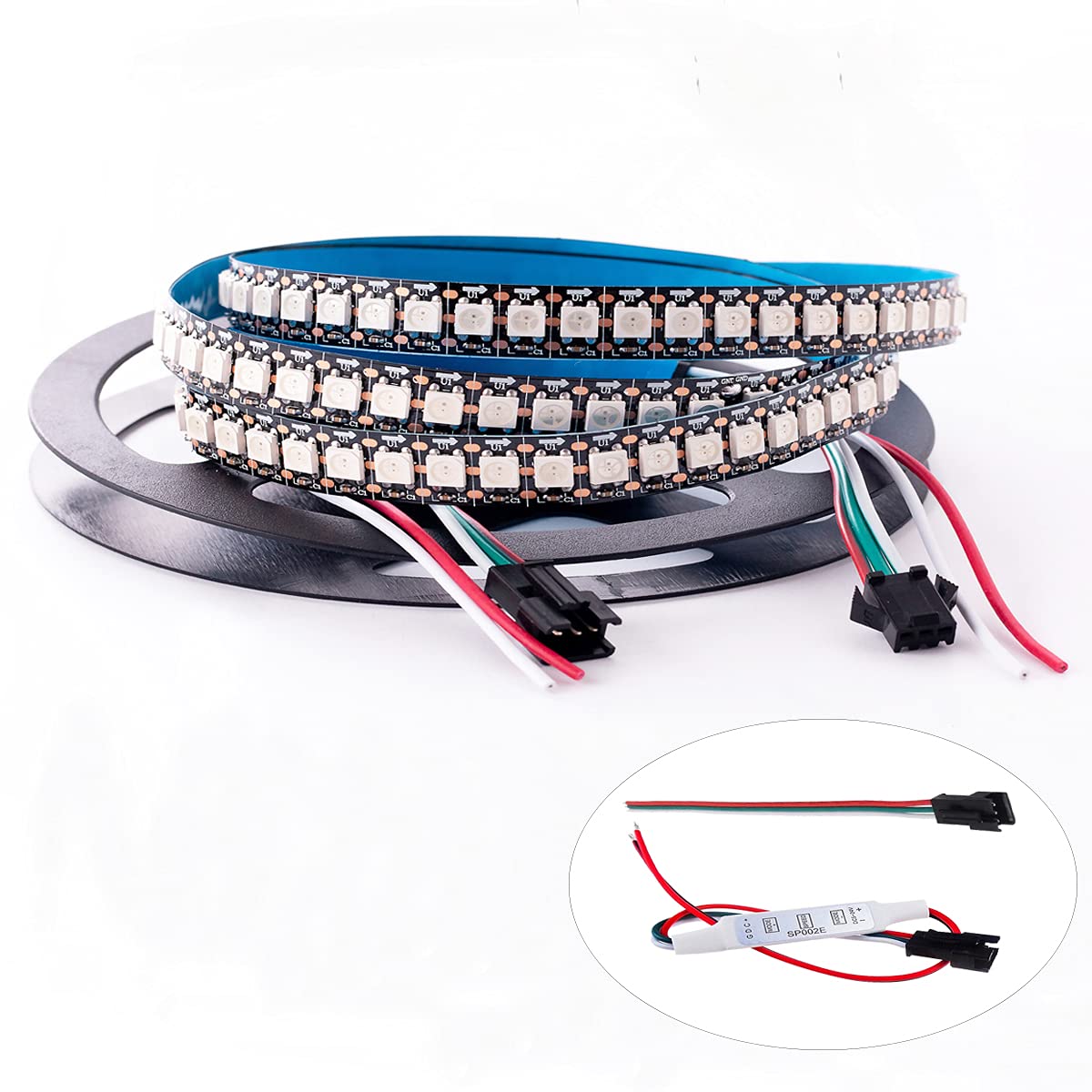

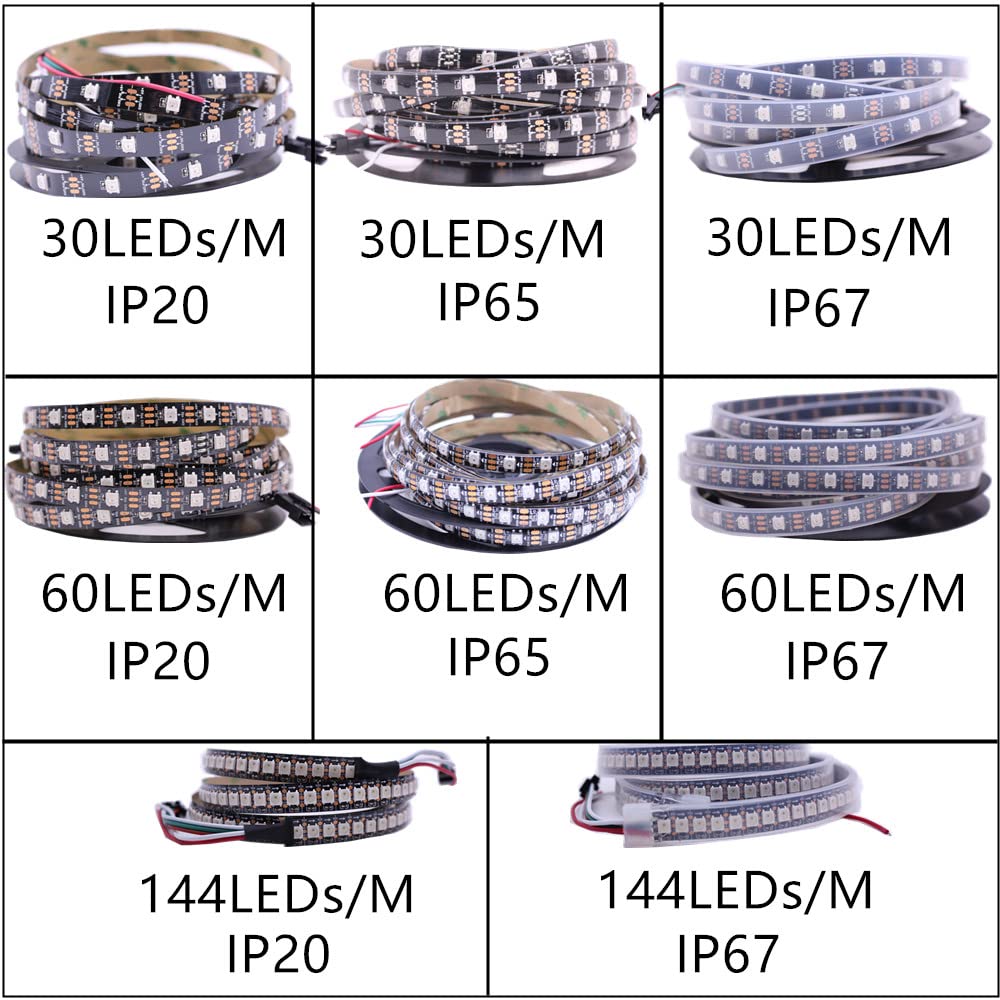

Every 0.5meter with solder joints, please note! Pay attention: White PCB Black PCB 30leds/m, 60leds/m, 144leds/m Features: Input voltage : DC 5V; Power : 30leds/m----9 watt/meter 60leds/m----18 watt/meter 144leds/m----43.2 watt/meter LED resource : WS2812B led(5050 SMD RGB LED with built-in improved version of ws2811 ic) LED : each LED is separately controlled IC Type : improved version ws2812 IC(built inside the 5050 smd rgb led) of IC : (1 IC drives 1 led chip); Pixels : 30/60/74/96/144/meter; Grey scale : 256; Bits/color : 8-bits/color; FPCB Width : 30leds/m----10mm 60leds/m ----10mm 144leds/m----12mm Protection rate : IP30 Non-Waterproof IP65 Waterproof in Silicon Coating IP67 Waterproof in Silicone Tube Colors : Full color RGB, dream color changing; Cuttable : every LED is cuttable; Package : in anti-static bag,IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive) each strip with one free male connector for connectol Package: 1x WS2812 LED strip 1x3pin male connector Power adapter or controller is not included(Only DC5V)
Product Features
- Dream full color Programmable LED Strip,WS2812B led, WS2812B IC Built in 5050SMD.256 brightness display and 24-bit color display.It comes with 3pin JST-SM connectors on both ends for easy installation and separated power/ground wires on both ends. Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.
- INDIVIDUALLY ADDRESSABLE LED STRIP: WS2812b is the digitally-addressable pixels type of LED strip. Each SMD 5050 LED has a built-in integrated driver IC, which either allows you to control the color and brightness independently or is beneficial for you to add complex lighting effects to a project accordingly. And it is made of pure gold wire, which has long lifespan
- HOW TO MAKE IT WORK? You need a 5V power supply and a pixel controller, or other controlling systems; 3.2ft 144leds require a 5V 9A 45W power supply to make it work(not included). Please dont use higher than 6V; otherwise, it will destroy the entire strip. Also, each LED can be cut off individually without damaging the rest strip.

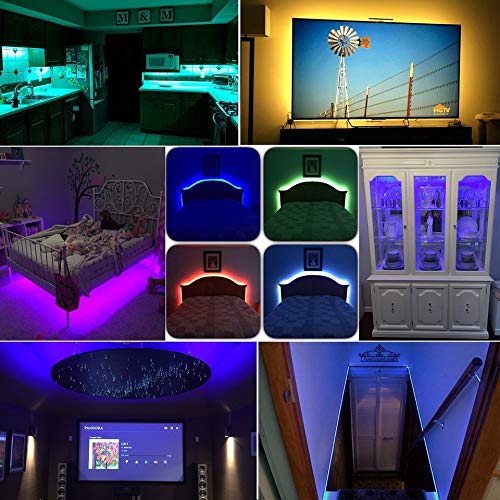

- WIDELY APPLICANTS: WS2812b multi-colored led strips can be applied to hotels, KTV, bar, game room, Christmas decorations to heighten the atmosphere, car/shop/home decoration, and so on. As it is a non-waterproof type, it is merely workable for indoor decorations.
- Only Support DC5V.Never use DC12V or DC24V. Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.
