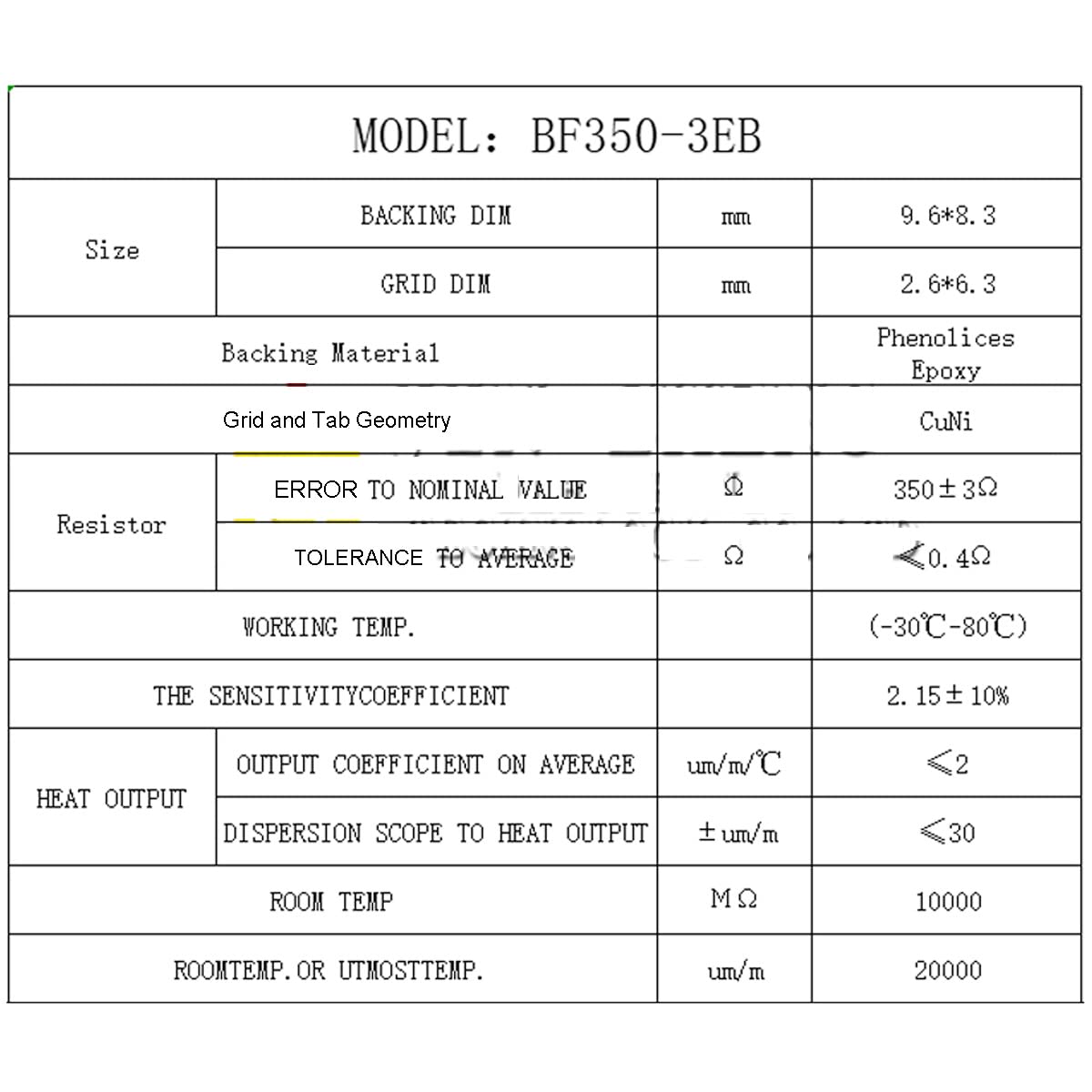

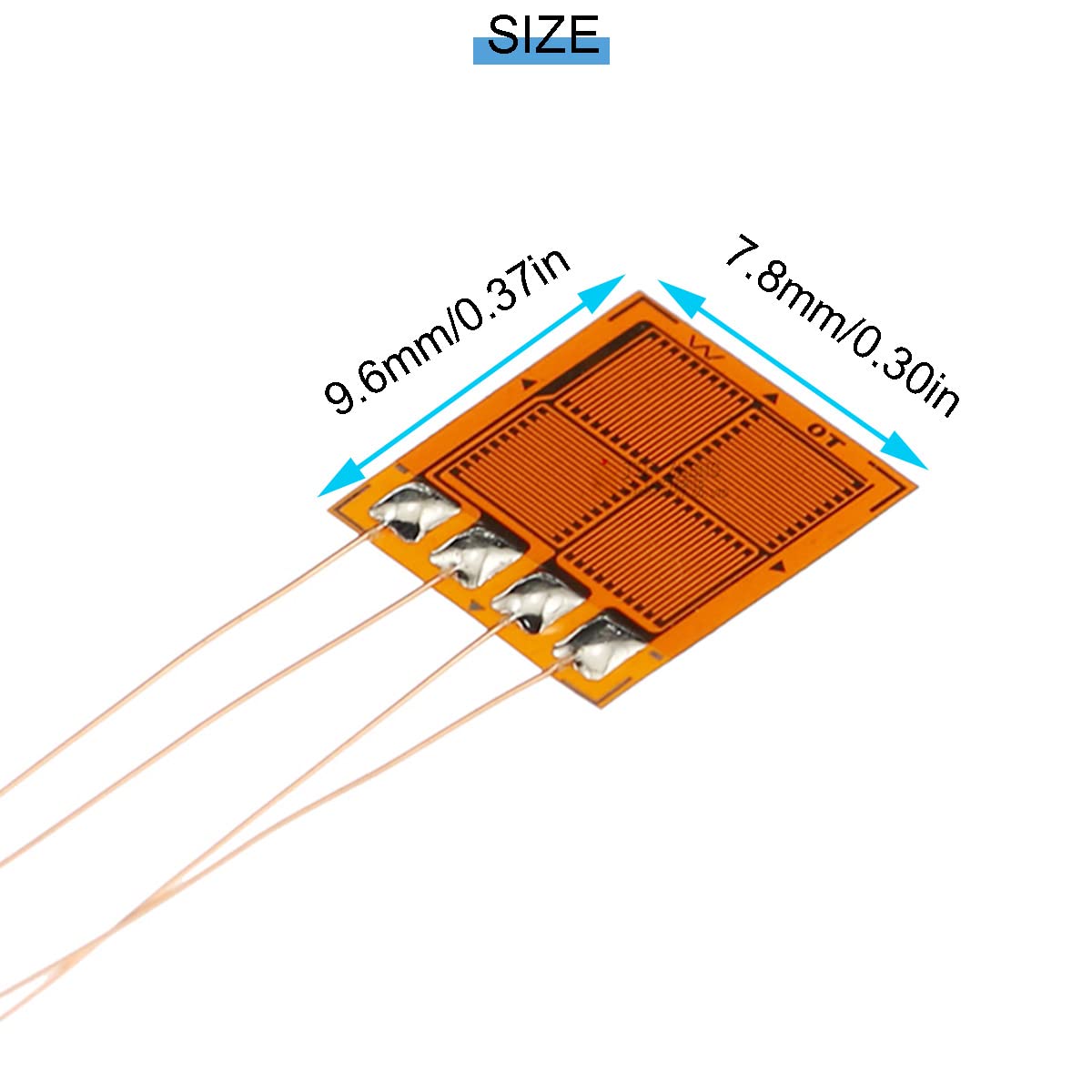

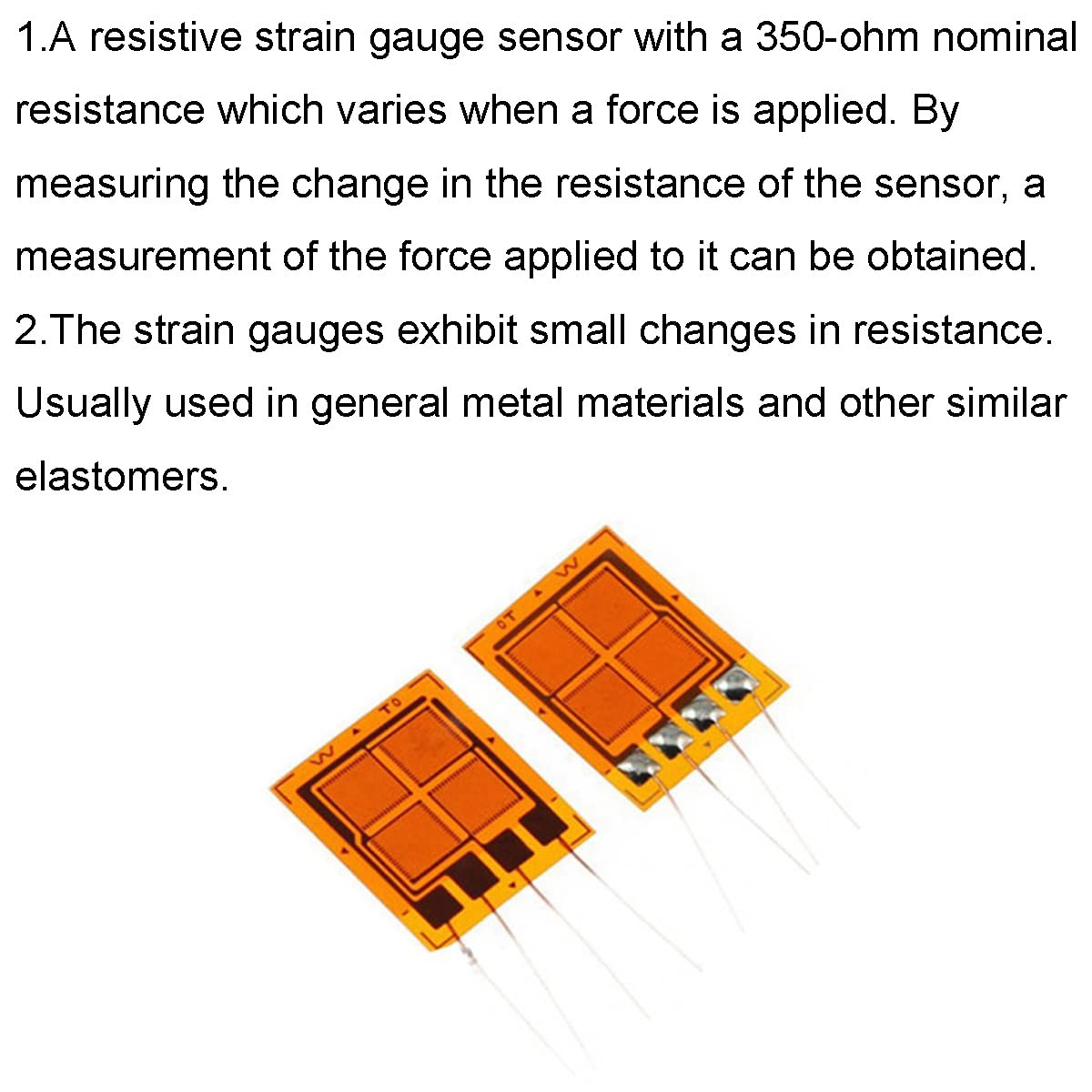

{"id":8534641803417,"title":"Youmile 2 Pieces Strain Gauges BF350-3EB BF350 350 Ohm Full Bridge DMS Foil DMS High Precision Pressure Sensor","handle":"youmile-2-pieces-strain-gauges-bf350-3eb-bf350-350-ohm-full-bridge-dms-foil-dms-high-precision-pressure-sensor","description":"\u003ch3\u003eYoumile 2 Pieces Strain Gauges BF350-3EB BF350 350 Ohm Full Bridge DMS Foil DMS High Precision Pressure Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePackage includes: Foil Resistance Strain Gauge 1.A resistive strain gauge\nsensor with a 350-ohm nominal resistance which varies when a force is applied.\nBy measuring the change in the resistance of the sensor, a measurement of the\nforce applied to it can be obtained. 2.The strain gauges exhibit small changes\nin resistance. Usually used in general metal materials and other similar\nelastomers. Specification Model: BF350-3EB. Size: base length base width\n(9.6mm7.8mm): grid length grid width (2.25mm6.8mm) Base material: phenolic\nepoxy. Sensitive grid material: imported constantan. Tolerance of resistance\nto nominal value: ±10%Ω Bridge zero balance (5V power on): greater than or\nequal to 0.5Ω\/mV Applicable temperature: normal temperature (-30°C ~ +80°C).\nSensitivity coefficient and dispersion: 2.1±1%. Heat output: heat output\ncoefficient: greater than or equal to 2 (um\/m\/°C); dispersion to average heat\noutput: greater than or equal to 30 (±um\/m) Insulation resistance at room\ntemperature: 10000\/MΩ Strain limit at room temperature: 20000 (um\/m).\nMechanical lag: 1.2 (um\/m) Package includes: 2 x BF350-3EB strain gauges\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e350 Ohm: a strain gauge sensor with a rated resistance of 350 ohms, which changes when a force is applied. By measuring the resistance change of the sensor, a measurement of the force exerted on it can be obtained.\u003c\/li\u003e\n \u003cli\u003eConstantaneous film: The substrate is made of modified phenolphthalein and the grid is made of constant film.\u003c\/li\u003e\n \u003cli\u003eSize: The specification of 9.6 mm x 7.8 mm facilitates heat dissipation, consumes less electricity per unit area and is easy to glue and solder.\u003c\/li\u003e\n \u003cli\u003eHigh precision: with high precision and good static measurement stability\u003c\/li\u003e\n \u003cli\u003eTemperature Compensation: Simultaneous temperature self-compensation and creep compensation.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-28T13:38:37+10:00","created_at":"2025-09-28T13:38:34+10:00","vendor":"Youmile","type":"Pressure Probes \u0026 Sensors","tags":["industryDE_Sep2025"],"price":11400,"price_min":11400,"price_max":11400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45751403446425,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B5GRF8BW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Youmile 2 Pieces Strain Gauges BF350-3EB BF350 350 Ohm Full Bridge DMS Foil DMS High Precision Pressure Sensor","public_title":null,"options":["Default Title"],"price":11400,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"JK-YM-505","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0B5GRF8BW.jpg?v=1775755396","\/\/soundstores.net\/cdn\/shop\/files\/51I4JpE3DUL.jpg?v=1759030716","\/\/soundstores.net\/cdn\/shop\/files\/61yrzqJHEEL.jpg?v=1759030716","\/\/soundstores.net\/cdn\/shop\/files\/61gbRzbHITL.jpg?v=1759030716","\/\/soundstores.net\/cdn\/shop\/files\/61HRCoGo9IL.jpg?v=1759030716","\/\/soundstores.net\/cdn\/shop\/files\/61pALt_7M-L.jpg?v=1759030716","\/\/soundstores.net\/cdn\/shop\/files\/51PCSKz4IEL.jpg?v=1759030716"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B5GRF8BW.jpg?v=1775755396","options":["Title"],"media":[{"alt":null,"id":34673919819929,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B5GRF8BW.jpg?v=1775755396"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B5GRF8BW.jpg?v=1775755396","width":1200},{"alt":null,"id":34673919852697,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51I4JpE3DUL.jpg?v=1759030716"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51I4JpE3DUL.jpg?v=1759030716","width":1200},{"alt":null,"id":34673919885465,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61yrzqJHEEL.jpg?v=1759030716"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61yrzqJHEEL.jpg?v=1759030716","width":1200},{"alt":null,"id":34673919918233,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61gbRzbHITL.jpg?v=1759030716"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61gbRzbHITL.jpg?v=1759030716","width":1200},{"alt":null,"id":34673919951001,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61HRCoGo9IL.jpg?v=1759030716"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61HRCoGo9IL.jpg?v=1759030716","width":1200},{"alt":null,"id":34673919983769,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61pALt_7M-L.jpg?v=1759030716"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61pALt_7M-L.jpg?v=1759030716","width":1200},{"alt":null,"id":34673920016537,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51PCSKz4IEL.jpg?v=1759030716"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51PCSKz4IEL.jpg?v=1759030716","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eYoumile 2 Pieces Strain Gauges BF350-3EB BF350 350 Ohm Full Bridge DMS Foil DMS High Precision Pressure Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePackage includes: Foil Resistance Strain Gauge 1.A resistive strain gauge\nsensor with a 350-ohm nominal resistance which varies when a force is applied.\nBy measuring the change in the resistance of the sensor, a measurement of the\nforce applied to it can be obtained. 2.The strain gauges exhibit small changes\nin resistance. Usually used in general metal materials and other similar\nelastomers. Specification Model: BF350-3EB. Size: base length base width\n(9.6mm7.8mm): grid length grid width (2.25mm6.8mm) Base material: phenolic\nepoxy. Sensitive grid material: imported constantan. Tolerance of resistance\nto nominal value: ±10%Ω Bridge zero balance (5V power on): greater than or\nequal to 0.5Ω\/mV Applicable temperature: normal temperature (-30°C ~ +80°C).\nSensitivity coefficient and dispersion: 2.1±1%. Heat output: heat output\ncoefficient: greater than or equal to 2 (um\/m\/°C); dispersion to average heat\noutput: greater than or equal to 30 (±um\/m) Insulation resistance at room\ntemperature: 10000\/MΩ Strain limit at room temperature: 20000 (um\/m).\nMechanical lag: 1.2 (um\/m) Package includes: 2 x BF350-3EB strain gauges\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e350 Ohm: a strain gauge sensor with a rated resistance of 350 ohms, which changes when a force is applied. By measuring the resistance change of the sensor, a measurement of the force exerted on it can be obtained.\u003c\/li\u003e\n \u003cli\u003eConstantaneous film: The substrate is made of modified phenolphthalein and the grid is made of constant film.\u003c\/li\u003e\n \u003cli\u003eSize: The specification of 9.6 mm x 7.8 mm facilitates heat dissipation, consumes less electricity per unit area and is easy to glue and solder.\u003c\/li\u003e\n \u003cli\u003eHigh precision: with high precision and good static measurement stability\u003c\/li\u003e\n \u003cli\u003eTemperature Compensation: Simultaneous temperature self-compensation and creep compensation.\u003c\/li\u003e\n \u003c\/ul\u003e"}
