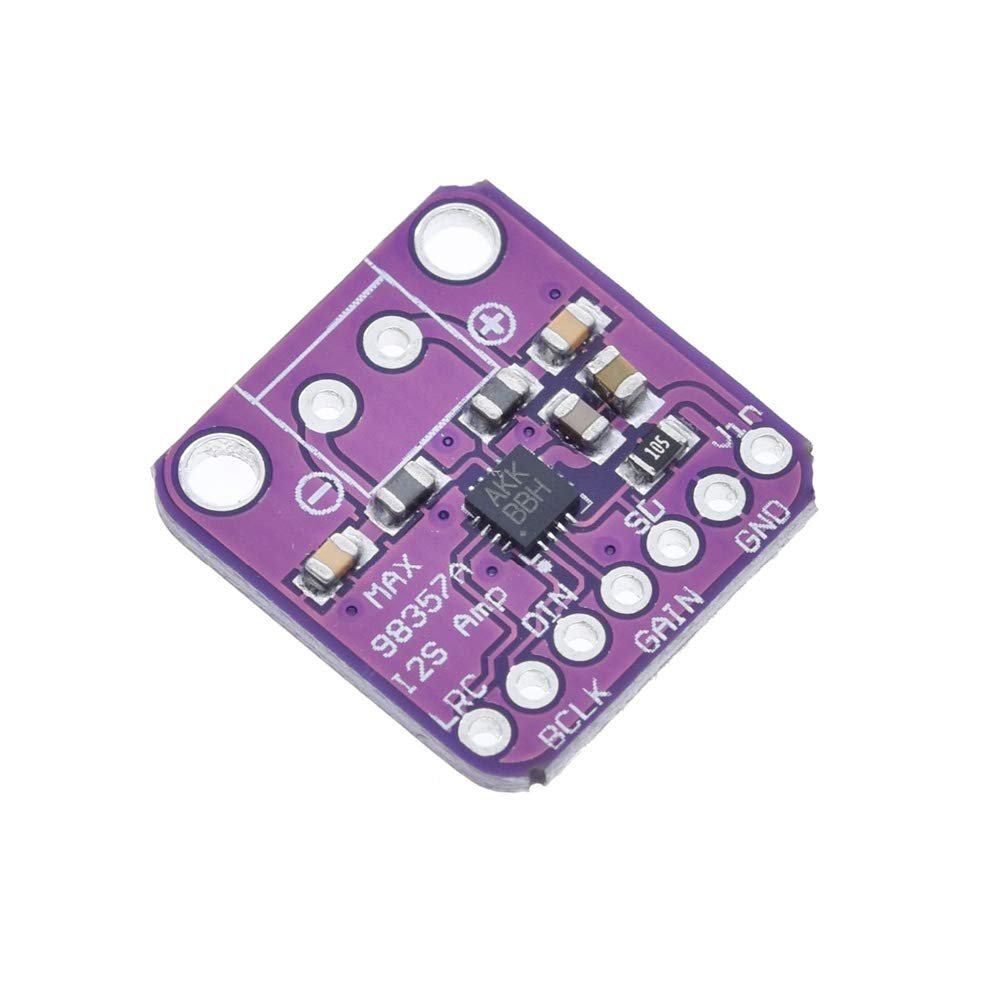

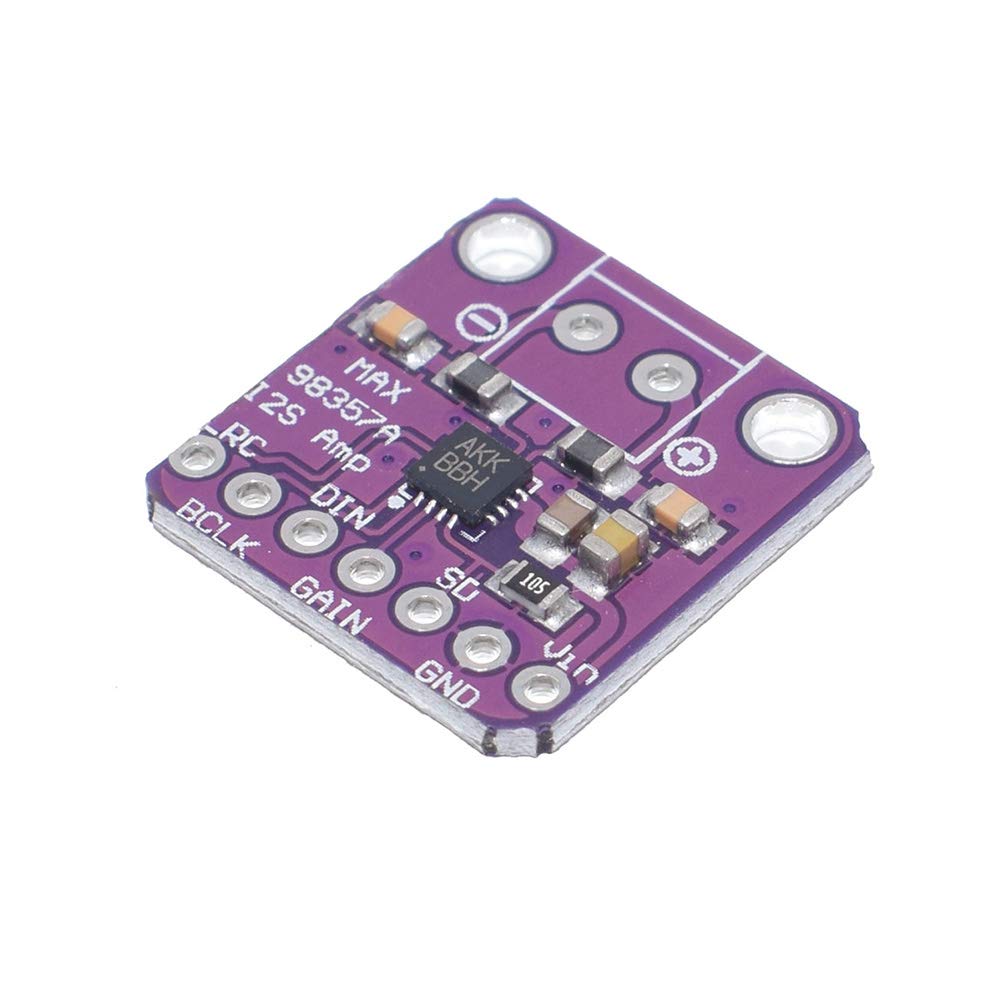

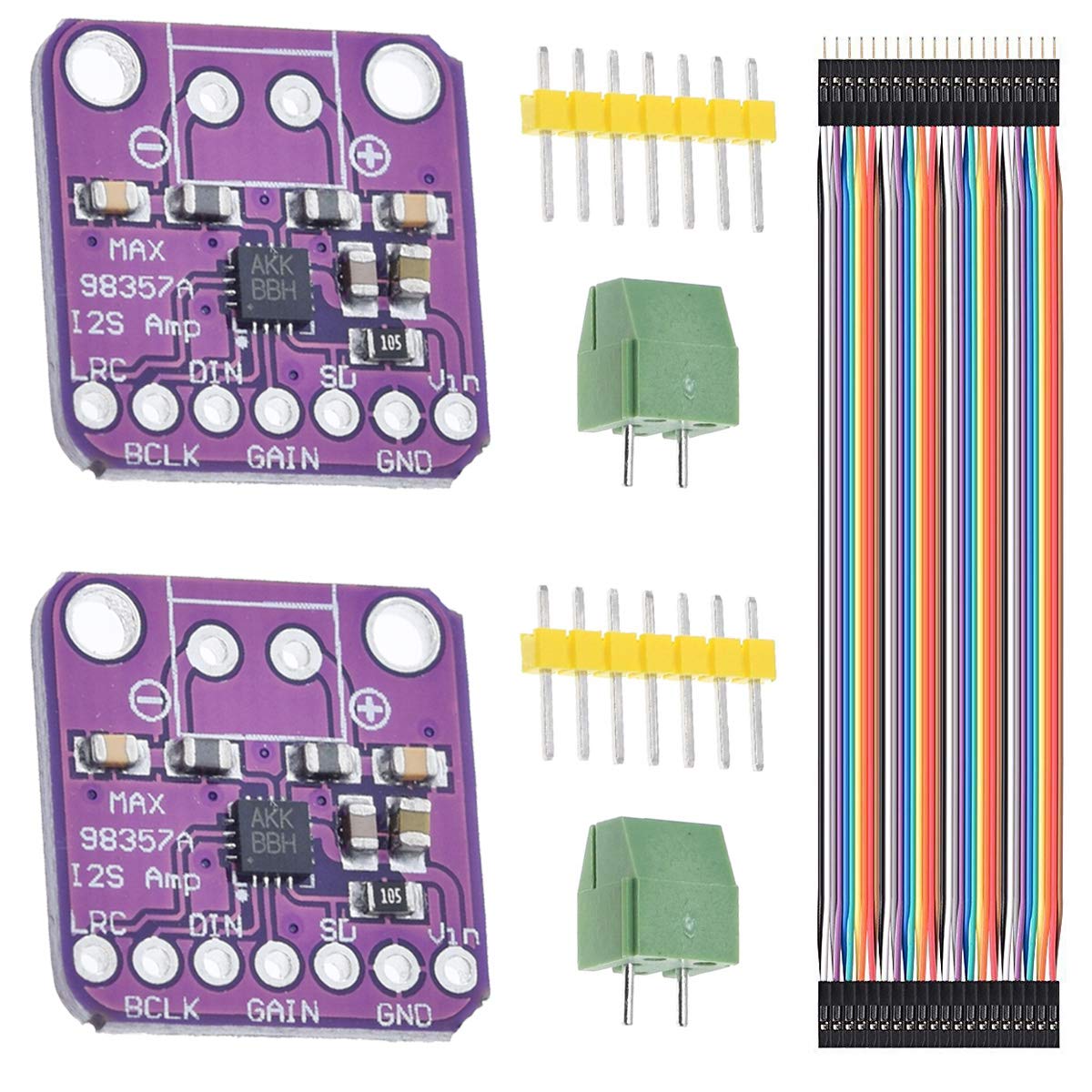

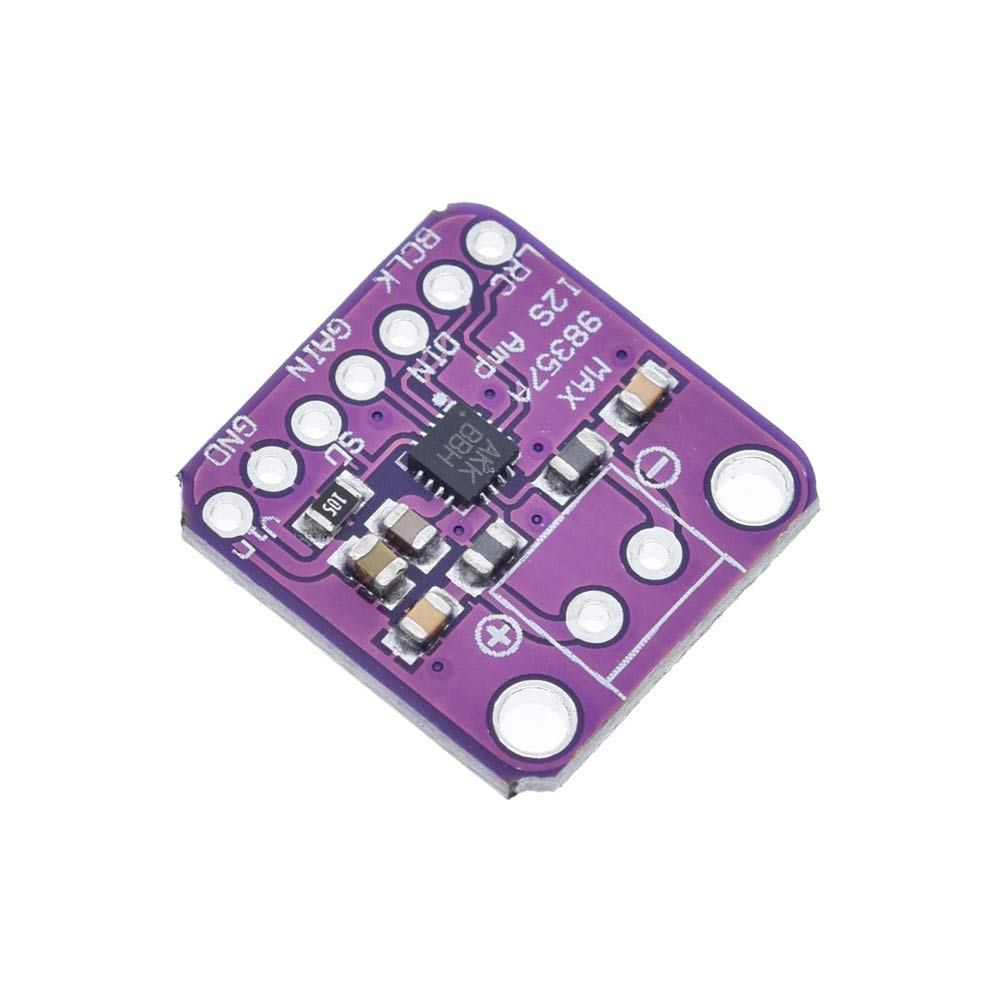

{"id":8530718097561,"title":"Youmile 2pcs MAX98357 Audio Power Amplifier Module I2S Class D Filterless Audio Amplifier Board for Raspberry Pi with Dupont Cable","handle":"youmile-2pcs-max98357-audio-power-amplifier-module-i2s-class-d-filterless-audio-amplifier-board-for-raspberry-pi-with-dupont-cable","description":"\u003ch3\u003eYoumile 2pcs MAX98357 Audio Power Amplifier Module I2S Class D Filterless Audio Amplifier Board for Raspberry Pi with Dupont Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: 1. Output power: 3.2W at 4Ω and 10% THD 1.8W at 8Ω and 10% THD.\n2. I2S sampling rate: 8 kHz - 96 kHz. 3. Class D gain optional:\n3db\/6db\/9db2db\/15db. 4. No master clock (MCLK) required 5. Plug and play: 35\ndifferent clocks and 128. Digital audio formats can be automatically\nconfigured With a single power supply 6. Widely use for Arduino, Raspberry Pi\nand Pin description: 1. LRC: Frame Clock. Left\/right clock for 12S. and LJ\nmode. Sync clock for TDM mode 2. BCLK: bit clock input. 3. DIN: digital input\nsignal. 4. GAIN: Gain and Channel Selection. 5. SD: Shutdown and Channel\nSelect; Pull SD_MODE low to place the device in shutdown. 6. GND: GND 7. VCC:\nDC 2.5V-5.5V. Package includes: 2 x MAX98357 Audio Power Amplifier Module 1 x\n11.8 inch female-male Dupont cables, 20 pin.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOutput power: 3.2W @ 4 and 10% THD 1.8W at 8 and 10% THD; I2S sampling rate: 8KHz-96kHz\u003c\/li\u003e\n \u003cli\u003eClass D gain optional: 3db \/ 6db \/ 9db2db \/ 15db; 35 different clocks and 128 digital audio formats can be automatically configured with a single power supply. C.\u003c\/li\u003e\n \u003cli\u003eFor superior sound quality, the device uses a digital input with high interference resistance and high jitter tolerance. It also provides excellent electromagnetic interference suppression and allows long line speakers without the need for external filtering.\u003c\/li\u003e\n \u003cli\u003eWidely used for Arduino, Raspberry Pi and .\u003c\/li\u003e\n \u003cli\u003ePackage contents: 2 x MAX98357 audio power amplifier module, 1 x 11.8 inch dupont cable between female and male 20 pin\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-25T00:03:35+10:00","created_at":"2025-09-25T00:03:31+10:00","vendor":"Youmile","type":"Signal Components","tags":["industryDE_Sep2025"],"price":11600,"price_min":11600,"price_max":11600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45743445049497,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B08SM2MR9Z","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Youmile 2pcs MAX98357 Audio Power Amplifier Module I2S Class D Filterless Audio Amplifier Board for Raspberry Pi with Dupont Cable","public_title":null,"options":["Default Title"],"price":11600,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"782125252624","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B08SM2MR9Z.jpg?v=1775749793","\/\/soundstores.net\/cdn\/shop\/files\/61SRh1MlUCL.jpg?v=1758722614","\/\/soundstores.net\/cdn\/shop\/files\/61eG1iLdpnL.jpg?v=1758722614","\/\/soundstores.net\/cdn\/shop\/files\/61aklpDVvbL.jpg?v=1758722614","\/\/soundstores.net\/cdn\/shop\/files\/51COgki6a5L.jpg?v=1758722614","\/\/soundstores.net\/cdn\/shop\/files\/51osZVJUngL.jpg?v=1758722614","\/\/soundstores.net\/cdn\/shop\/files\/51dDIVSmiML.jpg?v=1758722614"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08SM2MR9Z.jpg?v=1775749793","options":["Title"],"media":[{"alt":null,"id":34626791702681,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08SM2MR9Z.jpg?v=1775749793"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B08SM2MR9Z.jpg?v=1775749793","width":1200},{"alt":null,"id":34626791735449,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61SRh1MlUCL.jpg?v=1758722614"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61SRh1MlUCL.jpg?v=1758722614","width":1000},{"alt":null,"id":34626791768217,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61eG1iLdpnL.jpg?v=1758722614"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61eG1iLdpnL.jpg?v=1758722614","width":1000},{"alt":null,"id":34626791800985,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61aklpDVvbL.jpg?v=1758722614"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61aklpDVvbL.jpg?v=1758722614","width":1000},{"alt":null,"id":34626791833753,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51COgki6a5L.jpg?v=1758722614"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51COgki6a5L.jpg?v=1758722614","width":1000},{"alt":null,"id":34626791866521,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51osZVJUngL.jpg?v=1758722614"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51osZVJUngL.jpg?v=1758722614","width":1000},{"alt":null,"id":34626791899289,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/soundstores.net\/cdn\/shop\/files\/51dDIVSmiML.jpg?v=1758722614"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/51dDIVSmiML.jpg?v=1758722614","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eYoumile 2pcs MAX98357 Audio Power Amplifier Module I2S Class D Filterless Audio Amplifier Board for Raspberry Pi with Dupont Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: 1. Output power: 3.2W at 4Ω and 10% THD 1.8W at 8Ω and 10% THD.\n2. I2S sampling rate: 8 kHz - 96 kHz. 3. Class D gain optional:\n3db\/6db\/9db2db\/15db. 4. No master clock (MCLK) required 5. Plug and play: 35\ndifferent clocks and 128. Digital audio formats can be automatically\nconfigured With a single power supply 6. Widely use for Arduino, Raspberry Pi\nand Pin description: 1. LRC: Frame Clock. Left\/right clock for 12S. and LJ\nmode. Sync clock for TDM mode 2. BCLK: bit clock input. 3. DIN: digital input\nsignal. 4. GAIN: Gain and Channel Selection. 5. SD: Shutdown and Channel\nSelect; Pull SD_MODE low to place the device in shutdown. 6. GND: GND 7. VCC:\nDC 2.5V-5.5V. Package includes: 2 x MAX98357 Audio Power Amplifier Module 1 x\n11.8 inch female-male Dupont cables, 20 pin.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOutput power: 3.2W @ 4 and 10% THD 1.8W at 8 and 10% THD; I2S sampling rate: 8KHz-96kHz\u003c\/li\u003e\n \u003cli\u003eClass D gain optional: 3db \/ 6db \/ 9db2db \/ 15db; 35 different clocks and 128 digital audio formats can be automatically configured with a single power supply. C.\u003c\/li\u003e\n \u003cli\u003eFor superior sound quality, the device uses a digital input with high interference resistance and high jitter tolerance. It also provides excellent electromagnetic interference suppression and allows long line speakers without the need for external filtering.\u003c\/li\u003e\n \u003cli\u003eWidely used for Arduino, Raspberry Pi and .\u003c\/li\u003e\n \u003cli\u003ePackage contents: 2 x MAX98357 audio power amplifier module, 1 x 11.8 inch dupont cable between female and male 20 pin\u003c\/li\u003e\n \u003c\/ul\u003e"}
