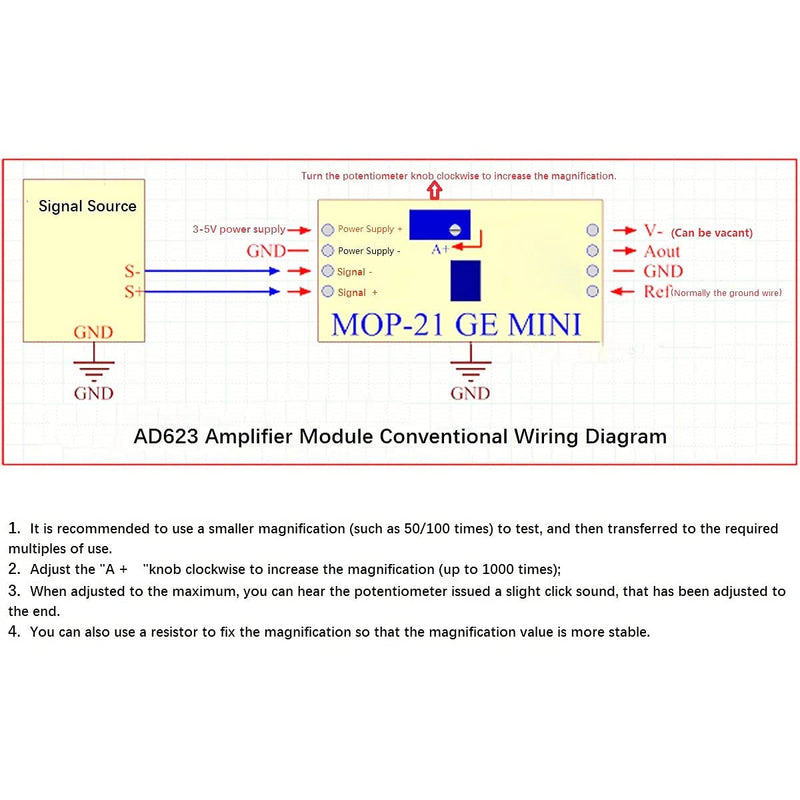

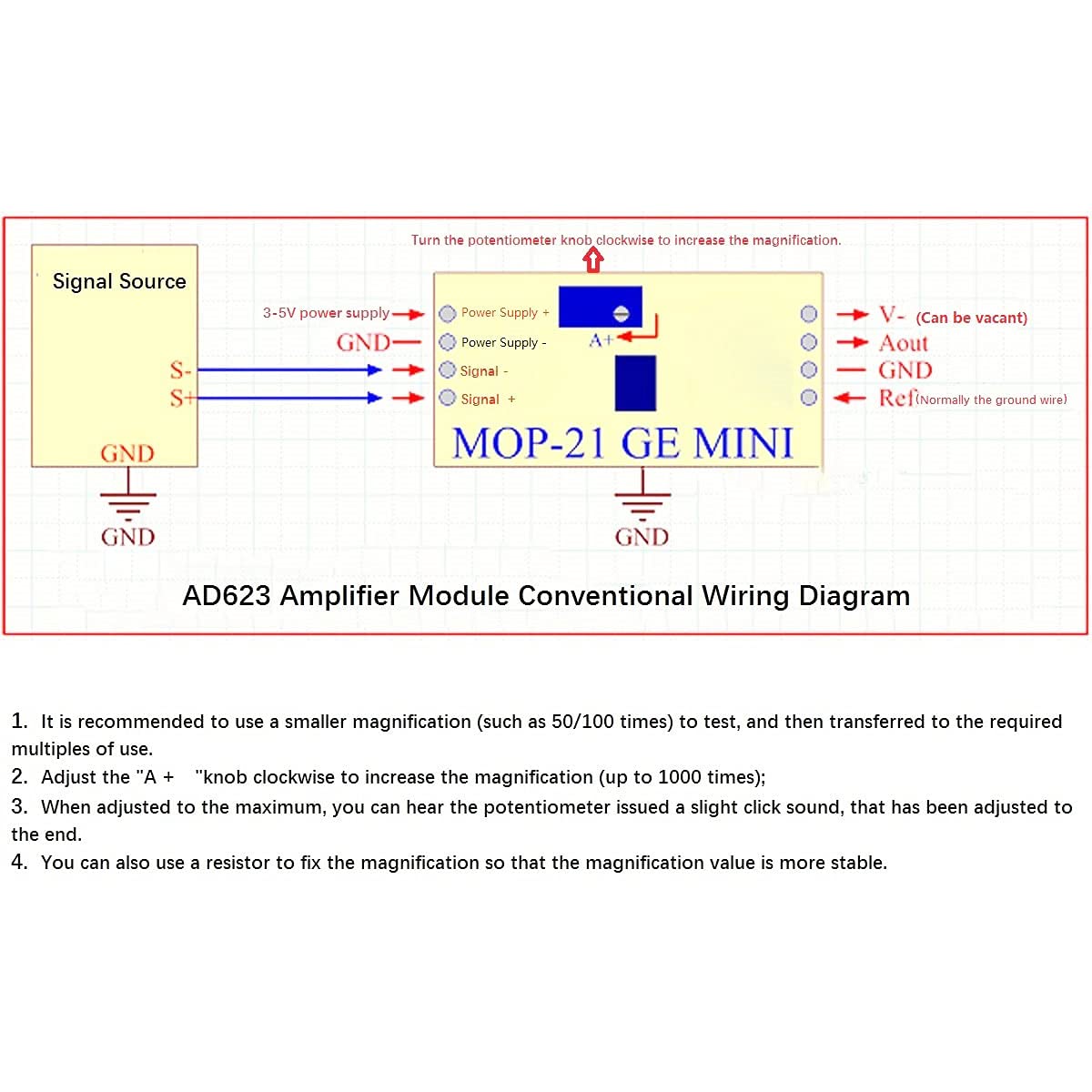

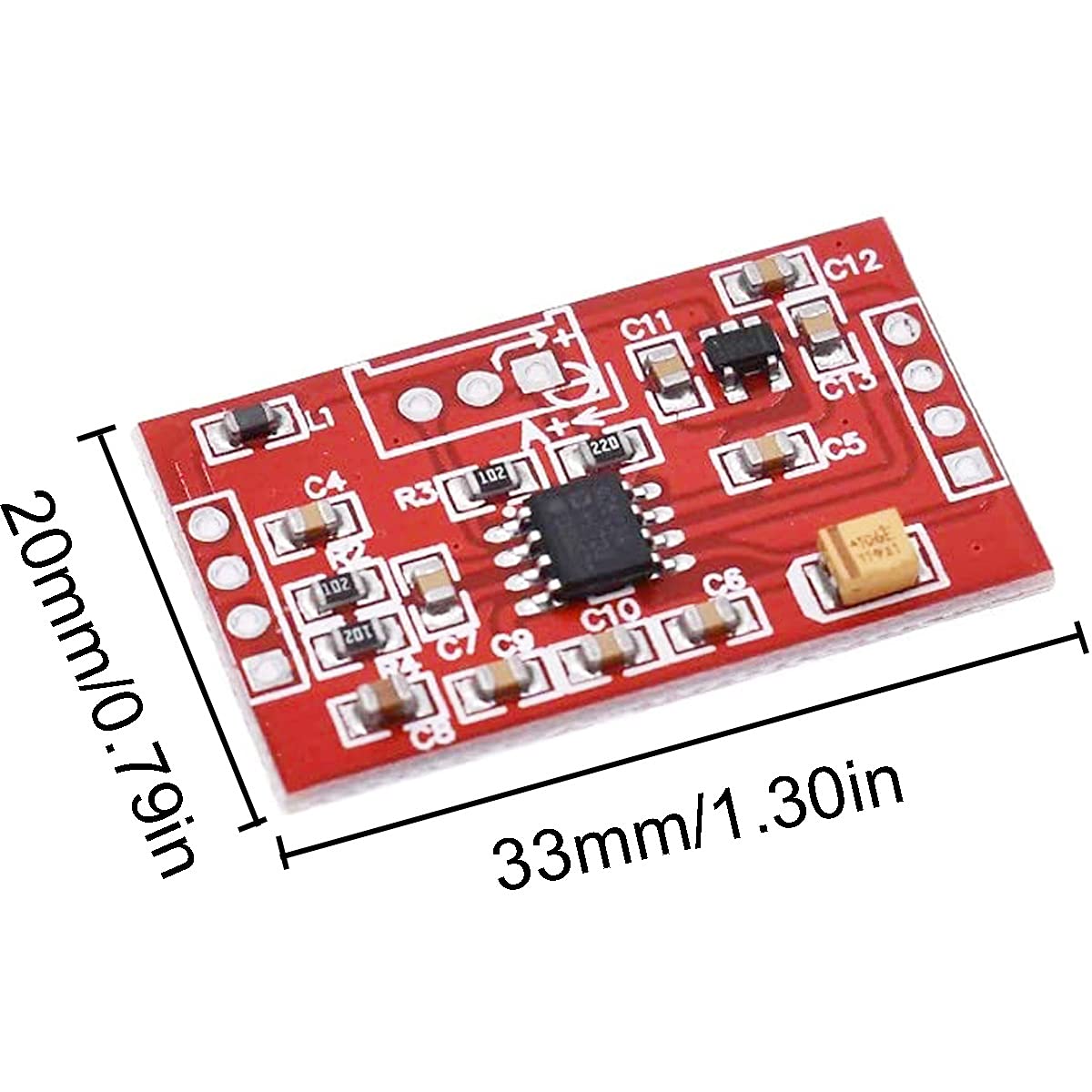

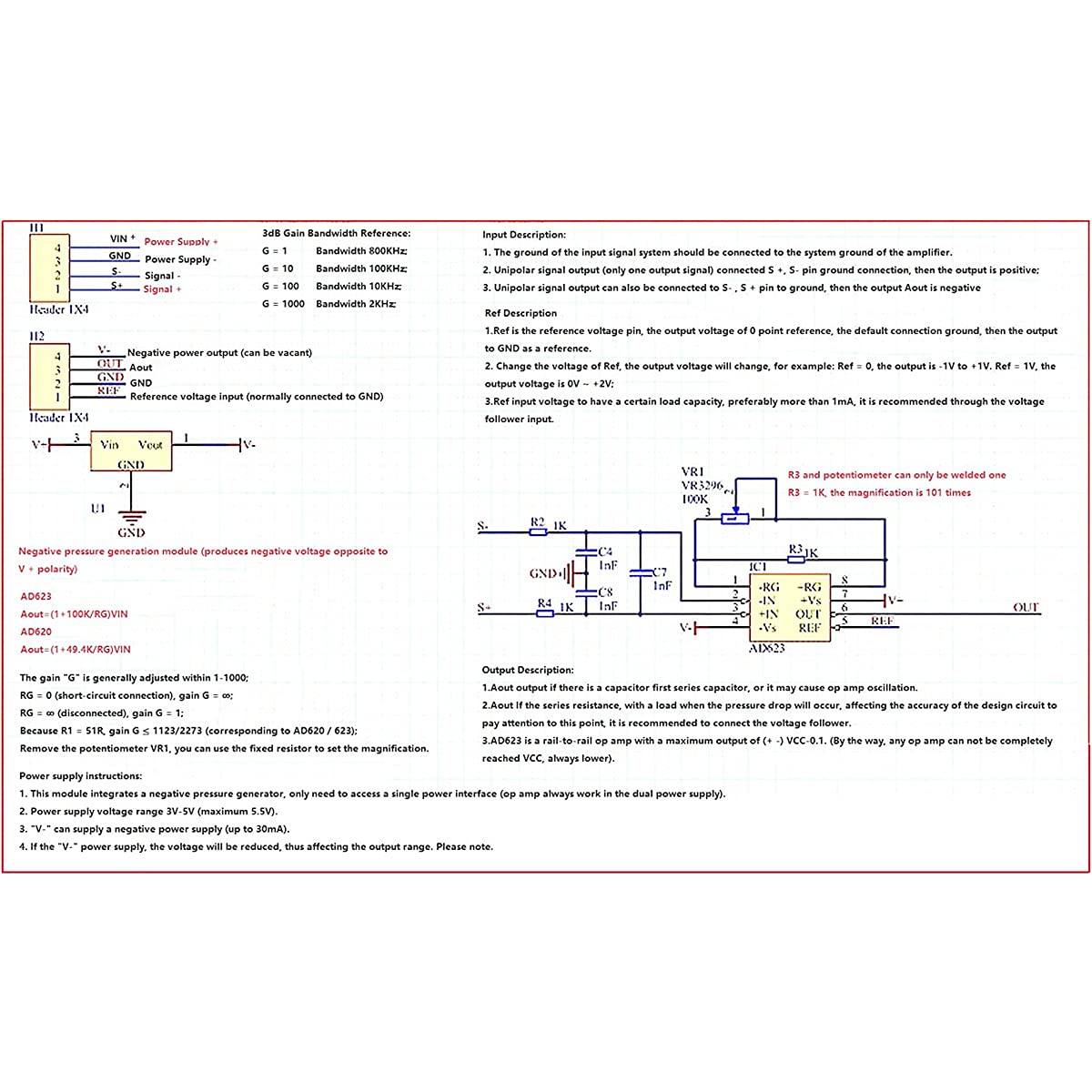

{"id":8533995618457,"title":"Youmile AD623 Voltage Amplifier Module Voltage Amplifier Adjustable Magnification Instrument Amplifier Module with DuPont Cable","handle":"youmile-ad623-voltage-amplifier-module-voltage-amplifier-adjustable-magnification-instrument-amplifier-module-with-dupont-cable","description":"\u003ch3\u003eYoumile AD623 Voltage Amplifier Module Voltage Amplifier Adjustable Magnification Instrument Amplifier Module with DuPont Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct description: Specifications: Input range: 0.5VCC(i.e.the voltage\nbetween S+\/S- is less than half of the power supply voltage). Output range: +\n- VCC (rail to rail). Magnification: 2-1000 times (adjustable with\npotentiometer). Power consumption: 150uA (typical)\/650uA (maximum). Power\nsupply: 3-5.5 V. Gain accuracy: 0.35% (G\u0026gt;2) 0.10% (G=2). Input offset voltage:\n100-200uV. Input offset drift: 1UV\/℃. Common mode rejection ratio: 90 dB. Gain\nbandwidth: 800 kHz. PCB size: 4023mm\/1.570.9in Note: The default\nmagnification is 101 times with R3 resistor. If welding potentiometer, it will\nbe adjustable, Aout=(1+100K\/RG)VIN. Please remove R3 resistor when welding\npotentiometer. Package includes: 1 x AD623 millivolt voltage amplifier module.\n2 x 4-pin headers. 1 x 8PIN male and female DuPont cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eApplication: Low power medical equipment, converter interface, thermocouple amplifier, industrial process control, differential amplifier, low power data acquisition.\u003c\/li\u003e\n \u003cli\u003eAdvantages: Dedicated high-end instrument amplifier AD623 core, high precision, good linearity\u003c\/li\u003e\n \u003cli\u003eEasy to handle: Built-in negative voltage generation module, dual power supply, easy to handle with negative signal\/AC signal\u003c\/li\u003e\n \u003cli\u003eSignal stability: power input LC filter, pure and stable to ensure stable signal amplification\u003c\/li\u003e\n \u003cli\u003eSimplified design: built-in module to generate negative voltage, only a single power supply can achieve double power operation, simplified system design\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T08:36:16+10:00","created_at":"2025-09-27T08:36:12+10:00","vendor":"Youmile","type":"Signal Components","tags":["industryDE_Sep2025"],"price":12800,"price_min":12800,"price_max":12800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45749889990809,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09BTG1Z6W","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Youmile AD623 Voltage Amplifier Module Voltage Amplifier Adjustable Magnification Instrument Amplifier Module with DuPont Cable","public_title":null,"options":["Default Title"],"price":12800,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"JK-YM-166","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B09BTG1Z6W.jpg?v=1775753385","\/\/soundstores.net\/cdn\/shop\/files\/618KWYt_XaL.jpg?v=1758926175","\/\/soundstores.net\/cdn\/shop\/files\/512nd7cB-DL.jpg?v=1758926175","\/\/soundstores.net\/cdn\/shop\/files\/612b99Fht3L.jpg?v=1758926175","\/\/soundstores.net\/cdn\/shop\/files\/615Q-yATwVL.jpg?v=1758926175","\/\/soundstores.net\/cdn\/shop\/files\/618PX51KmGL.jpg?v=1758926175","\/\/soundstores.net\/cdn\/shop\/files\/61bt16rHqqL.jpg?v=1758926175"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B09BTG1Z6W.jpg?v=1775753385","options":["Title"],"media":[{"alt":null,"id":34662528450713,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B09BTG1Z6W.jpg?v=1775753385"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B09BTG1Z6W.jpg?v=1775753385","width":1200},{"alt":null,"id":34662528483481,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/618KWYt_XaL.jpg?v=1758926175"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/618KWYt_XaL.jpg?v=1758926175","width":1200},{"alt":null,"id":34662528516249,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/512nd7cB-DL.jpg?v=1758926175"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/512nd7cB-DL.jpg?v=1758926175","width":1200},{"alt":null,"id":34662528549017,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/612b99Fht3L.jpg?v=1758926175"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/612b99Fht3L.jpg?v=1758926175","width":1200},{"alt":null,"id":34662528581785,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/615Q-yATwVL.jpg?v=1758926175"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/615Q-yATwVL.jpg?v=1758926175","width":1200},{"alt":null,"id":34662528614553,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/618PX51KmGL.jpg?v=1758926175"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/618PX51KmGL.jpg?v=1758926175","width":1200},{"alt":null,"id":34662528647321,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61bt16rHqqL.jpg?v=1758926175"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61bt16rHqqL.jpg?v=1758926175","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eYoumile AD623 Voltage Amplifier Module Voltage Amplifier Adjustable Magnification Instrument Amplifier Module with DuPont Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct description: Specifications: Input range: 0.5VCC(i.e.the voltage\nbetween S+\/S- is less than half of the power supply voltage). Output range: +\n- VCC (rail to rail). Magnification: 2-1000 times (adjustable with\npotentiometer). Power consumption: 150uA (typical)\/650uA (maximum). Power\nsupply: 3-5.5 V. Gain accuracy: 0.35% (G\u0026gt;2) 0.10% (G=2). Input offset voltage:\n100-200uV. Input offset drift: 1UV\/℃. Common mode rejection ratio: 90 dB. Gain\nbandwidth: 800 kHz. PCB size: 4023mm\/1.570.9in Note: The default\nmagnification is 101 times with R3 resistor. If welding potentiometer, it will\nbe adjustable, Aout=(1+100K\/RG)VIN. Please remove R3 resistor when welding\npotentiometer. Package includes: 1 x AD623 millivolt voltage amplifier module.\n2 x 4-pin headers. 1 x 8PIN male and female DuPont cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eApplication: Low power medical equipment, converter interface, thermocouple amplifier, industrial process control, differential amplifier, low power data acquisition.\u003c\/li\u003e\n \u003cli\u003eAdvantages: Dedicated high-end instrument amplifier AD623 core, high precision, good linearity\u003c\/li\u003e\n \u003cli\u003eEasy to handle: Built-in negative voltage generation module, dual power supply, easy to handle with negative signal\/AC signal\u003c\/li\u003e\n \u003cli\u003eSignal stability: power input LC filter, pure and stable to ensure stable signal amplification\u003c\/li\u003e\n \u003cli\u003eSimplified design: built-in module to generate negative voltage, only a single power supply can achieve double power operation, simplified system design\u003c\/li\u003e\n \u003c\/ul\u003e"}
