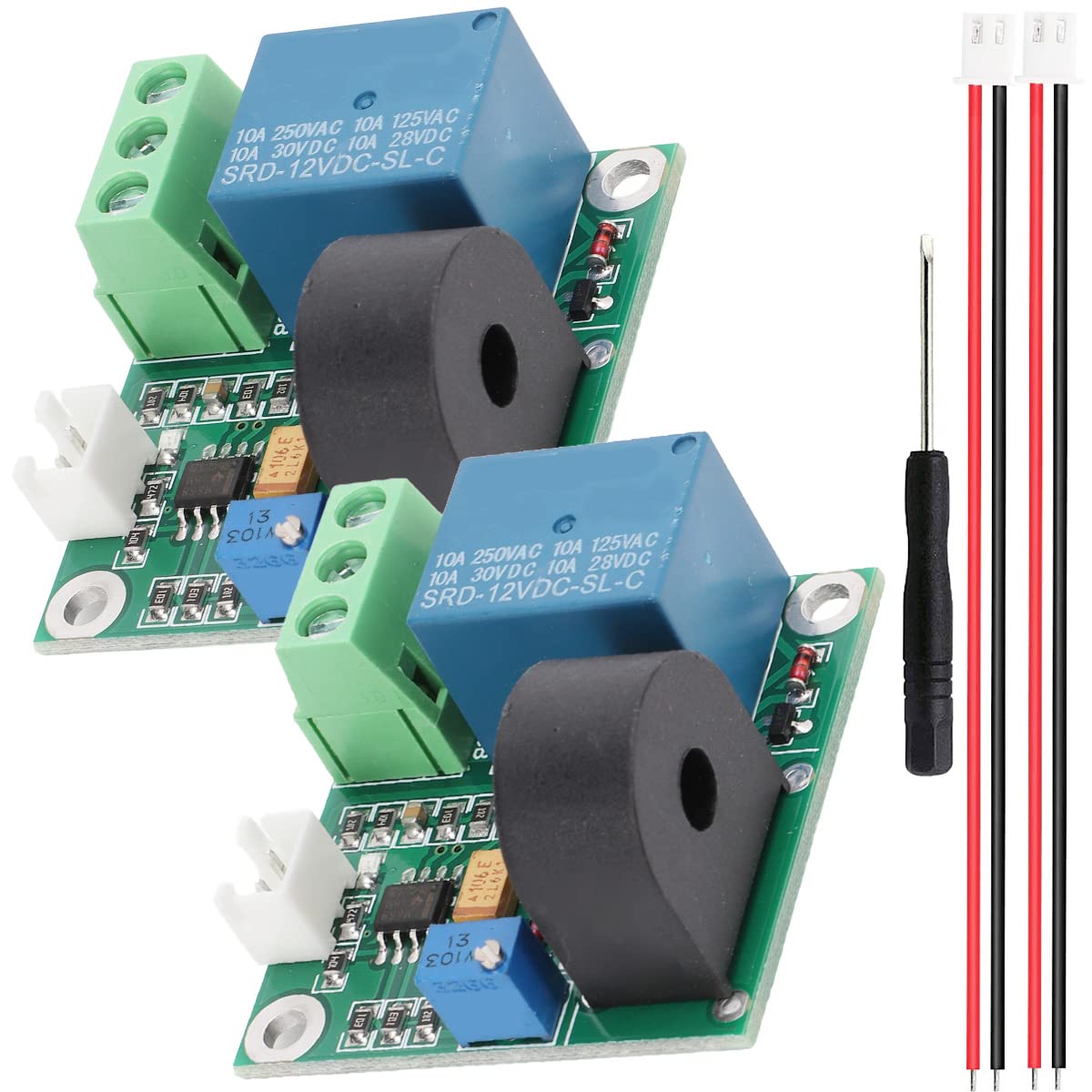

{"id":8534688858265,"title":"Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2","handle":"youmile-current-detection-sensor-ac-current-sensor-module-5v-12v-24v-0-5a-adjustable-relay-protection-module-overcurrent-protection-switching-output-with-screwdriver-12v-pack-of-2","description":"\u003ch3\u003eYoumile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct description: This current detection sensor mainly detects and prevents\nequipment from overcurrent by setting the overcurrent point, so as not to\ncause equipment damage. Specification: Type: Current detection sensor. Current\ndetection range: AC 0.3A-5A. Operating voltage: DC 5 V \/ 12 V \/ 24 V\n(optional). Working current: less than 10mA. Relay load: AC 250V 10A Max, DC\n30V 10A Max. The overcurrent signal setting is adjustable and the resolution\nis set to 0.3A. Induction sensitivity: Potentiometer is adjustable. Operating\nfrequency range: 20Hz-400Hz Output mode: switch signal output Maximum\ndetection wire diameter: 5.2 mm. Mounting hole: hole diameter is 3mm, hole\npitch is 52.5mm Operating environment: -40°C - 85°C. Board size: approx. 38 x\n44 mm \/ 1.5 x 1.7 inches. Board description: VCC: Operating voltage positive;\nGND :Operating voltage negative; NO: Normally open, the relay pulls before the\nNO and COM disconnect, short-circuit after the suction; COM: common, relay\ncommon interface; NC: Normally closed, the relay before the NC and COM short-\ncircuit, after pull off. Package includes: 2 x current detection sensor (12).\n1 x screwdriver\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWhat it does The current detection sensor mainly detects and prevents overcurrents of the device by setting the over-current point to protect your device and avoid device damage.\u003c\/li\u003e\n \u003cli\u003eFeatures: The resolution of current detection can change the parameter of the resistance; output over current switching signal output; the critical point of over-current signal setting is adjustable.\u003c\/li\u003e\n \u003cli\u003eParameters: Working voltage: DC 12V; Working current: less than 10mA; Current detection range: AC 0.3A-5A (potentiometer is adjustable); Maximum detection wire diameter: 5.2mm.\u003c\/li\u003e\n \u003cli\u003eBoard Description: VCC: operating voltage positive; GND: operating voltage negative; NO: normally closed, the relay pulls before the NO and COM disconnection, short circuit after suction; COM: common, common relay interface; NC: normally closed, the relay before the NC and COM short circuit, after unplugging.\u003c\/li\u003e\n \u003cli\u003eApplication: intelligent trolley motor overcurrent detection, motor blocking protection current detection, short circuit protection detection, etc.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-28T14:14:43+10:00","created_at":"2025-09-28T14:14:39+10:00","vendor":"Youmile","type":"Current Sensors","tags":["industryDE_Sep2025"],"price":12300,"price_min":12300,"price_max":12300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45751472750745,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0C3VD933F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2","public_title":null,"options":["Default Title"],"price":12300,"weight":50,"compare_at_price":null,"inventory_management":"shopify","barcode":"JK-YM-646A","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0C3VD933F.jpg?v=1775756281","\/\/soundstores.net\/cdn\/shop\/files\/61wJOdeBHbL.jpg?v=1759032882","\/\/soundstores.net\/cdn\/shop\/files\/61xw_KXvSML.jpg?v=1759032882","\/\/soundstores.net\/cdn\/shop\/files\/61yBN9fDvSL.jpg?v=1759032882","\/\/soundstores.net\/cdn\/shop\/files\/71TeQMvgtnL.jpg?v=1759032882","\/\/soundstores.net\/cdn\/shop\/files\/616PROwvVjL.jpg?v=1759032882","\/\/soundstores.net\/cdn\/shop\/files\/61BNLMwASvL.jpg?v=1759032882"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0C3VD933F.jpg?v=1775756281","options":["Title"],"media":[{"alt":"[AUSTRALIA] - Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2 ","id":34674088280217,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0C3VD933F.jpg?v=1775756281"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0C3VD933F.jpg?v=1775756281","width":1200},{"alt":"[AUSTRALIA] - Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2 ","id":34674088312985,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61wJOdeBHbL.jpg?v=1759032882"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61wJOdeBHbL.jpg?v=1759032882","width":1200},{"alt":"[AUSTRALIA] - Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2 ","id":34674088345753,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61xw_KXvSML.jpg?v=1759032882"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61xw_KXvSML.jpg?v=1759032882","width":1200},{"alt":"[AUSTRALIA] - Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2 ","id":34674088378521,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61yBN9fDvSL.jpg?v=1759032882"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61yBN9fDvSL.jpg?v=1759032882","width":1200},{"alt":"[AUSTRALIA] - Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2 ","id":34674088411289,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/71TeQMvgtnL.jpg?v=1759032882"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/71TeQMvgtnL.jpg?v=1759032882","width":1200},{"alt":"[AUSTRALIA] - Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2 ","id":34674088444057,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/616PROwvVjL.jpg?v=1759032882"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/616PROwvVjL.jpg?v=1759032882","width":1200},{"alt":"[AUSTRALIA] - Youmile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2 ","id":34674088476825,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61BNLMwASvL.jpg?v=1759032882"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61BNLMwASvL.jpg?v=1759032882","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eYoumile Current Detection Sensor AC Current Sensor Module 5V 12V 24V 0-5A Adjustable Relay Protection Module Overcurrent Protection Switching Output with Screwdriver (12V) Pack of 2\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct description: This current detection sensor mainly detects and prevents\nequipment from overcurrent by setting the overcurrent point, so as not to\ncause equipment damage. Specification: Type: Current detection sensor. Current\ndetection range: AC 0.3A-5A. Operating voltage: DC 5 V \/ 12 V \/ 24 V\n(optional). Working current: less than 10mA. Relay load: AC 250V 10A Max, DC\n30V 10A Max. The overcurrent signal setting is adjustable and the resolution\nis set to 0.3A. Induction sensitivity: Potentiometer is adjustable. Operating\nfrequency range: 20Hz-400Hz Output mode: switch signal output Maximum\ndetection wire diameter: 5.2 mm. Mounting hole: hole diameter is 3mm, hole\npitch is 52.5mm Operating environment: -40°C - 85°C. Board size: approx. 38 x\n44 mm \/ 1.5 x 1.7 inches. Board description: VCC: Operating voltage positive;\nGND :Operating voltage negative; NO: Normally open, the relay pulls before the\nNO and COM disconnect, short-circuit after the suction; COM: common, relay\ncommon interface; NC: Normally closed, the relay before the NC and COM short-\ncircuit, after pull off. Package includes: 2 x current detection sensor (12).\n1 x screwdriver\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWhat it does The current detection sensor mainly detects and prevents overcurrents of the device by setting the over-current point to protect your device and avoid device damage.\u003c\/li\u003e\n \u003cli\u003eFeatures: The resolution of current detection can change the parameter of the resistance; output over current switching signal output; the critical point of over-current signal setting is adjustable.\u003c\/li\u003e\n \u003cli\u003eParameters: Working voltage: DC 12V; Working current: less than 10mA; Current detection range: AC 0.3A-5A (potentiometer is adjustable); Maximum detection wire diameter: 5.2mm.\u003c\/li\u003e\n \u003cli\u003eBoard Description: VCC: operating voltage positive; GND: operating voltage negative; NO: normally closed, the relay pulls before the NO and COM disconnection, short circuit after suction; COM: common, common relay interface; NC: normally closed, the relay before the NC and COM short circuit, after unplugging.\u003c\/li\u003e\n \u003cli\u003eApplication: intelligent trolley motor overcurrent detection, motor blocking protection current detection, short circuit protection detection, etc.\u003c\/li\u003e\n \u003c\/ul\u003e"}
