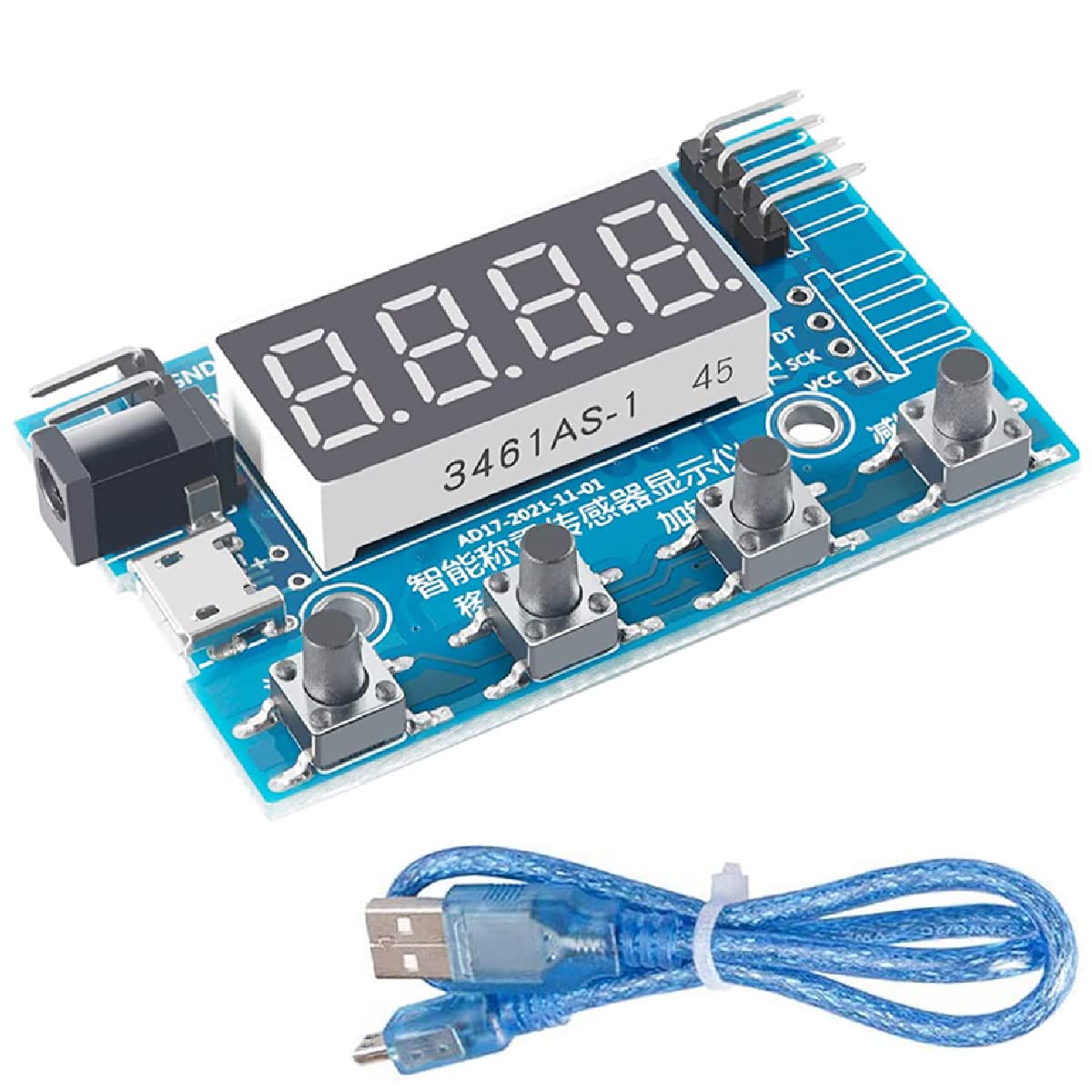

{"id":8532545798297,"title":"Youmile HX711 Digital Load Cell Module A\/D Module Weight Pressure Sensor Display 24 Bit Weighing Device Electronic Scale Display Meter with Micro USB Cable Stand not included","handle":"youmile-hx711-digital-load-cell-module-a-d-module-weight-pressure-sensor-display-24-bit-weighing-device-electronic-scale-display-meter-with-micro-usb-cable-stand-not-included","description":"\u003ch3\u003eYoumile HX711 Digital Load Cell Module A\/D Module Weight Pressure Sensor Display 24 Bit Weighing Device Electronic Scale Display Meter with Micro USB Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct description: Feature: 1.Small size, engineers can carry it with them,\nsupport Micro Android interface power supply 2. HX711 chip can be built on-\nsite for easy debugging 3. Send data regularly or when weight changes. 4.\nMeasurement signal range: ± 19 mV. 5. Temperature coefficient: greater than or\nequal to 100 ppm \/ ℃. 6. A\/D conversion rate: 6.25 ~ 100 Hz. 7.Comprehensive\nprotection function: with multiple protections such as anti-reverse\nconnection, anti-overvoltage, instantaneous suppression, etc. 8. Operating\ntemperature range: -40 °C ~ + 70 °C; storage temperature range: -60 °C ~ + 90\n°C. Function Description: Analog-to-digital conversion, digital calibration,\npeeling, zero setting, anti-shake and other functions. 2. Strong anti-\ninterference ability, strong versatility, small temperature drift, high\nlinearity. Non-volatile storage of characteristic parameters, parameters are\nstill saved after power off; 4. Display: 4 digital tubes (decimal point can be\nset, automatic displacement). 5. Keyboard: 4 keys. 6. Power supply: 5VDC, all\ncopper high-resistant socket 3.5-1.3, power line power supply DC3.5 mm. Size:\n55 × 35 × 12 (length × width × depth mm). 8. A \/ D module acquisition speed:\n0-100 times \/ second optional (default 30). 9. Number of sensors: 4 350Ω load\ncells. Package includes: 1 x HX711 Digital Load Cell Module 1 x micro USB\ncable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eFeatures: the load cell display instrument has the advantages of strong anti-interference ability, powerful function, easy operation, strong versatility, low temperature drift and high linearity\u003c\/li\u003e\n \u003cli\u003eChip: Built-in HX711 chip for easy on-site debugging. Send data regularly or during weight changes\u003c\/li\u003e\n \u003cli\u003eConvenience: Small size, engineers can take it with you, support the micro Android interface for power supply. Suitable for weighing, mechanical strength testing and other measuring occasions\u003c\/li\u003e\n \u003cli\u003eProtection Function: It has multiple protection functions such as reverse polarity protection, surge protection, instant suppression, etc.\u003c\/li\u003e\n \u003cli\u003eDetails: More details can be found at the address\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-26T01:28:00+10:00","created_at":"2025-09-26T01:27:57+10:00","vendor":"Youmile","type":"Pressure Probes \u0026 Sensors","tags":["industryDE_Sep2025"],"price":12800,"price_min":12800,"price_max":12800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45747009454233,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B5GRDDG9","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Youmile HX711 Digital Load Cell Module A\/D Module Weight Pressure Sensor Display 24 Bit Weighing Device Electronic Scale Display Meter with Micro USB Cable Stand not included","public_title":null,"options":["Default Title"],"price":12800,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"JK-YM-490","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/soundstores.net\/cdn\/shop\/files\/de-B0B5GRDDG9.jpg?v=1775751863","\/\/soundstores.net\/cdn\/shop\/files\/61xWK70z9TL.jpg?v=1758814080","\/\/soundstores.net\/cdn\/shop\/files\/711gXquo2nL.jpg?v=1758814080","\/\/soundstores.net\/cdn\/shop\/files\/61Ly04CTVyL.jpg?v=1758814079","\/\/soundstores.net\/cdn\/shop\/files\/61HRP7XKKZL.jpg?v=1758814080","\/\/soundstores.net\/cdn\/shop\/files\/61ieuNbGJ_L.jpg?v=1758814080","\/\/soundstores.net\/cdn\/shop\/files\/61KPde9LsAL.jpg?v=1758814080"],"featured_image":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B5GRDDG9.jpg?v=1775751863","options":["Title"],"media":[{"alt":null,"id":34643015368857,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B5GRDDG9.jpg?v=1775751863"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/de-B0B5GRDDG9.jpg?v=1775751863","width":1200},{"alt":null,"id":34643015401625,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61xWK70z9TL.jpg?v=1758814080"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61xWK70z9TL.jpg?v=1758814080","width":1200},{"alt":null,"id":34643015434393,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/711gXquo2nL.jpg?v=1758814080"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/711gXquo2nL.jpg?v=1758814080","width":1200},{"alt":null,"id":34643015467161,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61Ly04CTVyL.jpg?v=1758814079"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61Ly04CTVyL.jpg?v=1758814079","width":1200},{"alt":null,"id":34643015499929,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61HRP7XKKZL.jpg?v=1758814080"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61HRP7XKKZL.jpg?v=1758814080","width":1200},{"alt":null,"id":34643015532697,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61ieuNbGJ_L.jpg?v=1758814080"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61ieuNbGJ_L.jpg?v=1758814080","width":1200},{"alt":null,"id":34643015565465,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/soundstores.net\/cdn\/shop\/files\/61KPde9LsAL.jpg?v=1758814080"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/soundstores.net\/cdn\/shop\/files\/61KPde9LsAL.jpg?v=1758814080","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eYoumile HX711 Digital Load Cell Module A\/D Module Weight Pressure Sensor Display 24 Bit Weighing Device Electronic Scale Display Meter with Micro USB Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct description: Feature: 1.Small size, engineers can carry it with them,\nsupport Micro Android interface power supply 2. HX711 chip can be built on-\nsite for easy debugging 3. Send data regularly or when weight changes. 4.\nMeasurement signal range: ± 19 mV. 5. Temperature coefficient: greater than or\nequal to 100 ppm \/ ℃. 6. A\/D conversion rate: 6.25 ~ 100 Hz. 7.Comprehensive\nprotection function: with multiple protections such as anti-reverse\nconnection, anti-overvoltage, instantaneous suppression, etc. 8. Operating\ntemperature range: -40 °C ~ + 70 °C; storage temperature range: -60 °C ~ + 90\n°C. Function Description: Analog-to-digital conversion, digital calibration,\npeeling, zero setting, anti-shake and other functions. 2. Strong anti-\ninterference ability, strong versatility, small temperature drift, high\nlinearity. Non-volatile storage of characteristic parameters, parameters are\nstill saved after power off; 4. Display: 4 digital tubes (decimal point can be\nset, automatic displacement). 5. Keyboard: 4 keys. 6. Power supply: 5VDC, all\ncopper high-resistant socket 3.5-1.3, power line power supply DC3.5 mm. Size:\n55 × 35 × 12 (length × width × depth mm). 8. A \/ D module acquisition speed:\n0-100 times \/ second optional (default 30). 9. Number of sensors: 4 350Ω load\ncells. Package includes: 1 x HX711 Digital Load Cell Module 1 x micro USB\ncable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eFeatures: the load cell display instrument has the advantages of strong anti-interference ability, powerful function, easy operation, strong versatility, low temperature drift and high linearity\u003c\/li\u003e\n \u003cli\u003eChip: Built-in HX711 chip for easy on-site debugging. Send data regularly or during weight changes\u003c\/li\u003e\n \u003cli\u003eConvenience: Small size, engineers can take it with you, support the micro Android interface for power supply. Suitable for weighing, mechanical strength testing and other measuring occasions\u003c\/li\u003e\n \u003cli\u003eProtection Function: It has multiple protection functions such as reverse polarity protection, surge protection, instant suppression, etc.\u003c\/li\u003e\n \u003cli\u003eDetails: More details can be found at the address\u003c\/li\u003e\n \u003c\/ul\u003e"}
