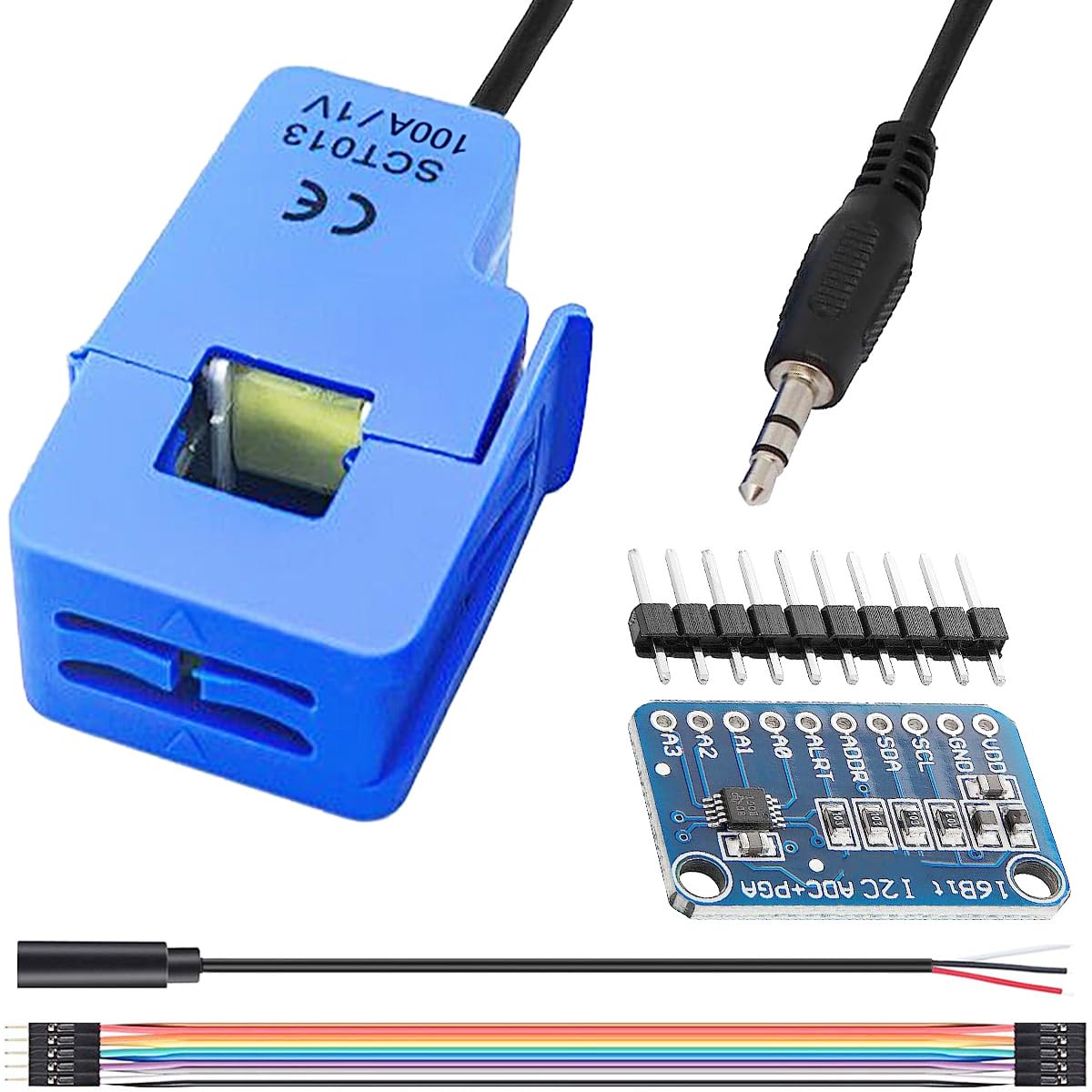

Youmile SCT-013-000 Non-invasive Sensor Split Core Current Transformer 100A/1V AC Current Sensor + ADC Module with Audio Socket Cable Male and Female for Arduino
Youmile SCT-013-000 Non-invasive Sensor Split Core Current Transformer 100A/1V AC Current Sensor + ADC Module with Audio Socket Cable Male and Female for Arduino

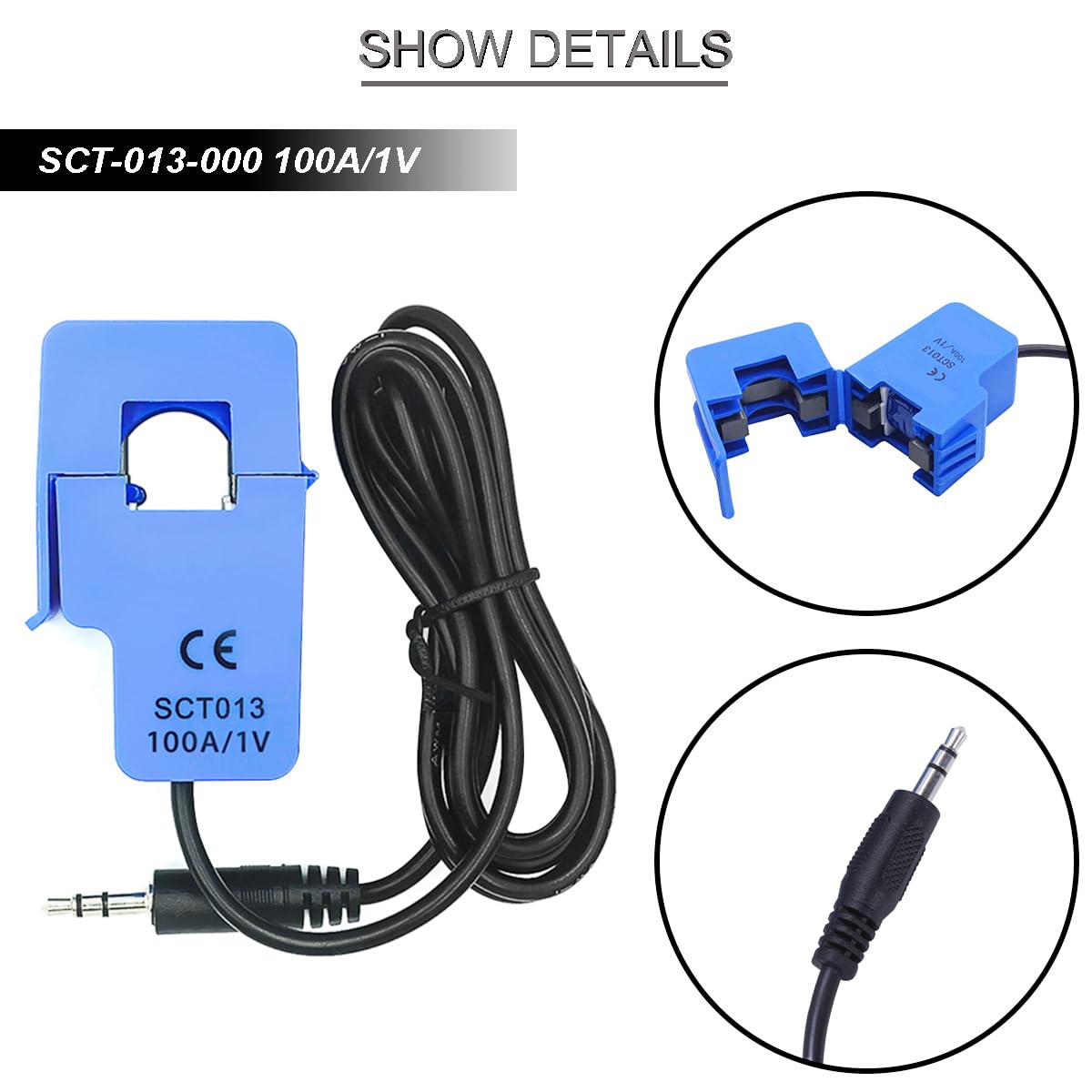

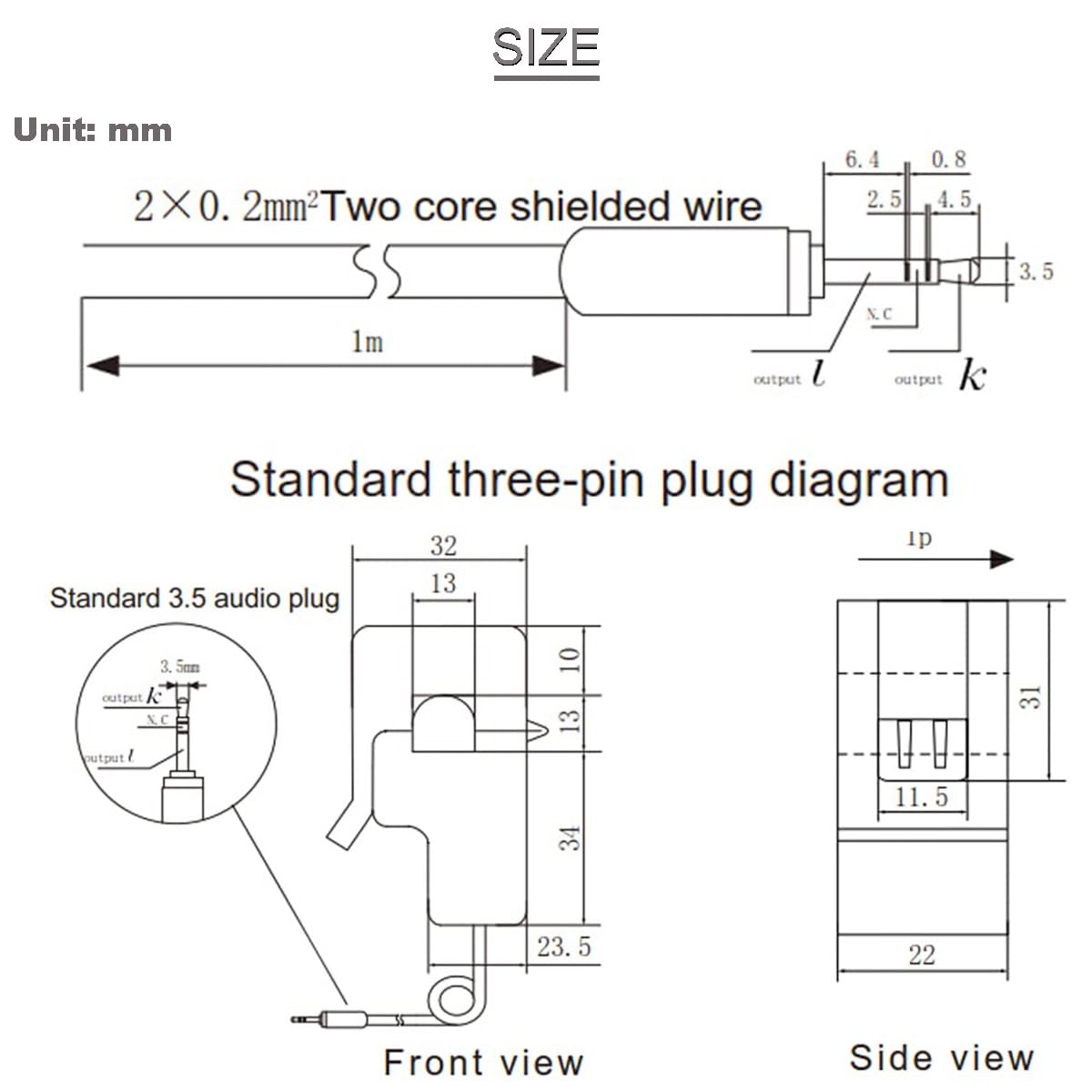

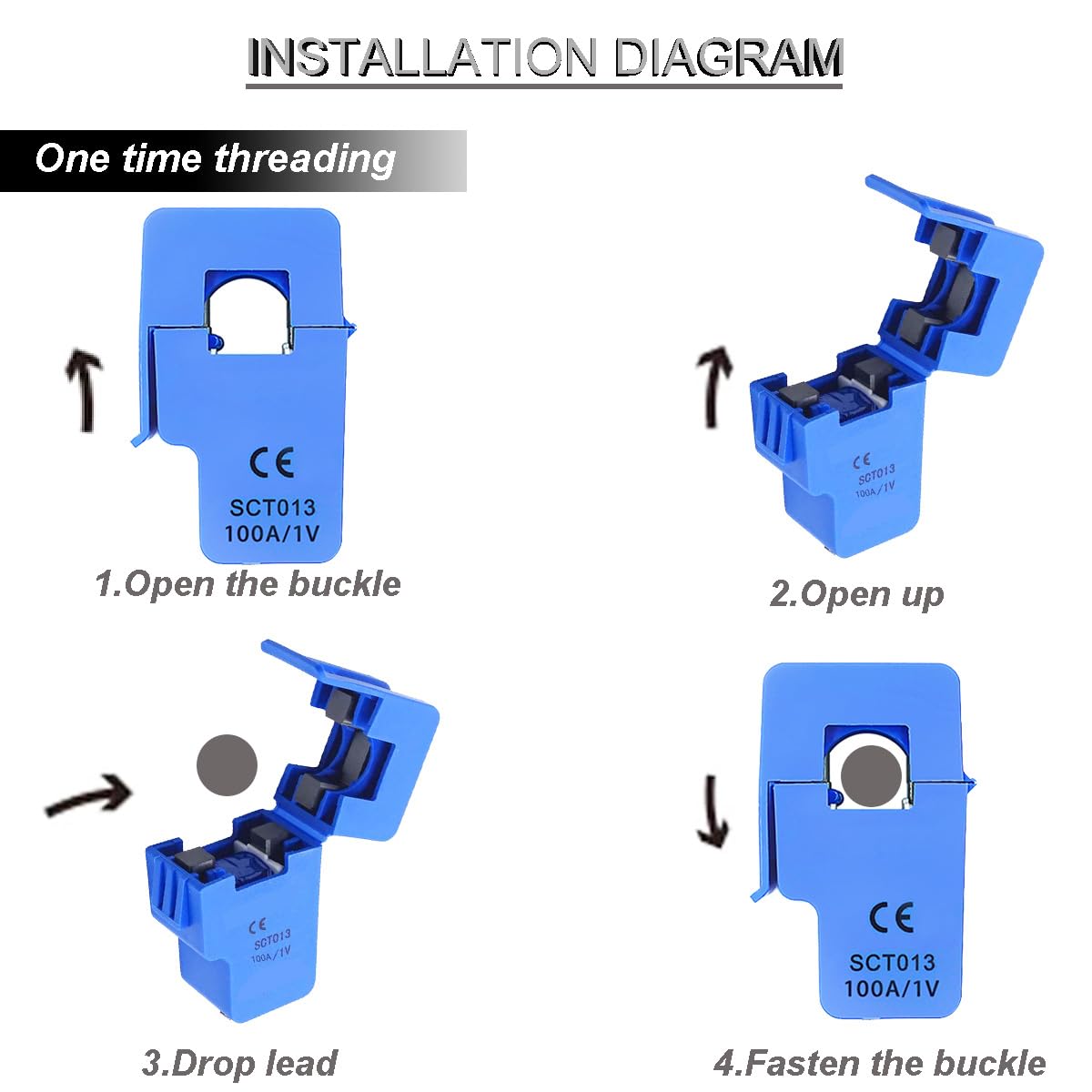

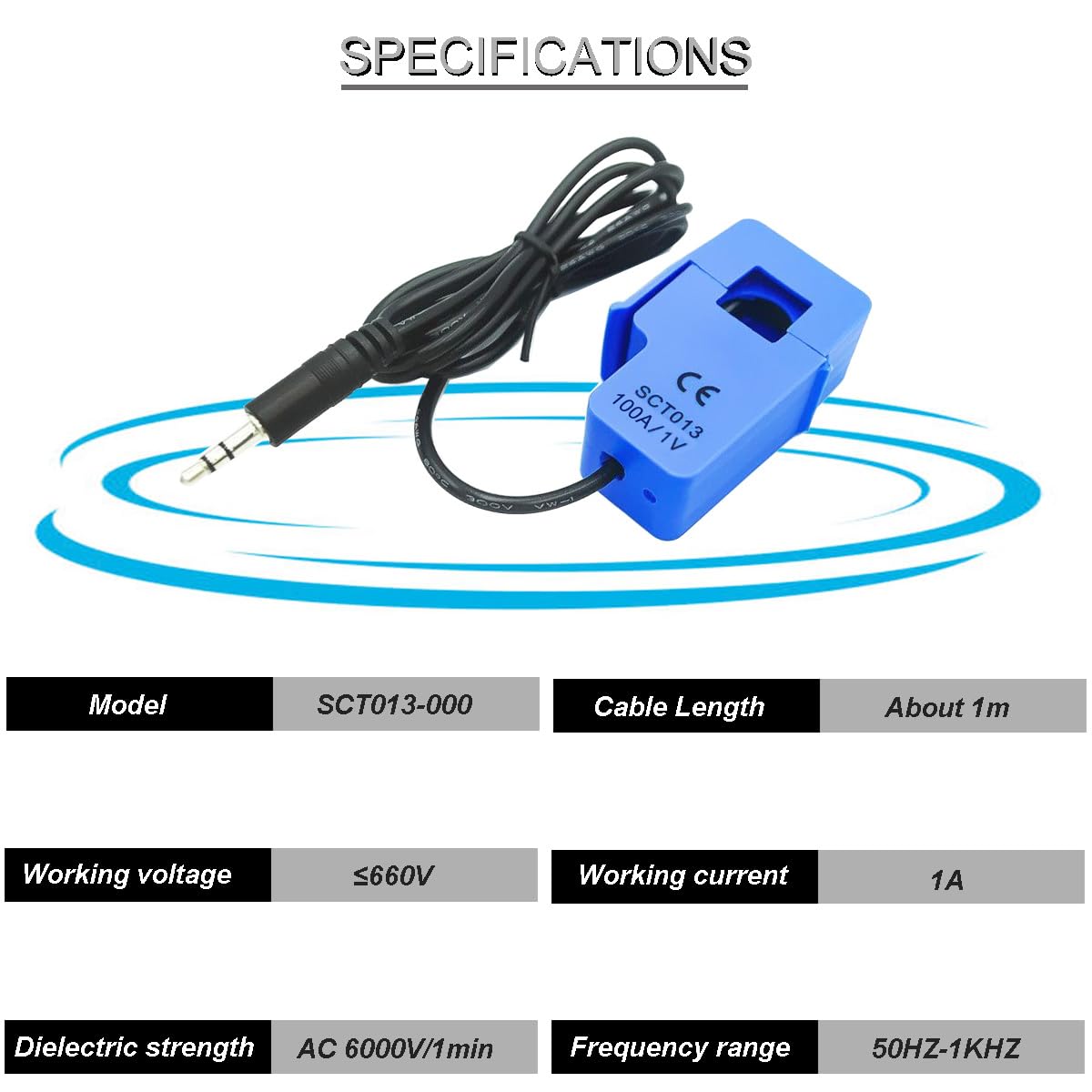

The standard Φ3.5 three-core plug output, the current and voltage two kinds of output.Hanging installation, lead output.For AC motors, lighting equipment, air compressors and other current ,monitoring and protection. Current Transformer Specification: Model: SCT013-000. Material: ferrite. Lead wire length: about 1 m. Opening size: 0.51 x 0.51 inch / 13 x 13 mm. Working temperature: -25℃~+60℃. Storage temperature: -30°C ~ +90°C. Working voltage: less than or equal to 660 V. Frequency range: 50HZ-1KHZ Dielectric strength: 3.5KV 50Hz 1min. Fire resistance property: UL94-V0. Standard: GB1208-2006. Turns Ratio: 1:2000 Max sampling resistance: 10Ω. Linearity: less than or equal to 0.2%. Accuracy: ±1%. Dielectric strength: AC 6000V/1min. Mechanical strength: opening and closing times, no less than 1000 times (20°C). ADC module Specification: Resolution: 16 bits Programmable sample rate: 8 to 860 samples/second. Power supply/logic levels: 2.0V to 5.5V. Low Current Consumption: Continuous Mode: Only 150µA Single-Shot Mode: Auto Shut-Down Internal Low-Drift Voltage Reference Internal Oscillator Internal PGA: up to x16. I2C interface: 4-pin selectable addresses. Four single-ended or 2 differential inputs. Programmable Comparator Package Inlcudes: 1 x SCT-013-000 100A/1V Current Transformer 1 x ADC module. 1 x 10-pin header. 1 x Three-wire core audio female cable. 10 x Male and female cable
Product Features
- WHAT IT DOES:Use this split core current sensor to build your own energy monitor and thus reduce your power consumption, or use it to build an overcurrent protection device for an AC load.
- Safety index: Dielectric strength (between housing and output) 6000V AC/1min Flame retardant properties conform to UL94-V0.
- Specification: Input current: 0-100A AC, Voltage: 1V; Connection cable length: 1m; Two output forms: current output or voltage output (load resistor must be added); Cable jack: 3.5mm (like a headphone jack).
- Wide Applicability: This split current transformer is especially suitable for DIY use and is compatible with Arduino and Raspberry Pi.

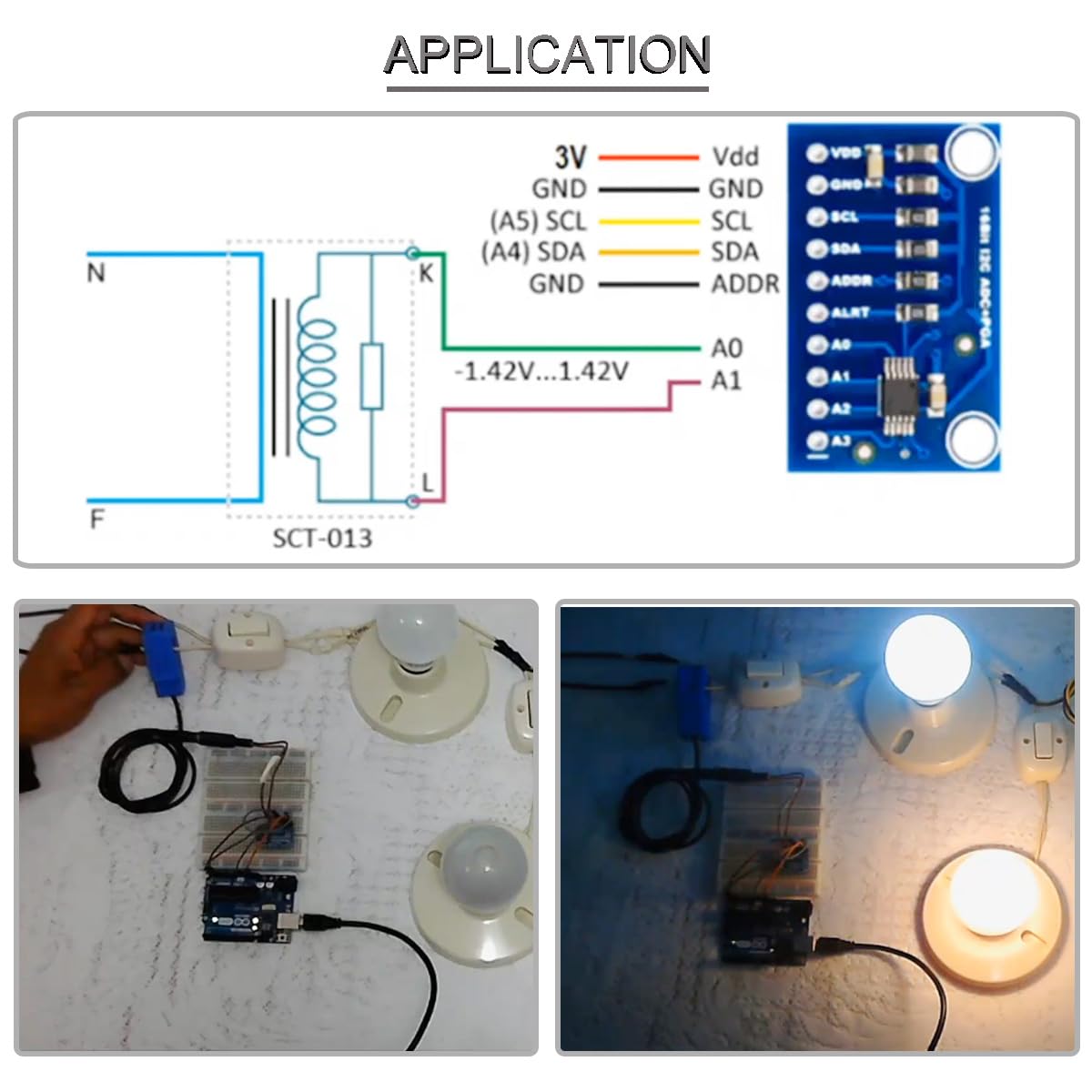

- Application scenario: Used for current measurement, monitoring and protecting AC motors, lighting equipment, air compressors, etc.
